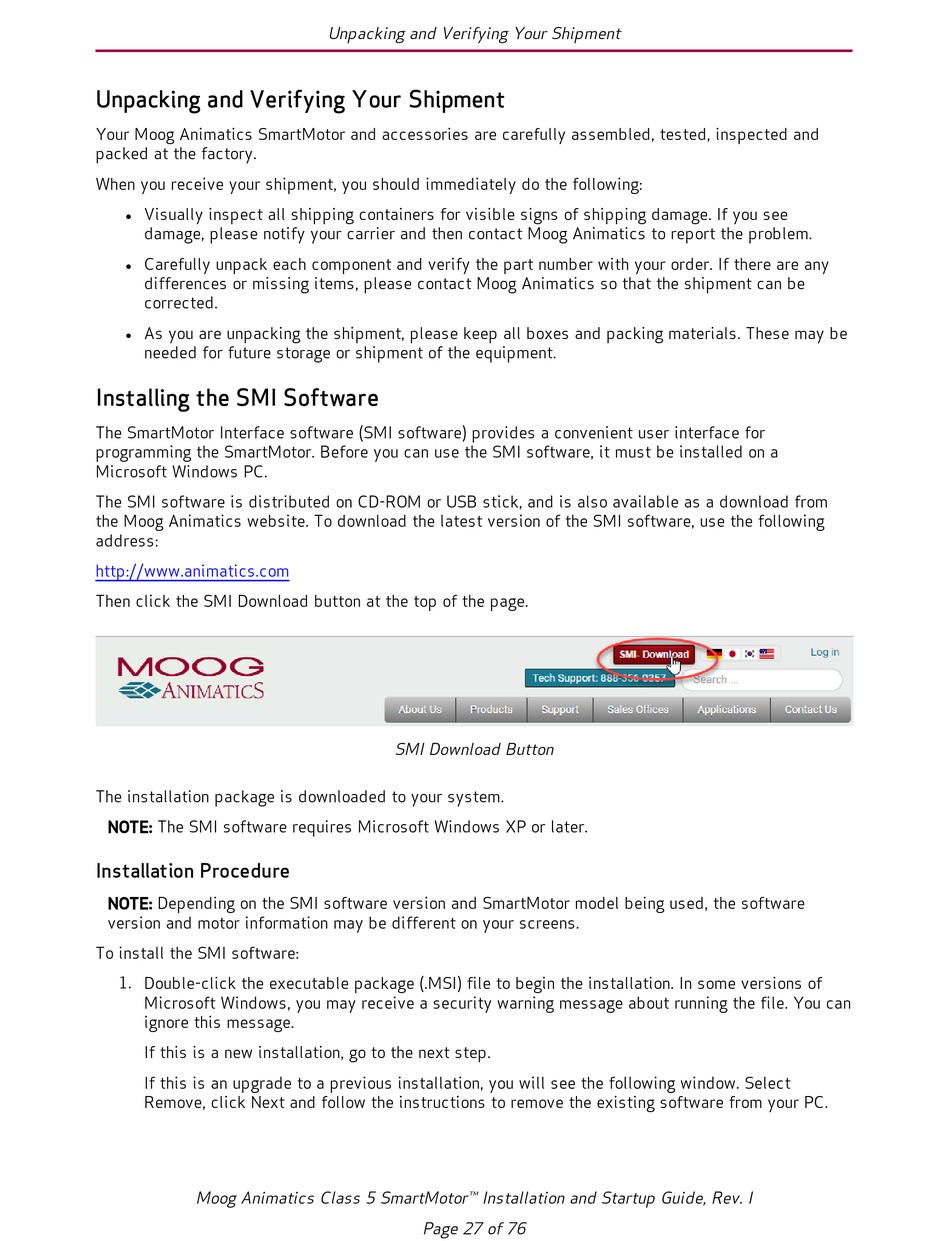

Unpacking and Verifying Your Shipment

Your Moog Animatics SmartMotor and accessories are carefully assembled, tested, inspected and
packed at the factory.
When you receive your shipment, you should immediately do the following:
Visually inspect all shipping containers for visible signs of shipping damage. If you see
l
damage, please notify your carrier and then contact Moog Animatics to report the problem.
Carefully unpack each component and verify the part number with your order. If there are any
l
differences or missing items, please contact Moog Animatics so that the shipment can be
corrected.
As you are unpacking the shipment, please keep all boxes and packing materials. These may be
l
needed for future storage or shipment of the equipment.

Installing the SMI Software

The SmartMotor Interface software (SMI software) provides a convenient user interface for
programming the SmartMotor. Before you can use the SMI software, it must be installed on a
Microsoft Windows PC.
The SMI software is distributed on CD-ROM or USB stick, and is also available as a download from
the Moog Animatics website. To download the latest version of the SMI software, use the following
address:
http://www.animatics.com
Then click the SMI Download button at the top of the page.
The installation package is downloaded to your system.
NOTE: The SMI software requires Microsoft Windows XP or later.

Installation Procedure

NOTE: Depending on the SMI software version and SmartMotor model being used, the software
version and motor information may be different on your screens.
To install the SMI software:
1. Double-click the executable package (.MSI) file to begin the installation. In some versions of
Microsoft Windows, you may receive a security warning message about running the file. You can
ignore this message.
If this is a new installation, go to the next step.
If this is an upgrade to a previous installation, you will see the following window. Select
Remove, click Next and follow the instructions to remove the existing software from your PC.
Moog Animatics Class 5 SmartMotor™ Installation and Startup Guide, Rev. I

Unpacking and Verifying Your Shipment

SMI Download Button
Page 27 of 76
