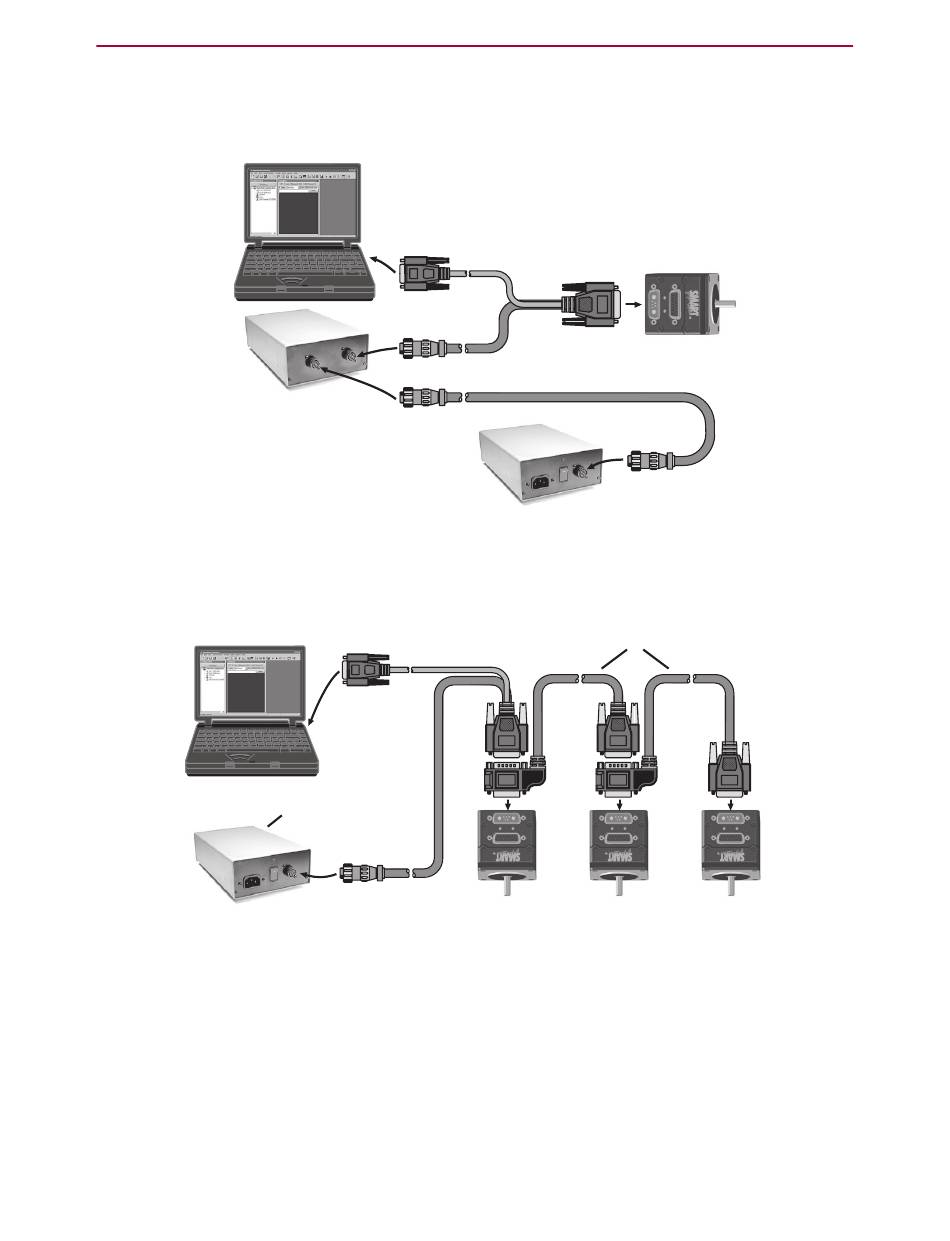

D-Style Motors: RS-232 with Protective Shunt

6. Click OK to save the new settings.

D-Style Motors: RS-232 with Protective Shunt

CBLSM1-xM
CBLDC1
SHUNT42V100W
or SHUNT42V200W
PS24V8AG-110
or PS42V6AG-110

D-Style Motors: RS-232 Multidrop with Add-A-Motor Cables

CBLSM1-xM
CBLSMADD-xM
PS24V8AG-110 or
PS42V6AG-110
Moog Animatics Class 5 SmartMotor™ Installation and Startup Guide, Rev. I
Page 39 of 76
