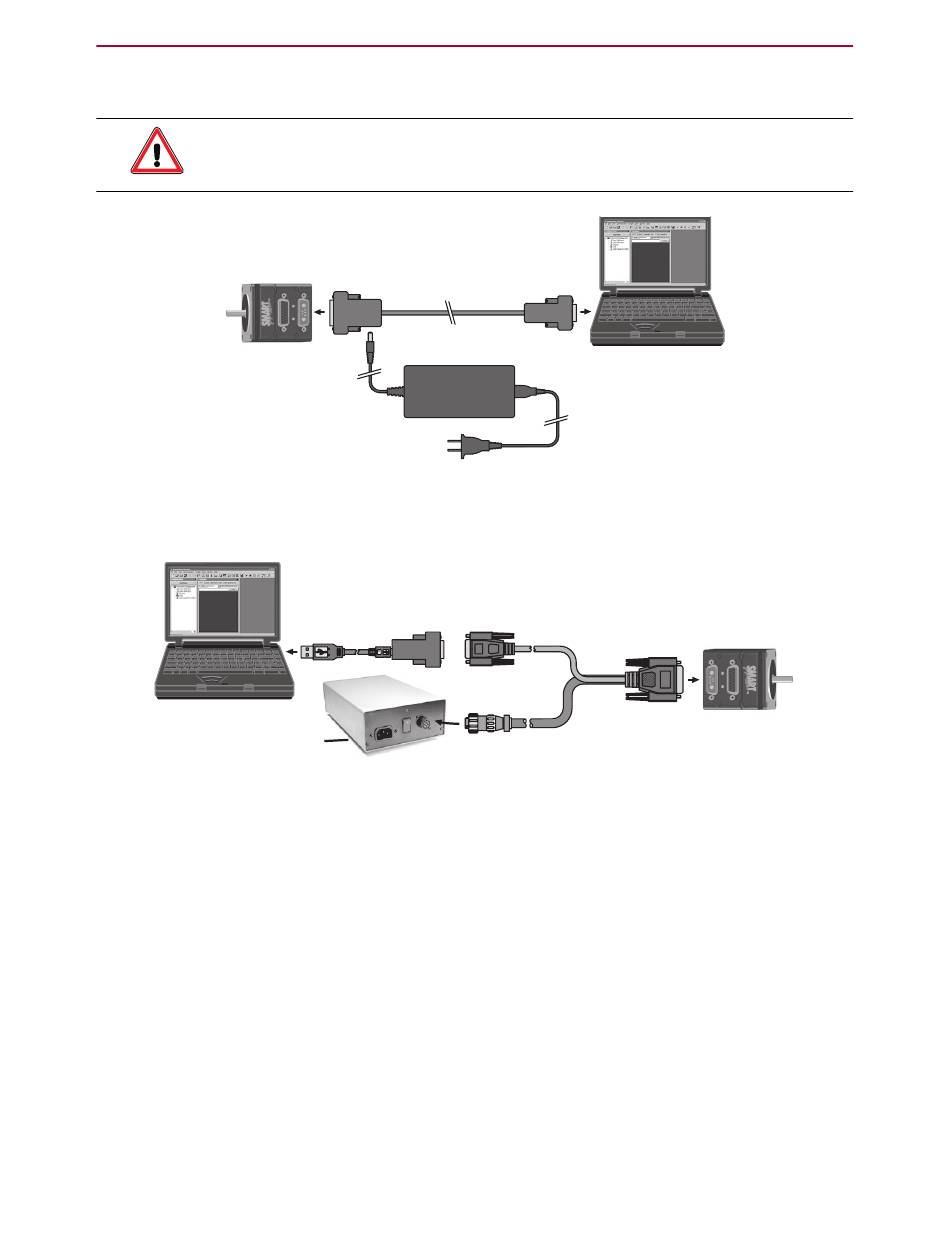

D-Style Motors: Demo or Development System
CAUTION: This configuration is designed for development, training or demo
purposes only. It is not intended for use in an industrial (manufacturing)
environment.
D-Style Motors: RS-232 Through USB
PS24V8AG-110
or PS42V6AG-110
Adding a USB Adapter
Moog Animatics sells a USB to Serial adapter (PN KITUSB232485), which is used on PCs that don't
have a built-in serial port. The adapter allows you to connect from an available USB port to the serial
interface on the SmartMotor. The adapter simply connects between the USB port and the serial cable.
When the adapter is used, it is recommended that you use the Microsoft Windows Device Manager's
Port Settings tab to change the port's communications buffers to minimum. This allows the operating
system to immediately notify the SMI software when data is being received from a SmartMotor.
Otherwise, you may experience intermittent interruptions in communications.
To change the USB port settings:
1. From the Windows Desktop, open the Device Manager by selecting:
Start > Control Panel > Device Manager
Moog Animatics Class 5 SmartMotor™ Installation and Startup Guide, Rev. I
D-Style Motors: Demo or Development System
CBLSM1-DEMO
PWR116V
KITUSB232485
CBLSM1-xM
USB232485
Page 37 of 76
