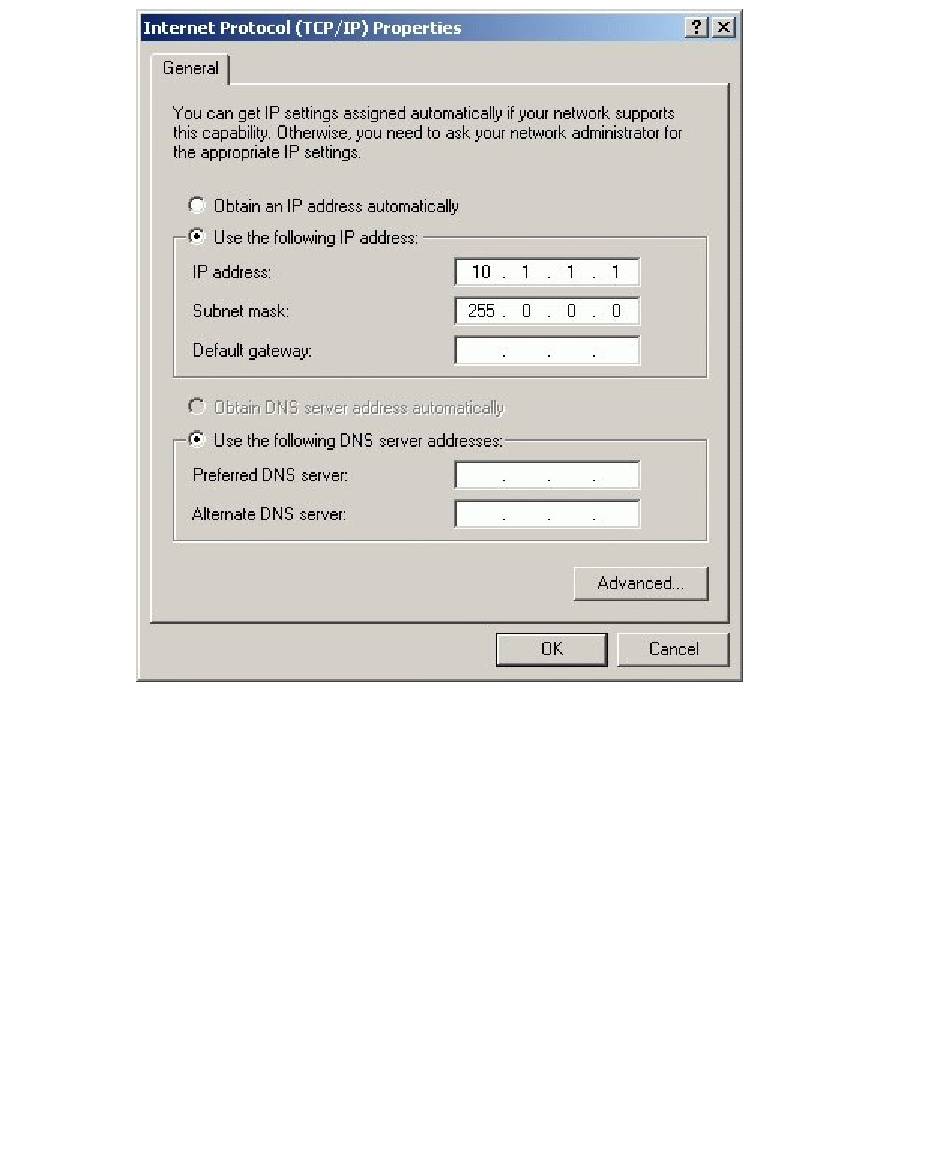

Figure 45 Internet Protocol (TCP/IP) Properties dialog box
6. The Use the following IP address radio button is enabled and the IP
address and Subnet mask fields display network information configured
while performing
7. Type the gateway address obtained from the customer's network administrator
in the Default gateway field.
8. Select (enable) the Use the following DNS server addresses option.
9. Type the DNS server IP address obtained from the customer's network
administrator in the Preferred DNS server field, and then click OK to
apply the changes and close the dialog box.
Click OK to close the Local Area Connection 2 Properties dialog box.
10.
48
Configuration
Configuring appliance password and network addresses.
