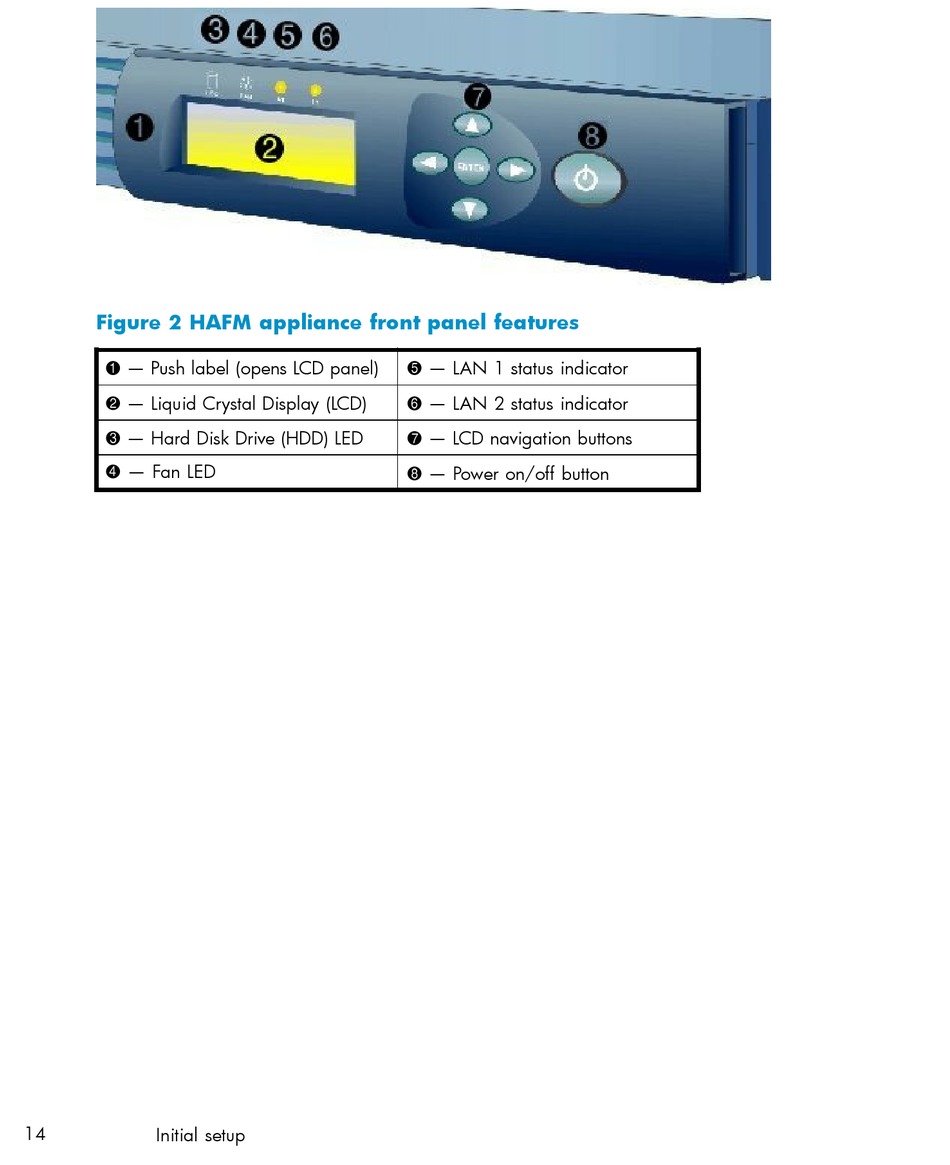

Figure 2 HAFM appliance front panel features
1 — Push label (opens LCD panel)
2 — Liquid Crystal Display (LCD)
3 — Hard Disk Drive (HDD) LED
4 — Fan LED
14
Initial setup
5 — LAN 1 status indicator
6 — LAN 2 status indicator
7 — LCD navigation buttons
8 — Power on/off button
