Configuring Private Lan Addresses - HP StorageWorks HA-Fabric Manager Installation Manual

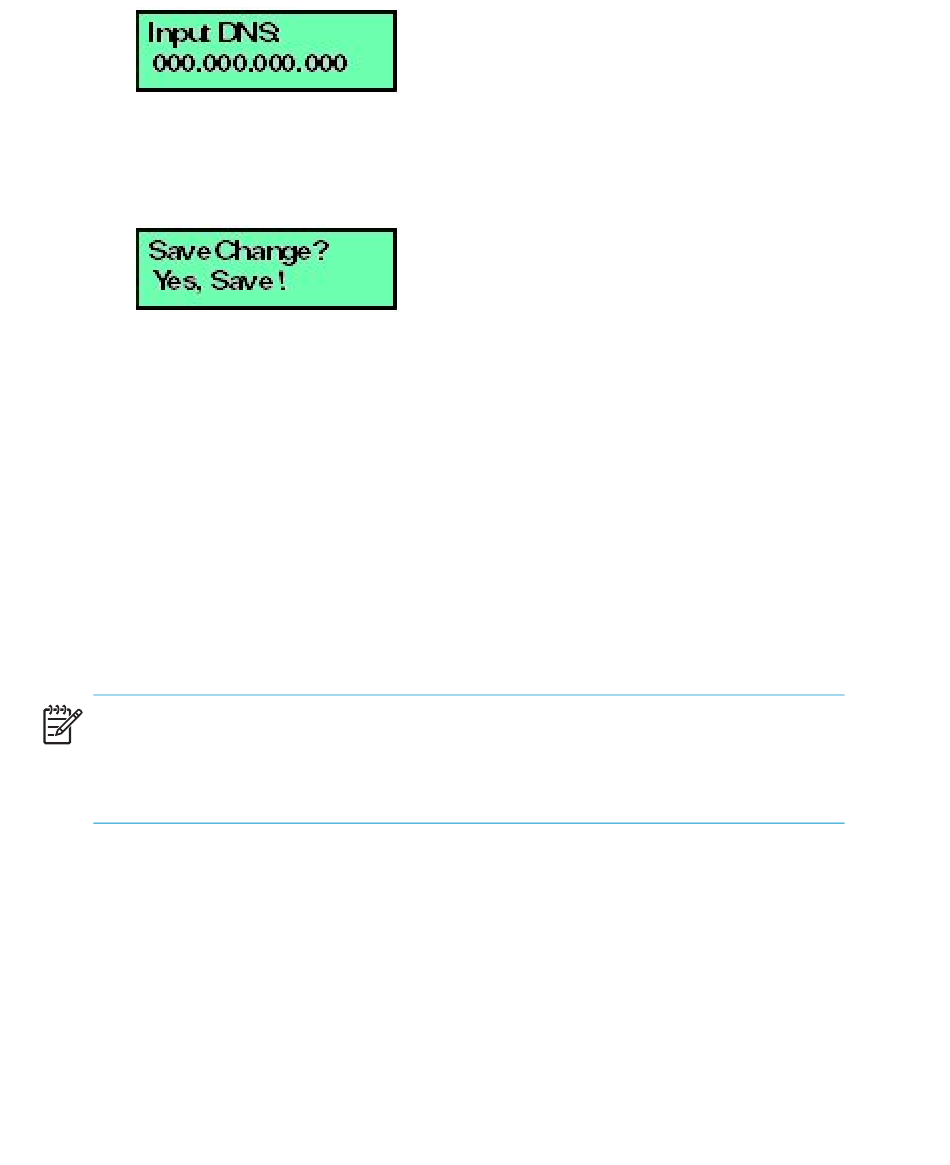

Figure 25 LCD panel (Input DNS)
7. Use the arrow keys as described in step 2 to enter the IP address for the DNS
server, then press ENTER. The following message is displayed
Figure 26 LCD panel (Save Change)
8. Use the up and down arrow keys as described in step 2 to select YES, then
press ENTER. If you saved the changes, a Wait a moment!! message
is displayed at the LCD panel and the LCD panel returns to the LAN 1
Setting?? message.
9. Press the up and down arrow keys until Return?? is displayed, then press
ENTER. The LCD panel returns to scrolling mode, which continually displays
HAFM appliance operational information.
10. Record the private LAN IP address and subnet mask for reference if the HAFM
appliance hard drive fails and must be restored.

Configuring private LAN addresses

NOTE:
Before starting this procedure, ensure that the LAN 2 interface is physically connected
to the LAN. An LCD display of 0.0.0.0 indicates a physical LAN connection is not
present.
You can configure the private LAN connection (LAN 2) using one of the following
methods:
• Use Dynamic Host Control Protocol (DHCP) to assign the HAFM appliance
IP address, subnet mask, and default gateway IP address. You can either
auto-detect or manually select the DNS server IP address.
• Manually enter the HAFM appliance IP address, subnet mask, default gateway
IP address, and DNS server IP address.
36
Configuration
(Figure 26):
