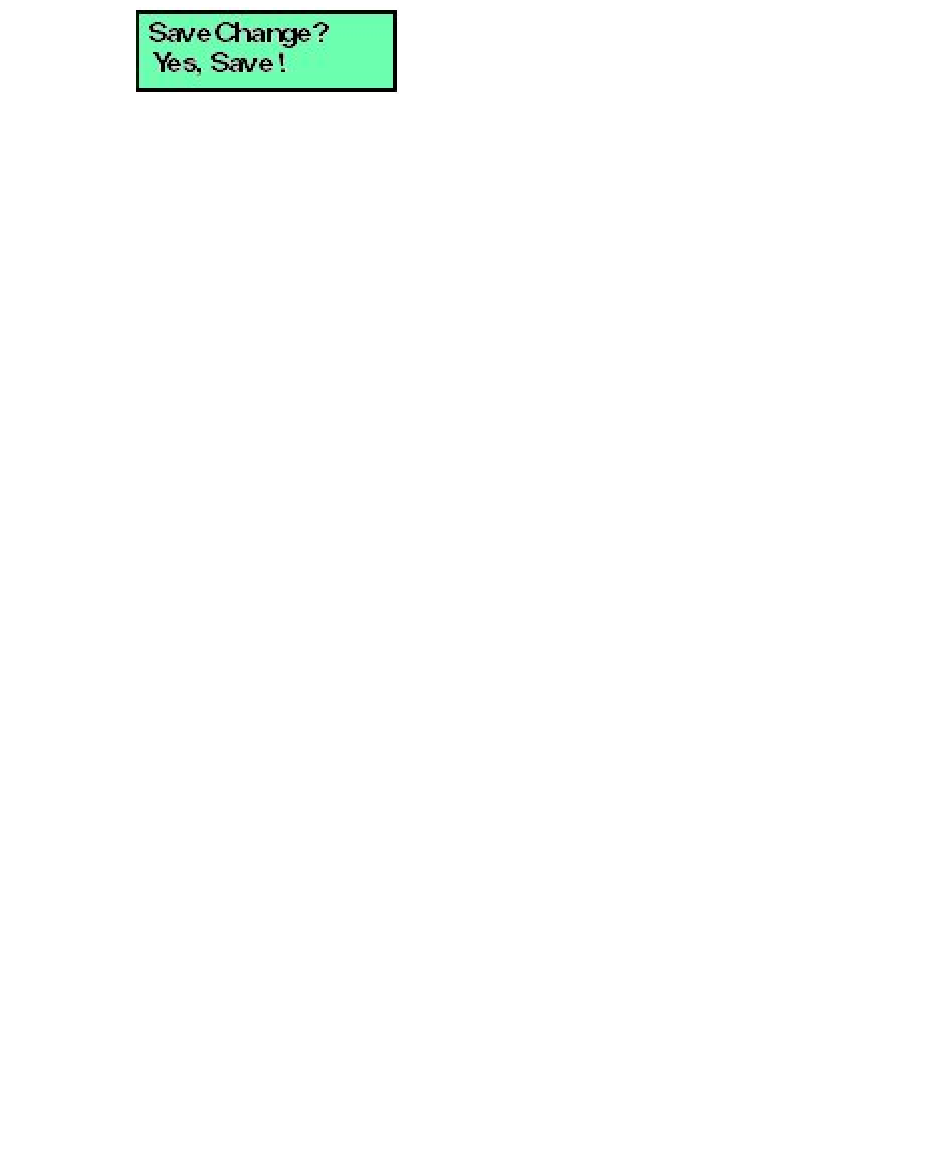

Figure 37 LCD panel (Save Change)
Use the up and down arrow keys as described in step 2 to select YES, then
9.
press ENTER. If you saved the changes, a Wait a moment!! message
is displayed at the LCD panel and the LCD panel returns to the LAN 1
Setting?? message.
10. Press the up and down arrow keys until Return?? is displayed, then press
ENTER. The LCD panel returns to scrolling mode, which continually displays
HAFM appliance operational information.
11. Record the private LAN IP address and subnet mask for reference if the HAFM
appliance hard drive fails and must be restored.

Configuring additional HAFM appliance information

Configure a computer name and workgroup name for the HAFM appliance. If required,
change the HAFM appliance's gateway addresses and domain name system (DNS)
HAFM appliance IP addresses to conform to the customer's LAN addressing scheme.
The gateway addresses are the addresses of the local router for the corporate intranet.
Configure these parameters from the HAFM appliance's Windows 2000 operating
system, using a LAN- attached PC with standard web browser.

Accessing the HAFM appliance desktop

To login and access the HAFM appliance desktop:
1. Ensure the HAFM appliance and a browser-capable PC are connected
through an Ethernet LAN segment. At the PC, launch the browser application
(Netscape Navigator or Internet Explorer).
2. At the PC browser, enter the IP address of the HAFM appliance for the LAN
to which the PC is connected (LAN 1 or LAN 2), followed by :5800, as the
Internet uniform resource locator (URL). Enter the URL in the following format:
http://xxx.xxx.xxx.xxx:5800
Where xxx.xxx.xxx.xxx is the default IP address or the IP address configured
while performing
The VNC Authentication screen is displayed
40
Configuration
Configuring appliance password and network addresses.
(Figure 38).
