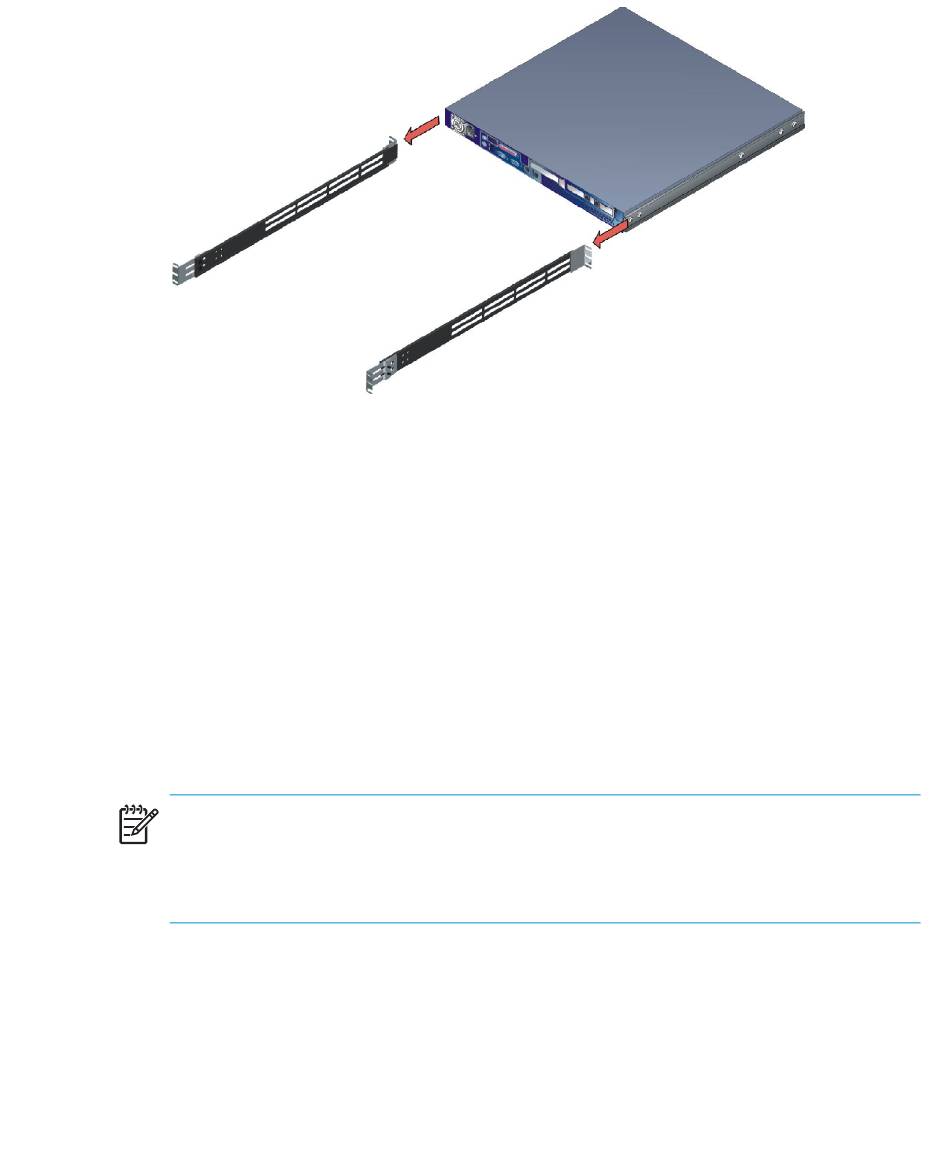

Figure 9 Appliance installation
3. Using a #2 Phillips screwdriver, securely tighten the bar nut screws (four per
assembly, eight total) that connect the bracket assemblies to the rack-mounting
standards.
4. Install one hexagonal-nut standoff per side (two total) to prevent the HAFM
appliance from moving. At the front of the HAFM appliance as shown in
Figure 10, screw a standoff through the remaining (center) hole where each
three-hole bar nut attaches to the rack-mounting standard. Secure each standoff
with a 5/16 open-end wrench.
NOTE:
If you are installing the server in an HP 9000, 10000, or 11000 series rack you
will also need to install a square alignment washer with each hexagonal-nut
standoff.
5. As shown in Figure
(#10 x 1/2) to secure the HAFM appliance rack-mount ears (factory-installed
on the HAFM appliance) to the hexagonal-nut standoffs. Secure the screws
with a #2 Phillips screwdriver.
HP StorageWorks HA-Fabric Manager Appliance installation guide FW07.00.00/HAFM
10, use the two (2) remaining pan-head Phillips screws
SW 08.06.00
