Front And Rear Bracket Assembly - HP StorageWorks HA-Fabric Manager Installation Manual

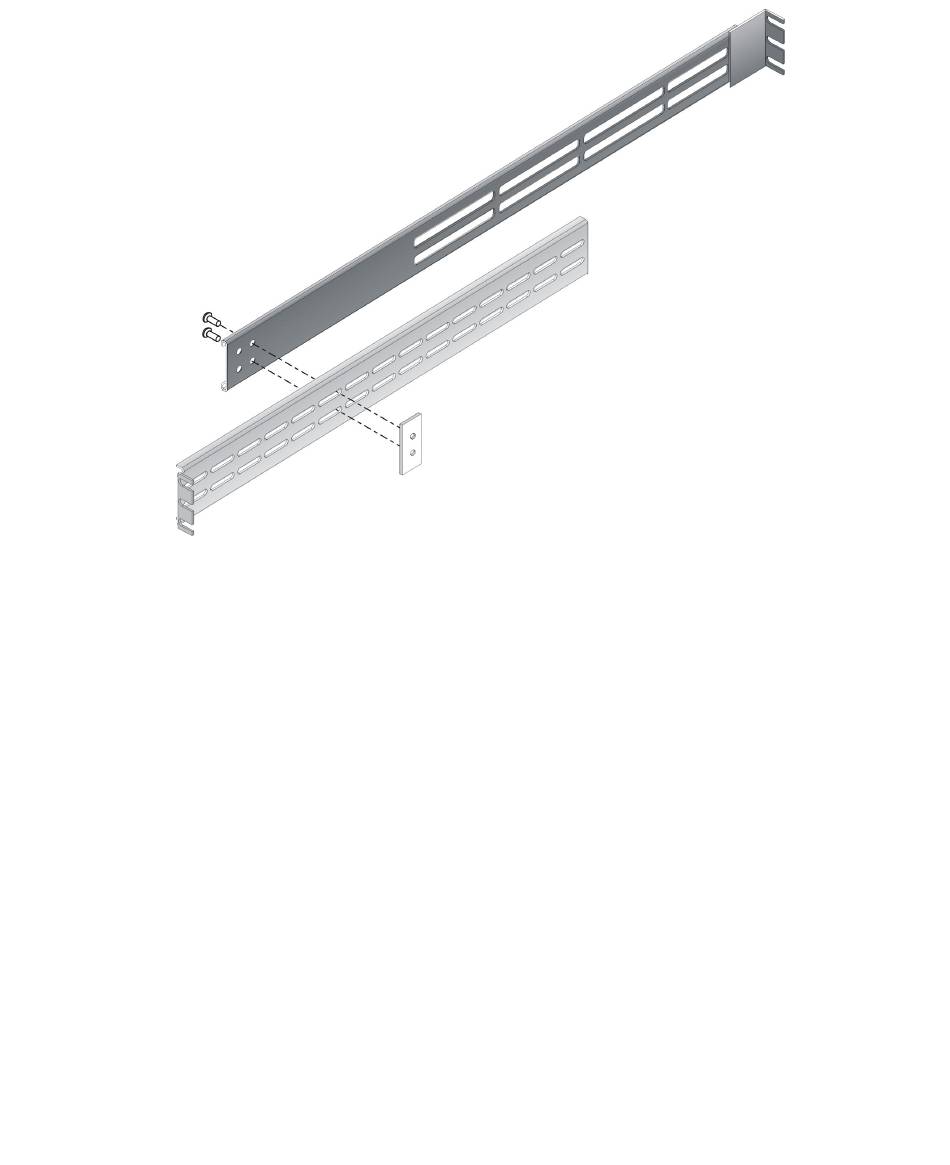

Figure 6 Front and rear bracket assembly
b. Partially tighten each screw so that the assembly is held together but not
completely secure. This allows for slight adjustment of the bracket length
during installation in the cabinet.
c. Ensure the left and right bracket assembly lengths are equal to the cabinet
depths recorded in step 2.
5. Attach each bracket assembly to the rack-mounting standards as shown in
Figure 7. If the HAFM appliance mounts through the front of the cabinet,
ensure the front bracket portion of the assembly faces the cabinet front.
