1. As shown in Figure
and to a facility power source or rack power strip that provides single-phase,
90 to 264 VAC current.
When the power cord is connected, the HAFM appliance powers on and
performs power-on self-tests (POSTs). During POSTs:
a. The green liquid crystal display (LCD) panel illuminates.
b. The green hard disk drive (HDD) LED blinks momentarily, and processor
speed and random-access memory information display momentarily at
the LCD panel.
c. After a few seconds, the LCD panel displays the following message
pertaining to boot sequence selection

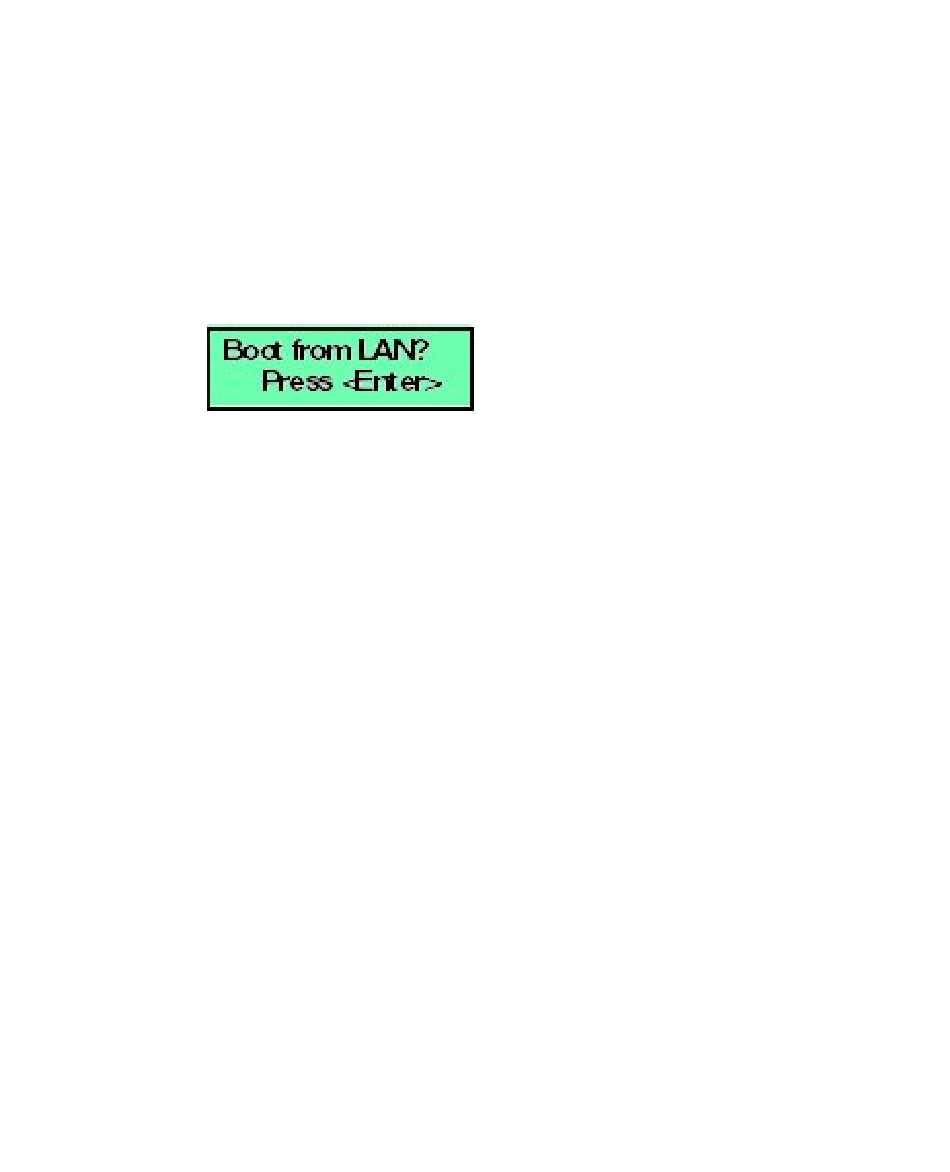

Figure 12 LCD panel during boot sequence
d. Ignore the message. After ten seconds, the HAFM appliance performs the
boot sequence from the basic input/output system (BIOS). During the boot
sequence, the HAFM appliance performs additional POSTs and displays
the following operational information at the LCD panel:
• Host name.
• System date and time.
• LAN 1 and LAN 2 Internet Protocol (IP) addresses.
• Rotational speed status on multiple HAFM appliance fans.
• Central Processing Unit (CPU) Temp
• Hard disk capacity
• Virtual and physical memory capacity
After successful boot and POST completion, the LCD panel displays a
Welcome!! message.
2. Press the left edge (PUSH label) of the LCD panel to disengage the panel
and expose the CD-RW drive.
3. Insert a blank rewritable CD into the CD-RW drive and close the LCD panel.
HP StorageWorks HA-Fabric Manager Appliance installation guide FW07.00.00/HAFM
11, connect the AC power cord to the HAFM appliance
(Figure 12):
SW 08.06.00
29
