Powering On The Hafm Appliance; Hafm Appliance Connections - HP StorageWorks HA-Fabric Manager Installation Manual

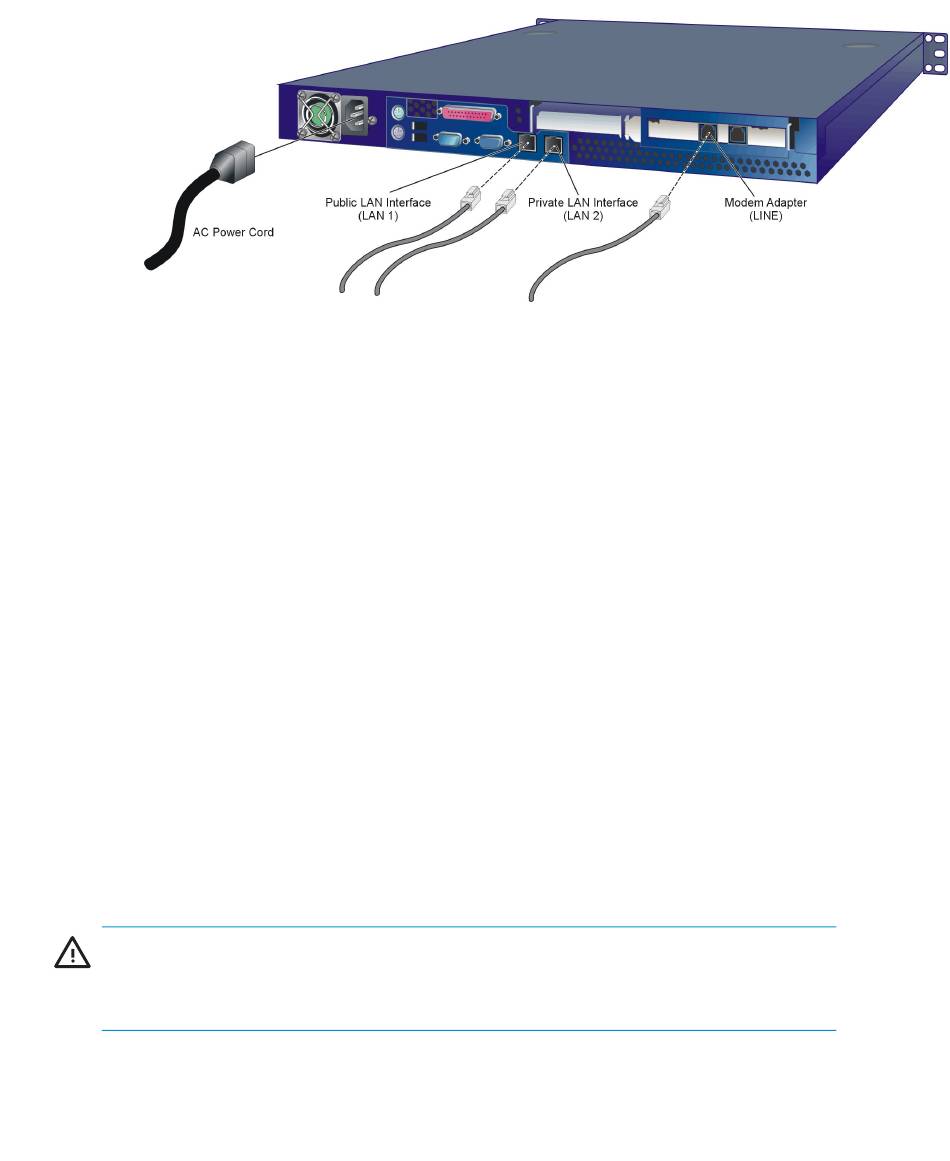

Figure 11 HAFM appliance connections
2. If required, connect the HAFM appliance to the customer-supplied Ethernet
LAN segment or HP-supplied Ethernet hub (private LAN interface). To connect
the HAFM appliance:
a. As shown in
(supplied with the HAFM appliance) to the right RJ-45 adapter (LAN 2) at
the rear of the HAFM appliance.
b. Connect the remaining end of the Ethernet cable to the LAN as follows:
• If the HAFM appliance is installed on a customer-supplied LAN
• If the HAFM appliance is installed on the HP-supplied Ethernet hub,
3. As shown in
at the rear of the HAFM appliance and to a facility telephone connection.

Powering on the HAFM appliance

To power on the HAFM appliance:
WARNING!
Use the supplied power cords. Ensure the facility power receptacle is the correct type,
supplies the required voltage, and is properly grounded.
28
Installation
Figure 11, connect one end of the Ethernet patch cable
segment, connect the cable to the LAN as directed by the customer's
network administrator.
connect the cable to any available hub port.
Figure 11, connect the phone cord to the left RJ-11 adapter (LINE)
