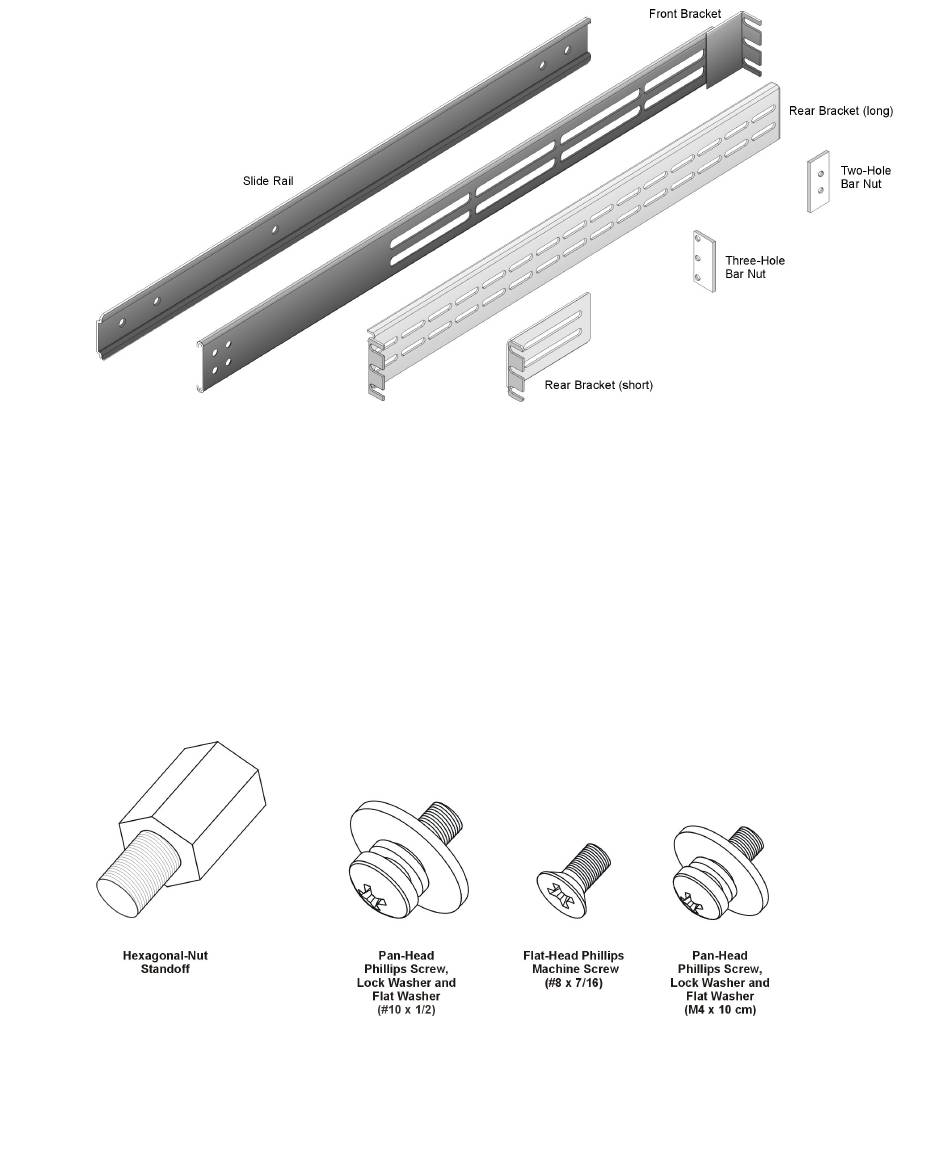

Figure 3 Mounting brackets, slide rails, and bar nuts
• Mounting screws:
• Ten (10) pan-head Phillips screws (#10 x 1/2) with split lock and flat washers
that secure the bracket assemblies to the vertical rack-mounting standards.
• Ten (10) pan-head Phillips screws (M4 x 10 centimeter) with split lock and
flat washers that secure the slide rails to the HAFM appliance.
• Four (4) flat-head Phillips machine screws (#8 x 7/16) that secure the
two-hole bar nuts, front brackets, and rear brackets.
• Two (2) hexagonal-nut standoffs.
Figure 4 illustrates the standoff and mounting screws.
Figure 4 Hexagonal-Nut standoff and mounting screws
