Configuring Gateway And Dns Server Addresses - HP StorageWorks HA-Fabric Manager Installation Manual

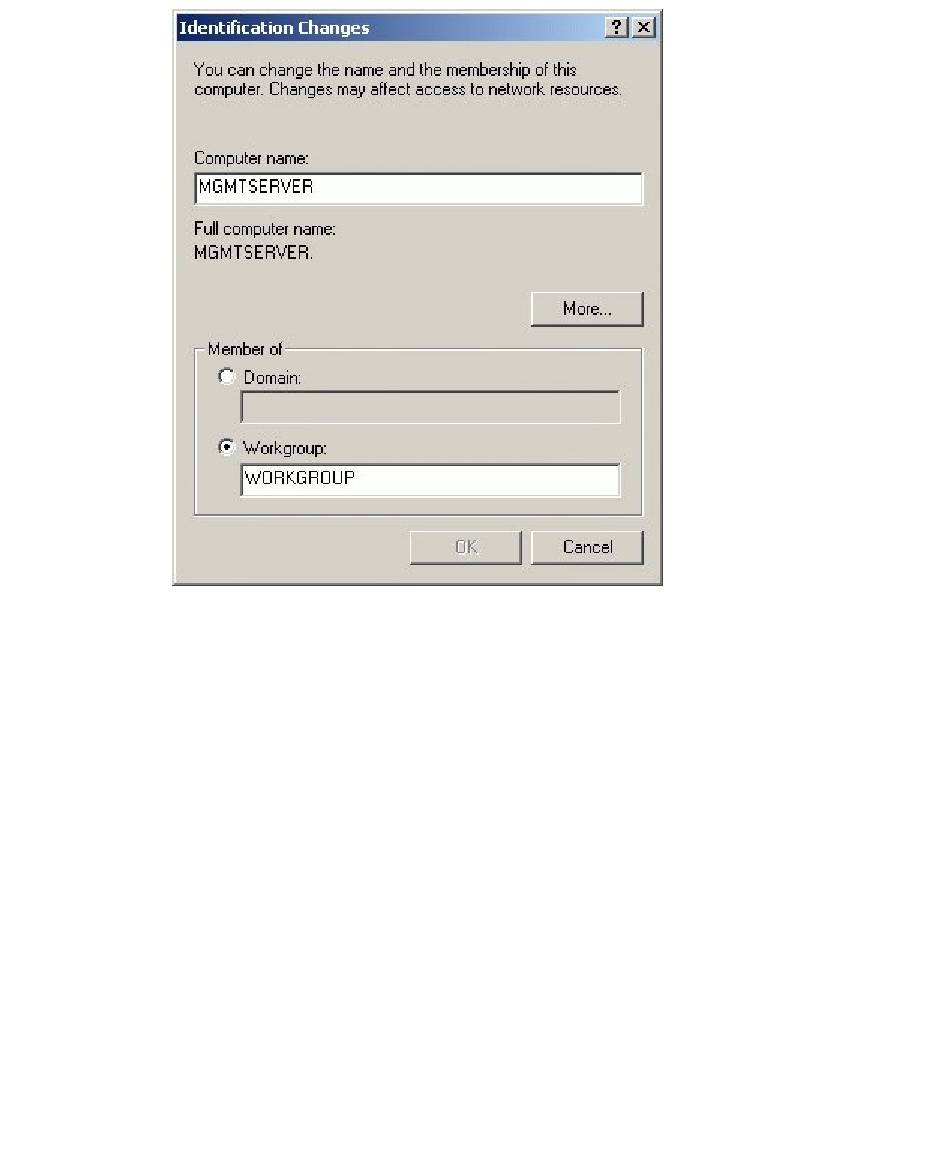

Figure 42 Identification Changes dialog box
Change the name to MGMTSERVERin the Computer Name field.
5.
6. Change the name to WORKGROUPin the Workgroup field, and then click
OK. The dialog box closes.
7. Record the computer and workgroup names for reference if the HAFM
appliance hard drive fails and must be restored.
Click OK at the System Properties dialog box to close the dialog box and
8.
return to the Control Panel window.
9. Click (X) at the upper right corner of the Control Panel window to return to
the Windows 2000 desktop.

Configuring gateway and DNS server addresses

To configure gateway addresses and DNS server IP addresses for the private LAN
connection (LAN 2) and public LAN connection (LAN 1):
Click Start > Settings > Control Panel at the Windows 2000 desktop.
1.
The Control Panel window is displayed.
HP StorageWorks HA-Fabric Manager Appliance installation guide FW07.00.00/HAFM
SW 08.06.00
45
