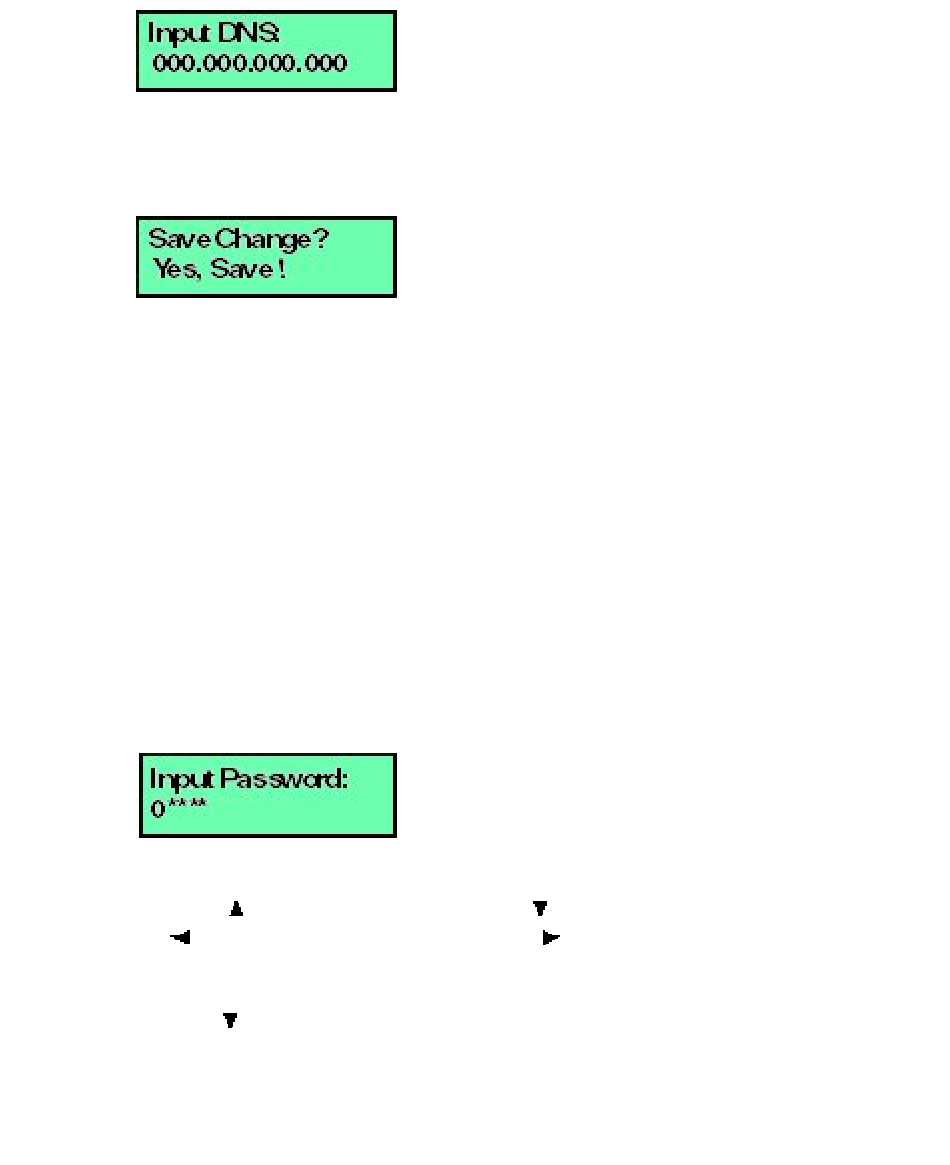

Figure 30 LCD panel (Input DNS)
7. Use the arrow keys as described in step 2 to enter the IP address for the DNS
server, then press ENTER. The following message is displayed
Figure 31 LCD panel (Save Change)
Use the up and down arrow keys as described in step 2 to select YES, then
8.
press ENTER. If you saved the changes, a Wait a moment!! message
is displayed at the LCD panel and the LCD panel returns to the LAN 1
Setting?? message.
9. Press the up and down arrow keys until Return?? is displayed, then press
ENTER. The LCD panel returns to scrolling mode, which continually displays
HAFM appliance operational information.
10. Record the private LAN IP address and subnet mask for reference if the HAFM
appliance hard drive fails and must be restored.

Manually configuring private LAN addresses

To configure TCP/IP network information for the private LAN connection (LAN 2):
At the LCD panel, press ENTER. The Welcome!! or operational information
1.
message changes to the following
Figure 32 LCD panel (Input Password)
2. Using the
the
right, input the default password (9999), then press ENTER. The LAN 1
Setting?? message is displayed at the LCD panel.
3. Press the
the LCD panel.
38
Configuration
button to increment a digit, the
button to move the cursor left, and the
button until the LAN 2 Setting?? message is displayed at
(Figure 32):
button to decrement a digit,
button to move the cursor
(Figure 31):
