Pushbuttons
The following push buttons are available:
• List Entries: This new feature allows the user to control the information displayed.
Relevant only lists items applicable to the current version only. All lists all possible items
so that relates made on previous versions may be removed.
• Exit: Closes the Internal Circuits Window and returns to the Panel Window.
• Reset: Clears all relates associated with the current internal circuit.
• Relate: Opens the Relate Window for the internal circuit. This allows for the programming
of outputs, LEDs, relays and control modules to be operated by the internal circuit.
• Copy Relates: Copies the relates from another input to the current internal circuit (see
Figure 22). The values of the panel and circuit are required. Press Copy to copy the
information. If the function type of the two circuits is different, a requester is presented to
confirm the copy.
• Map: Displays and/or updates the Map Window. See section 2.8 Map Window of the
Mircom Programming Interface Database Editor.
• Verify List: Displays the Verify List. If there is no Verify List, a requester will appear asking
whether you wish to perform a verification. See section 2.6.5 of the Mircom Programming
Interface Database Editor for a full description of the Verify List and its uses.

2.12 Relate Window

Overview
The Relate Window (see Figure 24) allows for the relating of inputs, switches and groups to
outputs, LEDs, relays, etc. These relationships are used by the panel to determine which outputs
to operate for alarm and trouble states. Inputs can operate bells/strobes, LEDs, relays, control
modules on any panel in the system. Switches can operate relays, LEDs, control modules on any
panel in the system and control the day/night sensitivity change of any addressable detector on
any panel. The title bar describes the current input point/switch/group and current output panel or
annunciator.

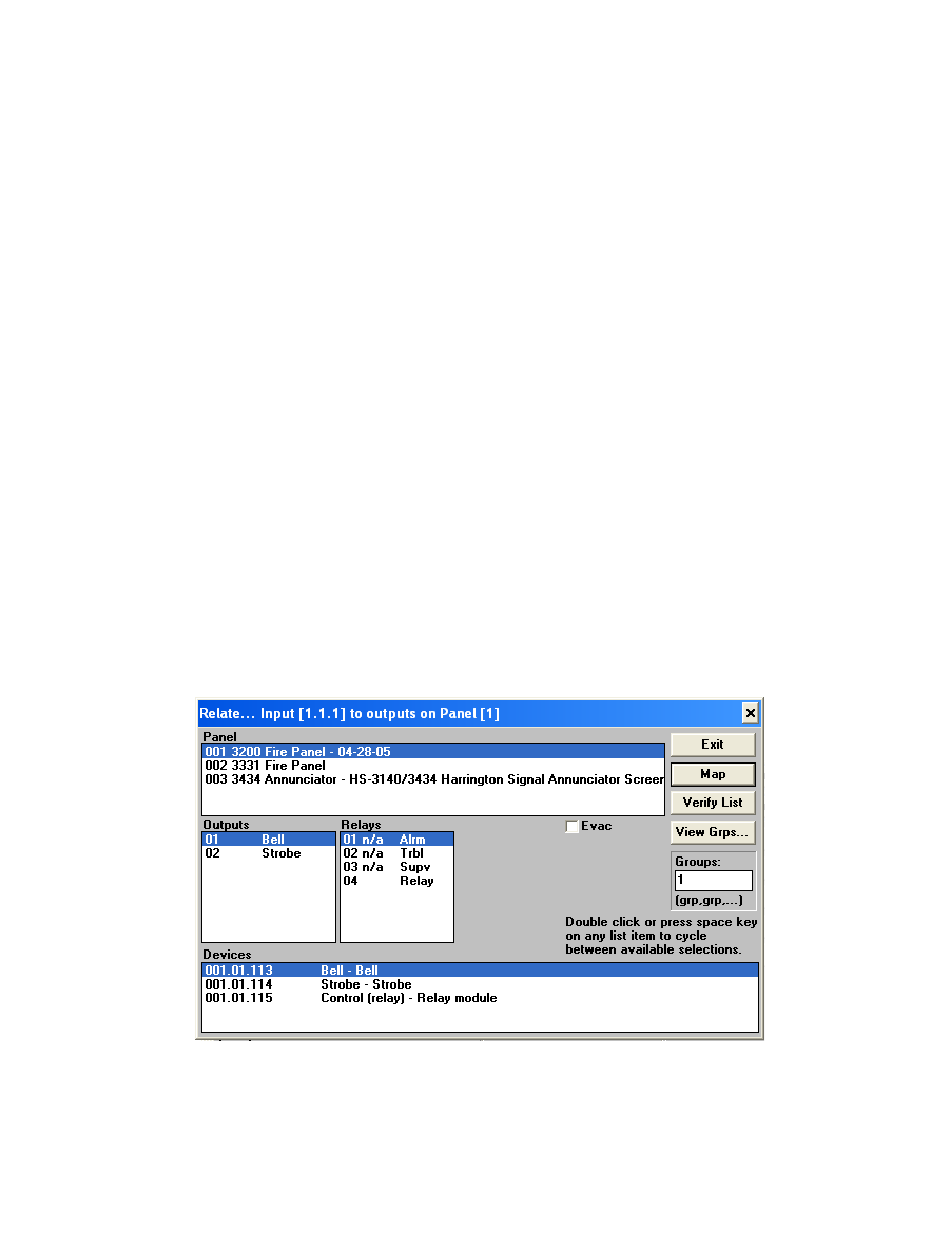

Figure 24: Relate Window
