Circuits And Devices Windows; Figure 19: Dialer Maintenance And Common Reporting Codes; Figure 20: Circuits Window - Mircom FX-2200 Series Programming Manual

Dialer Maintenance and Common Reporting Codes
The Dialer Maintenance and
Common Reporting
dialog (see Figure 19) contains
maintenance
reporting codes that the dialer
will use to communicate those
events.
The Reporting Codes List is a
list of all available maintenance
and common reporting codes.
Select one to
reporting code.
The Reporting Code is used
when SIA or Contact ID is set to
Programmed, or when using
BPS formats. There are many
different reporting codes in this
group.

2.10 Circuits and Devices Windows

Overview
The Circuits Window (see Figure 20) allows for the defining of addressable input circuits. The
Devices Window (see Figure 21) allows for the defining of addressable devices. These two
windows are nearly identical. Most controls on one are found on the other with the few exceptions
noted. The current Circuit or Device is shown in the Title Bar of the window.

Figure 20: Circuits Window

Codes
and common
program its

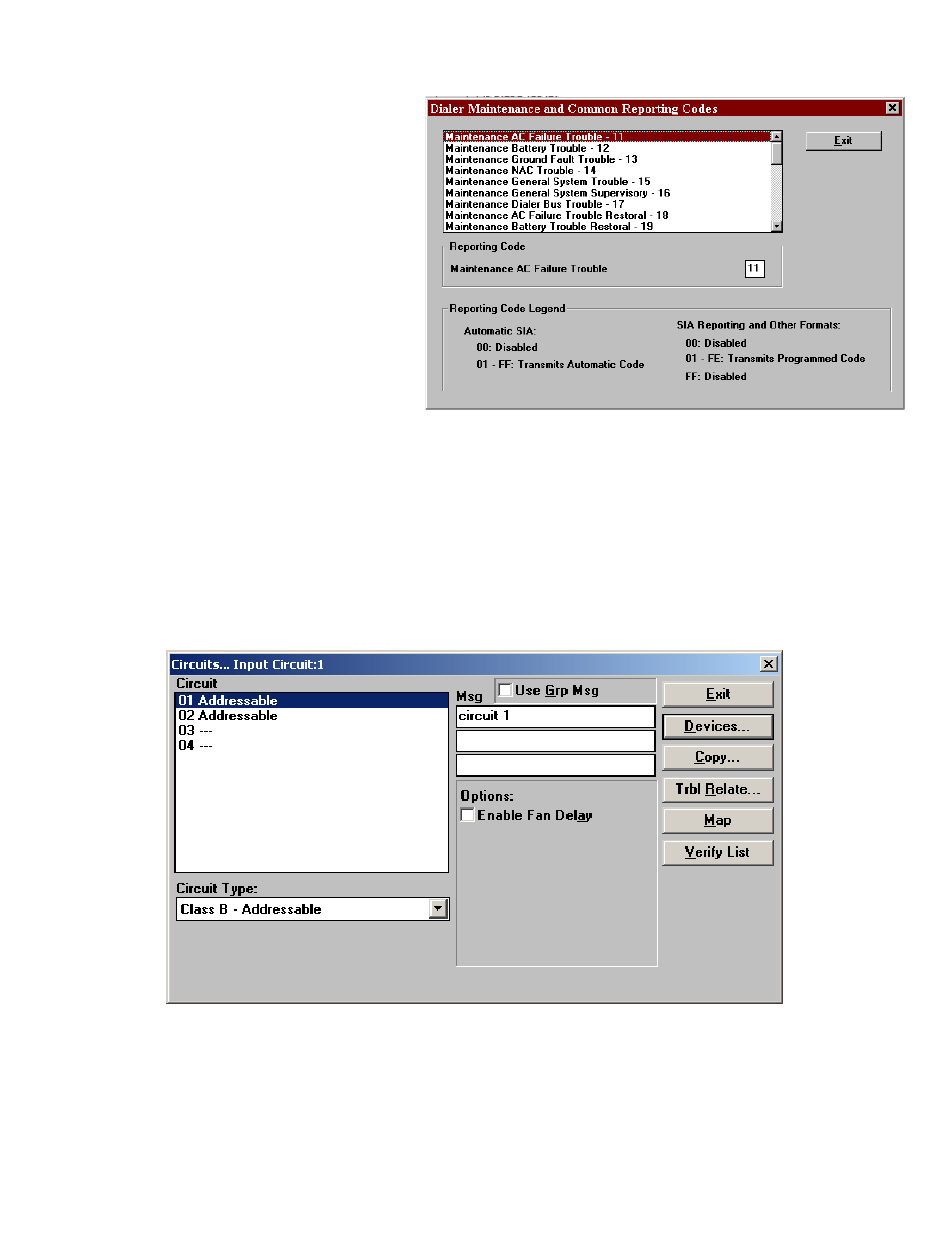

Figure 19: Dialer Maintenance and Common Reporting
Codes
FX-2200 Programming Manual
31
