FX-2200 Programming Manual

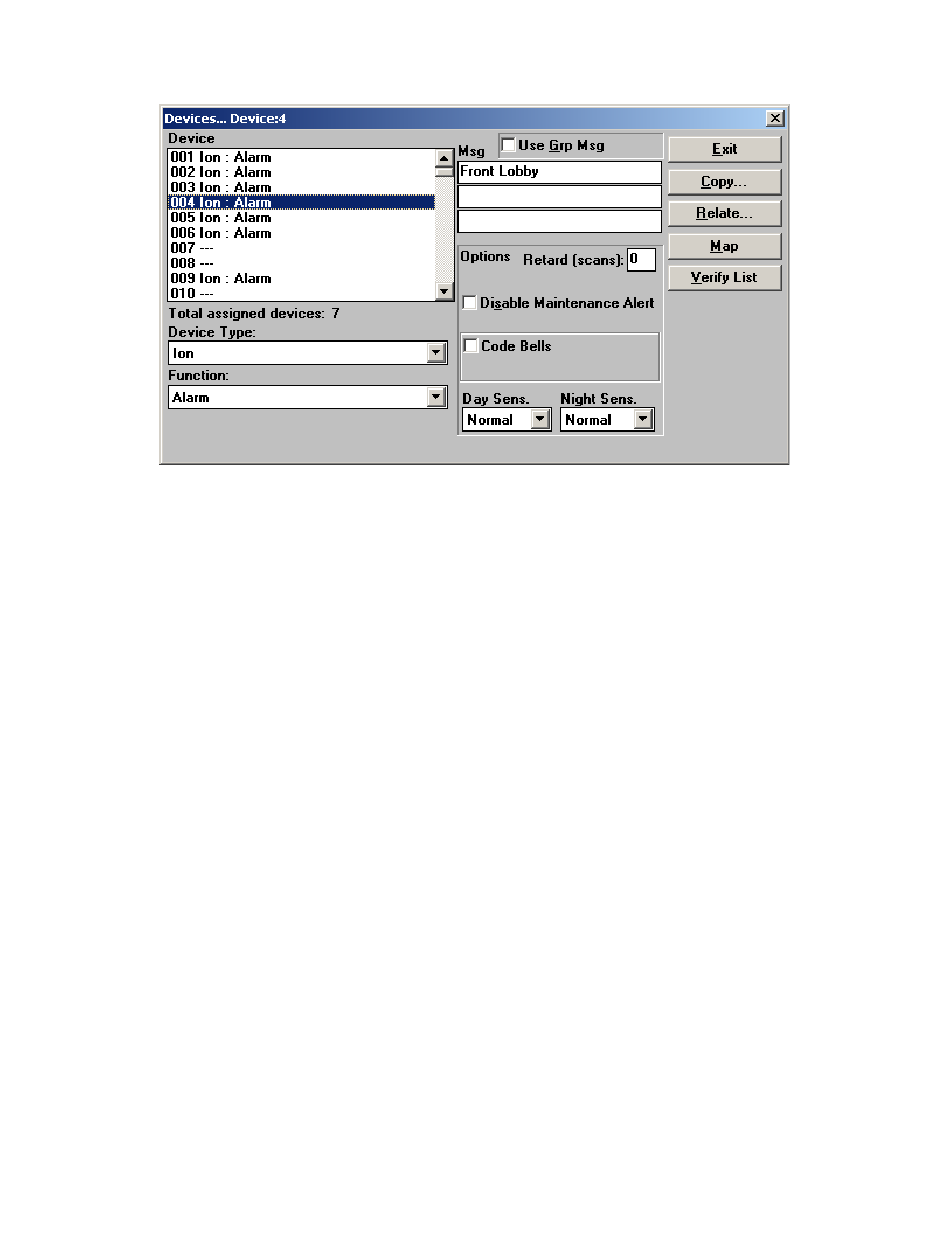

Figure 21: Devices Window

Circuit List
The Circuit List is located in the top left corner of the window. It is shown on the Circuits Window
only. This lists any defined circuits for the current panel. Each circuit shows the circuit number,
type of circuit and function if applicable. The highlighted circuit is described in the title bar of the
Circuits Window. Unused circuits are shown using three dashes. Use the <Backspace> key in
order to quickly re-position the current selection to another circuit. The <Up> and <Down> Arrow
keys change the current circuit. The <Right> and <Left> Arrow keys change the type of the
current circuit. The <Plus> and <Minus> keys change the function of the current circuit.
Circuit Type Selector
The Circuit Type Selector is located below Circuit List on the left hand side. It is shown on the
Circuit Window only. It is a drop down box used to assign the current circuit type. If the circuit is
unused, select not assigned. Only options supported by the Input Circuit Modules programmed for
the current panel are assignable.
Device Type Selector
The Device Type Selector is located below Device List on the left hand side. It is shown on the
Device Window only. It is a drop down box used to assign the current device type. For addressable
circuits, it displays all the sensors or modules that can be programmed for the current device
address, sensors for addresses 1 to 99 and modules for addresses 101 to 199. If the address is
unused, select not assigned. The following module types are available:
32
Monitor (Class B): This is a standard monitor module using Class B (Style B) wiring and
an end-of-line resistor. This must be chosen for MIX-M500DM, MIX-M501M and MIX-
M503M modules.
Monitor (Class A): This is a standard monitor module using Class A (Style D) wiring. This
can be used only with the MIX-M500M and MIX-M502M modules.
Control (supervising): This programs the MIX-M500S for use as a generic signalling
circuit. It can be turned on by alarm or supervisory inputs. It will remain on until the system
is reset.
Control (relay): This is used for programming the MIX-M500R relay module.
