2.7 Annunciators Window

Overview
Annunciators have the following unique controls for programming (see Figure 9).

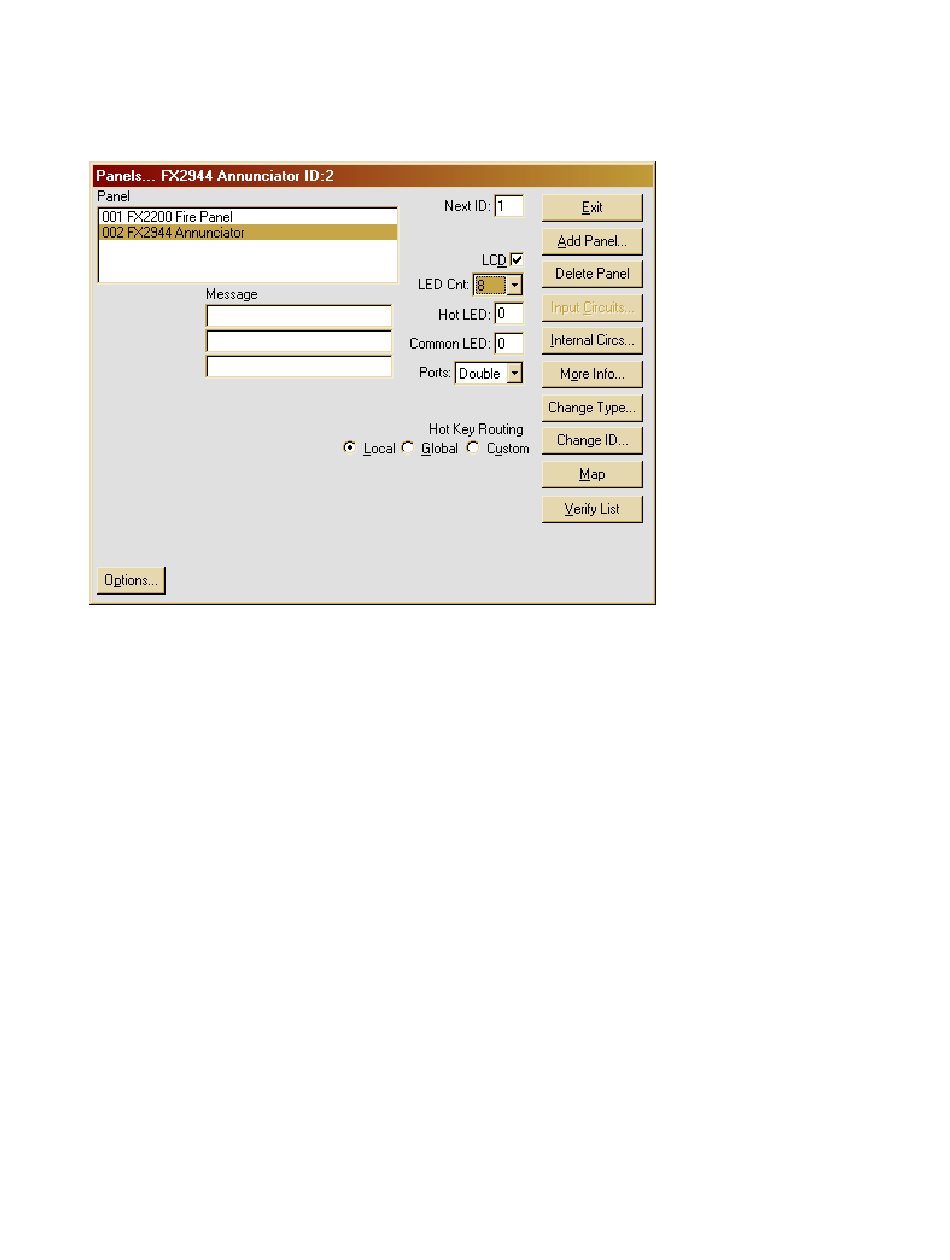

Figure 10: Annunciator Panel Window

LCD Check Box
The LCD check box is located immediately left of the buttons. It indicates whether or not the
annunciator has an optional alpha-numeric LCD. This setting is used by MPI only to determine if
the Message Receive check box should be shown for the annunciator in the Relate Window. This
value is not sent to the annunciator. The annunciator determines for itself if an LCD is installed or
not.
LED Count
LED Count is located directly below the LCD check box. This defines the number of LED zones the
annunciator uses. A count of zero disables the Hot LEDs and Common LED.
Hot LED
Hot LED is located directly below the LED Count drop down. This value defines the first of four
LED zones the annunciator uses for internal functions. Any of the zones can be chosen with the
requirement that there are four consecutive zones available. Entering a zone of 0 disables the hot
key zones. These zones reflect the current status of the annunciator and the panel(s) to which it
sends commands.
