of dial tone. When Disabled is selected, the panel will not dial the programmed telephone number
if dial tone is not present.
When the Busy Tone Detection option is enabled, if busy tone is detected, the dialer will disengage
the phone line and try to place the call again following the delay between dialing attempts. When
Disabled is selected, the dialer will use the standard dialing procedure for every attempt.
The Pulse Make/Break Ratio option is for panels in international applications. When 40/60 is
selected, the pulse dialing make/break ratio is the 40/60. When 33/67 is selected, the pulse dialing
make/break ratio is 33/67.
The Handshake option determines the handshake used for BPS transmissions. When 1600 Hz is
selected, the dialer responds to a 1600 Hz handshake. When Standard is selected, the dialer
responds to the handshake designated by the format selected (1400 or 2300 Hz).
The ID Tone can be set to 1300Hz or 2100 Hz. The panel will emit a tone at the selected frequency
for 500 ms every 2 seconds when it places a call to indicate that it is a digital equipment call, not
voice. When Disabled is selected, this feature will not be used.

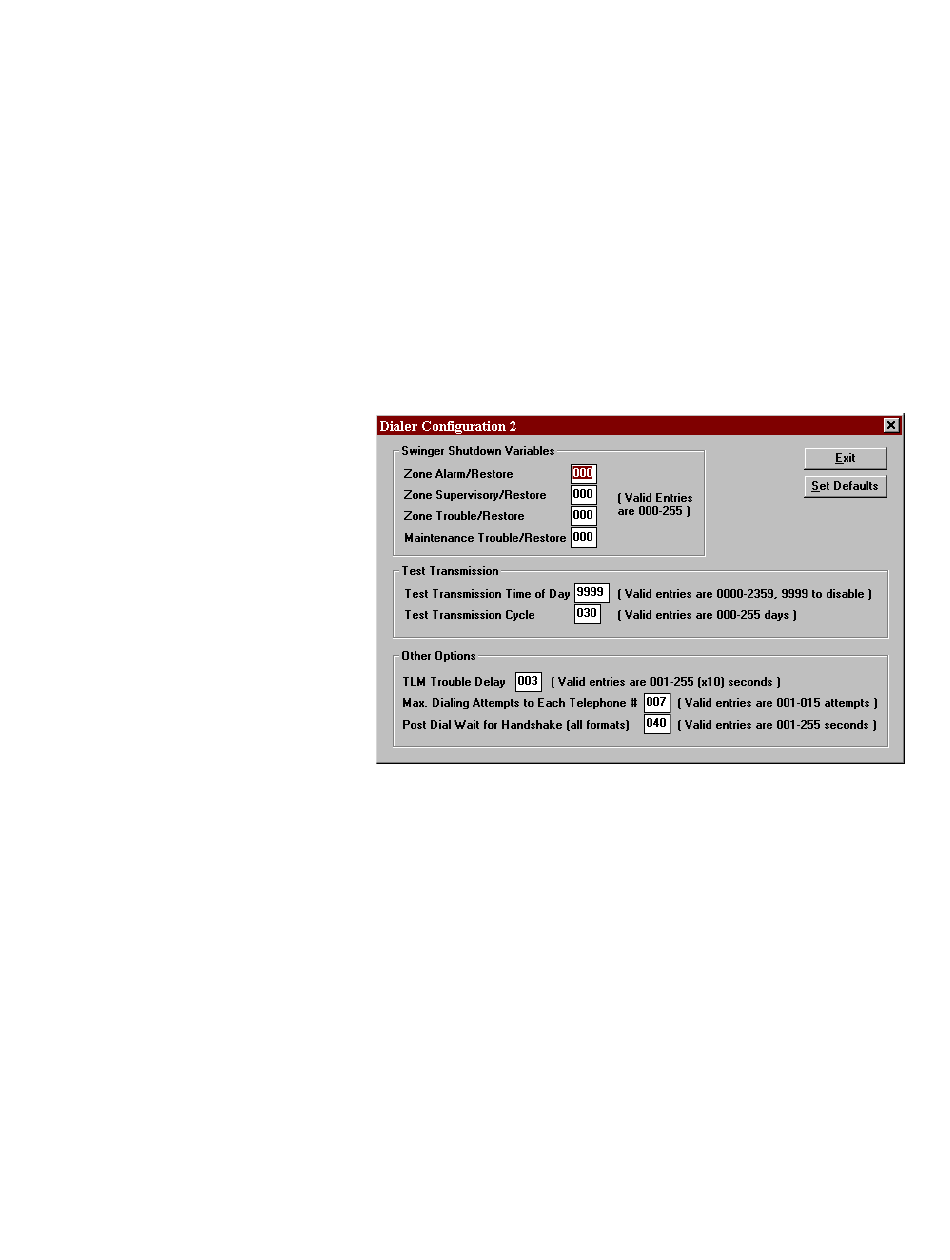

Dialer Configuration 2
The Dialer Configuration
2 screen (see Figure 16)
contains the Swinger
Shutdown Variables, Test
Transmission options and
Other Options.
The Swinger Shutdown
options determine the
maximum number of
zone events and trouble
events that the dialer will
transmit in one day. The
trouble or alarm will still
be displayed on the panel
and logged in the archive,
but the dialer will not

Figure 16: Dialer Configuration 2

transmit the event. There
are individual counters for
Zone Alarm and Restore, Zone Supervisory and Restore, Zone Trouble and Restore and
Maintenance Trouble and Restore. This feature will be reset at midnight. To disable the feature,
program 000.
The Test Transmission Time of Day determines when the automatic test transmission will occur.
The entry is four digits (HH:MM). To disable the feature, program the time as [9999].
The Test Transmission Cycle determines the number of days between test transmissions
The TLM Trouble Delay controls the number of telephone line monitoring checks required before a
telephone line trouble is generated. The dialer checks the telephone connection at 10-second
intervals.
The Maximum Dialing Attempts to Each Phone Number is the number of attempts that the dialer
will make to each telephone number before generating a fail to communicate trouble.
Post Dial Wait for Handshake is the amount of time the dialer will wait for a valid initial handshake
from the receiver after dialing the programmed telephone number.
