FX-2200 Programming Manual
LED Annunciator Connect
The LED Annunciator Connect is marked by default (to enable the main display). You can select
the number of LEDs, up to 72 LED zones, which are considered an extension of the panel itself.
Choose the number of LED zones using the Local Ann. LED Cnt drop down box.
IDs Supervised Button
The IDs button displays all possible IDs of the RAM-
2644LCD annunciators. Check those IDs that are
connected to the system. Also check to identify if there
is a UDACT-2200 or PR2200 connected to the system.
The Dialer Settings button is further explained on page
27.
Panel List
The Panel List is a list-box located in the top left corner
of the window. It lists all the panels, both Control and
Annunciator, which are defined in the system. The
highlighted entry in the List is the one that is currently
being edited. I's description is also shown in the title
bar of the Panel Window. If a different panel is
selected, all the controls in the window change to
reflect this. Use the <Backspace> key in order to
quickly re-position the current selection to another
panel.
Next ID
The Next ID is a text entry box located to the right of
the push buttons at the top of the Panel Window. It is
not displayed for single panel systems. It is used to
define the ID of the next panel in the network loop. Specify the panel ID of the panel to be
connected to the COM 1 terminals of the current panel
Hot Key Routing
Hot Key Routing is a set of radio buttons for setting the other panels or annunciators to be
controlled by the current panel. To have no other panels affected by the current panel, mark Local.
To have the current panel affect all other panels on the network, mark Global. To choose only
some panels, mark Custom. A text entry box entitled route panel IDs is then displayed. Enter the
panel IDs to be controlled separated by commas, e.g. "2, 3, 4". Each ID listed receives Hot Key
commands from the current panel whenever its Hot Keys are pressed.
18

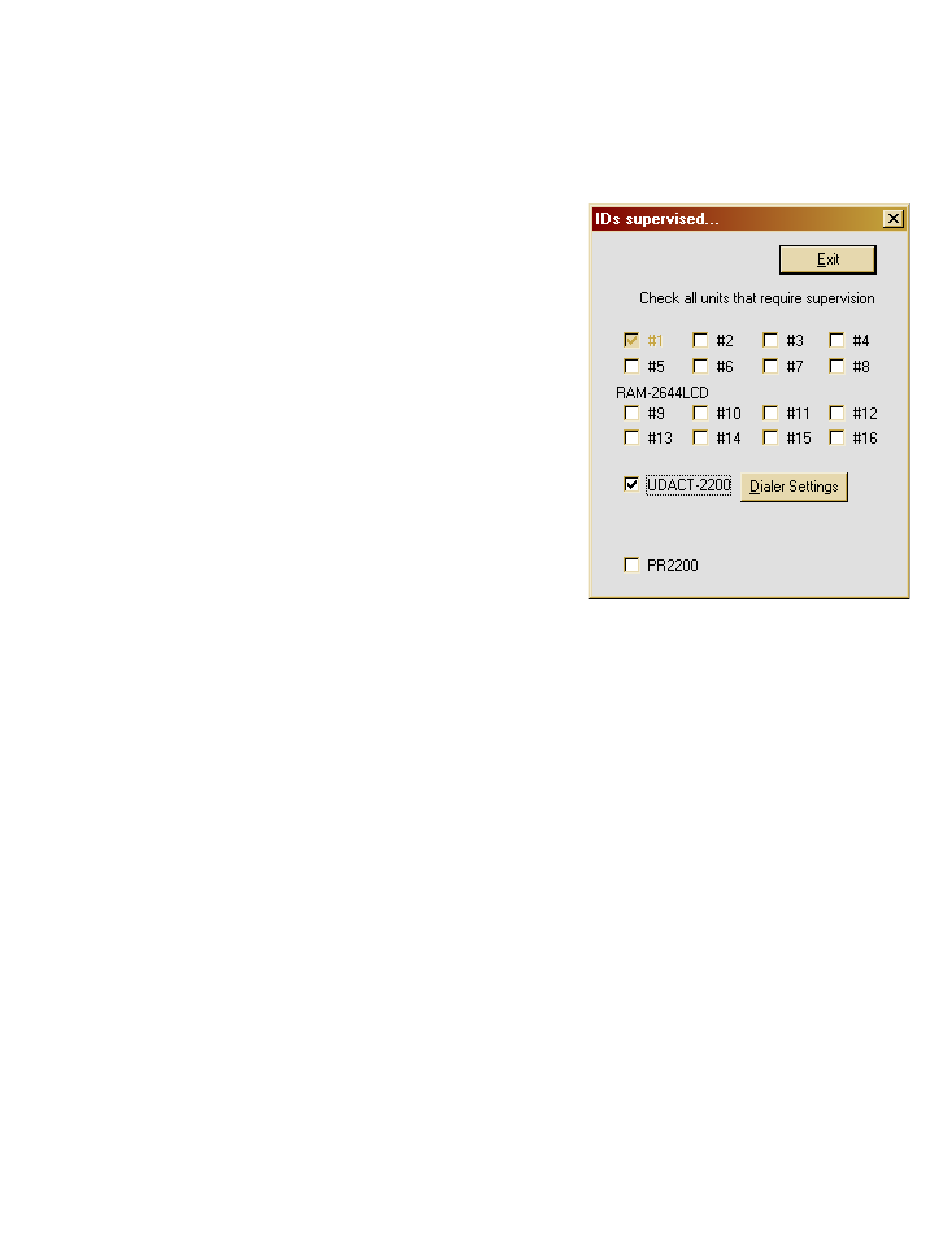

Figure 9: Id's supervised Window
