Call Directions
The Call Directions dialog (see
Figure 17) contains the options that
determine
numbers
communicate events.
There are five different types of
events that can each be sent to
telephone number one or telephone
number two. The event types are
Fire
Supervisory Zone Alarm/Restore,
Zone Trouble/Restore, Maintenance
Trouble/Restore
Transmissions.
Zone Data
The Zone Data dialog (see Figure 18) contains zone definitions and reporting codes that the dialer
will use to communicate events.
The Groups List is a list of all
currently defined groups. Each
line entry includes the Group ID
and its message/description. Click
on the desired group in order to
program it.
The Definition
identifier of the alarm or trouble
being sent to the central station.
The zone types that are available
are Fire, Sprinkler, Heat, Water
and Untyped.
The Reporting Codes are used
when SIA or Contact ID is set to
Programmed, or when using BPS
formats. There are six reporting
codes for each group. They are:
•
•
•
•
•
•
30
which telephone
will be used
Zone Alarm/Restore,
and
specifies the
Zone Alarm Reporting
Code
Zone Alarm Restoral Reporting Code
Trouble Reporting Code
Trouble Restoral Reporting Code
Supervisory Reporting Code
Supervisory Restoral Reporting Code
to

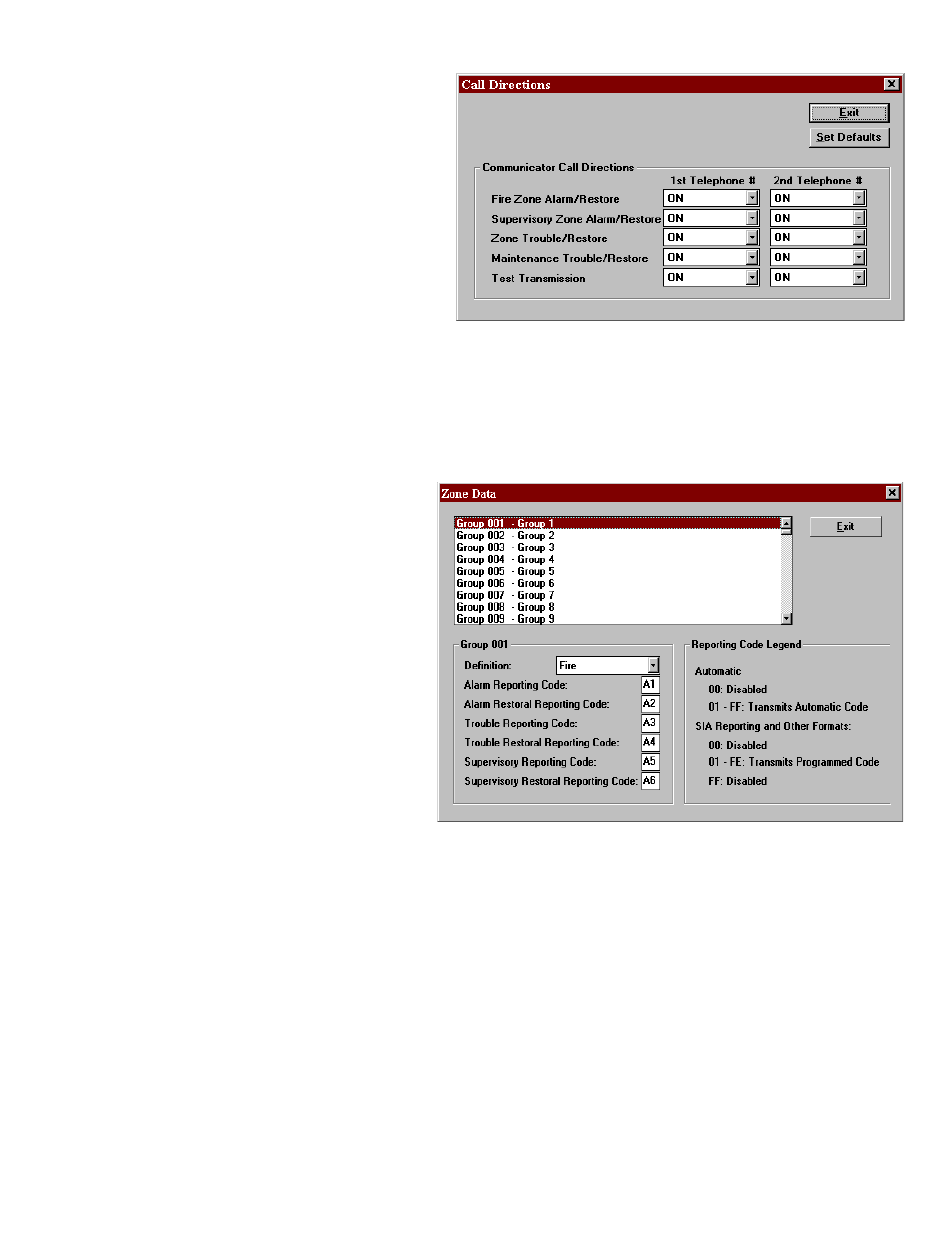

Figure 17: Call Directions
