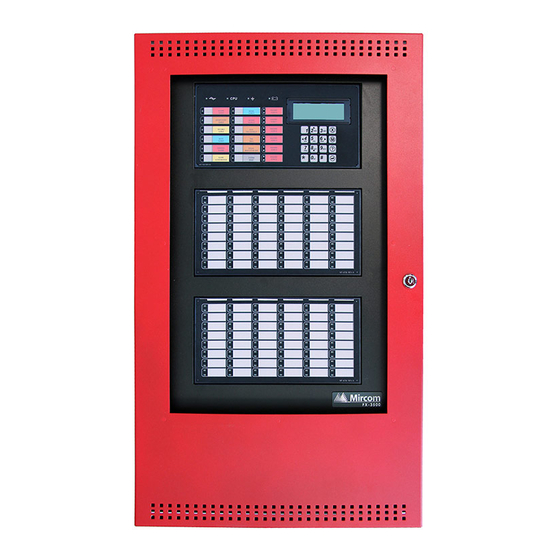

Fire alarm control panel
Hide thumbs Also See for FX-3500RCU:
Table of Contents

Advertisement

Quick Links

FX-3500RCU
Fire Alarm Control Panel
FM APPLICATIONS MUST HAVE CLASS A INITIATING CIRCUITS ONLY AND 90 HOUR BATTERY STANDBY OPERATION
Releasing Application Guide
LT-1091 Rev 2
Novenber 2015

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FX-3500RCU and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Mircom FX-3500RCU

Summary of Contents for Mircom FX-3500RCU

  • Page 1 FX-3500RCU Fire Alarm Control Panel FM APPLICATIONS MUST HAVE CLASS A INITIATING CIRCUITS ONLY AND 90 HOUR BATTERY STANDBY OPERATION LT-1091 Rev 2 Releasing Application Guide Novenber 2015...

  • Page 3: Table Of Contents

    Table of Contents Operating the Panel Hazard Zones ........................ Counting Zone Type ...................... Abort Type ........................Configurable Timers ....................... Hazard Zone States ....................... 1.5.1 Hazard Idle ........................1.5.2 Hazard Alarm (pre-discharge) ..................1.5.3 Hazard Release ......................General Operation ......................Releasing Circuit Wiring Releasing Circuit Wiring - Class B/Style Y Wiring ............
  • Page 4 Table of Contents...

  • Page 5: Operating The Panel

    SWITCHES, SUCH AS THE MIRCOM SS-2004, ARE PERMITTED FOR USE. The TS1 terminal on the power supply board (MD-1011) is dedicated to supply power for releasing devices. For wiring information see LT-1083RCU FX-3500RCU Installation Manual. Hazard Zones Hazard zones are configurable by correlating input devices, releasing circuits, (pre)release signals, and manual release and abort switches.

  • Page 6: Configurable Timers

    Operating the Panel Configurable Timers Releasing applications may be configured with the following timers: Release Delay Timer The amount of time from when the Hazard Zone is activated (RDT) via correlated input devices until release. The maximum value for the RDT is 60 seconds. Soak Delay Timer The amount of time that the releasing circuit will be active.

  • Page 7: Hazard Alarm (Pre-Discharge)

    Operating the Panel 1.5.2 Hazard Alarm (pre-discharge) The panel enters the Hazard Alarm state when: • It detects the Hazard area confirming alarm input device. For more information on confirming alarms see Chapter 1.2 Counting Zone Type. • For a Single Counting Zone hazard area, a single alarm input device will put the Hazard Zone into the Hazard Alarm state.

  • Page 8: Releasing Circuit Wiring

    Operating the Panel Releasing Circuit Wiring INPUT CIRCUIT WIRING: FM APPLICATIONS MUST HAVE CLASS A INITIATING CIRCUITS ONLY AND 90 HOUR BATTERY STANDBY OPERATION Only addressable M500S and MIX-M500SAP supervised output modules can be used as a releasing circuit. If the releasing circuit is wired as Class B, supervision of the solenoid coil is performed by the MP-3500R/W Solenoid EOL.

  • Page 9: Typical Releasing Applications

    NOT Gate Input is required to be not • the delay timer expires activated. Delay Timer • the Manual Release Switch is pressed Use FX-3500RCU Configurator to set type. • the delay timer expires...

  • Page 10: Pre-Action/Agent Release, Double Activation Application

    • the delay timer expires OR Gate If either input is activated release occurs. • the Manual Release Switch is pressed Delay Timer • the delay timer expires. Use FX-3500RCU Configurator to set type.

  • Page 11: Pre-Action/Agent Release, Triple Activation Application

    OR Gate • the delay timer expires If either input is activated release occurs. Delay Timer • the Manual Release Switch is pressed Use FX-3500RCU Configurator to set type. • the delay timer expires.

  • Page 12: Pre-Action/Agent Release, 2 Input Type Activation Application

    • the delay timer expires OR Gate If either input is activated release occurs. • the Manual Release Switch is pressed Delay Timer • the delay timer expires. Use FX-3500RCU Configurator to set type.

  • Page 13: Deluge, Single Activation Application

    Logic Logic Path OR Gate If either input is activated release occurs. Delay Timer Use FX-3500RCU Configurator to set type. Deluge commences if the following events occur: • a single detector correlated to the Hazard Zone enters alarm • the delay timer expires •...

  • Page 14: Deluge, Double Activation Application

    If either input is activated • two detectors correlated to the Hazard Zone enter alarm release occurs. • the delay timer expires Delay Timer Use FX-3500RCU Configurator to set type. • the Manual Release Switch is pressed • the delay timer expires.

  • Page 15: Deluge, Triple Activation Application

    If either input is activated • three detectors correlated to the Hazard Zone enter alarm release occurs. • the delay timer expires Delay Timer Use FX-3500RCU • the Manual Release Switch is pressed Configurator to set type. • the delay timer expires.

  • Page 16: Deluge, 2 Input Type Activation Application

    Input is required to be not • the delay timer expires activated. OR Gate • the Manual Release Switch is pressed If either input is activated release occurs. • the delay timer expires. Delay Timer Use FX-3500RCU Configurator to set type.

  • Page 17: Compatible Solenoids

    Operating the Panel Compatible Solenoids The following table lists the compatible solenoids. Table 1 FX-3500RCU Compatible Solenoids Manufacturer and Series Part Number Extended Description Parker 73212BN4TNLVNOC322C2 Valve Solenoid Siemens 500-697913BG Valve Solenoid 8210G207 Valve Solenoid (FM Approved) ASCO T8210A107 Valve Solenoid...
  • Page 20 CANADA - Main Office U.S.A TECHNICAL SUPPORT © Mircom 2013 25 Interchange Way 4575 Witmer Industrial Estates North America Printed in Canada Vaughan, ON L4K 5W3 Niagara Falls, NY 14305 Tel: (888) Mircom5 Subject to change without prior notice Tel: (888) 660-4655...
