FX-2200 Programming Manual
Interpreting Flashing LEDs
The LEDs have the following meaning when flashing:
Zone n alarm: Acknowledge available
Zone n supervisory: Reset available (green)
Zone n trouble: Reset available (yellow)
Zone n+1 alarm: Signal Silence active
Zone n+1 supervisory: Signal Silence
available
Zone n+1 trouble: 2nd Stage Inhibit active
Note: The Power On LED refers to the 24 VDC to the annunciator, not to any AC source.
Common LED
Common LED is located directly below the Hot LED setting. This is the LED zone the annunciator
uses as a common alarm, supervisory and trouble indication. It is a summation of the zone LEDs
of the annunciator. Any LED zone may be used. The zone chosen is not available for general
annunciation. Entering a zone of 0 disables the common zone.
Ports
Ports is located below the Common LED setting. This option enables (double) or disables (single)
the COM 1 network port. If both ports are enabled, the Next ID text box becomes available (see
above for a description of Next ID).

2.8 Outputs Dialog

Overview
The Outputs Dialog (see Figure 11) allows for the programming of the panel's outputs and function
relays.

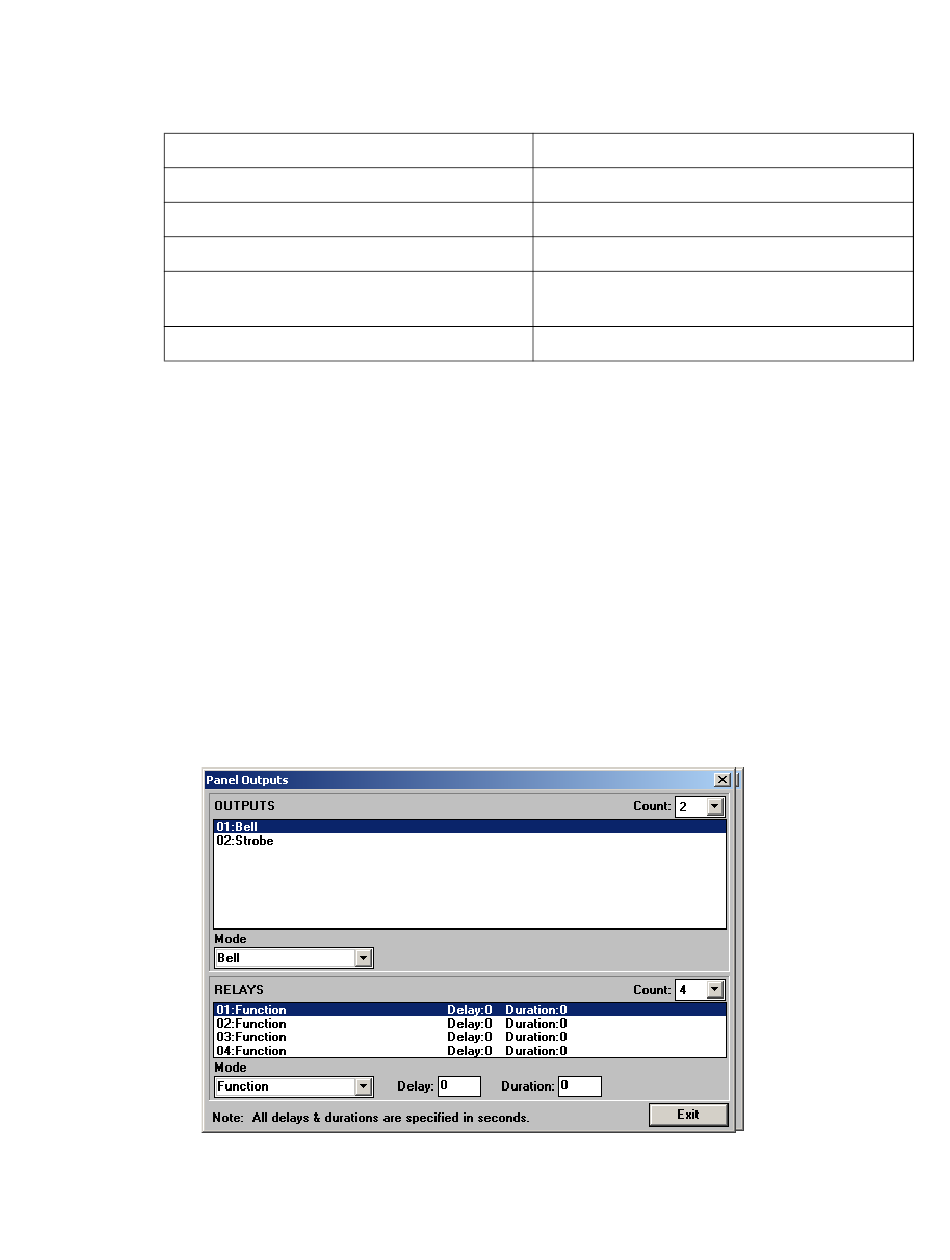

Figure 11: Panel Outputs

20
Zone n+2 alarm: 2nd Stage Inhibit available
Zone n+2 supervisory: Future use
Zone n+2 trouble: Future use
Zone n+3 alarm: Future use
Zone n+3 supervisory: Future use
Zone n+3 trouble: Power On
