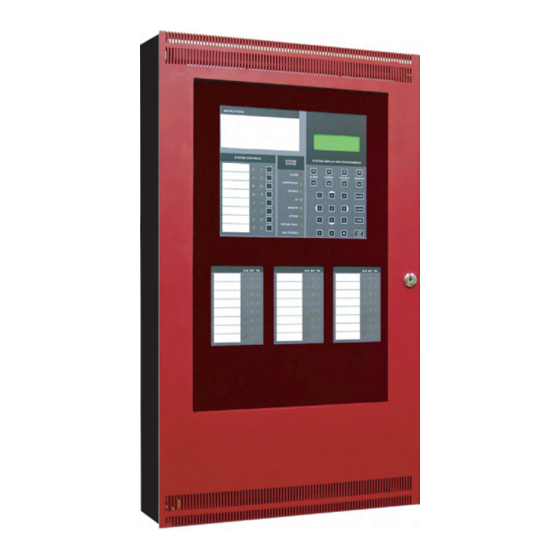

Fire alarm control panel
Hide thumbs Also See for FX-2200 Series:
Table of Contents

Advertisement

Quick Links

FX-2200 Series
Fire Alarm Control Panel
Programming Manual
Advanced Life Safety Solutions
LT-2001MIR Rev. 0
November 2006

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FX-2200 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Mircom FX-2200 Series

Summary of Contents for Mircom FX-2200 Series

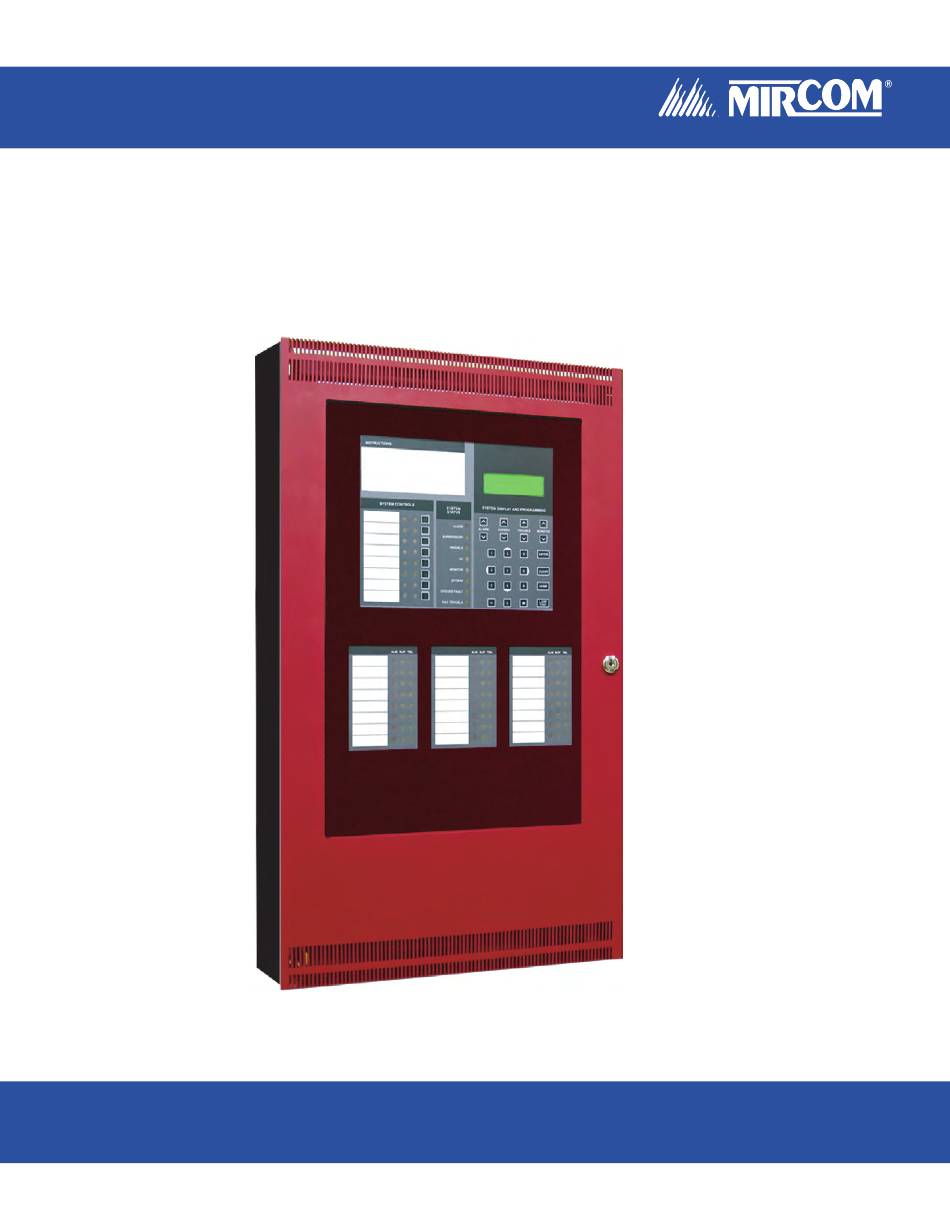

  • Page 1 Advanced Life Safety Solutions FX-2200 Series Fire Alarm Control Panel LT-2001MIR Rev. 0 Programming Manual November 2006...

  • Page 3: Table Of Contents

    FX-2200 Programming Manual Contents Contents................................. i List of Figures ..............................iii 1.0 Operation and Programming Concepts ....................1 1.1 Introduction ............................. 1 1.2 General Information ........................1 1.3 Networks ............................1 1.4 Addressable Devices ........................4 1.5 Resetting 4-Wire Detectors......................7 2.0 Editing MPI Databases ..........................
  • Page 4 FX-2200 Programming Manual...

  • Page 5: List Of Figures

    Figure 2: Single Network Break ........................3 Figure 3: Panel Removed from Network ....................... 4 Figure 4: Four Wire Device Wiring (Typical) ....................7 Figure 5: Mircom Programming System Window ..................9 Figure 6: Switches Window ........................... 13 Figure 7: Groups Window ..........................15 Figure 8: Panel Window ..........................
  • Page 6 FX-2200 Programming Manual...

  • Page 7: Operation And Programming Concepts

    Zone LEDs, Bells, Functions Relays and Control Modules activated by addressable devices. This database is created and downloaded from an IBM compatible computer using the Mircom Programming Interface (MPI) program. Refer to the Mircom Programming Interface Database Editor for instructions on downloading the database.

  • Page 8: Figure 1: Typical Network Layout

    FX-2200 Programming Manual Figure 1: Typical Network Layout The basic layout of the network is a single loop (see Figure 1). Each panel and annunciator has a unique ID. There is no requirement that the IDs be sequential or that they start with 1. The master panel can be any fire panel in the network.

  • Page 9: Figure 2: Single Network Break

    FX-2200 Programming Manual Network Verify Network Verify is an active process in which each panel and annunciator checks to make sure that all other panels can communicate with it. This requires that ALL PANELS in the network have same operating software and database. Each panel sends out a Network Verify frame which is then passed around the network loop.

  • Page 10: Addressable Devices

    FX-2200 Programming Manual broadcast to panel 3, but panel 3 will not pass the broadcast on to panel 5 since it is supposed to be communicating to panel 4. Figure 3: Panel Removed from Network 1.4 Addressable Devices Supported Devices The FX-2200 can use analog/addressable devices.
  • Page 11 FX-2200 Programming Manual The MIX-M500S control module can be used to control a supervised output, such as a bell or strobe circuit. The control module monitors the circuit wiring and troubles will be reported. The module will require a separate 24 VDC supply for the controlled circuit. When programming the database in MPI, be sure to program the control module correctly.
  • Page 12 FX-2200 Programming Manual Device Faults The following troubles (with condition code letter) can be reported by or for addressable devices: • Missing (M): A device listed in the database is not reporting back when polled by the panel. For a new installation, this is generally indicative of devices that have been mis- addressed.

  • Page 13: Resetting 4-Wire Detectors

    FX-2200 Programming Manual 1.5 Resetting 4-Wire Detectors General 4-wire detectors can be reset by using one of the function relays on the panel. The relay is not programmed for any use, that is, it is unassigned. The next requirement is that a non-zero duration be programmed for it (see Section 2.5.1).

  • Page 14: Editing Mpi Databases

    FX-2200 Programming Manual 2.0 Editing MPI Databases 2.1 Introduction This chapter describes the windows used to program the system. 2.2 General Comments Overview The editing of a system is done through a series of input windows. Editing starts with the System Level and progresses to the Panel Level, then to the Input Level, and finally to the Relate Level.

  • Page 15: System Window

    The Title Bar of the window shows whether editing or viewing of the database is being performed and the name of the current database. Figure 5: Mircom Programming System Window The text in the top left corner provides information about the database. The top line gives the date and time the database was last edited.
  • Page 16 Language Language chooses English (default), French or Hungarian characters to be used in messages. See Appendix C Languages of the Mircom Programming Interface Database Editor for a description of the letters supported and the method of entering them.
  • Page 17 System Banner The System Banner is a 20 character message that is used as a banner for the Main Menu of the LCD. The default banner is “Mircom FX-2200”. Enforce Local LED Rules The Enforce Local LED Rules check box forces an LED on an input's panel be related. Normally an LED anywhere in the system is all that is required.
  • Page 18 Verify List: Displays the Verify List. If there is no Verify List, a requester will appear asking whether you wish to perform a verification. See section 2.6.5 of the Mircom Programming Interface Database Editor for a full description of the Verify List and its uses.

  • Page 19: Switches Window

    FX-2200 Programming Manual 2.4 Switches Window Overview The Switches Window (see Figure 6) allows for the setting of the On/Off (Day/Night) switches. There are 16 system wide switches available. All panels in the network keep track of their portion of the devices related to each switch. Relays, LEDs and control modules follow the On/Off state of the switch they are related to.
  • Page 20 Verify List: Displays the Verify List. If there is no Verify List, a requester will appear asking whether you wish to perform a verification. See section 2.6.5 of the Mircom Programming Interface Database Editor for a full description of the Verify List and its uses.

  • Page 21: Groups Window

    FX-2200 Programming Manual 2.5 Groups Window Overview The Groups Window (see Figure 7) is used for creating and editing the Groups of relates. The Title Bar shows the current group. This dialog allows you to setup "Groups" which are composed of a text description/message and relates.

  • Page 22: Panel Window

    Verify List: Displays the Verify List. If there is no Verify List, a requester will appear asking whether you wish to perform a verification. See section 2.6.5 of the Mircom Programming Interface Database Editor for a full description of the Verify List and its uses.
  • Page 23 Verify List: Displays the Verify List. If there is no Verify List, a requester will appear asking whether you wish to perform a verification. See section 2.6.5 of the Mircom Programming Interface Database Editor for a full description of the Verify List and its uses.
  • Page 24 FX-2200 Programming Manual LED Annunciator Connect The LED Annunciator Connect is marked by default (to enable the main display). You can select the number of LEDs, up to 72 LED zones, which are considered an extension of the panel itself. Choose the number of LED zones using the Local Ann.

  • Page 25: Annunciators Window

    FX-2200 Programming Manual 2.7 Annunciators Window Overview Annunciators have the following unique controls for programming (see Figure 9). Figure 10: Annunciator Panel Window LCD Check Box The LCD check box is located immediately left of the buttons. It indicates whether or not the annunciator has an optional alpha-numeric LCD.

  • Page 26: Outputs Dialog

    FX-2200 Programming Manual Interpreting Flashing LEDs The LEDs have the following meaning when flashing: Zone n alarm: Acknowledge available Zone n+2 alarm: 2nd Stage Inhibit available Zone n supervisory: Reset available (green) Zone n+2 supervisory: Future use Zone n trouble: Reset available (yellow) Zone n+2 trouble: Future use Zone n+1 alarm: Signal Silence active Zone n+3 alarm: Future use...
  • Page 27 FX-2200 Programming Manual Outputs The Outputs section is a list box that is used to select the output to program. Once the output is selected, it is programmable for the following output types: • Bell: This is a standard signalling circuit. It does not sound codes. •...

  • Page 28: Options Dialog

    FX-2200 Programming Manual 2.9 Options Dialog Overview The Options Dialog (see Figure 12) allows for the programming of the panel and annunciator options. These settings affect the current panel only. Figure 12: Options Dialog Buzzer Mode Buzzer Mode sets when the panel buzzer sounds. Normal causes the buzzer to sound for new supervisory and trouble conditions.
  • Page 29 FX-2200 Programming Manual AC Fail The AC Fail is the delay before the panel reports that it has lost AC power. The panel itself goes into AC Fail mode to conserve power immediately upon losing AC. This delay is the length of time before the panel generates the trouble condition.

  • Page 30: Figure 13: Default Key Assignments

    FX-2200 Programming Manual Hot Keys Hot Keys are a set of drop down boxes that allow you to set the functions of the operator keys on the front of the panel. There are 8 keys, each with red and green LED (some keys may have yellow instead of red LEDs).
  • Page 31 FX-2200 Programming Manual The keys and their functions are as follows: Action Acknowledge Silences the buzzer and acknowledges new troubles and alarms. If the buzzer is on, Acknowledge will silence it. If the buzzer is not on, any flashing LEDs will become steady.
  • Page 32 FX-2200 Programming Manual Action Relay Causes the function relays and control modules to ignore any new alarms. Press Disconnect again to restore normal operation. The red LED will flash while active. If no relays nor control modules can be disconnected, Relay Disconnect will do nothing. This function can be set to Privilege Level 0 or 1.

  • Page 33: Figure 14: Dialer Settings

    FX-2200 Programming Manual Action Manual This will cause the programmed control modules to reset after the system has been Restart reset in general. This is an MEA (New York City) requirement. Dialer Settings The Dialer Settings dialog (see Figure 14) allows for the programming of various communications options.

  • Page 34: Figure 15: Dialer Configuration 1

    FX-2200 Programming Manual Dialer Configuration 1 The Dialer Configuration 1 dialog (see Figure contains First Communicator Options, Second Communicator Options and International Options. The Communications option determines if the dialer will communicate to the central station. When Enabled is selected, dialer will communicate all events as...

  • Page 35: Figure 16: Dialer Configuration 2

    FX-2200 Programming Manual of dial tone. When Disabled is selected, the panel will not dial the programmed telephone number if dial tone is not present. When the Busy Tone Detection option is enabled, if busy tone is detected, the dialer will disengage the phone line and try to place the call again following the delay between dialing attempts.

  • Page 36: Figure 17: Call Directions

    FX-2200 Programming Manual Call Directions The Call Directions dialog (see Figure 17) contains the options that determine which telephone numbers will used communicate events. There are five different types of events that can each be sent to telephone number one or telephone number two.

  • Page 37: Circuits And Devices Windows

    FX-2200 Programming Manual Dialer Maintenance and Common Reporting Codes The Dialer Maintenance and Common Reporting Codes dialog (see Figure 19) contains maintenance common reporting codes that the dialer will use to communicate those events. The Reporting Codes List is a list of all available maintenance and common reporting codes.

  • Page 38: Figure 21: Devices Window

    FX-2200 Programming Manual Figure 21: Devices Window Circuit List The Circuit List is located in the top left corner of the window. It is shown on the Circuits Window only. This lists any defined circuits for the current panel. Each circuit shows the circuit number, type of circuit and function if applicable.
  • Page 39 FX-2200 Programming Manual • Control (Bell): This programs the MIX-M500S as a standard signalling circuit. It will turn on continuously when activated by an alarm. They will silence when the Signal Silence button is pressed. It does not sound codes. •...
  • Page 40 FX-2200 Programming Manual Use Grp Message The Use Grp Msg check box is used if the input point is to use a group message. A text entry box appears when the box is checked. Enter the ID of the group message to be used. Only one ID can be entered.

  • Page 41: Figure 22: Copy Window

    Verify List: Displays the Verify List. If there is no Verify List, a requester will appear asking whether you wish to perform a verification. See section 2.6.5 of the Mircom Programming Interface Database Editor for a full description of the Verify List and its uses.

  • Page 42: Internal Circuits Window

    FX-2200 Programming Manual 2.11 Internal Circuits Window Overview The Internal Circuits Window (see Figure 23) allows for the programming of outputs, LEDs, etc. for the various internal circuits (functions) of the Control Panel. Internal circuits 0, 71, 72, 73, 74, 75, 81 and 82 are fire alarm functions while all others are trouble functions.

  • Page 43: Relate Window

    Verify List: Displays the Verify List. If there is no Verify List, a requester will appear asking whether you wish to perform a verification. See section 2.6.5 of the Mircom Programming Interface Database Editor for a full description of the Verify List and its uses.
  • Page 44 FX-2200 Programming Manual Groups Groups is a comma separated list of all the groups that the point is to use for relates. Up to ten groups can be listed. These groups are assigned to the point itself and does not change as the current output panel changes.

  • Page 45: Pushbuttons

    Verify List: Displays the Verify List. If there is no Verify List, a requester will appear asking whether you wish to perform a verification. See the Mircom Programming Interface Database Editor for a full description of the Verify List and its uses.

  • Page 46: Lcd Programming

    Level 2 allows programming of almost all system parameters. (Note that a Service Mode Trouble occurs when logged in Level 2.) Higher Privilege Levels are reserved for Mircom's own use and are not discussed here. Certain functions can be assigned to different privilege levels. These functions default to the higher of the two privilege levels.

  • Page 47: Menus

    FX-2200 Programming Manual Figure 26: Selector Screen For all screens, <Clear> returns to the previous menu level without changing any information and <Home> returns to the Main Menu without changing any information. 3.3 Menus Clock Menu This menu has the following options: •...
  • Page 48 FX-2200 Programming Manual • Individual: View or change the status of an individual switch. Each switch is shown in turn. If a switch has no timer, the Auto option is not shown. • All Off: Force switches into the Off mode. The number displayed is the number of timers that are switched On.
  • Page 49 FX-2200 Programming Manual entering any number to view the first detector in the database. Each detector is displayed in turn, showing the current sensitivity and allowing for it to be changed or the next detector to be displayed. Press <Clear> to stop viewing the detector list. -- PRINT: Print a list of all detectors that have a sensitivity other than the one selected in the database.
  • Page 50 FX-2200 Programming Manual Archive This function is restricted to Privilege Level 2. View and change the settings for the recording of optional entries into the history. The following items can be included or not included in the history: • Test: View or change whether Test signals should be recorded in the history. The current setting is shown in the upper right corner.
  • Page 51 FX-2200 Programming Manual recommended rates are: 4800, 2400, and 1200. Below is a table documenting the maximum wire capacitance allowed on a single port connection. Baud Rate Maximum Capacitance 9600 100 nF 4800 220 nF 2400 470 nF 1200 680 nF •...
  • Page 52 FX-2200 Programming Manual There is a special Level 2 passcode that is variable from day to day. It can be obtained from Mircom if the Level 2 passcode is forgotten. Memory This function is restricted to Privilege Level 2. This menu has the following options: •...

  • Page 53: Appendix A: Condition Codes And Zone Numbers

    FX-2200 Programming Manual 4.0 Appendix A: Condition Codes and Zone Numbers 4.1 Introduction This appendix lists the condition codes and zone numbers used by the panel. 4.2 List of Codes and Zone Numbers Condition Codes The alarm list and archive use the following formats for condition codes. Archive Alarm List Description...
  • Page 54 FX-2200 Programming Manual Zone Number PPP:ZZ.SSS Format: Control Panel Number Panel Zone Panel Panel Description Description Zone Zone General Alarm 1st Stage Alarm Initiating Circuit 1 2nd Stage Alarm Initiating Circuit 2 Switch Network Verify Test Mode Comlink 1 Erase Configuration Comlink 2 Change Configuration Comlink 3...
  • Page 55 FX-2200 Programming Manual Sub-Zone Number Zone Meaning of SubZone Number Addressable Circuit 000 - Wiring Fault All Others - Device Number Comlink 1 (Zone 51) Unit Network ID number Comlink 3 (Zone 53) Unit ID number Comlink 6 (Zone 54) Output Supervision (Zone 60) Output Circuit Number Auxiliary Power Supervision...
  • Page 56 FX-2200 Programming Manual Zone Meaning of SubZone Number Hot Key Activation (Zone 90): 001 - Fire Drill Function Number of the Hot key 002 - Lamp Test pressed 004 - Relay Disconnect 005 - Test Mode 006 - Signal Disconnect 007 - Acknowledge 008 - Signal Silence 009 - Reset...
  • Page 57 FX-2200 Programming Manual Zone Meaning of SubZone Number Hot Key Activation (Zone 90): 019 - Switch 4 On Function Number of the Hot key 020 - Switch 5 On pressed 021 - Switch 6 On 022 - Switch 7 On 023 - Switch 8 On 024 - Switch 9 On 025 - Switch 10 On...
  • Page 58 FX-2200 Programming Manual Zone Meaning of SubZone Number Network Reboot Required Who Unit ID of panel generating the Network Reboot (Zone 94): Required trouble Network Reboot Required Why 001 - network (Zone 95) 002 - network 003 - port 3 006 - negative counter 008 - memory overflow 009 - co-processor memory overflow...

  • Page 59: Appendix B: Stand-By Battery Calculation

    FX-2200 Programming Manual 5.0 Appendix B: Stand-by Battery Calculation Batteries are designed and manufactured for a specific use. "Standby" is one of these uses. They are rated according to their ability to deliver a steady current for 20 hours ("20 Hour Rating"). A 10 Ah battery is unable to deliver 10 A for 1 hour, however it delivers ½...

  • Page 60: Appendix C: Service Terminal

    FX-2200 Programming Manual 6.0 Appendix C: Service Terminal 6.1 General The FX-2200 Control Unit displays information and accept commands via the service terminal port. The information includes initiating circuit configuration, current status of bell, relays, etc., diagnostic information, the archive, etc. The commands allow for the selection of the information to view, limited programming and basic operation.
  • Page 61 FX-2200 Programming Manual Screen Name Description Bells Displays the current status of the bell circuits. Also shows the timers and settings for the cut-off. See screen 11 for acceptable supervision values. Function Relays Displays the current settings and timers for the 4 function relays. Releasers Displays the current settings and timers for the releasing circuits (if any).
  • Page 62 FX-2200 Programming Manual Screen Name Description Printer A copy of everything sent to the printer. This is useful for capturing print-outs to a file. Note: Status line updating is disabled while on this screen. Printer Status Displays the current printer status. Network Displays information about network communications.
  • Page 63 FX-2200 Programming Manual Screen Name Description FIFO This screen is restricted to Privilege Level 1 and above. Displays the FIFO memory usage of various system tasks. This diagnostic screen needs to be consulted if the panel has a Memory Overflow trouble. The first line shows the total FIFO space and the largest amount any one task has used.
  • Page 64 FX-2200 Programming Manual Screen Name Description Type Assigned For a single circuit, shows a grid displaying all the devices that are programmed to be on the circuit. Commands Display next device Display selected device at address (address)A Reset Minimum/Maximum Values Energize both sets of terminals Energize only B terminals Energize only A terminals...
  • Page 65 FX-2200 Programming Manual Screen Name Description Control Modules For a single circuit, shows a grid displaying the current status of all the Control modules. Commands Display next device Display selected device at address (address)A Reset Minimum/Maximum Values Energize both sets of terminals Energize only B terminals Energize only A terminals Bypass &...
  • Page 66 FX-2200 Programming Manual Command Description 0-127<Tab> View Selected Screen. If selected screen is unused/ unavailable, the next available screen is shown. 0.0<Tab> TeleVideo cursor control mode. 0.1<Tab> VT100 cursor control mode. Silence buzzer. Print the date and time. (month).(date) D Enter the date.
  • Page 68 Advanced Life Safety Solutions Canada U.S.A. © Mircom 2006 Printed in Canada 25 Interchange Way 60 Industrial Parkway PMB 278 Subject to change without prior notice Vaughan, ON L4K 5W3 Cheektowaga, NY 14227 Tel: 1-888-660-4655 Fax: 1-888-660-4113 www.mircom.com Tel: 905-660-4655 Fax: 905-660-4113...
