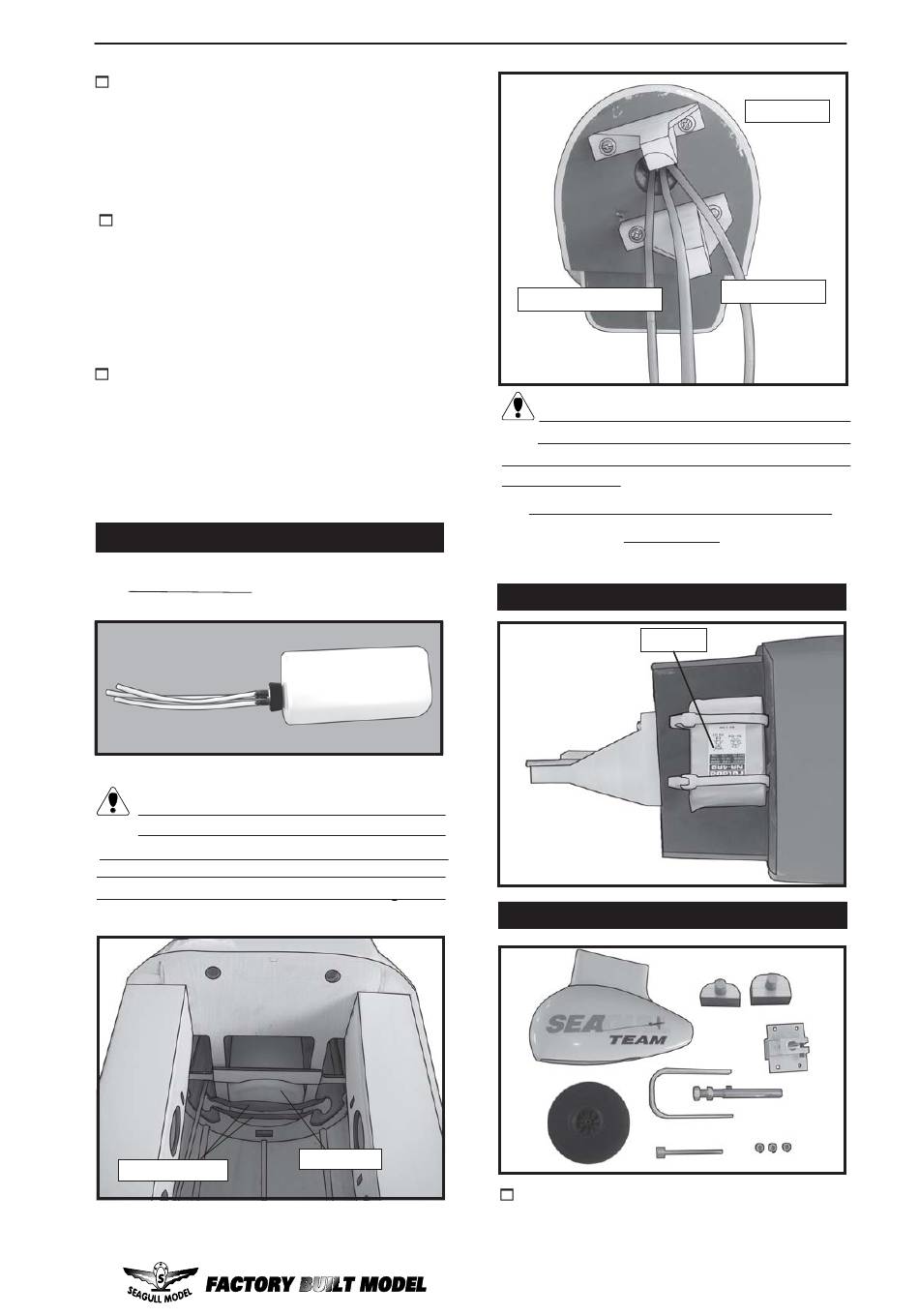

4) Test fit the stopper assembly into the
tank. It may be necessary to remove some of
the flashing around the tank opening using a
modeling knife. If flashing is present, make
sure none falls into the tank.
5) With the stopper assembly in place,
the weighted pick-up should rest away from
the rear of the tank and move freely inside the
tank. The top of the vent tube should rest just
below the top of the tank. It should not touch
the top of the tank.
6) When satisfied with the alignment of
the stopper assembly tighten the 3 x 20mm
machine screw until the rubber stopper ex-
pands and seals the tank opening. Do not
overtighten the assembly as this could cause
the tank to split.

FUEL TANK INSTALLATION.

1 _ Glow Engine.
You should mark which tube is the vent
and which is the fuel pickup when you attach
fuel tubing to the tubes in the stopper. Once
the tank is installed inside the fuselage, it may
be difficult to determine which is which.
Rubber band.
www.seagullmodels.com
Fuel tank.
Fuel pick-up tube.
Blow through one of the lines to ensure
the fuel lines have not become kinked inside
the fuel tank compartment. Air should flow
through easily.
2 _ Electric Conversion (EP Power)
(OPTION).
Pictures and instruction will update soon .

INSTALLING THE BATTERY.

Battery.

INSTALLING THE MAIN GEAR WIRES.

1) Using a modeling knife, remove the
covering from over the two main gear mount-
ing slots located in the bottom of the wing.
Vent tube.
Fuel fill tube.
B.
A.
