Installing The Aileron Servos - Seagull Models PERCIVAL MEW GULL Assembly Manual

PERCIVAL MEW GULL
Elevator servo.
Elevator servo.

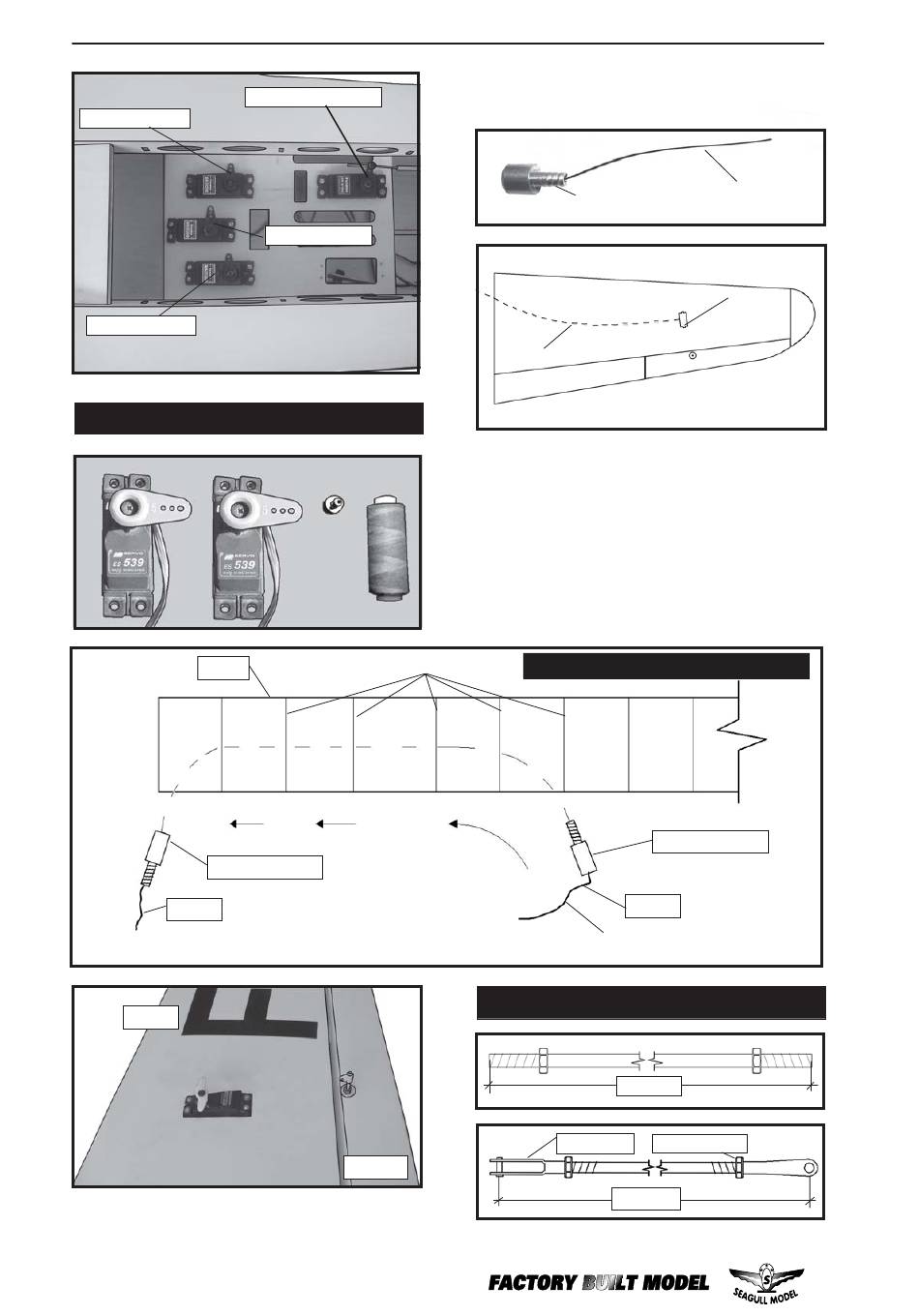

INSTALLING THE AILERON SERVOS.

Servos.
Wing.
Small Weight.
String.
Attach the string to the servo lead and carefully thread it though the wing.
Wing.
12
.
Throttle servo arm.
Rudder servo.
Small weight.
Thread.
Wing rib.
Aileron.
Instruction Manual.
Installing the aileron servo in place using the
same techniques used to flap servo.
Small weight.
Electric wire.
INSTALLING THE AILERON SERVOS
String.
AILERON PUSHROD HORN INSTALLATION
85mm.
M3 clevis.
110mm.
String.
Aileron
Servo.
.
Small Weight.
M3 lock nut.
