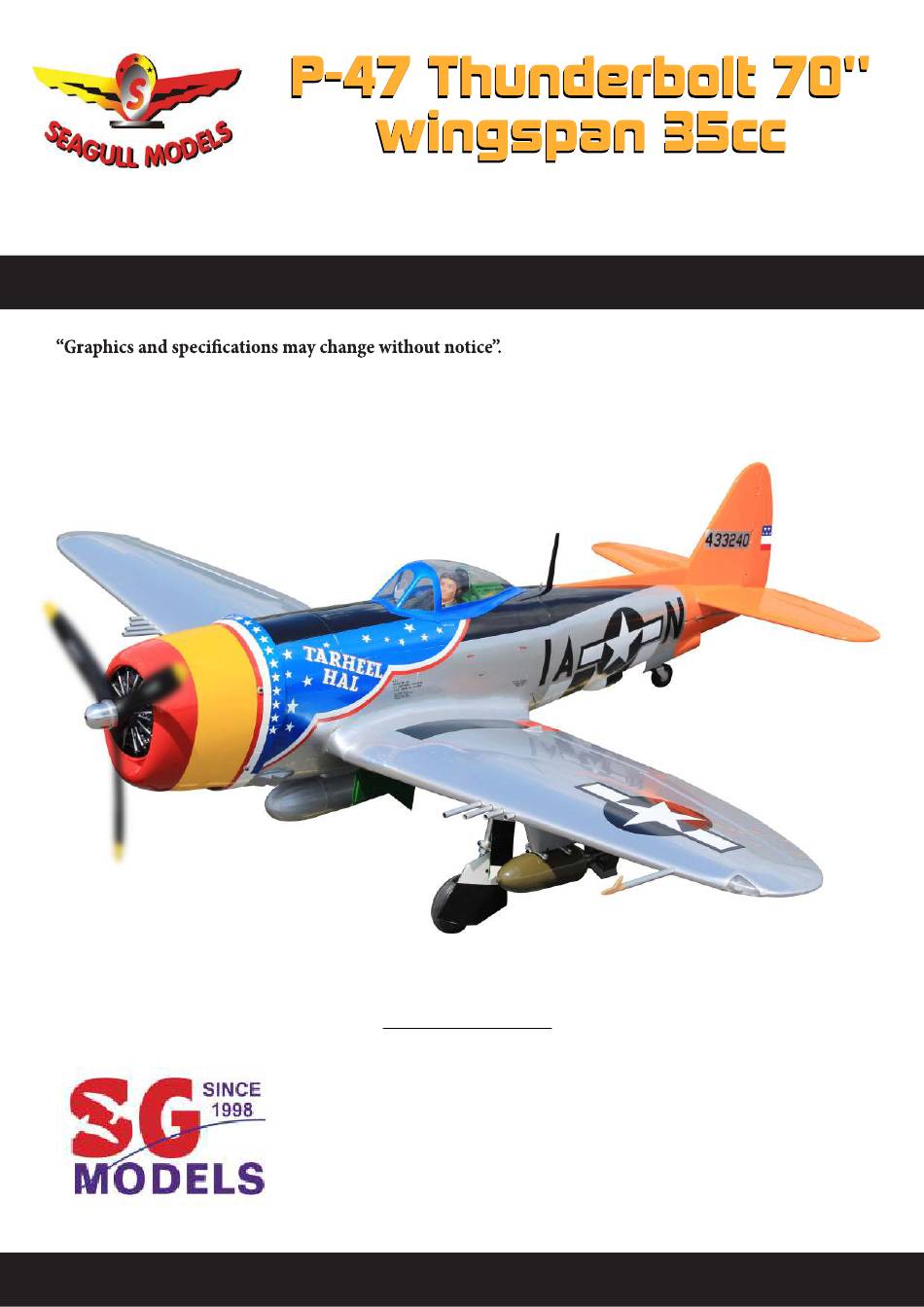

Seagull Models P-47 Thunderbolt Assembly Manual

70" wingspan 35cc
Hide thumbs

Advertisement

Quick Links

Download this manual
Code : SEA398
ASSEMBLY MANUAL
Speciications:
Wingspan------------------- 177.9 cm------------------- 70 inches.
Length----------------------- 150.2 cm------------------- 59.1 inches.
Wing area------------------- 58 sq.dm------------------- 899 sq.in.
Weight----------------------- 7.8 - 8.3 kg---------------- 17.2-18.3 lbs.
Engine----------------------- 30cc - 38cc.
Motor------------------------ 160.
Radio------------------------ 6 - 9 channels 10 servos.
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the P-47 Thunderbolt and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Seagull Models P-47 Thunderbolt

Summary of Contents for Seagull Models P-47 Thunderbolt

  • Page 1 Code : SEA398 ASSEMBLY MANUAL Speciications: Wingspan------------------- 177.9 cm------------------- 70 inches. Length----------------------- 150.2 cm------------------- 59.1 inches. Wing area------------------- 58 sq.dm------------------- 899 sq.in. Weight----------------------- 7.8 - 8.3 kg---------------- 17.2-18.3 lbs. Engine----------------------- 30cc - 38cc. Motor------------------------ 160. Radio------------------------ 6 - 9 channels 10 servos.

  • Page 2: Kit Contents

    P-47 hunderbolt 70” Wingpan 35cc Instruction Manual. INTRODUCTION hank you for choosing the P-47 hunderbolt 70” Wingpan 35cc ARTF by SG MOD- ELS . he P-47 hunderbolt 70” Wingpan 35cc was designed with the intermediate/ad- vanced sport lyer in mind. It is a semi scale airplane which is easy to ly and quick to as- semble.

  • Page 3: Additional Items Required

    KIT CONTENTS WING TIP BULBS SEA398 P-47 hunderbolt 70” Please see below pictures. Wingpan 35cc 1. Fuselage 2. Wing set (2) 3. Tail set (2) 4. Canopy 5. Cowling 6. Wing tube 7. Pilot 8. Fuel tank 9. Pushrod set Use Lipo 2s - 3s for led bulbs 10.

  • Page 4: Install The Ailerons

    P-47 hunderbolt 70” Wingpan 35cc Instruction Manual. C/A glue Epoxy INSTALL THE AILERONS Please see pictures below..
  • Page 5 Remove the ailerons from the wing and remove the hinges. Use a small piece of rough sandpaper to scuf the hinges for better epoxy adhesion. Do this to all aileron hinges. Epoxy Epoxy Apply epoxy into each of the holes in the ailerons using a spare piece of pushrod wire or toothpick.
  • Page 6 P-47 hunderbolt 70” Wingpan 35cc Instruction Manual. Check the it of the control horns to the aileron and lap. hey should rest lush Check the it of the aileron to the wing. against the control surface as shown. he top of the ailerons will align to the top of the wing.

  • Page 7: Installing The Aileron Servos

    INSTALLING THE AILERON SERVOS Epoxy Apply epoxy to the area of the control horns that ist into the slots. Use enough epoxy so the control horns will be fully bonded to the ied surfaces. Epoxy Ailerons servo Flap servo Before the epoxy fully cures, remove the tape from around the control horn.
  • Page 8 P-47 hunderbolt 70” Wingpan 35cc Instruction Manual. 25mm Secure the servo to the aileron hatch us- ing Phillips screwdriver and the screws provided with the servo. Use drill bit in a pin vise to drill the mout- ing holes in the blocks. 1.5mm Apply 1-2 drops of thin C/A to each of the mounting tabs.

  • Page 9: Aileron Pushrod Installation

    Set the aileron hatch in place and use a Phillips screw driver to install it with four wood screws. M3x10mm AILERON PUSHROD INSTALLATION Please see below pictures. 45mm...
  • Page 10 P-47 hunderbolt 70” Wingpan 35cc Instruction Manual. Attach the lap servo to the lap servo cover. Center the lap servo (or set the values to 0 for both up and down) and in- stall the servo arm perpendicular to the servo centerline.
  • Page 11 Attach the clevis to the lap servo arm. Adjust the linkage so the lap is in the mid-lap position. It may take a few tries to properly adjust the linkage. Use a pin vise and 3/32-inch (2mm) drill bit to clear the paint from the lap control horn.

  • Page 12: Installing Landing Gear

    P-47 hunderbolt 70” Wingpan 35cc Instruction Manual. Set the lap control at the transmitter to the down lap position. Adjust the lap travel at the transmitter until it matches the control throws listed in this manual. Use canopy glue to attach the cover to the wing.
  • Page 13 Epoxy Epoxy...
  • Page 14 P-47 hunderbolt 70” Wingpan 35cc Instruction Manual. M3x20mm 50mm M3x8mm M3x10mm...
  • Page 15 M3x6mm...
  • Page 16 P-47 hunderbolt 70” Wingpan 35cc Instruction Manual. Install the cap on the wing. Epoxy Epoxy...
  • Page 17 he servo motor should be at least 25mm in size. 25mm Mininum servo. Torque : 8.7 oz-in (6.3 kg-cm) @ 6V; 118 oz-in (8.5 kg-cm) @ 8.4V 30mm Encourage the use of servos such as Spektrum.a5060. Note: he speed of this servo you to be in the slowest mode then you gradually in- crease to suit the speed ranked.
  • Page 18 P-47 hunderbolt 70” Wingpan 35cc Instruction Manual. Secure the landing gear doors to the land- ing gear struts. Insert bombs and guns on wings.
  • Page 19 M4x15mm 1.5mm...
  • Page 20 P-47 hunderbolt 70” Wingpan 35cc Instruction Manual. M2.5x10mm M3x25mm INSTALLING THE FUSEKAGE SERVOS M3x15mm Because the size of servos difer, you may need to adjust the size of the precut opening in the mount. he notch in the sides of the mount allow the servo lead to pass through.

  • Page 21: Installation

    Rudder servo arm hrottle servo arm 25mm 45mm hrottle servo 25mm Elevator servo arm Elevator servo Rudder servo + Tail wheel Secure the servos with the screws pro- INSTALLING THE RECEIVER SWITCH vided with your radio system. Install the switch into the precut hole in the side, in the fuselage.
  • Page 22 P-47 hunderbolt 70” Wingpan 35cc Instruction Manual. INSTALLING THE ENGINE SWITCH Trim and cut M3x20mm Switch INSTALL SCALE BOMB Locate items necessary to install.

  • Page 23: Installing The Stopper Assembly

    INSTALLING THE STOPPER FUEL TANK INSTALLATION ASSEMBLY Using a modeling knife, carefully cut of the rear portion of one of the 3 nylon tubes leaving 1/2” protruding from the rear of the stopper. his will be the fuel pick up tube. Using a modeling knife, cut one length of silicon fuel line.

  • Page 24: Mounting The Engine

    P-47 hunderbolt 70” Wingpan 35cc Instruction Manual. 3x15mm M4 Nylon Vent tube Fuel pick up tube Fuel ill tube Connect the lines from the tank to the en- gine and muler. he vent line will con- nect to the muler and the line from the clunk tothe carburetor.
  • Page 25 5.2mm Locate the engine mounting in position on the irewall. Use a 2.5mm drill bit to drill the holes necessary to mount your particular motor choice. 2.5mm...
  • Page 26 P-47 hunderbolt 70” Wingpan 35cc Instruction Manual. 160mm...
  • Page 27 Connect ignition module to pickup line of engine. Secure with Safety Clip, safety wire, tape or other method. Ensure the plugs will not come apart from vibration or light tension. Secure ignition wire with nylon ties as necessary.
  • Page 28 P-47 hunderbolt 70” Wingpan 35cc Instruction Manual. Move the throttle stick to the closed posi- tion and move the carburetor to closed. Use a 2.5mm hex wrench to tighten the screw that secures the throttle pushrod wire. Make sure to use threadlock on the screw so it does not vibrate loose.
  • Page 29 Epoxy...
  • Page 30 P-47 hunderbolt 70” Wingpan 35cc Instruction Manual. Epoxy...
  • Page 31 Tape the cowl to the fuselage using low-tack tape. Use a drill and drill bit to drill the holes for the cowl mounting screws. Make sure the cowl position is correct before drill- ing each hole. 3.2mm...
  • Page 32 P-47 hunderbolt 70” Wingpan 35cc Instruction Manual. Install the muler and muler extension onto the engine and make the cutout in the cowl for muler clearance. Connect the fuel and pressure lines to the carbu- retor, muler and fuel iler valve. Secure the cowl to fuselage using the M3x10mm socket head screws.Putting a small length of silicon fuel tube under the head of the...
  • Page 33 M5x30mm and washers Recommend the items necessary to install the electric power conversion parts included with your model. - Motor: 180 - 3000 Watts - Propeller: 20x12 ~ 22x11 - ESC: 80A - 100A - 12S Lipo Attach the electric motor box to the ire- wall centered with the cross lines drawn on the electric motor box and irewall.
  • Page 34 P-47 hunderbolt 70” Wingpan 35cc Instruction Manual. Balsa stick Epoxy Blind nut Attach the speed control to the side of Attach the motor to the front of the elec- the motor box using two-sided tape and tric motor box using four 5mm blind nut, tie wraps.

  • Page 35: Installing The Spinner

    he propeller should not touch any part of the spinner cone. If it does, use a sharp modeling knife and carefully trim away the spinner cone where the propel- ler comes in contact with it. INSTALL ELEVATOR CONTROL HORN Install the elevator control horn using the M4 Nylon same method as same as the aileron con- trol horns.
  • Page 36 P-47 hunderbolt 70” Wingpan 35cc Instruction Manual. Epoxy Epoxy Epoxy INSTALL RUDDER CONTROL HORN Install the elevator control horn using the same method as same as the aileron con- trol horns.
  • Page 37 Epoxy Fiberglass control horn Epoxy Epoxy Epoxy...
  • Page 38 P-47 hunderbolt 70” Wingpan 35cc Instruction Manual. Fiberglass control horn INSTALLING HORIZONTAL STABLLIZER Use Epoxy Glue to glue the Horizontal Stabilizer to the fuselage.
  • Page 39 ELEVATOR PUSHROD HORN INSTALLATION Install the elevator control horn using the same method as with the aileron control horns. Position the elevator control horn on the both side of elevator. Elevator control horn hread one clevis and M3 lock nut on to each elevator control rod.

  • Page 40: Rudder Pushrod Installation

    P-47 hunderbolt 70” Wingpan 35cc Instruction Manual. Elevator pushrod RUDDER PUSHROD INSTALLATION Repeat steps as same as steps done for elevator. 805mm Ball Link...

  • Page 41: Mounting The Tail Wheel

    MOUNTING THE TAIL WHEEL Locate items necessary to intall tail wheel. M3x15mm...
  • Page 42 P-47 hunderbolt 70” Wingpan 35cc Instruction Manual. Epoxy Epoxy...
  • Page 43 Install springs...
  • Page 44 P-47 hunderbolt 70” Wingpan 35cc Instruction Manual. ATTCHMENT WING-FUSELAGE 4x12mm Attach the aluminium tube into fuselage. Insert two lower wing panels as pictures below..
  • Page 45 INSTALLATION COCKPIT, PILOT AND CANOPY Locate items necessary to install.
  • Page 46 P-47 hunderbolt 70” Wingpan 35cc Instruction Manual.
  • Page 47 C/A glue C/A glue C/A glue...
  • Page 48 P-47 hunderbolt 70” Wingpan 35cc Instruction Manual. Epoxy...
  • Page 49 M2x12mm Epoxy Epoxy...
  • Page 50 P-47 hunderbolt 70” Wingpan 35cc Instruction Manual. C/A glue C/A glue...
  • Page 51 Epoxy Epoxy Epoxy...
  • Page 52 P-47 hunderbolt 70” Wingpan 35cc Instruction Manual. C/A glue INSTALLING SCALE PARTS Parts requirement.See pictures below.
  • Page 53 C/A glue C/A glue INSTALLING NEEDED ANTEN Parts requirement.See pictures below.
  • Page 54 P-47 hunderbolt 70” Wingpan 35cc Instruction Manual. Epoxy INSTALL THE GUN ON THE WING Parts requirement.See pictures below. INSTALL PITOT TUBE (PROT WING) Please study images below.

  • Page 55: Apply The Decals

    APPLY THE DECALS If all the decals are precut and ready to stick. Please be certain the model is clean and free from oily ingerprints and dust. Position decal on the model where de- sired, using the photos on the box and aid in their location.

  • Page 56: Control Throws

    P-47 hunderbolt 70” Wingpan 35cc Instruction Manual. *If possible, irst attempt to balance the CONTROL THROWS model by changing the position of the re- ceiver battery and receiver. If you are un- Ailerons: Rudder: able to obtain good balance by doing so, High Rate : High Rate : then it will be necessary to add weight to...
  • Page 57 15-20mm 15-20mm 20-25mm Fuselage 20-25mm 15-20mm Wing 15-20mm 30mm 40mm...

  • Page 58: Flight Preparation

    P-47 hunderbolt 70” Wingpan 35cc Instruction Manual. FLIGHT PREPARATION PREFLIGHT CHECK Check the operation and direction of the 1) Completely charge your transmit- elevator, rudder, ailerons and throttle. ter and receiver batteries before your irst day of lying. A) Plug in your radio system per the 2) Check every bolt and every glue joint manufacturer’s instructions and turn eve- in the P-47 hunderbolt 70”...
  • Page 59 If you have any queries, or are interested in our products, please feel free to contact us Factory : 12/101A - Hamlet 4 - Le Van Khuong Street - Dong hanh Ward - Hoc Mon District - Ho Chi Minh City - Viet Nam. Oice : 62/8 Ngo Tat To Street - Ward 19 - Binh hanh District - Ho Chi Minh City - Viet Nam Phone : 848 - 86622289 or 848- 36018777...
