Test run

10
These operation instructions are valid for "clockwise closing", i.e. driven
.
shaft turns clockwise to close the valve.
.
.
Set selector switch to position 'OFF' (figure H).
.
Switch on supply voltage.
.
Engage manual operation as described under clause 5 on page 8.
Move actuator manually into both end positions of the valve.
Check if limit switching is set correctly. When limit switching is set
correctly, the appropriate LED at the local controls is illuminated for each
end position (figure H). If both LEDs are illuminated at the same time or if
no LED is illuminated when the end position is reached, the limit setting
must be set as described in clause 8 on page 11.
.
When limit switching is set correctly:
Perform test run at local controls with selector switch in position "LOCAL"
via push-buttons

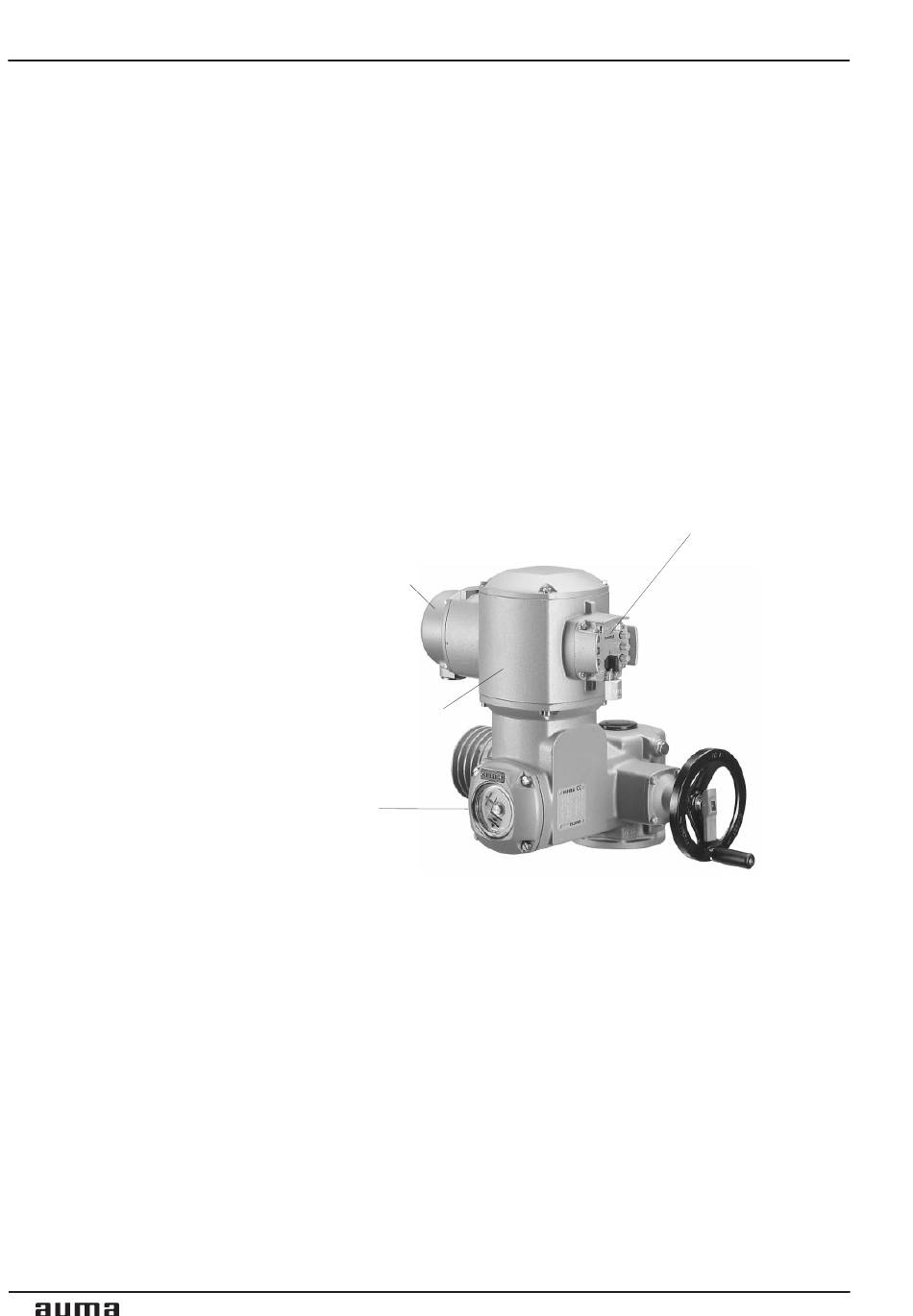

Figure H
AUMA plug/socket connector
(Customer connection XK)
AUMA VARIOMATIC
Switch
compartment cover
Operation instructions
Local controls
LEDs:
OPEN
FAULT
CLOSED
Push-buttons:
OPEN
STOP
CLOSE
Selector switch:
LOCAL-OFF-REMOTE
