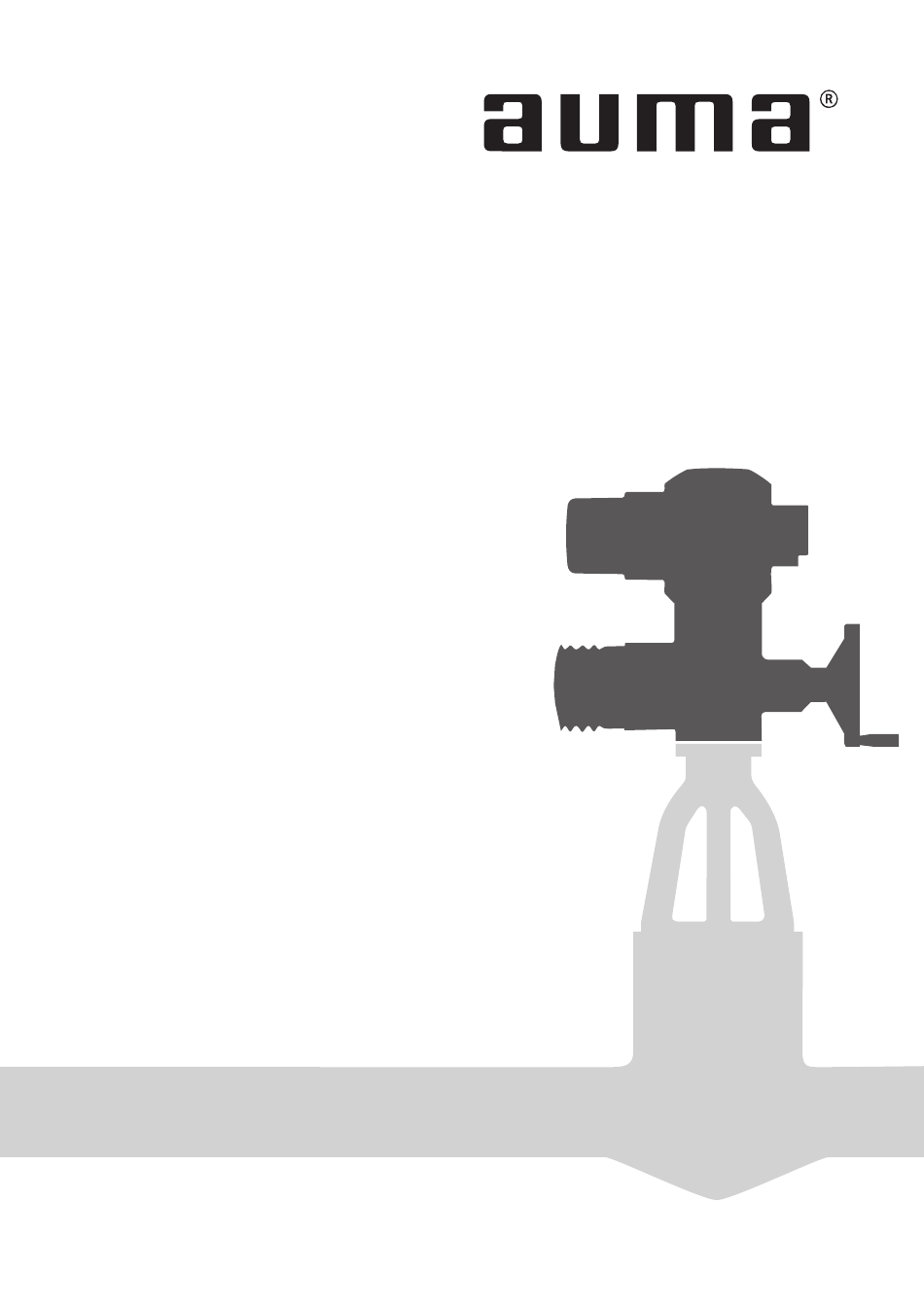

  • Page 1 Multi-turn actuators SARV 07.1 - SARV 10.1 AUMA VARIOMATIC Operation instructions...

  • Page 2: Table Of Contents

    14. Programming AUMA VARIOMATIC ........18...
  • Page 3 Operation instructions AUMA VARIOMATIC 16. Setting of the operating time (output speed) ......23 16.1...

  • Page 4: Safety Instructions

    AUMA actuators are designed for the operation of industrial valves, e.g. globe valves, gate valves, butterfly valves and ball valves. For other applications, please consult us. AUMA is not liable for any possi- ble damages resulting from use in other than the designated applications.

  • Page 5: Technical Data

    5 - 20 W, 110 V - 250 V or 24 - 48 V, external supply. Motors: Electronically commutated special AUMA motor. Motor protection: Thermistor motor protection. Electrical connection: Standard: AUMA plug/socket connector 100 with screw cable terminations. Wiring diagram: Refer to name plate. − 25 °C to + 60 °C Ambient temperature: Enclosure protection:...

  • Page 6: Transport And Storage

    Multi-turn actuators SARV 07.1 - SARV 10.1 AUMA VARIOMATIC Operation instructions Transport and storage Transport to place of installation in sturdy packing. Do not attach ropes or hooks to the handwheel for the purpose of lifting by hoist. If multi-turn actuator is mounted on valve, attach ropes or hooks for the purpose of lifting by hoist to valve and not to multi-turn actuator.
  • Page 7 Multi-turn actuators SARV 07.1 - SARV 10.1 Operation instructions AUMA VARIOMATIC The output drive types B1, B2, B3 or B4 (figure B) are delivered with bore and keyway (usually according to ISO 5210). Figure B Output drive type B 1 / B 2...

  • Page 8: Manual Operation

    Multi-turn actuators SARV 07.1 - SARV 10.1 AUMA VARIOMATIC Operation instructions Manual operation Manual operation may only be engaged when motor is not running. Switching over while motor is running can lead to damage at multi-turn actuator (figure C)! Lift change-over lever in the center of the handwheel up to max. 85°, while slightly turning the handwheel until manual operation enganges (figure D).

  • Page 9: Electrical Connection

    / socket connector with screw cable terminations as AUMA plug/socket connector standard. (customer connection XK) When installing the AUMA VARIOMATIC on a wall bracket, ob- serve the following points: 1) For position feedback an electronic position transmitter (RWG) in 3-wire system must be used.

  • Page 10: Test Run

    8 on page 11. When limit switching is set correctly: Perform test run at local controls with selector switch in position ”LOCAL” via push-buttons Figure H Local controls AUMA plug/socket connector LEDs: (Customer connection XK) OPEN FAULT CLOSED...

  • Page 11: Setting Of The Limit Switching

    Multi-turn actuators SARV 07.1 - SARV 10.1 Operation instructions AUMA VARIOMATIC Setting of the limit switching Indicator disc Cover Figure J1 Engage manual operation as described under clause 5 on page 8. Remove switch compartment cover and, if installed, pull off indicator disc (figure J1). Open end spanner (ca.

  • Page 12: Setting Of Duo Limit Switching (Option)

    Multi-turn actuators SARV 07.1 - SARV 10.1 AUMA VARIOMATIC Operation instructions Perform electrical test run to check seating in the end position. Red test buttons T and P (figure J2) serve for operating the microswitches of torque and limit switching. In case a fault occurs, perform emergency switch-off by turning both test buttons the appropriate direction of the arrow DÖL/DSR...

  • Page 13: Setting Of Torque Switching

    Multi-turn actuators SARV 07.1 - SARV 10.1 Operation instructions AUMA VARIOMATIC 10. Setting of torque switching Set torque must suit the valve! When multi-turn actuator is delivered by a valve manufacturer, setting was made during testing. This setting should only be changed with the consent of...

  • Page 14: Setting Of Mechanical Position Indicator (Option)

    (setting potentiometer) must be provided. Perform fine-tuning of the zero point at external setting potentiometer. When using AUMA power supply unit PS 01 and indication instrument with percentage scale, perform fine-tuning of zero point at power supply unit.

  • Page 15: Setting Of The Electronic Position Transmitter Rwg (Option)

    Multi-turn actuators SARV 07.1 - SARV 10.1 Operation instructions AUMA VARIOMATIC Figure M Cover plate 13. Setting of the electronic position transmitter RWG (option) The electronic position transmitter is set in our factory according to the sig- nal range stated in the order. Perform a subsequent adjustment according to subclause 13.1 or 13.2.

  • Page 16: Setting For 2-Wire System 4 - 20 Ma And 3- /4-Wire System 0 - 20 Ma

    The circuit (external load) must be connected (observe max. ext. resistance R ), or the appropriate poles at the AUMA plug/socket connector must be linked (refer to wiring diagram C IS...KMS 14TP...), otherwise it is not possible to measure a value.

  • Page 17: Setting For 3- / 4- Wire System 4 - 20 Ma

    The circuit (external load) must be connected (observe max. ext. resistance R ), or the appropriate poles at the AUMA plug/socket connector must be linked (refer to wiring diagram C IS...KMS 14TP...), otherwise it is not possible to measure a value.

  • Page 18: Programming Auma Variomatic

    Multi-turn actuators SARV 07.1 - SARV 10.1 AUMA VARIOMATIC Operation instructions 14. Programming AUMA VARIOMATIC Remove 4 screws at VARIOMATIC (Figure P / 8.1) and take off cover. Figure P: Actuator SAR with controls AUMA VARIOMATIC Local controls AUMA VARIOMATIC Switch compartment cover In the factory push-to-run operation REMOTE and push-to-run operation LOCAL are programmed (refer to table 2).

  • Page 19: Programming With Bus Board Installed (Modbus, Profibus And Interbus S)

    Multi-turn actuators SARV 07.1 - SARV 10.1 Operation instructions AUMA VARIOMATIC Table 2 DIP switch S1 Programming (on logic board) Direction CLOSE Direction OPEN Self-retaining REMOTE 1 2 3 4 5 6 7 1 2 3 4 5 6 7...

  • Page 20: Electronic Positioner (Option)

    Multi-turn actuators SARV 07.1 - SARV 10.1 AUMA VARIOMATIC Operation instructions 15. Electronic positioner (option) 15.1 Technical data Command signal (input sig. E1, nominal value) 0/4 - 20 mA (option 0 - 5 V) Feedback (input signal E2, actual value) 4 - 20 mA (option 0 - 5 V) Sensitivity (dead band) ∆E...

  • Page 21: Positioner Adjustment End Position Closed

    Multi-turn actuators SARV 07.1 - SARV 10.1 Operation instructions AUMA VARIOMATIC Programming for faults: Behaviour on loss of input signal E1 and / or on loss of feedback signal E2 Pre-condition: Signals 4 - 20 mA Process related (desired) Programming:...

  • Page 22: Positioner Adjustment End Position Open

    Multi-turn actuators SARV 07.1 - SARV 10.1 AUMA VARIOMATIC Operation instructions 15.5 Positioner adjustment end Run multi-turn actuator by depressing push-button (local controls) to end position OPEN. position OPEN Measure 5 V at measuring points M4 and M3. (Figure T1).

  • Page 23: Setting Of The Operating Time (Output Speed)

    Multi-turn actuators SARV 07.1 - SARV 10.1 Operation instructions AUMA VARIOMATIC 16. Setting of the operating time (output speed) 16.1 Setting of the operating time via internal command signal Figure U: Actuator SAR with controls AUMA VARIOMATIC Local controls AUMA VARIOMATIC Switch compartment cover Loosen 4 screws (8.1) and remove cover (figure U).

  • Page 24: Setting Of The Operating Time Via The Speed-Interface Board (Option)

    Multi-turn actuators SARV 07.1 - SARV 10.1 AUMA VARIOMATIC Operation instructions 16.2 Setting of the operating time via the speed-interface board (option) (refer to order-related wiring diagram CI S...KMS 14TP...) With the speed-interface board the operating time (speed) can also be pre-determined through an external signal, either analogue (command sig- nal E3 = 0 - 20 mA or 4 - 20 mA) or binary (command signal n1, n2).
  • Page 25 Multi-turn actuators SARV 07.1 - SARV 10.1 Operation instructions AUMA VARIOMATIC Analogue The analogue operating time range E3 (refer to wiring diagram CI S...KMS 14TP...) can be set with the switch S1-2.2 (figure W) to either 0 - 20 mA or nominal operating time E3: 4 - 20 mA.

  • Page 26: Further Functions Of The Speed-Interface Board In Conjunction With The Positioner (Option)

    Multi-turn actuators SARV 07.1 - SARV 10.1 AUMA VARIOMATIC Operation instructions 16.3 Further functions of the speed-interface board in conjunction with the positioner (option) Remote change-over of the nominal operating time This function is only possible in combination with the analogue or binary nominal operating time (selector switch S2-2.2 in position ‘positioner’, figure W).

  • Page 27: Signal Board (Option)

    Multi-turn actuators SARV 07.1 - SARV 10.1 Operation instructions AUMA VARIOMATIC 17. Signal board (option) Signal boards with the option Running indication (blinker transmitter) offer the possibility to switch over from impulse to continuous signal by way of a sliding switch (see wiring diagram CI S...KMS 14TP...).

  • Page 28: Maintenance

    Original paint in small quantities can be supplied by AUMA. AUMA multi-turn actuators require very little maintenance. Precondition for reliable service is correct commissioning. Seals made of elastomers are subject to aging and must therefore regularly be checked and, if necessary, exchanged.

  • Page 29: Certificate Of Conformity

    Multi-turn actuators SARV 07.1 - SARV 10.1 Operation instructions AUMA VARIOMATIC 20. Certificate of conformity...

  • Page 30: Declaration Of Incorporation

    Multi-turn actuators SARV 07.1 - SARV 10.1 AUMA VARIOMATIC Operation instructions 21. Declaration of incorporation...
  • Page 31 Multi-turn actuators SARV 07.1 - SARV 10.1 Operation instructions AUMA VARIOMATIC...
  • Page 32 Spur gearboxes GSM 40.3 - GSM 125.3 GK 10.2 - GK 40.2 max 5 600 Nm max 16 000 Nm Worm gearboxes Bevel gearboxes WERNER RIESTER GmbH & Co. KG Armaturen- und Maschinenantriebe Tel 0711/34803-0 Fax 0711/34803-34 E-Mail riester@wof.auma.com Y000.077/003 /1.00...
