16. Setting of the operating time (output speed)

16.1 Setting of the operating time via internal command signal

Potentiometer
for setting of
OPERATING TIME
DIP switch S1
for programming
Logic board
Cover plate
standard

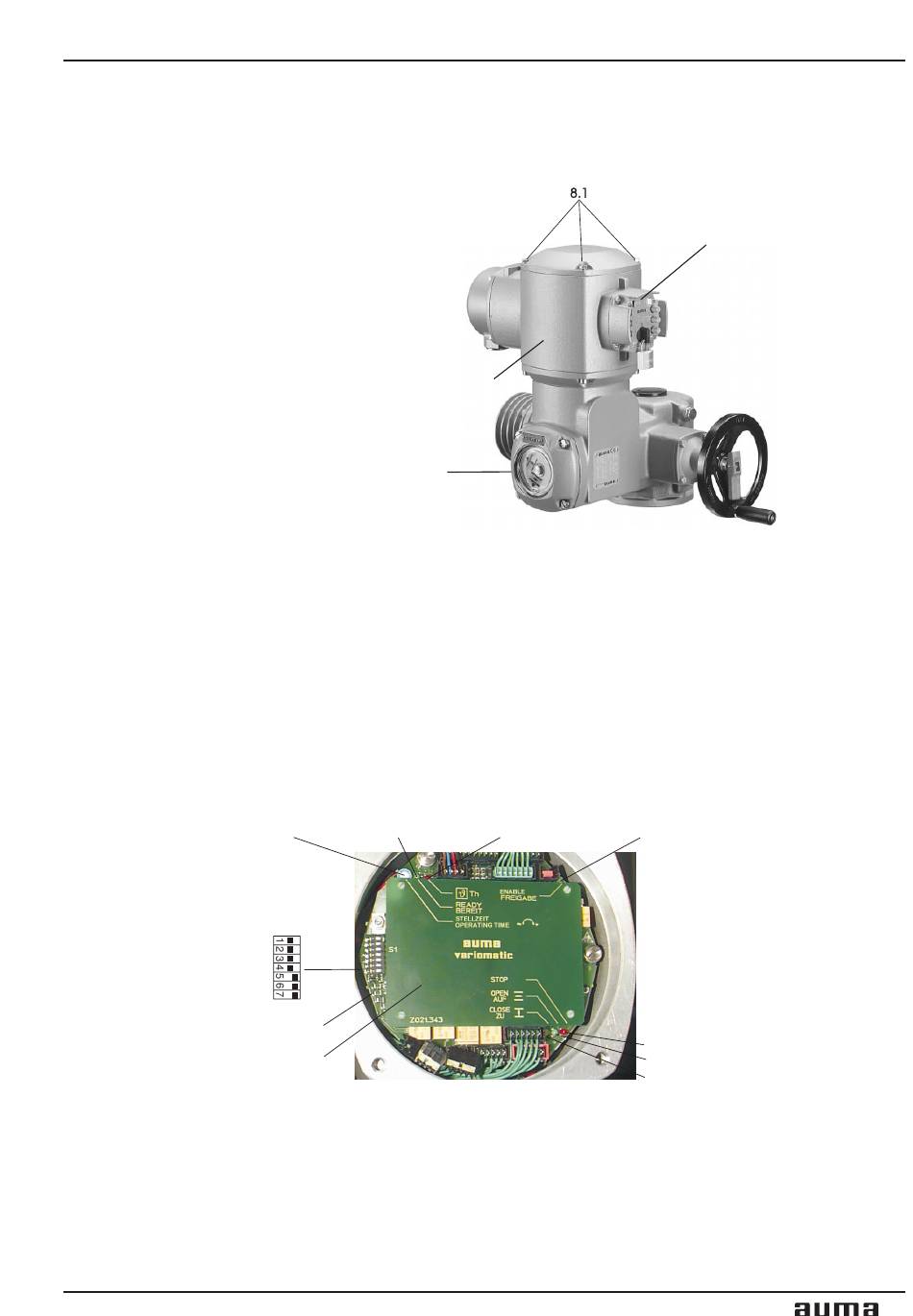

Figure U: Actuator SAR with controls AUMA VARIOMATIC
AUMA VARIOMATIC
Switch
compartment cover
.
.
Loosen 4 screws (8.1) and remove cover (figure U).
Set required operating time at potentiometer "OPERATING TIME"
(figure V).
Short operating time: turn counter-clockwise.
.
Long operating time: turn clockwise.
Speed ranges see technical data sheet
Replace cover and fasten 4 bolts (8.1) evenly crosswise.
Figure V: VARIOMATIC standard
Diagnosis LED (green):
Illuminated when
ready
ON
Multi-turn actuators SARV 07.1 - SARV 10.1
Diagnosis LED (red): Diagnosis LED (green):
Motor protection Enable REMOTE (option)
tripped always installed,
illuminated during normal
operation
Diagnosis LEDs for
active REMOTE
control commands:
run command STOP (red)
run command OPEN (green)
run command CLOSE (yellow)
