Setting of the limit switching

Indicator disc
Figure J1

8.1 Settings for end position CLOSED (black section)

8.2 Settings for end position OPEN (white section)

Mark
.
.
MOV
Turn handwheel clockwise until valve is closed.

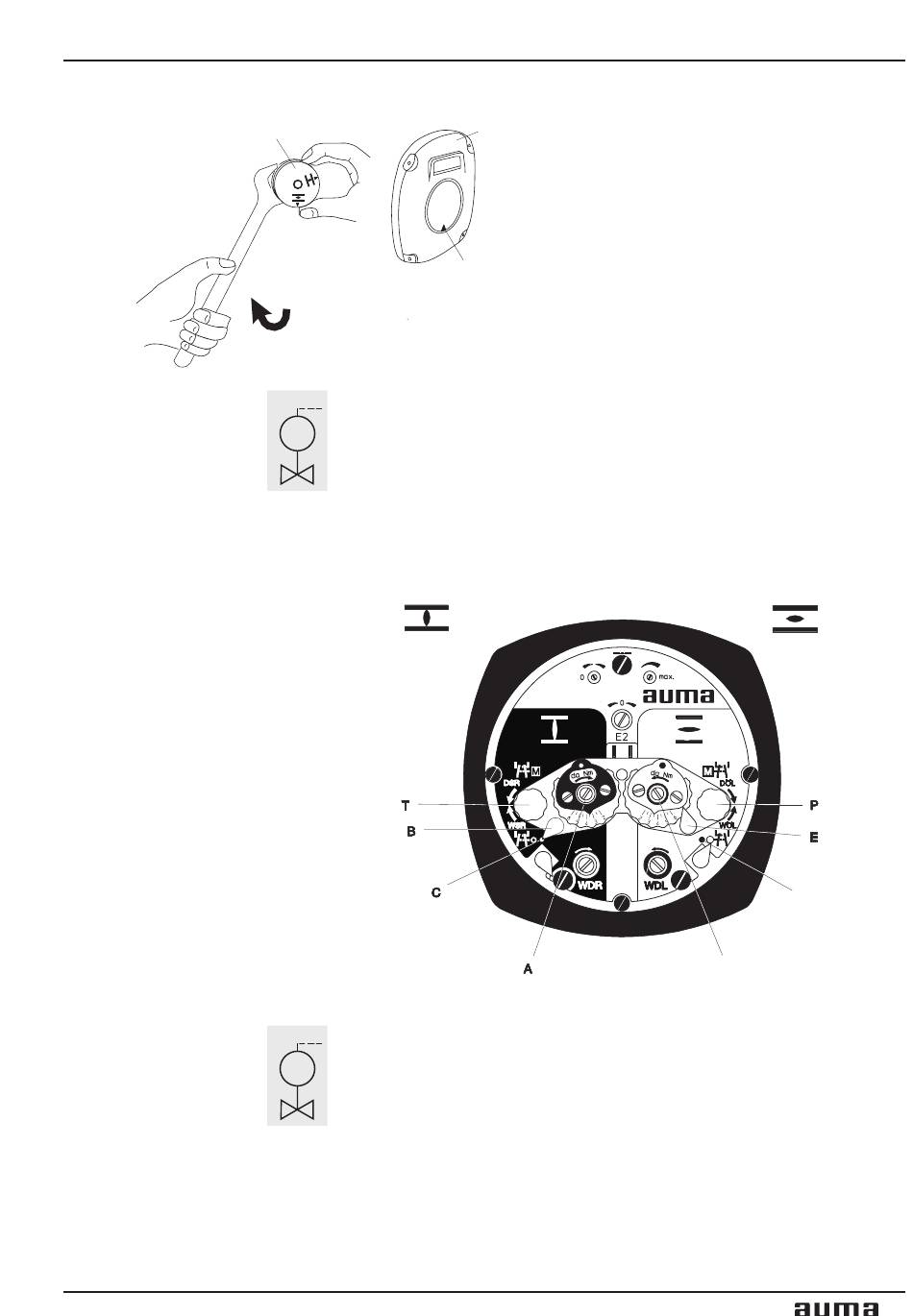

Press down and turn setting spindle A (figure J2) with screw driver (5 mm)
M
in direction of arrow, thereby observe pointer B. While a ratched is felt
and heard, the pointer B moves 90° every time up to point C.
When pointer B is 90° from point C, continue turning slowly. If pointer B
does not move anymore, stop turning and release setting spindle. In case
of having turned too far, continue turning and approach switching point
anew.
Figure J2
.
.
Turn handwheel counter-clockwise until valve is open, then turn back
MOV
approximately 1/2 a turn.
M
Press down and turn setting spindle D (figure J3) with screw driver (5
mm) in direction of arrow, thereby observe pointer E. While a ratched is
felt and heard, the pointer E moves 90° every time up to point F.
When pointer R is 90° from point F, continue turning slowly. If pointer E
does not move anymore, stop turning and release setting spindle. In case
of having turned too far, continue turning and approach switching point
anew.
Multi-turn actuators SARV 07.1 - SARV 10.1
.
Cover
Engage manual operation as described under
.
clause 5 on page 8.
Remove switch compartment cover and, if
installed, pull off indicator disc (figure J1). Open
end spanner (ca. 10 mm) may be used as lever.
AUMA VARIOMATIC
