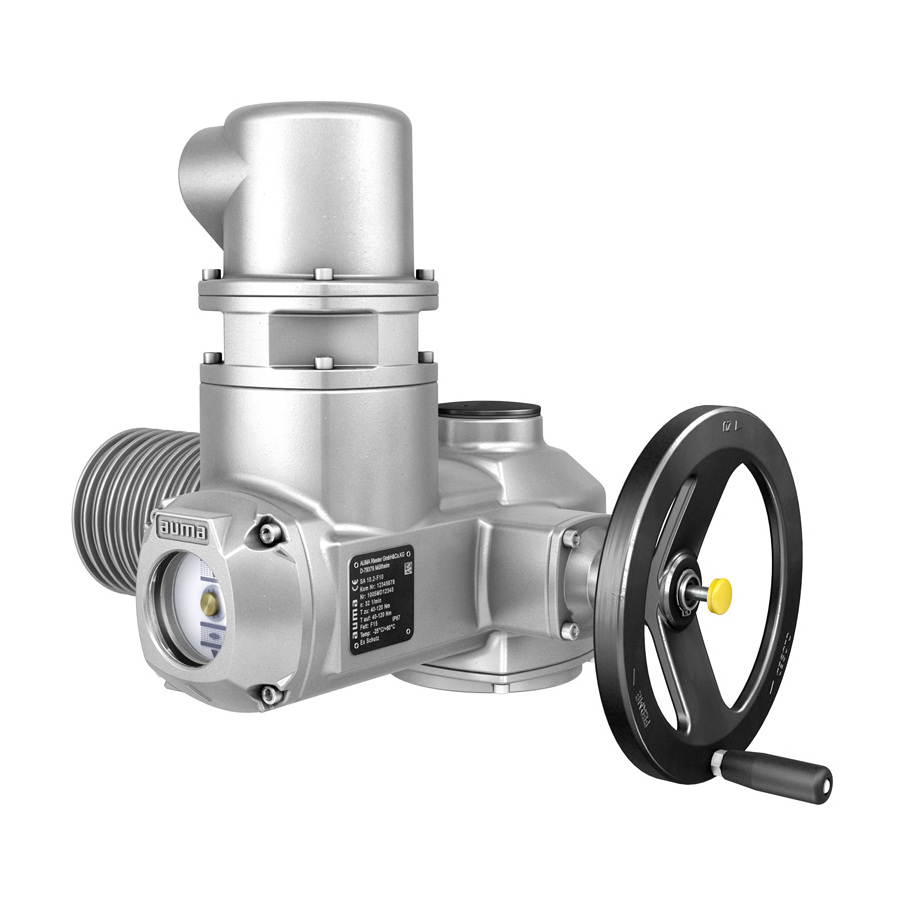

Multi-turn actuators with actuator controls aumatic acexc 01.2 non-intrusive
Hide thumbs Also See for SAEx 07.2:
Table of Contents

Advertisement

Quick Links

Download this manual
Multi-turn actuators
SAEx 07.2
SAEx 16.2
SAREx 07.2
SAREx 16.2
Control unit: electronic (MWG)
with actuator controls
AUMATIC ACExC 01.2 Non-Intrusive
Control
Parallel
Profibus DP
Modbus
Foundation Fieldbus
Operation instructions
Assembly, operation, commissioning
