AUMA SA 07.1 Operation Instructions Manual
  1. Manuals
  2. Brands
  3. AUMA Manuals
  4. Controller
  5. SA 07.1
  6. Operation instructions manual

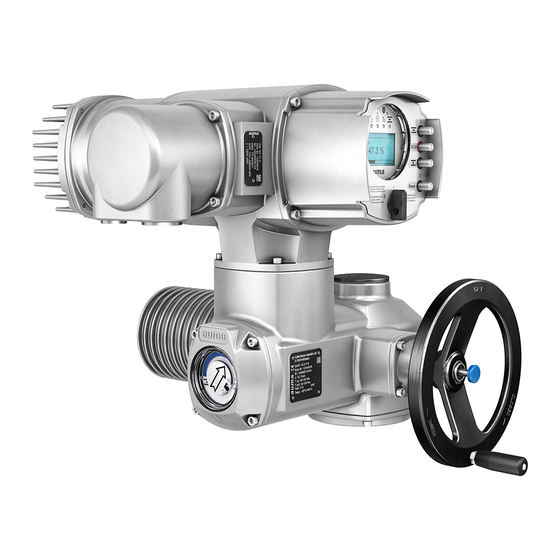

AUMA SA 07.1 Operation Instructions Manual

Multi-turn actuators
Hide thumbs Also See for SA 07.1:
Table of Contents

Advertisement

Quick Links

Multi-turn actuators
SA 07.1
SA 16.1/SAR 07.1
SAR 16.1
Control unit: electromechanic
with actuator controls
AUMATIC AC 01.1 Intrusive
Control
Parallel
Profibus DP
Modbus
DeviceNet
Foundation Fieldbus
Operation instructions
Assembly, operation, commissioning

Advertisement

Table of Contents
loading

Related Manuals for AUMA SA 07.1

Summary of Contents for AUMA SA 07.1

  • Page 1 Multi-turn actuators SA 07.1 SA 16.1/SAR 07.1 SAR 16.1 Control unit: electromechanic with actuator controls AUMATIC AC 01.1 Intrusive Control Parallel Profibus DP Modbus DeviceNet Foundation Fieldbus Operation instructions Assembly, operation, commissioning...

  • Page 2: Table Of Contents

    Reference documents: Manual (Operation and setting) AUMATIC AC 01.1/ACExC 01.1 Modbus Manual (Device integration Fieldbus) AUMATIC AC 01.1/ACExC 01.1 Modbus Reference documents can be downloaded from the Internet (www.auma.com) or ordered directly from AUMA (refer to <Addresses>). Table of contents Page Safety instructions.........................
  • Page 3 SA 07.1 SA 16.1/SAR 07.1 SAR 16.1 Control unit: electromechanic AC 01.1 Intrusive Modbus RTU Table of contents 5.2.3 Terminal compartment: close 5.2.4 Bus terminal compartment: open 5.2.5 Bus cables: connect 5.2.6 Bus terminal compartment: close 5.3. Accessories for electrical connection 5.3.1...
  • Page 4 Accessories 12.6. Further information Spare parts..........................13.1. Multi-turn actuators SA 07.1 SA 16.1/SAR 07.1 SAR 16.1 13.2. Actuator controls AUMATIC AC 01.1 with AUMA plug/socket connector (SD bus) Certificates..........................14.1. Declaration of Incorporation and EC Declaration of Conformity Index............................Addresses..........................

  • Page 5: Safety Instructions

    Any device modification requires prior consent of the manufacturer. Range of application AUMA multi-turn actuators are designed for the operation of industrial valves, e.g. globe valves, gate valves, butterfly valves, and ball valves. Other applications require explicit (written) confirmation by the manufacturer.

  • Page 6: Applications In Ex Zone 22 (Option)

    SA 07.1 SA 16.1/SAR 07.1 SAR 16.1 Control unit: electromechanic Safety instructions AC 01.1 Intrusive Modbus RTU Passenger lifts according to DIN 15306 and 15309 Service lifts according to EN 81-1/A1 Escalators Continuous duty Buried service Permanent submersion (observe enclosure protection)

  • Page 7: References And Symbols

    SA 07.1 SA 16.1/SAR 07.1 SAR 16.1 Control unit: electromechanic AC 01.1 Intrusive Modbus RTU Safety instructions Indicates a potentially hazardous situation with a medium level of risk. Failure to observe this warning could result in death or serious injury.

  • Page 8: Identification

    Control Type and size These instructions apply to the following devices: Multi-turn actuators for open-close duty: SA 07.1, 07.5, 10.1, 14.1, 14.5, 16.1 Multi-turn actuators for modulating duty: SAR 07.1, 07.5, 10.1, 14.1, 14.5, 16.1 AC 01.1 = Stellantriebs-Steuerung AUMATIC...

  • Page 9: Short Description

    A multi-turn actuator is an actuator which transmits to the valve a torque for at least one full revolution. It is capable of withstanding thrust. AUMA multi-turn actuators are driven by an electric motor and are capable of withstanding thrust in combination with output drive type A. For manual operation, a handwheel is provided.

  • Page 10: Transport, Storage And Packaging

    SA 07.1 SA 16.1/SAR 07.1 SAR 16.1 Control unit: electromechanic Transport, storage and packaging AC 01.1 Intrusive Modbus RTU Transport, storage and packaging Transport For transport to place of installation, use sturdy packaging. Hovering load! Risk of death or serious injury.

  • Page 11: Assembly

    SAR 16.1 Control unit: electromechanic AC 01.1 Intrusive Modbus RTU Assembly Assembly Mounting position AUMA actuators and actuator controls can be operated without restriction in any mounting position. Handwheel fitting Information For transport purposes, handwheels from a diameter of 400 mm are supplied sepa- rately.

  • Page 12: Multi-Turn Actuator: Mount To Valve/Gearbox

    SA 07.1 SA 16.1/SAR 07.1 SAR 16.1 Control unit: electromechanic Assembly AC 01.1 Intrusive Modbus RTU Multi-turn actuator: mount to valve/gearbox Danger of corrosion due to damage to paint finish and condensation! Touch up damage to paint finish after work on the device.

  • Page 13: Output Drive Type A

    SA 07.1 SA 16.1/SAR 07.1 SAR 16.1 Control unit: electromechanic AC 01.1 Intrusive Modbus RTU Assembly Fasten screws crosswise to a torque according to table. Table 1: Tightening torques for screws Screws Tightening torque T [Nm] Threads Strength class 8.8 4.3.2...

  • Page 14: Multi-Turn Actuator (With Output Drive Type A): Mount To Valve

    SA 07.1 SA 16.1/SAR 07.1 SAR 16.1 Control unit: electromechanic Assembly AC 01.1 Intrusive Modbus RTU 4.3.2.2 Multi-turn actuator (with output drive type A): mount to valve Figure 8: Assembly with output drive type A Valve stem Output drive type A...

  • Page 15: Accessories For Assembly

    SA 07.1 SA 16.1/SAR 07.1 SAR 16.1 Control unit: electromechanic AC 01.1 Intrusive Modbus RTU Assembly Accessories for assembly 4.4.1 Stem protection tube for rising valve stem — Option — Figure 9: Assembly of the stem protection tube Cap for stem protection tube...

  • Page 16: Mounting Positions: Modify

    SA 07.1 SA 16.1/SAR 07.1 SAR 16.1 Control unit: electromechanic Assembly AC 01.1 Intrusive Modbus RTU Figure 11: Mounting positions C and D 4.5.1 Mounting positions: modify Hazardous voltage! Risk of electric shock. Disconnect device from the mains before opening.

  • Page 17: Electrical Connection

    The pertaining wiring diagram/terminal plan (in German and English language) is plan attached to the device in a weather-proof bag, together with these operation instructions. It can also be obtained from AUMA (state commission no., refer to name plate) or downloaded directly from the Internet (www.auma.com). Protection on site For short-circuit protection and for disconnecting the actuator from the mains, fuses and disconnect switches have to be provided by the customer.
  • Page 18 SA 07.1 SA 16.1/SAR 07.1 SAR 16.1 Control unit: electromechanic Electrical connection AC 01.1 Intrusive Modbus RTU Lay cables being susceptible to interference or sources of interference at the highest possible distance from each other. The interference immunity of signal and bus cables increases if the cables are laid close to the earth potential.

  • Page 19: Connection With Auma Plug/Socket Connector

    Control contacts (1 to 50): max. 2.5 mm² Information For some special motors, the connection of the power terminals (U1, V1, W1, U2, V2, W2) is not performed via the AUMA plug/socket connector but via a terminal board at the motor. 5.2.1...

  • Page 20: Cable Connection

    SA 07.1 SA 16.1/SAR 07.1 SAR 16.1 Control unit: electromechanic Electrical connection AC 01.1 Intrusive Modbus RTU Insert cable glands [8] suitable for connecting cables. The enclosure protection IP... stated on the name plate is only ensured if suitable cable glands are used. Example: Name plate shows enclosure protection IP Seal unused cable entries [6] with suitable blanking plugs [7].

  • Page 21: Terminal Compartment: Close

    Fasten cable glands [8] applying the specified torque to ensure the required enclosure protection. 5.2.4 Bus terminal compartment: open The AUMA plug/socket connector (SD bus) is equipped with a connection board for connecting the bus cables. When removing the cover [1] the connection board is easily accessible.

  • Page 22: Bus Cables: Connect

    For loop redundancy, automatic termination is performed as soon as the AUMATIC is connected to the power supply. When interrupting the power supply, e.g. after re- moving the AUMA plug/socket connector, both RS-485 loop segments are automa- tically connected to each other.
  • Page 23 SA 07.1 SA 16.1/SAR 07.1 SAR 16.1 Control unit: electromechanic AC 01.1 Intrusive Modbus RTU Electrical connection Figure 19: Connection board (standard version) [S1] Bus termination channel 1 [X1] Channel 1, ↑ from the previous device [X2] Channel 1, ↓ to the next device...
  • Page 24 Switches S1 and S2 are supplied in OFF position. Connecting bus cables: Connect cables. Table 6: Assignment of fieldbus cables Fieldbus cables AUMA labelling at the SUB-D 9 plug pin (for other Colour connection fieldbus devices) green If the actuator is the final device in the bus segment: 2.1 Switching on the termination resistor for channel 1 using switch S1 (ON...

  • Page 25: Bus Terminal Compartment: Close

    SAR 16.1 Control unit: electromechanic AC 01.1 Intrusive Modbus RTU Electrical connection 5.2.6 Bus terminal compartment: close Figure 22: AUMA plug/socket connector SD bus Cover Screws for cover O-ring Cable entries for bus cables Blanking plug Clean sealing faces of cover [1] and housing.

  • Page 26: Parking Frame

    Versions with potentiometer in the actuator are not suitable. We recommend: AUMA cable set LSW1. If the AUMA cable set is not used: Use suitable flexible and screened connecting cables. When using connecting cables, e.g. of the heater or switch, requiring direct wiring...

  • Page 27: Protection Cover

    SA 07.1 SA 16.1/SAR 07.1 SAR 16.1 Control unit: electromechanic AC 01.1 Intrusive Modbus RTU Electrical connection 5.3.3 Protection cover Protection cover for plug compartment when plug is removed. The open terminal compartment can be closed using a protective cover (not illustrated).

  • Page 28: Operation

    SA 07.1 SA 16.1/SAR 07.1 SAR 16.1 Control unit: electromechanic Operation AC 01.1 Intrusive Modbus RTU Operation Manual operation For purposes of setting and commissioning, in case of motor failure or power failure, the actuator may be operated manually. Manual operation is engaged by an internal change-over mechanism.

  • Page 29: Motor Operation

    SA 07.1 SA 16.1/SAR 07.1 SAR 16.1 Control unit: electromechanic AC 01.1 Intrusive Modbus RTU Operation Motor operation Perform all commissioning settings and the test run prior to motor operation. 6.2.1 Local operation The local operation of the actuator is performed using the push buttons of the local controls.

  • Page 30: Operation From Remote

    SA 07.1 SA 16.1/SAR 07.1 SAR 16.1 Control unit: electromechanic Operation AC 01.1 Intrusive Modbus RTU 6.2.2 Operation from REMOTE Set selector switch to Remote control (REMOTE). Now, the actuator can be remote-controlled via fieldbus. Information For actuators equipped with a positioner, it is possible to select between open-close control (Remote OPEN-CLOSE) and setpoint control (Remote SETPOINT).

  • Page 31: Short Overview: Functions Of The Push Buttons

    SA 07.1 SA 16.1/SAR 07.1 SAR 16.1 Control unit: electromechanic AC 01.1 Intrusive Modbus RTU Operation 6.3.1 Short overview: Functions of the push buttons Push but- Functions tons Scrolling within a group (The triangles in the display show which direction of scrolling is possible)

  • Page 32: Password Entry

    SA 07.1 SA 16.1/SAR 07.1 SAR 16.1 Control unit: electromechanic Operation AC 01.1 Intrusive Modbus RTU Password entry In the menu (group ), the settings are password protected. To change the parameters, a password must be entered first. The following default password is set...
  • Page 33 SA 07.1 SA 16.1/SAR 07.1 SAR 16.1 Control unit: electromechanic AC 01.1 Intrusive Modbus RTU Operation Press . Display indicates: LANGUAGE/CONTRAS VIEW EDIT Press Display indicates: ENTER PASSWORD 0 * * * :EDIT C:ESC Enter password: Press 4 x = 0000 (default factory password).

  • Page 34: Indications

    SA 07.1 SA 16.1/SAR 07.1 SAR 16.1 Control unit: electromechanic Indications AC 01.1 Intrusive Modbus RTU Indications Status indications in the display The status indications in the display locally indicate the current operation states as well as faults and warnings.

  • Page 35: Torque Indication: Edit

    SA 07.1 SA 16.1/SAR 07.1 SAR 16.1 Control unit: electromechanic AC 01.1 Intrusive Modbus RTU Indications End position OPEN reached. CLOSED POSITION End position CLOSED reached. SETPOINT POSITION Setpoint (modulating actuators only). 7.1.2 Torque indication: edit The torque value can be displayed in percent, Newtonmeter (Nm) or in Lbs/ft.

  • Page 36: Mechanical Position Indicator/Running Indication

    SA 07.1 SA 16.1/SAR 07.1 SAR 16.1 Control unit: electromechanic Indications AC 01.1 Intrusive Modbus RTU Information The behaviour (blinking/illuminated) can be changed via the BLINKER (M1311) parameter. Mechanical position indicator/running indication — Option — Mechanical position indicator: Continuously indicates the valve position (For complete travel from OPEN to CLOSED or vice versa, the indicator disc [2] rotates by approximately 180°...

  • Page 37: Signals

    SA 07.1 SA 16.1/SAR 07.1 SAR 16.1 Control unit: electromechanic AC 01.1 Intrusive Modbus RTU Signals Signals Signals via fieldbus The feedback signals via Modbus RTU can be read using the appropriate Modbus function codes. For further information, please refer to the Manual (Device integration fieldbus).

  • Page 38: Commissioning (Basic Settings)

    SA 07.1 SA 16.1/SAR 07.1 SAR 16.1 Control unit: electromechanic Commissioning (basic settings) AC 01.1 Intrusive Modbus RTU Commissioning (basic settings) Set selector switch to position 0 (OFF). Information: The selector switch is not a mains switch. When positioned to 0 (OFF), the actuator cannot be operated.
  • Page 39 SA 07.1 SA 16.1/SAR 07.1 SAR 16.1 Control unit: electromechanic AC 01.1 Intrusive Modbus RTU Commissioning (basic settings) The limit seating is used to signal that the limit switching will trip shortly before reaching the set tripping torque. If this is not the case, one of the following fault signals is displayed: (menu S1).
  • Page 40 SA 07.1 SA 16.1/SAR 07.1 SAR 16.1 Control unit: electromechanic Commissioning (basic settings) AC 01.1 Intrusive Modbus RTU View or edit? Display seating mode: continue with 7. Change seating mode: continue with 10. Press Display type of seating: Display indicates:...
  • Page 41 SA 07.1 SA 16.1/SAR 07.1 SAR 16.1 Control unit: electromechanic AC 01.1 Intrusive Modbus RTU Commissioning (basic settings) 12. Enter password: Press 4 x = 0000 (default factory password). EDIT M1110 OPEN POSITION CLOSED POSITION EDIT M1111 OPEN POSITION CLOSED POSITION...

  • Page 42: Baud Rate, Parity And Bus Addres (Slave Addess): Set

    SA 07.1 SA 16.1/SAR 07.1 SAR 16.1 Control unit: electromechanic Commissioning (basic settings) AC 01.1 Intrusive Modbus RTU 16. Accept value or cancel? Accept value: Press Cancel process without accepting the value: Press Display indicates: EDIT M1110 OPEN POSITION LIMIT...
  • Page 43 SA 07.1 SA 16.1/SAR 07.1 SAR 16.1 Control unit: electromechanic AC 01.1 Intrusive Modbus RTU Commissioning (basic settings) Press . Display indicates: MAIN MENU LANGUAGE/CONTRAST SETTINGS OPERATIONAL DATA Press Display indicates: SETTINGS SEATING MODE TORQUE LOCAL CONTROLS Select MODBUS 1 (M1F) : Press several times.
  • Page 44 SA 07.1 SA 16.1/SAR 07.1 SAR 16.1 Control unit: electromechanic Commissioning (basic settings) AC 01.1 Intrusive Modbus RTU 10. Return to the menu: VIEW/EDIT Press twice. Change settings: 11. Press . Display indicates: MODBUS 1 M1F1 VIEW EDIT 12. Press...

  • Page 45: Further Parameters Of The Modbus Interface

    SA 07.1 SA 16.1/SAR 07.1 SAR 16.1 Control unit: electromechanic AC 01.1 Intrusive Modbus RTU Commissioning (basic settings) 17. Accept value or cancel? Accept value: Press  . Cancel process without accepting the value: Press Display indicates: Example SLAVEADDRESS EDIT M1F14...

  • Page 46: Torque Switching: Set

    SA 07.1 SA 16.1/SAR 07.1 SAR 16.1 Control unit: electromechanic Commissioning (basic settings) AC 01.1 Intrusive Modbus RTU If indicator disc [3] is available: Remove indicator disc [3] using a spanner (as lever). Information: To avoid damage to paint finish, use spanner in combination with soft object, e.g.

  • Page 47: End Position Closed (Black Section): Set

    SA 07.1 SA 16.1/SAR 07.1 SAR 16.1 Control unit: electromechanic AC 01.1 Intrusive Modbus RTU Commissioning (basic settings) Figure 47: Setting elements for limit switching Black section: Setting spindle: End position CLOSED Pointer: End position CLOSED Mark: End position CLOSED is set...

  • Page 48: Intermediate Positions: Set

    SA 07.1 SA 16.1/SAR 07.1 SAR 16.1 Control unit: electromechanic Commissioning (basic settings) AC 01.1 Intrusive Modbus RTU Intermediate positions: set — Option — Actuators equipped with DUO limit switching contain two intermediate position switches. One intermediate position may be set for each running direction.

  • Page 49: Test Run

    SA 07.1 SA 16.1/SAR 07.1 SAR 16.1 Control unit: electromechanic AC 01.1 Intrusive Modbus RTU Commissioning (basic settings) Press down and turn setting spindle [4] with screw driver in direction of the arrow and observe the pointer [5]: While a ratchet click is felt and heard, the pointer [5] moves 90°...

  • Page 50: Limit Switching: Check

    SA 07.1 SA 16.1/SAR 07.1 SAR 16.1 Control unit: electromechanic Commissioning (basic settings) AC 01.1 Intrusive Modbus RTU Without the indicator disc: Unscrew threaded plug [1] and seal [2] or cap for stem protection tube [4] and observe direction of rotation at hollow shaft [3] or the stem [5].

  • Page 51: Potentiometer Setting

    SA 07.1 SA 16.1/SAR 07.1 SAR 16.1 Control unit: electromechanic AC 01.1 Intrusive Modbus RTU Commissioning (basic settings) Operate actuator electrically (via the push buttons OPEN and CLOSE of the local controls) once to the end position OPEN and once to the end position CLOSED.

  • Page 52: Mechanical Position Indicator: Set

    SA 07.1 SA 16.1/SAR 07.1 SAR 16.1 Control unit: electromechanic Commissioning (basic settings) AC 01.1 Intrusive Modbus RTU Figure 54: View of control unit Potentiometer (travel sensor) Potentiometer min. (0/4 mA) Potentiometer max. (20 mA) Measuring point (+) 0/4 20 mA...

  • Page 53: Switch Compartment: Close

    SA 07.1 SA 16.1/SAR 07.1 SAR 16.1 Control unit: electromechanic AC 01.1 Intrusive Modbus RTU Commissioning (basic settings) Hold lower indicator disc in position and turn upper disc with symbol (OPEN) until it is in alignment with the mark on the cover.

  • Page 54: Corrective Action

    SA 07.1 SA 16.1/SAR 07.1 SAR 16.1 Control unit: electromechanic Corrective action AC 01.1 Intrusive Modbus RTU Corrective action 10.1 Faults during commissioning Table 9: Faults during commissioning Fault description Possible causes Remedy Mechanical position indicator Reduction gearing is not suitable for Exchange reduction gearing.

  • Page 55: Status Indication S0 - Faults And Warnings

    SA 07.1 SA 16.1/SAR 07.1 SAR 16.1 Control unit: electromechanic AC 01.1 Intrusive Modbus RTU Corrective action 10.2.1 Status indication S0 - faults and warnings Line 4 of status indication displays faults and warnings. LOCAL MODE OPEN 100 % FAULT IND.

  • Page 56: Status Indication S2 - Warnings

    SA 07.1 SA 16.1/SAR 07.1 SAR 16.1 Control unit: electromechanic Corrective action AC 01.1 Intrusive Modbus RTU Signal Description Remedy LOSS OF PHASE One phase is missing. Test/connect phases. THERMAL FAULT Motor protection tripped. Cool down, wait. If the fault indication display persists after...

  • Page 57: Status Indication S3 - Causes For Not Ready Remote

    SA 07.1 SA 16.1/SAR 07.1 SAR 16.1 Control unit: electromechanic AC 01.1 Intrusive Modbus RTU Corrective action Signal Description Remedy TORQUE E6 LOSS Signal loss of torque source Check wiring. I/O ANLOG IN1 LOSS Signal loss of the analogue input 1 of the Check wiring.

  • Page 58: Motor Protection (Thermal Monitoring)

    SA 07.1 SA 16.1/SAR 07.1 SAR 16.1 Control unit: electromechanic Corrective action AC 01.1 Intrusive Modbus RTU Figure 59: Access to fuses Rear cover Electrical connection Primary fuses on power supply unit F1/F2 G fuses F1/F2 AUMA Art. No.: Size 6.3 x 32 mm...
  • Page 59 SA 07.1 SA 16.1/SAR 07.1 SAR 16.1 Control unit: electromechanic AC 01.1 Intrusive Modbus RTU Corrective action The acknowledgement is made: via the Reset push button in selector switch position LOCAL. or with the reset command via fieldbus. For further information to this topic, please refer to the Manual (Operation and setting).

  • Page 60: Servicing And Maintenance

    Only perform servicing and maintenance tasks when the device is switched off. AUMA AUMA offer extensive service such as servicing and maintenance as well as customer Service & Support product training. For the relevant contact addresses, please refer to <Addresses>...

  • Page 61: Disposal And Recycling

    SA 07.1 SA 16.1/SAR 07.1 SAR 16.1 Control unit: electromechanic AC 01.1 Intrusive Modbus RTU Servicing and maintenance Grease change is performed during maintenance Generally after 4 to 6 years for modulating duty. Generally after 6 to 8 years if operated frequently (open-close duty).

  • Page 62: Technical Data

    The following technical data includes standard and optional features. For detailed information on the customer-specific version, refer to the order-relevant data sheet. This data sheet can be downloaded from the Internet at http://www.auma.com in German and English (indication of commission number required).

  • Page 63: Features And Functions Of Actuator Controls

    Reversing contactors (mechanically and electrically interlocked) for motor power up to power class A2 Thyristor unit for mains voltage up to 500 V AC (recommended for modulating actuators) for AUMA power classes B1, B2 and B3 Control Via fieldbus interface...
  • Page 64 SA 07.1 SA 16.1/SAR 07.1 SAR 16.1 Control unit: electromechanic Technical data AC 01.1 Intrusive Modbus RTU Fieldbus interface Standard: Modbus RTU interface without additional inputs Options: Additional inputs. The following version are available: 4 free 24 V DC inputs (current consumption: approx. ca. 5 mA/input) and 2 free 0/4 mA inputs.
  • Page 65 PTC tripping device in combination with PTC thermistors in the motor Electrical connection Standard: AUMA plug/socket connector (S) with screw-type connection and M-threads Options: Pg-threads, NPT-threads, G-threads, special threads Gold-plated control contacts (pins and sockets) Parking frame for wall mounting of the disconnected plug...

  • Page 66: Modbus Interface

    AC 01.1 Intrusive Modbus RTU The reversing contactors are designed for a lifetime of 2 million starts. For the assignment of AUMA power classes, please refer to electrical data on actuator. Not possible in combination with PTC tripping device During an adjustable period (factory setting 10 seconds), faults in the supply voltage (e.g. voltage drops) will not lead to a fault signal.

  • Page 67: Service Conditions

    KX-G : same as KX, however aluminium-free version (outer parts) Installation altitude Standard: ≤ 2,000 m above sea level Option: > 2,000 m above sea level, please contact AUMA Humidity Up to 100 % relative humidity over the entire permissible temperature range...

  • Page 68: Accessories

    SA 07.1 SA 16.1/SAR 07.1 SAR 16.1 Control unit: electromechanic Technical data AC 01.1 Intrusive Modbus RTU Vibration resistance according 1 g, from 10 to 200 Hz to IEC 60068-2-6 Resistant to vibration during start-up or for failures of the plant. However, a fatigue strength may not be derived from this.

  • Page 69: Spare Parts

    SA 07.1 SA 16.1/SAR 07.1 SAR 16.1 Control unit: electromechanic AC 01.1 Intrusive Modbus RTU Spare parts Spare parts 13.1 Multi-turn actuators SA 07.1 SA 16.1/SAR 07.1 SAR 16.1...
  • Page 70 Information: Please state type and commission no. of the device (see name plate) when ordering spare parts. Only original AUMA spare parts should be used. Failure to use original spare parts voids the warranty and exempts AUMA from any liability. Delivered spare parts may slightly vary from the representation.

  • Page 71: Actuator Controls Aumatic Ac 01.1 With Auma Plug/Socket Connector (Sd Bus)

    SA 07.1 SA 16.1/SAR 07.1 SAR 16.1 Control unit: electromechanic AC 01.1 Intrusive Modbus RTU Spare parts 13.2 Actuator controls AUMATIC AC 01.1 with AUMA plug/socket connector (SD bus)
  • Page 72 Information: Please state type and commission no. of the device (see name plate) when ordering spare parts. Only original AUMA spare parts should be used. Failure to use original spare parts voids the warranty and exempts AUMA from any liability. Delivered spare parts may slightly vary from the representation.

  • Page 73: Certificates

    SA 07.1 SA 16.1/SAR 07.1 SAR 16.1 Control unit: electromechanic AC 01.1 Intrusive Modbus RTU Certificates Certificates 14.1 Declaration of Incorporation and EC Declaration of Conformity...
  • Page 74 SA 07.1 SA 16.1/SAR 07.1 SAR 16.1 Control unit: electromechanic AC 01.1 Intrusive Modbus RTU...
  • Page 75 SA 07.1 SA 16.1/SAR 07.1 SAR 16.1 Control unit: electromechanic AC 01.1 Intrusive Modbus RTU...

  • Page 76: Index

    SA 07.1 SA 16.1/SAR 07.1 SAR 16.1 Control unit: electromechanic Index AC 01.1 Intrusive Modbus RTU Index Identification Indication lights Indications Accessories (electrical Indicator disc 36 , 52 connection) Inspection record Accessories for assembly Intermediate frame Actuator operation from remo-...
  • Page 77 SA 07.1 SA 16.1/SAR 07.1 SAR 16.1 Control unit: electromechanic AC 01.1 Intrusive Modbus RTU Index Range of application Recycling Reference operation Remote actuator operation Running indication 35 , 36 Running indication (in display) S0/S6 - operation Safety instructions Safety instructions/warnings...

  • Page 78: Addresses

    Auma Endüstri Kontrol Sistemleri Limited UK Clevedon, North Somerset BS21 6TH  irketi Tel +44 1275 871141 TR 06810 Ankara AUMA Riester GmbH & Co. KG Fax +44 1275 875492 Tel+90 312 217 32 88 mail@auma.co.uk Fax+90 312 217 33 88 Plant Müllheim...
  • Page 79 AUMA worldwide Ferrostaal de Colombia Ltda. AUMA Actuators Middle East W.L.L. CO Bogotá D.C. AE 15268 Salmabad 704 Tel +57 1 401 1300 Tel +973 17877377 Fax+57 1 416 5489 Fax +973 17877355 dorian.hernandez@ferrostaal.com Naveen.Shetty@auma.com www.ferrostaal.com PERFECT CONTROLS Ltd. PROCONTIC Procesos y Control HK Tsuen Wan, Kowloon Automático...
  • Page 80 AUMA Riester GmbH & Co. KG P.O.Box 1362 D 79373 Muellheim Tel +49 7631 809 - 0 Fax +49 7631 809 - 1250 riester@auma.com www.auma.com Y004.639/003/en/4.12 For detailed information on AUMA products refer to the Internet: www.auma.com...
