Operation instructions

17. Signal board (option)

18. Fuses

Signal boards with the option Running indication (blinker transmitter) offer
the possibility to switch over from impulse to continuous signal by way of a
sliding switch (see wiring diagram CI S...KMS 14TP...).
The signal board (figure X) is accessible after taking off the green cover
plate (figure Q, page 18, or figure S, page 20).

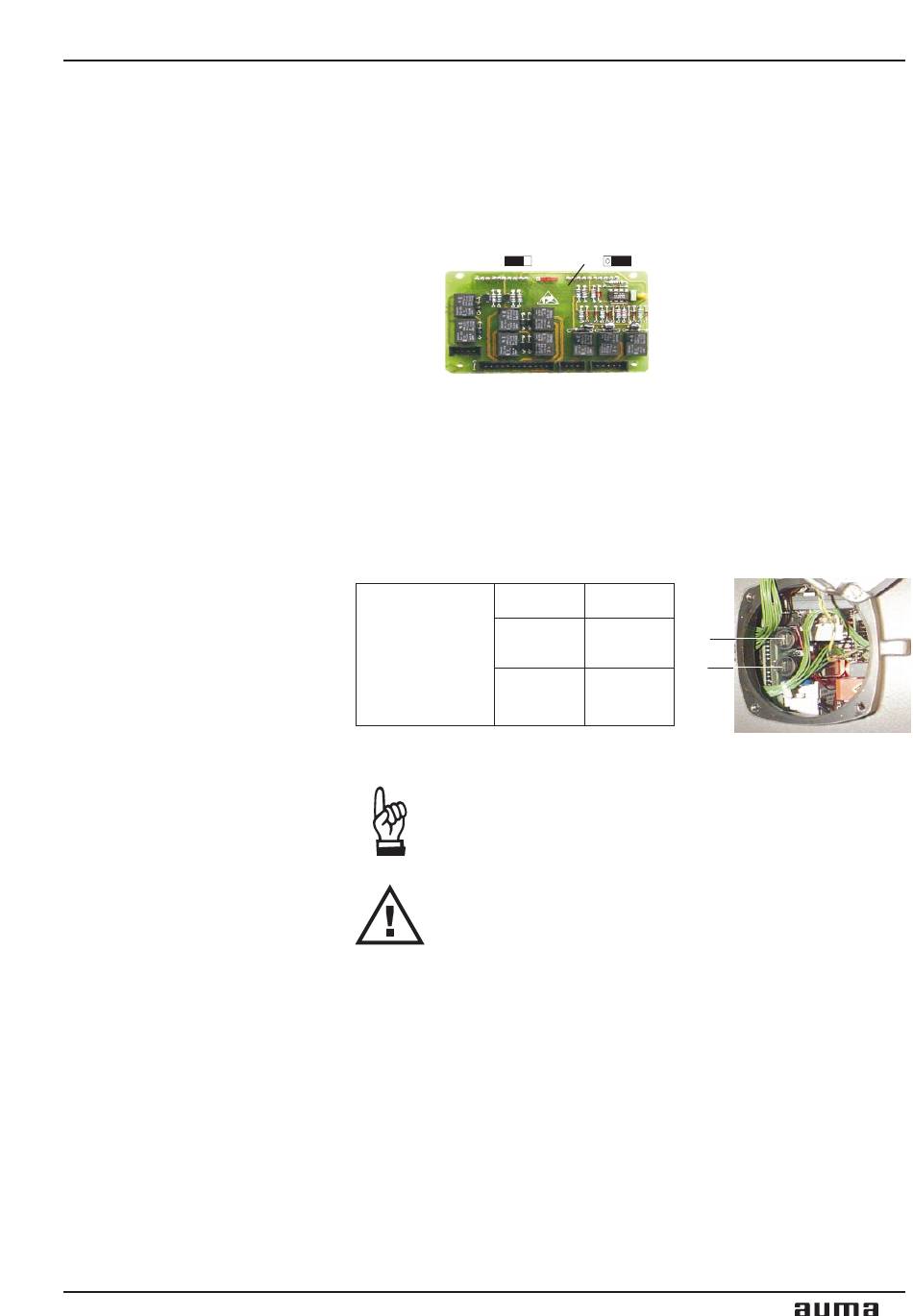

Figure X: Signal board
switch for running indication (blinker transmitter)
Fuses (figure Y) are accessible after removing the local controls
(figure P, page 18)
Fuses:
F 1
(Figure Y)
20 x 5
10 A T;
250 V
Recommended fuses in mains: 16 A
Disconnect actuator from the mains before changing the
fuses.
Multi-turn actuators SARV 07.1 - SARV 10.1
ON
OFF
Figure Y: Fuses
F 2
F2
20 x 5
F1
1 A T;
250 V
AUMA VARIOMATIC
27
