Multi-turn actuators SARV 07.1 - SARV 10.1
AUMA VARIOMATIC
9.

Setting of DUO limit switching (option)

9.1 Settings for direction CLOSE (black section)

9.2 Settings for direction OPEN (white section)

12
.
Perform electrical test run to check seating in the end position.
Red test buttons T and P (figure J2) serve for operating the microswitches
of torque and limit switching. In case a fault occurs, perform emergency
switch-off by turning both test buttons the appropriate direction of the arrow
DÖL/DSR
.
MOV
Switching point (intermediate position) must be approached
M
from the same direction as afterwards in electrical
.
operation.
Move valve to desired intermediate position.
.
Turn setting spindle G (figure J3) with screw driver (5 mm) in direction of
arrow, thereby observe pointer H. While a ratched is felt and heard, the
pointer H moves 90° every time up to point C.
When pointer H is 90° from point C, continue turning slowly. If pointer H
does not move anymore, stop turning and release setting spindle. In case
of having turned too far, continue turning and approach switching point
anew.
.
Turn setting spindle K (figure J3) with screw driver (5 mm) in direction of
arrow, thereby observe pointer L. While a ratched is felt and heard, the
pointer L moves 90° every time up to point F.
When pointer L is 90° from point F, continue turning slowly. If pointer L
does not move anymore, stop turning and release setting spindle. In case
.
of having turned too far, continue turning and approach switching point
anew.
Perform electrical test run to check correct setting for the intermediate
positions.

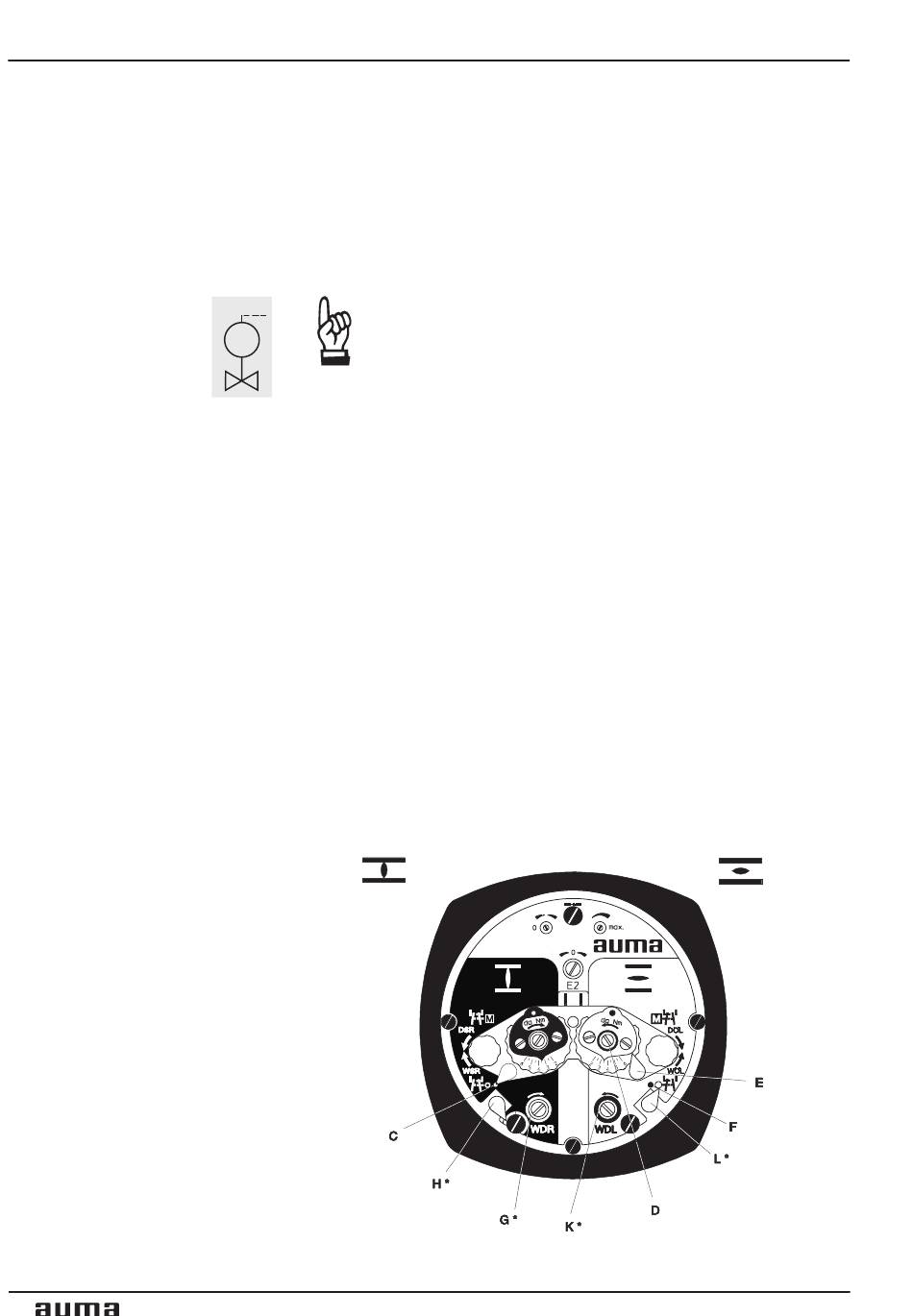

Figure J3
*) Option
