Multi-turn actuators SARV 07.1 - SARV 10.1
AUMA VARIOMATIC

14. Programming AUMA VARIOMATIC

Potentiometer
for setting of
OPERATING TIME
DIP switch S1
for programming
Logic board
Cover plate
standard
18
.
Remove 4 screws at VARIOMATIC (Figure P / 8.1) and take off cover.

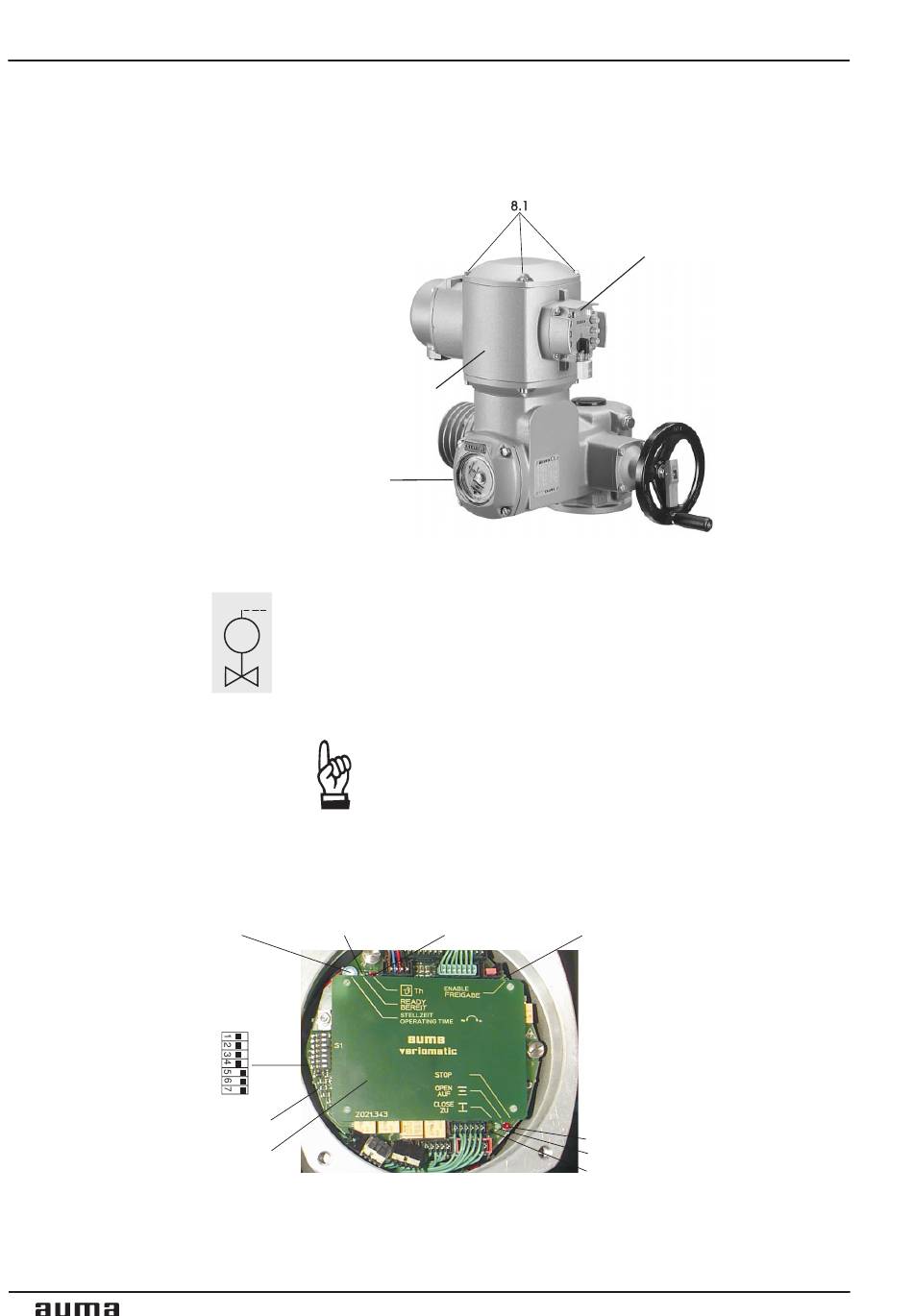

Figure P: Actuator SAR with controls AUMA VARIOMATIC
AUMA VARIOMATIC
Switch
compartment cover
.
In the factory push-to-run operation REMOTE and push-to-run operation
.
LOCAL are programmed (refer to table 2).
MOV
The type of seating - limit or torque seating (DIP switch S1 pos. 5 and
M .
pos. 6) must be determined by the valve manufacturer.
Set desired programming according to table 2 at DIP switch S1
(figure Q).
If no positioner (figure S, page 20) or speed-interface board
(figure W, page 24) is fitted, the DIP switch S1 pos. 7 must
always be in position "ON".
Figure Q: VARIOMATIC standard
Diagnosis LED (green):
Illuminated when
ready
ON
.
Replace cover and fasten 4 bolts (figure P / 8.1) evenly crosswise.
Diagnosis LED (red): Diagnosis LED (green):
Motor protection Enable REMOTE (option)
tripped always installed,
illuminated during normal
operation
Diagnosis LEDs for
active REMOTE
control commands:
run command STOP (red)
run command OPEN (green)
run command CLOSE (yellow)
