5. W i n g Component
Equipment Modules
MELSEC
GOT

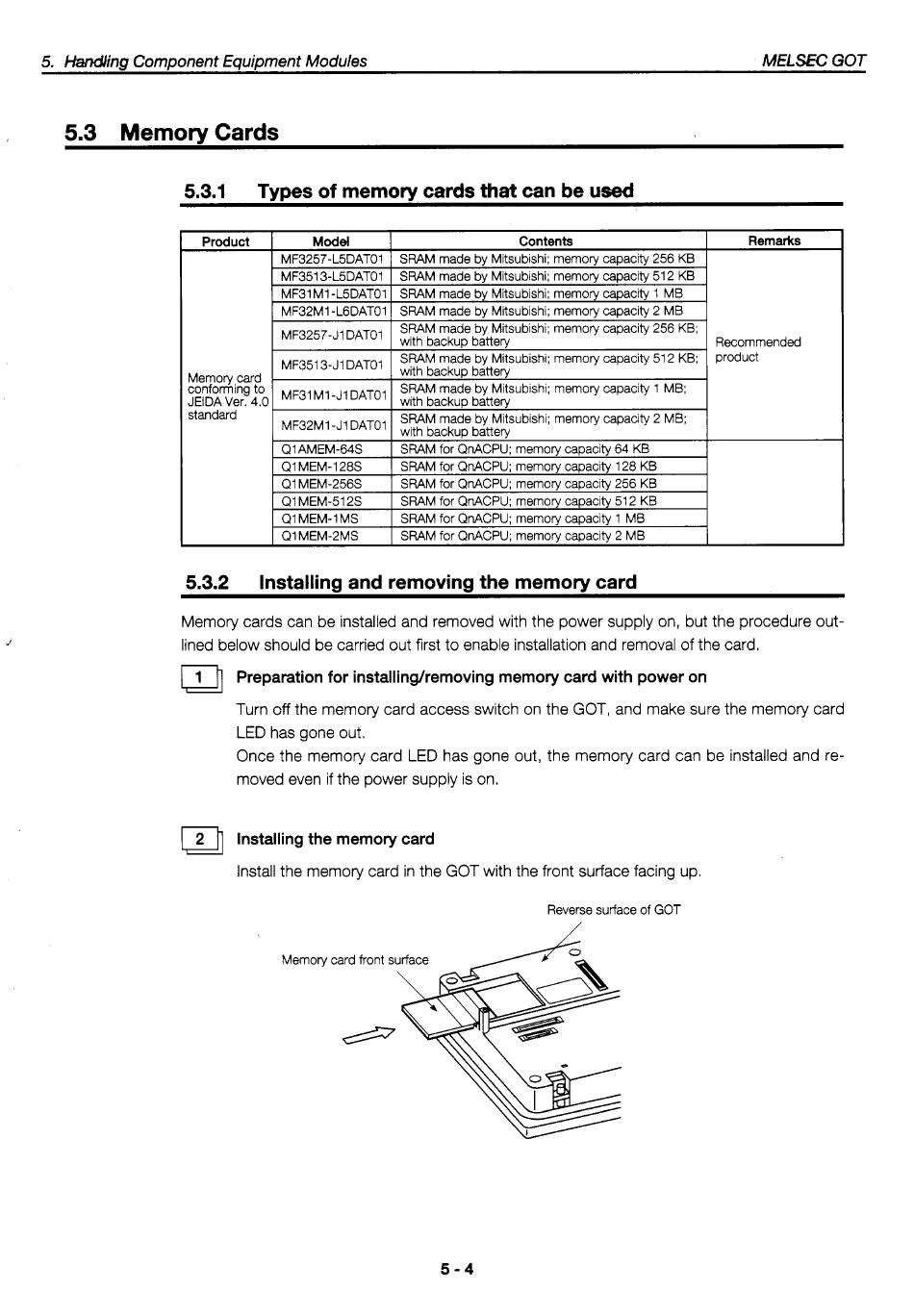

5 . 3
Memorv Cards
5.3.1
Types of memory cards
that
can be used
Recommended
JEIDA Ver. 4.0
5.3.2 Installing and removing the memory card
Memory cards can be installed and removed with the power supply on, but the procedure out-
lined below should be carried out first to enable installation and removal of the card.
Preparation for installinghemoving memory card with power on
Turn off the memory card access switch on the GOT, and make sure the memory card
LED has gone out.
Once the memory card LED has gone out, the memory card can be installed and re-
moved even if the power supply is on.
Installing the memory card
Install the memory card in the GOT with the front surface facing up.
Reverse surface of GOT
5 - 4
