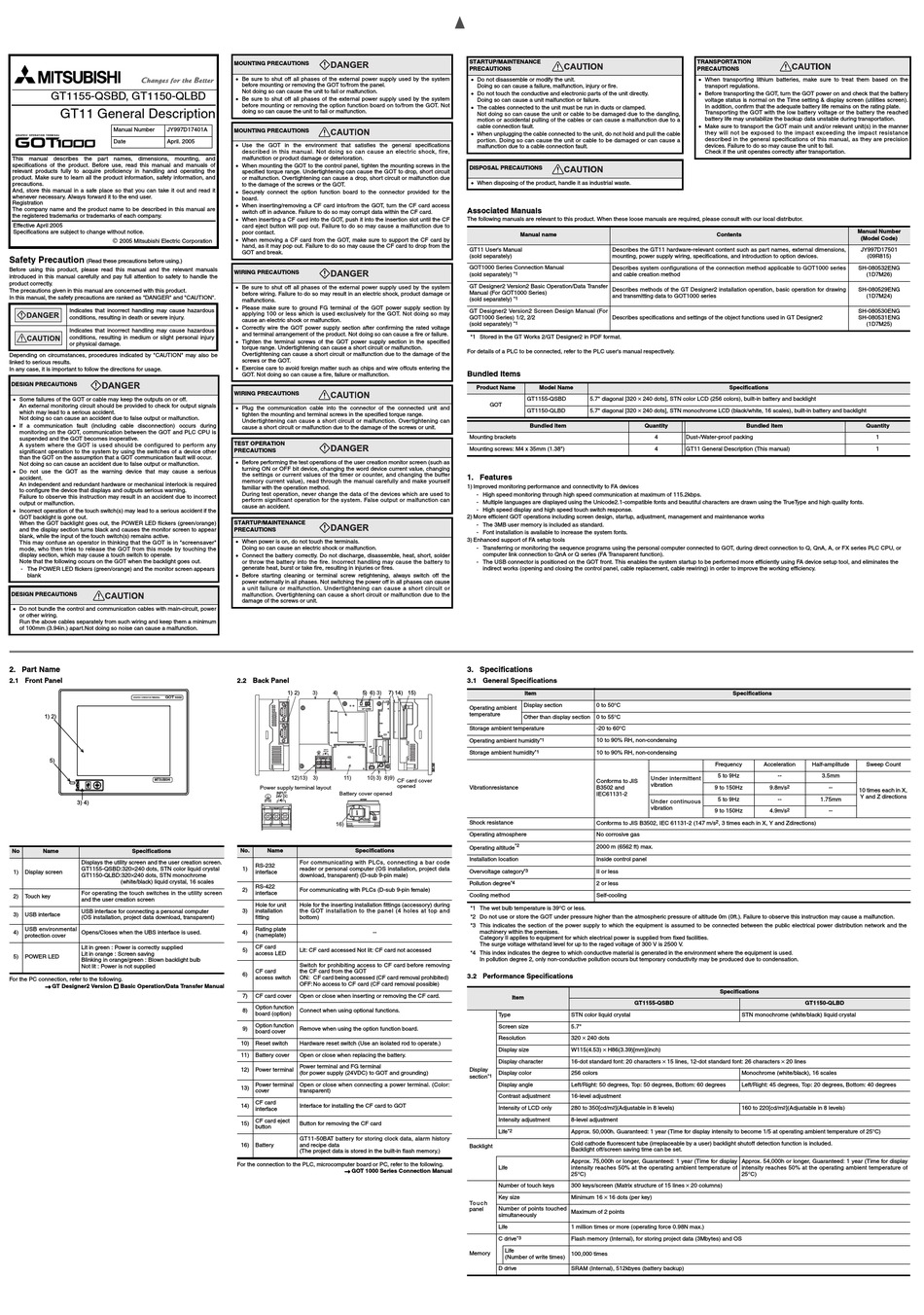

Mitsubishi GT1150-QLBD User Manual

GT1155-QSBD, GT1150-QLBD
GT11 General Description
Manual Number JY997D17401A
Date April. 2005
This manual describes the part names, dimensions, mounting, and
specifications of the product. Before use, read this manual and manuals of
relevant products fully to acquire proficiency in handling and operating the
product. Make sure to learn all the product information, safety information, and
precautions.
And, store this manual in a safe place so that you can take it out and read it
whenever necessary. Always forward it to the end user.
Registration
The company name and the product name to be described in this manual are
the registered trademarks or trademarks of each company.
Effective April 2005
Specifications are subject to change without notice.

2005 Mitsubishi Electric Corporation
Safety Precaution
(Read these precautions before using.)
Before using this product, please read this manual and the relevant manuals
introduced in this manual carefully and pay full attention to safety to handle the
product correctly.
The precautions given in this manual are concerned with this product.
In this manual, the safety precautions are ranked as "DANGER" and "CAUTION".
Indicates that incorrect handling may cause hazardous
conditions, resulting in death or severe injury.
Indicates that incorrect handling may cause hazardous
conditions, resulting in medium or slight personal injury
or physical damage.
Depending on circumstances, procedures indicated by "CAUTION" may also be
linked to serious results.
In any case, it is important to follow the directions for usage.
DESIGN PRECAUTIONS
• Some failures of the GOT or cable may keep the outputs on or off.
An external monitoring circuit should be provided to check for output signals
which may lead to a serious accident.
Not doing so can cause an accident due to false output or malfunction.
• If a communication fault (including cable disconnection) occurs during
monitoring on the GOT, communication between the GOT and PLC CPU is
suspended and the GOT becomes inoperative.
A system where the GOT is used should be configured to perform any
significant operation to the system by using the switches of a device other
than the GOT on the assumption that a GOT communication fault will occur.
Not doing so can cause an accident due to false output or malfunction.
• Do not use the GOT as the warning device that may cause a serious
accident.
An independent and redundant hardware or mechanical interlock is required
to configure the device that displays and outputs serious warning.
Failure to observe this instruction may result in an accident due to incorrect
output or malfunction.
• Incorrect operation of the touch switch(s) may lead to a serious accident if the
GOT backlight is gone out.
When the GOT backlight goes out, the POWER LED flickers (green/orange)
and the display section turns black and causes the monitor screen to appear
blank, while the input of the touch switch(s) remains active.
This may confuse an operator in thinking that the GOT is in "screensaver"
mode, who then tries to release the GOT from this mode by touching the
display section, which may cause a touch switch to operate.
Note that the following occurs on the GOT when the backlight goes out.
- The POWER LED flickers (green/orange) and the monitor screen appears
blank
DESIGN PRECAUTIONS
• Do not bundle the control and communication cables with main-circuit, power
or other wiring.
Run the above cables separately from such wiring and keep them a minimum
of 100mm (3.94in.) apart.Not doing so noise can cause a malfunction.
2. Part Name
2.1 Front Panel
GOT
GRAPHIC OPERATION TERMINAL 1000
1) 2)
5)
MITSUBISHI
3) 4)
No Name Specifications
Displays the utility screen and the user creation screen.
GT1155-QSBD:320×240 dots, STN color liquid crystal
1) Display screen
GT1150-QLBD:320×240 dots, STN monochrome
(white/black) liquid crystal, 16 scales
For operating the touch switches in the utility screen
2) Touch key
and the user creation screen
USB interface for connecting a personal computer
3) USB interface
(OS installation, project data download, transparent)
USB environmental
4) Opens/Closes when the UBS interface is used.
protection cover
Lit in green : Power is correctly supplied
Lit in orange : Screen saving
5) POWER LED
Blinking in orange/green : Blown backlight bulb
Not lit : Power is not supplied
For the PC connection, refer to the following.
→ → → → GT Designer2 Version
Basic Operation/Data Transfer Manual
MOUNTING PRECAUTIONS
• Be sure to shut off all phases of the external power supply used by the system
before mounting or removing the GOT to/from the panel.
Not doing so can cause the unit to fail or malfunction.
• Be sure to shut off all phases of the external power supply used by the system
before mounting or removing the option function board on to/from the GOT. Not
doing so can cause the unit to fail or malfunction.
MOUNTING PRECAUTIONS
• Use the GOT in the environment that satisfies the general specifications
described in this manual. Not doing so can cause an electric shock, fire,
malfunction or product damage or deterioration.
• When mounting the GOT to the control panel, tighten the mounting screws in the
specified torque range. Undertightening can cause the GOT to drop, short circuit
or malfunction. Overtightening can cause a drop, short circuit or malfunction due
to the damage of the screws or the GOT.
• Securely connect the option function board to the connector provided for the
board.
• When inserting/removing a CF card into/from the GOT, turn the CF card access
switch off in advance. Failure to do so may corrupt data within the CF card.
• When inserting a CF card into the GOT, push it into the insertion slot until the CF
card eject button will pop out. Failure to do so may cause a malfunction due to
poor contact.
• When removing a CF card from the GOT, make sure to support the CF card by
hand, as it may pop out. Failure to do so may cause the CF card to drop from the
GOT and break.
WIRING PRECAUTIONS
• Be sure to shut off all phases of the external power supply used by the system
before wiring. Failure to do so may result in an electric shock, product damage or
malfunctions.
• Please make sure to ground FG terminal of the GOT power supply section by
applying 100 or less which is used exclusively for the GOT. Not doing so may
cause an electric shock or malfunction.
• Correctly wire the GOT power supply section after confirming the rated voltage
and terminal arrangement of the product. Not doing so can cause a fire or failure.
• Tighten the terminal screws of the GOT power supply section in the specified
torque range. Undertightening can cause a short circuit or malfunction.
Overtightening can cause a short circuit or malfunction due to the damage of the
screws or the GOT.
• Exercise care to avoid foreign matter such as chips and wire offcuts entering the
GOT. Not doing so can cause a fire, failure or malfunction.
WIRING PRECAUTIONS
• Plug the communication cable into the connector of the connected unit and
tighten the mounting and terminal screws in the specified torque range.
Undertightening can cause a short circuit or malfunction. Overtightening can
cause a short circuit or malfunction due to the damage of the screws or unit.
TEST OPERATION
PRECAUTIONS
• Before performing the test operations of the user creation monitor screen (such as
turning ON or OFF bit device, changing the word device current value, changing
the settings or current values of the timer or counter, and changing the buffer
memory current value), read through the manual carefully and make yourself
familiar with the operation method.
During test operation, never change the data of the devices which are used to
perform significant operation for the system. False output or malfunction can
cause an accident.
STARTUP/MAINTENANCE
PRECAUTIONS
• When power is on, do not touch the terminals.
Doing so can cause an electric shock or malfunction.
• Connect the battery correctly. Do not discharge, disassemble, heat, short, solder
or throw the battery into the fire. Incorrect handling may cause the battery to
generate heat, burst or take fire, resulting in injuries or fires.
• Before starting cleaning or terminal screw retightening, always switch off the
power externally in all phases. Not switching the power off in all phases can cause
a unit failure or malfunction. Undertightening can cause a shor t circuit or
malfunction. Overtightening can cause a short circuit or malfunction due to the
damage of the screws or unit.
2.2 Back Panel
1) 2) 3) 4) 5) 6) 3) 7) 14) 15)
CF CARD
ACCESS OFF ON
CF CARD
RS-232
RS-422
BATTERY
I/F
INPUT
24V DC
- +
(FG)
RESEET
12)13) 3) 11) 10) 3) 8)9)
CF card cover
opened
Power supply terminal layout
Battery cover opened
INPUT
24V DC
- +
(FG)
16)
No. Name Specifications
For communicating with PLCs, connecting a bar code
RS-232
1) reader or personal computer (OS installation, project data
interface
download, transparent) (D-sub 9-pin male)
RS-422
2) For communicating with PLCs (D-sub 9-pin female)
interface
Hole for unit Hole for the inserting installation fittings (accessory) during
3) installation the GOT installation to the panel (4 holes at top and
fitting bottom)
Rating plate
4) --
(nameplate)
CF card
5) Lit: CF card accessed Not lit: CF card not accessed
access LED
Switch for prohibiting access to CF card before removing
CF card the CF card from the GOT
6)
access switch ON: CF card being accessed (CF card removal prohibited)
OFF:No access to CF card (CF card removal possible)
7) CF card cover Open or close when inserting or removing the CF card.
Option function
8) Connect when using optional functions.
board (option)
Option function
9) Remove when using the option function board.
board cover
10) Reset switch Hardware reset switch (Use an isolated rod to operate.)
11) Battery cover Open or close when replacing the battery.
Power terminal and FG terminal
12) Power terminal
(for power supply (24VDC) to GOT and grounding)
Power terminal Open or close when connecting a power terminal. (Color:
13)
cover transparent)
CF card
14) Interface for installing the CF card to GOT
interface
CF card eject
15) Button for removing the CF card
button
GT11-50BAT battery for storing clock data, alarm history
16) Battery and recipe data
(The project data is stored in the built-in flash memory.)
For the connection to the PLC, microcomputer board or PC, refer to the following.
→ → → → GOT 1000 Series Connection Manual
STARTUP/MAINTENANCE
PRECAUTIONS
• Do not disassemble or modify the unit.
Doing so can cause a failure, malfunction, injury or fire.
• Do not touch the conductive and electronic parts of the unit directly.
Doing so can cause a unit malfunction or failure.
• The cables connected to the unit must be run in ducts or clamped.
Not doing so can cause the unit or cable to be damaged due to the dangling,
motion or accidental pulling of the cables or can cause a malfunction due to a
cable connection fault.
• When unplugging the cable connected to the unit, do not hold and pull the cable
portion. Doing so can cause the unit or cable to be damaged or can cause a
malfunction due to a cable connection fault.
DISPOSAL PRECAUTIONS
• When disposing of the product, handle it as industrial waste.
Associated Manuals
The following manuals are relevant to this product. When these loose manuals are required, please consult with our local distributor.
Manual name
GT11 User's Manual Describes the GT11 hardware-relevant content such as part names, external dimensions,
(sold separately) mounting, power supply wiring, specifications, and introduction to option devices.
GOT1000 Series Connection Manual
Describes system configurations of the connection method applicable to GOT1000 series
(sold separately) *1 and cable creation method
GT Designer2 Version2 Basic Operation/Data Transfer
Describes methods of the GT Designer2 installation operation, basic operation for drawing
Manual (For GOT1000 Series)
and transmitting data to GOT1000 series
*1
(sold separately)
GT Designer2 Version2 Screen Design Manual (For
GOT1000 Series) 1/2, 2/2
Describes specifications and settings of the object functions used in GT Designer2
*1
(sold separately)
*1 Stored in the GT Works 2/GT Designer2 in PDF format.
For details of a PLC to be connected, refer to the PLC user's manual respectively.
Bundled Items
Product Name Model Name
5.7" diagonal [320 × 240 dots], STN color LCD (256 colors), built-in battery and backlight
GT1155-QSBD
GOT
5.7" diagonal [320 × 240 dots], STN monochrome LCD (black/white, 16 scales), built-in battery and backlight
GT1150-QLBD
Bundled item
Mounting brackets
Mounting screws: M4 x 35mm (1.38")
1. Features
1) Improved monitoring performance and connectivity to FA devices
- High speed monitoring through high speed communication at maximum of 115.2kbps.
- Multiple languages are displayed using the Unicode2.1-compatible fonts and beautiful characters are drawn using the TrueType and high quality fonts.
- High speed display and high speed touch switch response.
2) More efficient GOT operations including screen design, startup, adjustment, management and maintenance works
- The 3MB user memory is included as standard.
- Font installation is available to increase the system fonts.
3) Enhanced support of FA setup tools
- Transferring or monitoring the sequence programs using the personal computer connected to GOT, during direct connection to Q, QnA, A, or FX series PLC CPU, or
computer link connection to QnA or Q series (FA Transparent function).
- The USB connector is positioned on the GOT front. This enables the system startup to be performed more efficiently using FA device setup tool, and eliminates the
indirect works (opening and closing the control panel, cable replacement, cable rewiring) in order to improve the working efficiency.
3. Specifications
3.1 General Specifications
Item
Display section 0 to 50°C
Operating ambient
temperature
Other than display section 0 to 55°C
Storage ambient temperature -20 to 60°C
Operating ambient humidity *1 10 to 90% RH, non-condensing
Storage ambient humidity *1 10 to 90% RH, non-condensing
Conforms to JIS
Vibrationresistance B3502 and
IEC61131-2
Shock resistance Conforms to JIS B3502, IEC 61131-2 (147 m/s
Operating atmosphere No corrosive gas
*2
2000 m (6562 ft) max.
Operating altitude
Installation location Inside control panel
Overvoltage category *3 II or less
*4
Pollution degree 2 or less
Cooling method Self-cooling
*1 The wet bulb temperature is 39°C or less.
*2 Do not use or store the GOT under pressure higher than the atmospheric pressure of altitude 0m (0ft.). Failure to observe this instruction may cause a malfunction.
*3 This indicates the section of the power supply to which the equipment is assumed to be connected between the public electrical power distribution network and the
machinery within the premises.
Category II applies to equipment for which electrical power is supplied from fixed facilities.
The surge voltage withstand level for up to the raged voltage of 300 V is 2500 V.
*4 This index indicates the degree to which conductive material is generated in the environment where the equipment is used.
In pollution degree 2, only non-conductive pollution occurs but temporary conductivity may be produced due to condensation.
3.2 Performance Specifications
Item
GT1155-QSBD
Type STN color liquid crystal
Screen size 5.7"
320 × 240 dots
Resolution
W115(4.53) × H86(3.39)[mm](inch)
Display size
16-dot standard font: 20 characters × 15 lines, 12-dot standard font: 26 characters × 20 lines
Display character
Display
Display color 256 colors
section *1
Display angle Left/Right: 50 degrees, Top: 50 degrees, Bottom: 60 degrees
Contrast adjustment 16-level adjustment
Intensity of LCD only 280 to 350[cd/m 2 ](Adjustable in 8 levels)
Intensity adjustment 8-level adjustment
Life *2 Approx. 50,000h. Guaranteed: 1 year (Time for display intensity to become 1/5 at operating ambient temperature of 25°C)
Cold cathode fluorescent tube (irreplaceable by a user) backlight shutoff detection function is included.
Backlight
Backlight off/screen saving time can be set.
Approx. 75,000h or longer, Guaranteed: 1 year (Time for display
Life intensity reaches 50% at the operating ambient temperature of
25°C)
300 keys/screen (Matrix structure of 15 lines × 20 columns)
Number of touch keys
Minimum 16 × 16 dots (per key)
Key size
To u c h
Number of points touched
panel
Maximum of 2 points
simultaneously
Life 1 million times or more (operating force 0.98N max.)
C drive *3 Flash memory (Internal), for storing project data (3Mbytes) and OS
Life
Memory 100,000 times
(Number of write times)
D drive SRAM (Internal), 512kbyes (battery backup)
TRANSPORTATION
PRECAUTIONS
• When transporting lithium batteries, make sure to treat them based on the
transport regulations.
• Before transporting the GOT, turn the GOT power on and check that the battery
voltage status is normal on the Time setting & display screen (utilities screen).
In addition, confirm that the adequate battery life remains on the rating plate.
Transporting the GOT with the low battery voltage or the battery the reached
battery life may unstabilize the backup data unstable during transportation.
• Make sure to transport the GOT main unit and/or relevant unit(s) in the manner
they will not be exposed to the impact exceeding the impact resistance
described in the general specifications of this manual, as they are precision
devices. Failure to do so may cause the unit to fail.
Check if the unit operates correctly after transportation.
Contents
Specifications
Quantity Bundled item
4 Dust-/Water-proof packing
4 GT11 General Description (This manual)
Specifications
Frequency Acceleration Half-amplitude
5 to 9Hz --
Under intermittent
vibration
2
9 to 150Hz 9.8m/s
5 to 9Hz --
Under continuous
vibration
2
9 to 150Hz 4.9m/s
2 , 3 times each in X, Y and Zdirections)
Specifications
GT1150-QLBD
STN monochrome (white/black) liquid crystal
Monochrome (white/black), 16 scales
Left/Right: 45 degrees, Top: 20 degrees, Bottom: 40 degrees
160 to 220[cd/m 2 ](Adjustable in 8 levels)
Approx. 54,000h or longer, Guaranteed: 1 year (Time for display
intensity reaches 50% at the operating ambient temperature of
25°C)
Manual Number
(Model Code)
JY997D17501
(09R815)
SH-080532ENG
(1D7M26)
SH-080529ENG
(1D7M24)
SH-080530ENG
SH-080531ENG
(1D7M25)
Quantity
1
1
Sweep Count
3.5mm
--
10 times each in X,
Y and Z directions
1.75mm
--
