Mitsubishi GOT1000 GT15 User Manual

Graphic operation terminal
Hide thumbs Also See for GOT1000 GT15:
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
Table Of Contents
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
250
251
252
253
254
255
256
257
258
259
260
261
262
263
264
265
266
267
268
269
270
271
272
273
274
275
276
277
278
279
280
281
282
283
284
285
286
287
288
289
290
291
292
293
294
295
296
297
298
299
300
301
302
303
304
305
306
307
308
309
310
311
312
313
314
315
316
317
318
319
320
321
322
323
324
325
326
327
328
329
330
331
332
333
334
335
336
337
338
339
340
341
342
343
344
345
346
347
348
349
350
351
352
353
354
355
356
357
358
359
360
361
362
363
364
365
366
367
368
369
370
371
372
373
374
375
376
377
378
379
380
381
382
383
384
385
386
387
388
389
390
391
392
393
394
395
396
397
398
399
400
401
402
403
404
405
406
407
408
409
410
411
412
413
414
415
416
417
418
419
420
421
422
423
424
425
426
427
428
429
430
431
432
433
434
435
436
437
438
439
440
441
442
443
444
445
446
447
448
449
450
451
452
453
454
455
456
457
458
459
460
461
462
463
464
465
466
467
468
469
470
471
472
473
474
475
476
477
478
479
480
481
482
483
484
485
486
487
488
489
490
491
492
493
494
495
496
497
498
499
500
501
502
503
504
505
506
507
508
509
510
511
512
513
514
515
516
517
518
519
520
521
522
523
524
525
526
527
528
529
530
531
532
533
534
535
536
537
538
539
540
541
542
543
544
545
546
547
548
549
550
551
552
553
554
555
556
557
558
559
560
561
562
563
564
565
566
567
568
569
570
571
572
573
574
575
576
577
578
579
580
581
582
583
584
585
586
587
588
589
590
591
592
593
594
595
596
597
598
599
600
601
602
603
604
605
606
607
608
609
610
611
612
613
614
615
616
617
618
619
620
621
622
Table of Contents

Advertisement

Quick Links

Download this manual
GT15 User's Manual

Advertisement

Table of Contents
loading

Related Manuals for Mitsubishi GOT1000 GT15

Summary of Contents for Mitsubishi GOT1000 GT15

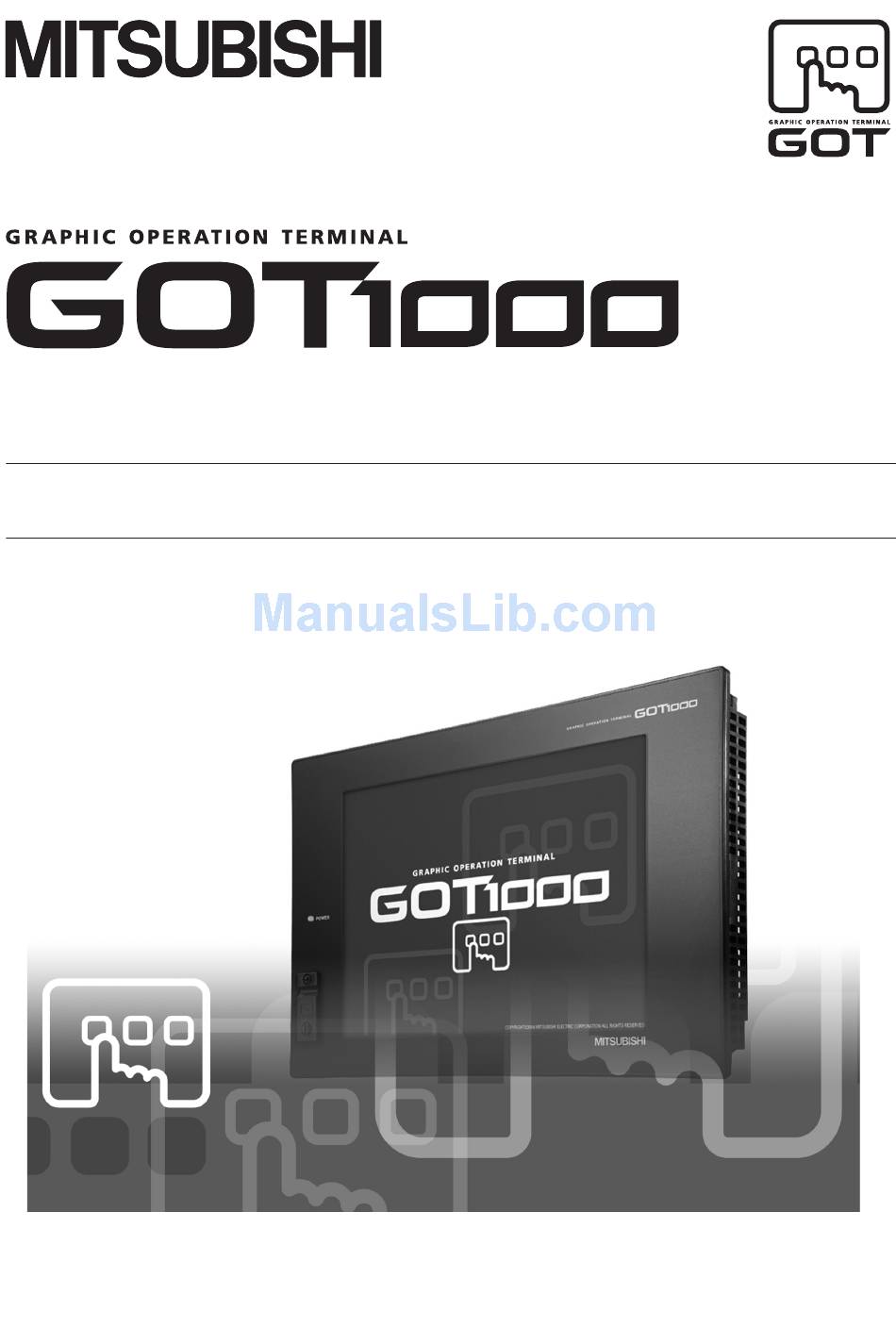

  • Page 1 GT15 User's Manual...

  • Page 3: Safety Precautions

    SAFETY PRECAUTIONS (Always read these precautions before using this equipment.) Before using this product, please read this manual and the relevant manuals introduced in this manual carefully and pay full attention to safety to handle the product correctly. The precautions given in this manual are concerned with this product. In this manual, the safety precautions are ranked as "WARNING"...
  • Page 4 [DESIGN PRECAUTIONS] WARNING Incorrect operation of the touch switch(s) may lead to a serious accident if the GOT backlight is gone out. When the GOT backlight goes out, the POWER LED flickers (green/orange) and the display section turns black and causes the monitor screen to appear blank, while the input of the touch switch(s) remains active.
  • Page 5 [MOUNTING PRECAUTIONS] WARNING Be sure to shut off all phases of the external power supply used by the system before mounting or removing the GOT main unit to/from the panel. Not doing so can cause the unit to fail or malfunction. Be sure to shut off all phases of the external power supply used by the system before mounting or removing the communication unit, printer unit, option function board or multi-color display board onto/from the GOT.
  • Page 6 [MOUNTING PRECAUTIONS] CAUTION Use the GOT in the environment that satisfies the general specifications described in this manual. Not doing so can cause an electric shock, fire, malfunction or product damage or deterioration. When mounting the GOT to the control panel, tighten the mounting screws in the specified torque range (0.36 to 0.48 N m) with a Phillips-head screwdriver No.2.

  • Page 7: Wiring Precautions

    [WIRING PRECAUTIONS] WARNING Be sure to shut off all phases of the external power supply used by the system before wiring. Failure to do so may result in an electric shock, product damage or malfunctions. CAUTION Always ground the FG terminal, LG terminal, and protective ground terminal of the GOT power to the protective ground conductors dedicated to the GOT.
  • Page 8 [TEST OPERATION PRECAUTIONS] WARNING Before performing the test operations of the user creation monitor screen (such as turning ON or OFF bit device, changing the word device current value, changing the settings or current values of the timer or counter, and changing the buffer memory current value), read through the manual carefully and make yourself familiar with the operation method.
  • Page 9 Not doing so can cause the unit to fail or malfunction. Replace battery with GT15-BAT by Mitsubishi electric Co. only. Use of another battery may present a risk of fire or explosion. Dispose of used battery promptly.

  • Page 10: Appendix

    [BACKLIGHT REPLACEMENT PRECAUTIONS] WARNING Be sure to shut off all phases of the external power supply of the GOT (and the PLC CPU in the case of a bus topology) and remove the GOT from the control panel before replacing the backlight (when using the GOT with the backlight replaceable by the user).

  • Page 11: Revisions

    REVISIONS For the software functions, refer to the product-specific screen design manual. The manual number is given on the bottom left of the back cover. Print Date Manual Number Revision Oct., 2004 SH(NA)-080528ENG-A First edition Mar., 2005 SH(NA)-080528ENG-B Compatible with GT Designer2 Version2.09K Partial corrections Chapter 6, Section 7.3.2, 8.2 to 8.6 8.2 to 8.4, 8.4.3, Section 9.1 to 9.3...
  • Page 12 The manual number is given on the bottom left of the back cover. Print Date Manual Number Revision Jan., 2006 SH(NA)-080528ENG-E Compatible with GT Designer2 Version2.27D Partial corrections SAFETY PRECAUTIONS, Chapter 1, Section 2.1, Section 8.1.1, 8.5 to 8.11 8.6 to 8.12, Section 9.2, 9.3, Section 10.1.3, Section 11.1, 11.7.2, Section 13.7.4, 13.10.4 Partial additions Section 2.2, Section 6.3, Section 13.1.5, 13.2.4, Chapter 14, Section 19.4,...
  • Page 13 The manual number is given on the bottom left of the back cover. Print Date Manual Number Revision Feb., 2007 SH(NA)-080528ENG-I Compatible with GT Designer2 Version2.47Z. Partial corrections Section 3.2.1, 3.2.2, 3.2.3, 3.2.4, 3.2.5, 6.1, 6.2, 7.2, 7.6, 7.6.1, 7.6.2, 10.1.3, 11.2.3, 13.1.2, 20.3.2, Appendix 1 Partial additions Section 2.2.2, 5.2.3, 5.3.4, 6.2, 6.3, 8.5, 8.5.1, 8.5.2, 8.6.3, 14.7.1...
  • Page 14 The manual number is given on the bottom left of the back cover. Print Date Manual Number Revision Dec., 2008 SH(NA)-080528ENG-N Compatible with GT Designer2 Version2.91V Partial corrections Section 8.11.4, 8.13.2, 18.3.1 Partial additions SAFETY PRECAUTIONS, Section 2.1, 2.2.2, 3.1, 3.2.2, 6.2, 6.3, 6.4, 8.3.2, 8.8.1, 8.11.2, 9.2, 10.1.3, 12.1.3, Chapter 14, Section 14.11.1, 14.11.3, 19.4, Appendix 1, Appendix 3 Additions...
  • Page 15 The manual number is given on the bottom left of the back cover. Print Date Manual Number Revision Jan., 2011 SH(NA)-080528ENG-W Compatible with GT Designer3 Version1.23Z. • Compatible with the Ethernet settings check and the change of the host • Compatible with "no setting" of the utility call key. •...
  • Page 16 This manual confers no industrial property rights or any rights of any other kind, nor does it confer any patent licenses. Mitsubishi Electric Corporation cannot be held responsible for any problems involving industrial property rights which may occur as a result of using the contents noted in this manual.

  • Page 17: Table Of Contents

    INTRODUCTION Thank you for choosing the Mitsubishi Graphic Operation Terminal. Before using the equipment, please read this manual carefully to use the equipment to its optimum. CONTENTS SAFETY PRECAUTIONS .............A - 1 REVISIONS .
  • Page 18 Part Names and Settings of the GT157 4 - 6 Part Names and Settings of the GT156 4 - 9 Part Names and Settings of the GT155 4 - 11 5. EMC AND LOW VOLTAGE DIRECTIVE 5 - 1 to 5 - 24 Requirements to Meet EMC Directive 5 - 1 5.1.1...
  • Page 19 Grounding Extension Units 7 - 13 7.6.1 Wiring FG cable of bus connection cable ........7 - 13 7.6.2 Wiring FG cable of CF card extension unit connection cable .
  • Page 20 8.12 Protective Sheet 8 - 48 8.12.1 Applicable protective sheet ..........8 - 48 8.12.2 Installing procedure .
  • Page 21 11. DISPLAY AND OPERATION SETTINGS (GOT SET UP) 11 - 1 to 11 - 53 11.1 Display Settings 11 - 2 11.1.1 Display setting functions ........... 11 - 2 11.1.2 Display operation of display setting .
  • Page 22 11.12 RGB Display Settings 11 - 42 11.12.1 Functions of the RGB display settings........11 - 42 11.12.2 Displaying the RGB display settings .
  • Page 23 13.5 Hard Copy Information 13 - 36 13.5.1 The function of hardcopy information ........13 - 36 13.5.2 The display operation of hardcopy information.
  • Page 24 14.2 Self check 14 - 4 14.2.1 Self check function............14 - 4 14.3 Memory Check 14 - 5...

  • Page 25: Maintenance Time Notification Setting

    16. MAINTENANCE TIME NOTIFICATION SETTING (MAINTENANCE TIMING SETTING) 16 - 1 to 16 - 4 16.1 Maintenance Timing Setting 16 - 2 16.1.1 Function of the maintenance timing setting ........16 - 2 16.1.2 Display operation of maintenance timimg setting .
  • Page 26 20.3 ERROR MESSAGE AND SYSTEM ALARM 20 - 17 20.3.1 Error Contents Display........... 20 - 17 20.3.2 List of Error Message/System Alarm .

  • Page 27: About Manuals

    ABOUT MANUALS The following table lists the manual relevant to GT Designer2 product. Refer to each manual for any purpose. Manual Number Manual Name Packaging (Model code) SH-080602ENG GT SoftGOT1000 Version2 Operating Manual Stored in CD-ROM (1D7M48) SH-080529ENG GT Designer2 Version2 Basic Operation/Data Transfer Manual (For GOT1000 Series) Stored in CD-ROM (1D7M24) GT Designer2 Version2 Screen Design Manual (For GOT1000 Series) 1/3...
  • Page 28 SH-080868ENG GOT1000 Series Connection Manual (Mitsubishi Products) for GT Works3 Stored in CD-ROM (1D7MC2) SH-080869ENG GOT1000 Series Connection Manual (Non-Mitsubishi Products 1) for GT Works3 Stored in CD-ROM (1D7MC3) SH-080870ENG GOT1000 Series Connection Manual (Non-Mitsubishi Products 2) for GT Works3...
  • Page 29 GT16 manuals Manual Number Manual Name Packaging (Model code) SH-080928ENG GT16 User's Manual (Hardware) Stored in CD-ROM (1D7MD3) SH-080929ENG GT16 User's Manual (Basic Utility) Stored in CD-ROM (1D7MD4) JY997D41201 GT16 Handy GOT User's Manual Stored in CD-ROM JY997D41202 (09R821) GT15 manuals Manual Number Manual Name Packaging...

  • Page 30: Quick Reference

    Simulating a created project on a personal computer GT Simulator3 Version1 Operating Manual for GT Works3 Connecting a controller to the GOT Obtaining information of Mitsubishi products applicable to the GOT Connecting Mitsubishi products to the GOT GOT1000 Series Connection Manual (Mitsubishi Products) for...
  • Page 31 Others Obtaining specifications (including part names, external dimensions, and • GT16 User's Manual (Hardware) options) of each GOT • GT16 Handy GOT User's Manual • GT15 User's Manual • GT14 User's Manual • GT12 User's Manual • GT11 User's Manual Installing the GOT •...

  • Page 32: Abbreviations And Generic Terms

    ABBREVIATIONS AND GENERIC TERMS Abbreviations and generic terms used in this manual are as follows: Abbreviations and generic terms Description GT1695 GT1695M-X Abbreviation of GT1695M-XTBA, GT1695M-XTBD GT1685 GT1685M-S Abbreviation of GT1685M-STBA, GT1685M-STBD GT1675M-S Abbreviation of GT1675M-STBA, GT1675M-STBD GT1675 GT1675M-V Abbreviation of GT1675M-VTBA, GT1675M-VTBD GT1675-VN Abbreviation of GT1675-VNBA, GT1675-VNBD GT1672...
  • Page 33 Communication unit Abbreviations and generic terms Description GT15-QBUS, GT15-QBUS2, GT15-ABUS, GT15-ABUS2, Bus connection unit GT15-75QBUSL, GT15-75QBUS2L, GT15-75ABUSL, GT15-75ABUS2L Serial communication unit GT15-RS2-9P, GT15-RS4-9S, GT15-RS4-TE RS-422 conversion unit GT15-RS2T4-9P, GT15-RS2T4-25P Ethernet communication unit GT15-J71E71-100 MELSECNET/H communication unit GT15-J71LP23-25, GT15-J71BR13 MELSECNET/10 communication unit GT15-75J71LP23-Z , GT15-75J71BR13-Z CC-Link IE Controller Network...
  • Page 34 Option Abbreviations and generic terms Description GT05-MEM-16MC, GT05-MEM-32MC, GT05-MEM-64MC, GT05-MEM-128MC, Memory card CF card GT05-MEM-256MC, GT05-MEM-512MC, GT05-MEM-1GC, GT05-MEM-2GC, GT05-MEM-4GC, GT05-MEM-8GC, GT05-MEM-16GC Memory card adaptor GT05-MEM-ADPC GT16-MESB, GT15-FNB, GT15-QFNB, GT15-QFNB16M, Option function board GT15-QFNB32M, GT15-QFNB48M, GT15-MESB48M, GT11-50FNB Battery GT15-BAT, GT11-50BAT GT16-90PSCB, GT16-90PSGB, GT16-90PSCW, GT16-90PSGW,...
  • Page 35 Software Abbreviations and generic terms Description GT Works3 Abbreviation of the SW DNC-GTWK3-E and SW DNC-GTWK3-EA GT Designer3 Abbreviation of screen drawing software GT Designer3 for GOT1000 series GT Simulator3 Abbreviation of screen simulator GT Simulator3 for GOT1000/GOT900 series GT SoftGOT1000 Abbreviation of monitoring software GT SoftGOT1000 GT Converter2 Abbreviation of data conversion software GT Converter2 for GOT1000/GOT900 series...
  • Page 36 Others Abbreviations and generic terms Description Abbreviation of IAI Corporation AZBIL Abbreviation of Azbil Corporation (former Yamatake Corporation) OMRON Abbreviation of OMRON Corporation KEYENCE Abbreviation of KEYENCE CORPORATION KOYO EI Abbreviation of KOYO ELECTRONICS INDUSTRIES CO., LTD. SHARP Abbreviation of Sharp Manufacturing Systems Corporation JTEKT Abbreviation of JTEKT Corporation SHINKO...

  • Page 37: How To Read This Manual

    HOW TO READ THIS MANUAL Functions This manual describes functions available for the GT Designer3 Version1.108N and GT Designer2 Version2.113T. For the Functions added by GT Designer3 version upgrade, refer to the following. REVISIONS For the Functions added by GT Designer2 version upgrade, refer to the following. Appendix 6 List of Functions Added by GT Designer2 Version Upgrade (For GOT1000 Series) GT Designer3 and GT Designer2 have differences in the functions.

  • Page 38: Packing List

    PACKING LIST After unpacking, confirm that the following parts are included. Model Product Quantity GT1595-X Installation fitting GT15 General Description GT1585V-S, GT1585-S, GT1575V-S, GT1575-S, GT1575-V, GT1575-VN, GT1572-VN, GT1565-V, GT1562-VN, Installation fitting GT1555-V, GT1555-Q, GT1550-Q GT15 General Description The following products are included a spare for the plastic fixing screw of the GOT. GT1585-S: Hardware Version B or earlier (Apr.,2005) GT1575-S: Hardware Version B or earlier (Apr.,2005) GT1575-V: Hardware Version D or earlier (Apr.,2005)

  • Page 39: Overview

    OVERVIEW About GOT GOT is installed on the panel surface of control panel or operating panel and connects to the PLC in the control panel. GOT carries out switch operation, lamp display, data display, and message display etc. Connector for program For display screen, two kinds of display screens, user-created screen and utility screen are available.

  • Page 40: Features

    1.1 Features (1) Improved monitoring performance and connectivity to FA devices • Using of TFT color liquid crystal display (high intensity, wide angle view and high definition type) provides clear full-color display and displays small characters clearly. (Displays digital images of BMP and other formats in 65536 colors.) •...

  • Page 41: Rough Pre-Operation Procedure

    1.2 Rough Pre-operation Procedure The outline procedure before operating GOT is shown. Start Install GT Works3 or GT Designer2 in the PC. Refer to GT Works3 Version1 Installation Instructions or GT Designer2 Version Basic Operation/Data Transfer Manual Create project data. Refer to GT Designer3 Version1 Screen Design Manual (Fundamentals) or GT Designer2 Version Screen Design...
  • Page 42 Project data can be also downloaded/uploaded via Ethernet. For download/upload of project data via Ethernet, BootOS and standard monitor OS should be installed in the GOT in advance so that the GOT and PC can communicate with each other via Ethernet by setting Communication Settings.

  • Page 43: System Configuration

    SYSTEM CONFIGURATION 2.1 Overall Configuration The overall configuration of GOT is as follows. For the connection methods applicable to GOT1000 series and cable, refer to the following. •GOT1000 Series Connection Manual for GT Works3 and a controller used •GOT1000 Series Connection Manual for GT Designer2/GT Works2 Protective cover for oil Extension unit...

  • Page 44: Component List 2

    2.2 Component List (1) Explanation of the GOT model name G T 1 5 7 5 V : 100 to 240VAC Power type : 24VDC Panel color type : Black : TFT color (High intensity, Wide angle view) : TFT color Display device type : STN color : STN monochrome...

  • Page 45: Component List

    (2) Explanation of the option model name (None) : Common for all types : Dedicated for 15" : Dedicated for 12.1" : Common for 15", 12.1",10.4", 8.4", (Partially common for 5.7 ") : Dedicated for 10.4" : Dedicated for 8.4" : Dedicated for 5.7"...
  • Page 46 (3) Third party PLC connection cable G T 0 9 P: Plug (male) Connector pin type of the S: Socket (female) connection target T: Solderless terminal (For third party PLC side) C: Preparatory soldering Number of connector pins (Indicates the number of terminals for solderless or preparatory-soldered terminals.) Cable distinction numbers for one manufacturer's products...

  • Page 47: Got

    2.2.1 Product name Model name Specifications 15" (1024 768 dots), TFT color liquid crystal, (high intensity, wide angle GT1595-XTBA view), 65536 colors , 100 to 240VAC, Memory size 9MB 15" (1024 768 dots), TFT color liquid crystal (high intensity, wide angle GT1595-XTBD view), 65536 colors , 24VDC, memory size 9MB...
  • Page 48 Product name Model name Specifications 8.4" (640 480 dots), TFT color liquid crystal, (high intensity, wide angle GT1565-VTBD view), 65536 colors , 24VDC, Memory size 9MB 8.4" (640 480 dots), TFT color liquid crystal, GT1562-VNBA 16 colors, 100 to 240VAC, Memory size 5MB 8.4"...
  • Page 49 2.2.2 Option Communication unit (Sold separately) Product name Model name Description For last GOT, Number of IN side GT15-QBUS connectors: 1 For QCPU (Q Mode)/Motion controller CPU (Q Series) For intermediary and last GOT, GT15-QBUS2 connection (standard model) Number of IN and OUT side connectors: 1 for each side For last GOT, Number of IN side GT15-ABUS...
  • Page 50 QCPU (Q Mode) bus connection cable (Sold separately) Product name Model name Description GT15-QC06B Cable length 0.6m GT15-QC12B Cable length 1.2m Q extension cable For connecting QCPU and GOT GOT-to-GOT GT15-QC30B Cable length 3m For connecting GOT and GOT connection cable GT15-QC50B Cable length 5m GT15-QC100B...
  • Page 51 (A0J2-PW) and GOT Combined with GT15-C BS, can be used as Buffer circuit cable GT15-EXCNB Cable length 0.5m GT15-C EXSS-1 Connection cables for MITSUBISHI PLCs (Sold separately) Product name Model name Description Q/LCPU direct GT01-C30R2-6P Cable length 3m...
  • Page 52 Product name Model name Description GT01-C10R4-8P Cable length 1m FXCPU direct GT01-C30R4-8P Cable length 3m For connecting FXCPU (MINI DIN 8 pins connection cable, connector) and GOT FX communication GT01-C100R4-8P Cable length 10m For connecting FXCPU communication function extension function extension board (MINI DIN 8 pins board connection GT01-C200R4-8P Cable length 20m...
  • Page 53 Product Model name Description name GT09-C30R40101-9P Cable length 3m GT09-C100R40101-9P Cable length 10m For connecting GOT to OMRON PLC, serial communication module, serial communication board GT09-C200R40101-9P Cable length 20m GT09-C300R40101-9P Cable length 30m GT09-C30R40102-9P Cable length 3m GT09-C100R40102-9P Cable length 10m RS-422 For connecting GOT to OMRON rack type host link unit, cable...
  • Page 54 Connection cables for JTEKT PLCs (Sold separately) Product Model name Description name RS-232 GT09-C30R21201-25P Cable length 3 m For connecting GOT to JTEKT PLC cable GT09-C30R41201-6C Cable length 3 m GT09-C100R41201-6C Cable length 10 m RS-422 For connecting GOT to JTEKT PLC cable GT09-C200R41201-6C Cable length 20 m...
  • Page 55 Connection cables for HITACHI PLCs (Sold separately) Product Model name Description name RS-232 For connecting GOT to HITACHI communication module GT09-C30R21301-9S Cable length 3m Cable (LQE560/LQE060/LQE160) GT09-C30R41301-9S Cable length 3m GT09-C100R41301-9S Cable length 10m RS-422 For connecting GOT to HITACHI PLC (LPQ510) and Cable communication module (LQE565/LQE165) GT09-C200R41301-9S...
  • Page 56 Connection cables for YASKAWA PLCs (Sold separately) Product Model name Description name GT09-C30R20201-9P Cable length 3m GT09-C30R20202-15P Cable length 3m For connecting GOT to YASKAWA PLC RS-232 GT09-C30R20203-9P Cable length 3m cable GT09-C30R20204-14P Cable length 3m GT09-C30R20205-25P Cable length 3m For connecting GOT to YASKAWA MEMOBUS module GT09-C30R40201-9P Cable length 3m...
  • Page 57 Connection cables for ALLEN-BRADLEY PLCs (Sold separately) Product Model name Description name RS-232 GT09-C30R20701-9S Cable length 3m For connecting GOT to ALLEN-BRADLEY PLC cable Connection cables for SIEMENS PLCs (Sold separately) Product Model name Description name RS-232 GT09-C30R20801-9S Cable length 3m For connecting GOT to SIEMENS HMI Adapter cable RS-422 conversion unit (Sold separately)
  • Page 58 Bar code reader (Sold separately) Product name Model name Description Bar code reader Commercially-available bar code reader Some models with the operations checked by our company are usable. For the validated models, refer to Technical News GOT-A-0010 "List of Valid Devices Applicable for GOT1000 Series"...
  • Page 59 Multi color display board (Sold separately) Product name Model name Description Multi-color display board for XGA (For 65536-color display) GT15-XHNB Multi-color display Multi-color display board for SVGA/VGA (For 65536-color display) board GT15-VHNB Multi-color display board for SVGA/VGA (For 65536-color display) To use it for a SVGA or VGA GOT, install the following OS to the GOT.
  • Page 60 Protective sheet (Sold separately) Product name Model name Description GT15-90PSCB Clear 5 sheets GT15-90PSGB Antiglare 5 sheets 15" protective sheet GT15-90PSCW Clear (Frame: white) 5 sheets GT15-90PSGW Antiglare (Frame: white) 5 sheets GT15-80PSCB Clear 5 sheets GT15-80PSGB Antiglare 5 sheets 12.1"...
  • Page 61 USB environmental protection cover (Sold separately) Product name Model name Description Environmental cover for USB interface on the GOT GT15-UCOV 15", 12.1", 10.4", 8.4" USB environmental main unit front side (For complying IP67) protection cover Environmental cover for USB interface on the GOT GT11-50UCOV 5.7"...
  • Page 62 PC connection cable (Sold separately) Product name Model name Description For connecting GOT (D sub 9-pin female) GT01-C30R2-9S Cable length 3m and PC (D sub 9-pin female) Project data For connecting GOT (USB mini) and PC GT09-C20USB-5P Cable length 2m transfer cable (USB) For connecting GOT (USB mini) and PC...

  • Page 63: Specifications

    SPECIFICATIONS 3.1 General Specifications Item Specifications Display section 0 to 50°C Operating ambient Other than the 0 to 55°C temperature display section Storage ambient temperature -20 to 60°C 10 to 90% RH, non-condensing Operating ambient humidity 10 to 90% RH, non-condensing Storage ambient humidity Half- Frequency...
  • Page 64 When mounting MELSECNET/H communication unit (GT15-J71LP23-25, GT15-J71BR13) or CC-Link communication unit (GT15-J61BT13), the operating ambient temperature must be reduced 5°C against the maximum values described in general specifications. When using the MELSECNET/10 communication unit (GT15-75J71LP23-Z, GT15-75J71BR13-Z) or CC-Link communication unit (GT15-75J61BT13-Z), refer to the manual of the communication unit you use. (Differs with the specification of GOT.) Do not use or store the GOT under pressure higher than the atmospheric pressure of altitude 0m (0ft.).

  • Page 65: Performance Specifications

    3.2 Performance Specifications The performance specifications of the GT15 is as follows. 3.2.1 GT1595-X 3.2.2 GT1585V-S, GT1585-S 3.2.3 GT1575V-S, GT1575-S, GT1575-V, GT1575-VN, GT1572-VN 3.2.4 GT1565-V, GT1562-VN 3.2.5 GT1555-V, GT1555-Q, GT1550-Q 3.2.1 GT1595-X Specifications Item GT1595-XTBA GT1595-XTBD Type TFT color liquid crystal display (High intensity and wide angle view) Screen size 15"...
  • Page 66 Specifications Item GT1595-XTBA GT1595-XTBD Detection length 1(39.37) [m](inch) Detection range Left/Right/Top/Bottom: 70 degrees Human sensor Detection delay time 0 to 4s Detection temperature Temperature difference between human body and ambient air: 4°C or higher C drive Built-in flash memory 9Mbytes (for storing project data and OS) Memory Life (Number of 100,000 times...
  • Page 67 Bright dots (always lit) and dark dots (unlit) may appear on a liquid crystal display panel due to its characteristics. It is impossible to completely avoid this symptom, as the liquid crystal display comprises of a great number of display elements. Please note that these dots appear due to its characteristic and are not caused by product defect.

  • Page 68: Gt1585V-S, Gt1585-S

    3.2.2 GT1585V-S, GT1585-S Specifications Item GT1585V-STBA GT1585V-STBD GT1585-STBA GT1585-STBD Type TFT color liquid crystal display (High intensity and wide angle view) Screen size 12.1” Resolution 600 dots Display size 246(9.69)(W) 184.5(7.26)(H) [mm](inch) 16-dot standard font: 50 characters 37 lines (2byte character) Display character 12-dot standard font: 66 characters 50 lines (2byte character)
  • Page 69 Specifications Item GT1585V-STBA GT1585V-STBD GT1585-STBA GT1585-STBD RS-232, 1ch Transmission speed: 15,200/57,600/38,400/19,200/9,600/4,800 bps Connector shape: D-sub 9-pin (Male) RS-232 Application: For communicating with a controller or connecting a personal computer (Project data read/write, OS installation, FA transparent function) USB (Full Speed 12Mbps), Device, 1ch Connector shape: Mini-B Application: For connecting a personal computer (Project data read/write, OS Built-in...
  • Page 70 Compliant with IP67 when the USB environmental protection cover is attached. Compliant with IP2X at the USB interface only when a USB cable is connected. Note that this does not guarantee all users' operation environment. In addition, the GOT may not be available for use in the environment where oil or chemicals are splashed over for a long period or where oil mist is filled.

  • Page 71: Gt1575V-S, Gt1575-S, Gt1575-V, Gt1575-Vn, Gt1572-Vn

    3.2.3 GT1575V-S, GT1575-S, GT1575-V, GT1575-VN, GT1572-VN Specifications GT1575-VNBA, Item GT1575V-STBA, GT1575-STBA, GT1575-VTBA, GT1575-VNBD, GT1575V-STBD GT1575-STBD GT1575-VTBD GT1572-VNBA, GT1572-VNBD TFT color liquid crystal (LCD of high intensity and wide angle TFT color liquid Type view) crystal Screen size 10.4" Resolution 600dots 480dots Display size 211(8.31)(W)
  • Page 72 Specifications GT1575-VNBA, Item GT1575V-STBA, GT1575-STBA, GT1575-VTBA, GT1575-VNBD, GT1575V-STBD GT1575-STBD GT1575-VTBD GT1572-VNBA, GT1572-VNBD Detection length None Detection range None Human Detection delay time None sensor Detection None temperature Built-in flash Built-in flash memory 9Mbytes memory 5Mbytes C drive (for storing project data and OS) (for storing project Memory data and OS)
  • Page 73 Specifications GT1575-VNBA, Item GT1575V-STBA, GT1575-STBA, GT1575-VTBA, GT1575-VNBD, GT1575V-STBD GT1575-STBD GT1575-VTBD GT1572-VNBA, GT1572-VNBD External dimensions (Excluding USB environmental 303(11.93)(W) 214(8.43)(H) 49(1.93)(D)[mm](inch) protective cover) Panel cutting dimensions 289(11.38)(W) 200(7.87)(H)[mm](inch) 2.3 kg(5.1lb) 2.3 kg(5.1lb) 2.4 kg(5.3lb) Weight (mounting fixtures are (mounting fixtures (mounting fixtures are not included) not included) are not included) GT1575-STBA:...
  • Page 74 For using multiple extension units, a bar code reader, or a RFID controller, the total current for the extension units, bar code reader, or RFID controller must be within the current that the GOT can supply. For the current for the extension units, bar code reader or RFID controller, and the current that the GOT can supply, refer to the following manual.

  • Page 75: Gt1565-V, Gt1562-Vn

    3.2.4 GT1565-V, GT1562-VN Specifications Item GT1565-VTBA, GT1565-VTBD GT1562-VNBA, GT1562-VNBD TFT color liquid crystal (LCD of high Type TFT color liquid crystal intensity and wide angle view) Screen size 8.4" Resolution 640 480dots Display size 171(6.73)(W) 128(5.04)(H)[mm](inch) 16-dot standard font: 40 characters × 30 lines (2byte character) Display character 12-dot standard font: 53 characters ×...
  • Page 76 Specifications Item GT1565-VTBA, GT1565-VTBD GT1562-VNBA, GT1562-VNBD Battery GT-15BAT lithium battery (Option) Backup target Clock data and maintenance time notification data Life Approx. 5 years (Operating ambient temperature of 25°C) RS-232, 1ch Transmission speed: 115,200/57,600/38,400/19,200/9,600/4,800 bps Connector shape: D-sub 9-pin (Male) RS-232 Application: For communicating with a controller or connecting a personal computer (Project data read/write, OS installation, FA transparent function)
  • Page 77 The GOT screen saving/backlight off function prevents images from becoming permanently etched on the display screen and increases the backlight life. ROM in which new data can be written without deleting the written data. Compliant with IP67 when the USB environmental protection cover is attached. Compliant with IP2X at the USB interface only when a USB cable is connected.

  • Page 78: Gt1555-V, Gt1555-Q, Gt1550-Q

    3.2.5 GT1555-V, GT1555-Q, GT1550-Q Specifications Item GT1555-VTBD GT1555-QTBD GT1555-QSBD GT1550-QLBD TFT color liquid crystal STN monochrome Type STN color liquid crystal (LCD of high intensity and wide angle view) liquid crystal Screen size 5.7" Resolution 480dots 240dots Display size 115(4.53)(W) 86(3.39)(H)[mm](inch) 16-dot standard font: 40 characters...
  • Page 79 Specifications Item GT1555-VTBD GT1555-QTBD GT1555-QSBD GT1550-QLBD Human Detection None sensor temperature C drive Built-in flash memory 9Mbytes (for string project data and OS) Memory Life (Number of write 100,000 times times) Battery GT15-BAT lithium battery (Option) Backup target Clock data and maintenance time notification data Life Approx.
  • Page 80 Bright dots (always lit) and dark dots (unlit) may appear on a liquid crystal display panel due to its characteristics. It is impossible to completely avoid this symptom, as the liquid crystal display comprises of a great number of display elements. Flickers may be observed depending on the display color. Please note that these dots and flickers appear due to its characteristic and are not caused by product defect.

  • Page 81: Power Supply Specifications

    3.3 Power Supply Specifications The following describes the power supply specifications for the GT15. 3.3.1 For GOTs powered from the 100 to 240VAC power supply 3.3.2 For GOTs powered from the 24VDC power supply Remark Operation at momentary failure • If an instantaneous power failure occurs in the power supply and continues for more than the permissible period, the GOT will be reset.

  • Page 82: For Gots Powered From The 24Vdc Power Supply

    3.3.2 For GOTs powered from the 24VDC power supply Specifications GT1575V-STBD, GT1575-STBD, Item GT1575-VTBD, GT1585V-STBD, GT1595-XTBD GT1575-VNBD, GT1555-V GT1555-QTBD GT1555-QSBD GT1550-QLBD GT1585-STBD GT1572-VNBD, GT1565-VTBD, GT1562-VNBD Input power 24VDC (+25%, -20%) supply voltage 57W or less 43W or less 41W or less 19W or less 18W or less 17W or less...

  • Page 83: Part Name And Settings

    PART NAME AND SETTINGS 4.1 Part Names and Settings of the GT1595 2), 3) GOT rear face 4.1 Part Names and Settings of the GT1595...
  • Page 84 Name Description Lit in green : Power is correctly supplied Lit in orange : Screen saving 1) POWER LED Blinks in orange/green : Blown back light bulb Not lit : Power is not supplied 2) Display screen Displays the Utility and the user creation screen. 3) Touch key For operating the touch switches in the Utility and the user creation screen For connecting a personal computer...

  • Page 85: Part Names And Settings Of The Gt1585

    4.2 Part Names and Settings of the GT1585 2), 3) GOT rear face 4.2 Part Names and Settings of the GT1585...
  • Page 86 Name Description Lit in green : Power is correctly supplied Lit in orange : Screen saving 1) POWER LED Blinks in orange/green : Blown back light bulb Not lit : Power is not supplied 2) Display screen Displays the utility and the user creation screen. 3) Touch key For operating the touch switches in the utility and the user creation screen For installing the video input unit, RGB input unit, video/RGB input unit, or RGB...
  • Page 87 Connector used for the RS-232 interface The specification of the connector used for the RS-232 interface of GT1585 is as follows. GOT model name Hardware version Connector GT1585V-STBA A (March, 2006) or later Manufacturer: DDK Ltd. Model name: 17LE-23090-27 (D4CK) or equivalent GT1585V-STBD A (May, 2006) or later product...

  • Page 88: Part Names And Settings Of The Gt157

    4.3 Part Names and Settings of the GT157 2), 3) GOT rear face 4.3 Part Names and Settings of the GT157...
  • Page 89 Name Description Lit in green : Power is correctly supplied Lit in orange : Screen saving 1) POWER LED Blinks in orange/green : Blown back light bulb Not lit : Power is not supplied 2) Display screen Displays the utility and the user creation screen. 3) Touch key For operating the touch switches in the utility and the user creation screen For installing the video input unit, RGB input unit, video/RGB input unit, or RGB...
  • Page 90 Remark Connector used for the RS-232 interface The specification of the connector used for the RS-232 interface of GT157 is as follows. GOT model Hardware version Connector name GT1575-STBA A (March, 2006) or later Manufacturer: DDK Ltd. Model name: 17LE-23090-27 (D4CK) or equivalent GT1575-STBD A (March, 2006) or later product...

  • Page 91: Part Names And Settings Of The Gt156

    4.4 Part Names and Settings of the GT156 2) 3) GOT rear face 4.4 Part Names and Settings of the GT156...
  • Page 92 Name Description Lit in green : Power is correctly supplied Lit in orange : Screen saving 1) POWER LED Blinks in orange/green : Blown back light bulb Not lit : Power is not supplied 2) Display screen Displays the utility and the user creation screen. 3) Touch key For operating the touch switches in the utility and the user creation screen For connecting a personal computer...

  • Page 93: Part Names And Settings Of The Gt155

    4.5 Part Names and Settings of the GT155 2),3) GOT rear face 4.5 Part Names and Settings of the GT155 - 11...
  • Page 94 Name Description Lit in green : Power is correctly supplied Lit in red : Screen saving 1) POWER LED Blinks in red : Blown back light bulb Not lit : Power is not supplied 2) Display screen Displays the Utility and the user creation screen 3) Touch key For operating touch switches in the Utility and the user creation screen For connecting a personal computer...

  • Page 95: Emc And Low Voltage Directive

    Though the data described herein are produced with our best on the basis of the requirement items and standards of the restrictions gathered by Mitsubishi, they do not completely guaranteed that all mechanical unit manufactured according to the data do not always match the above directives. The manufacturer itself which manufactures the mechanical unit must finally judge the method and others to match the EMC directives.

  • Page 96: Emc Directive

    5.1.1 EMC directive The standards of the EMC Directive are shown below. Applied Test standard Test details Standard value standard 30M-230MHz QP: 30dB V/m (30m in measurement *2, *3 EN55011 Electromagnetic emissions from the range) product are measured. 230M-1000MHz QP: Radiated noise 37dB V/m(30m in measurement *2, *3...
  • Page 97 The above test items are conducted in the condition where the GOT is installed on the conductive control panel and combined with the Mitsubishi PLC. QP: Quasi-peak value, Mean : Average value The above test items are conducted in the following conditions.

  • Page 98: Control Panel

    5.1.2 Control panel The GOT is an open type device (device installed to another device) and must be installed in a conductive control panel. It not only assure the safety but also has a large effect to shut down the noise generated from GOT, on the control panel.

  • Page 99: Noise Filter (Power Supply Line Filter)

    5.1.3 Noise filter (power supply line filter) The noise filter (power supply line filter) is a device effective to reduce conducted noise. Except some models, installation of a noise filter onto the power supply lines is not necessary. However conducted noise can be reduced if it is installed.

  • Page 100: Requirements For Conpliance With The Low Voltage Directive

    5.2 Requirements for Conpliance with the Low Voltage Directive The Low Voltage Directive requires each device which operates with power supply ranging from 50VAC to 1000V and 75VDC to 1500V to satisfy necessary safety items. In the Sections from 5.2.1 to 5.2.5, cautions on installation and wiring of the GOT to conform to the Low Voltage Directive requires are described.

  • Page 101: Control Panel

    5.2.3 Control panel Because the GOT is open type equipment (device designed to be stored within another device), be sure to use it only when installed in a control panel. (1) Shock protection In order to prevent those who are unfamiliar with power facility, e.g., an operator, from getting a shock, make sure to take the following measures on the control panel.

  • Page 102: External Wiring

    5.2.5 External wiring (1) External devices When a device with a hazardous voltage circuit is externally connected to the GOT, select a model which complies with the Low Voltage Directive's requirements for isolation between the primary and secondary circuits. (2) Insulation requirements Dielectric withstand voltages are shown in the following table.

  • Page 103: Emc Directive-Compliant System Configuration

    5.3 EMC Directive-Compliant System Configuration For the GOT1000 series models compliant with the EMC Directive, contact your local distributor. 5.3.1 Use any of the following GOTs with which CE mark logo is printed on the rating plate. For how to confirm the hardware version of a GOT, refer to the following. Appendix 2 Confirming of Versions and Conformed Standards When using a GOT other than shown below, the system does not conform to the EMC Directive.

  • Page 104: Connection Method

    CNC, MODBUS(R)/RTU or MODBUS(R)/TCP connection) Connected devices If connecting to the PLC or microcomputer other than Mitsubishi products (MELSEC-Q series, MELSEC-L series, MELSEC-QnA series or MELSEC-A series) please refer to the EMC Directive compliance manual for that specific device.

  • Page 105: When The Communication Unit Is Used

    5.3.3 When the communication unit is used Use the following communication unit with the GOT to ensure compliance with the EMC Directive. The GOT does not comply with the EMC Directive when connected with other than followings. Hardware version of the communication unit Connection method Communication unit used (Production year and month)
  • Page 106 Hardware version of the communication unit Connection method Communication unit used (Production year and month) GOT RS-232 interface Third party PLC GT15-RS2T4-9P Version A or later connection GT15-RS2-9P Version D or later GT15-RS4-9S (Jan., 2006) GOT RS-232 interface GT15-RS2T4-9P Version A or later Temperature controller GT15-RS2-9P connection...

  • Page 107: When The Option Unit Is Used

    5.3.4 When the option unit is used The following shows EMC Directive compliance of option units. : Compliant with EMC Directive : Not compliant with EMC Directive Hardware version Product name Model name EMC Directive (Production year and month) Printer unit* GT15-PRN Version B or later (Feb.,2006) Video input unit...

  • Page 108: Cables

    (b) For the CC-Link IE Field Network connection, use the following cable dedicated to the CC-Link IE Field Network. Manufacturer Model name Mitsubishi Electric System & Service Co., Ltd. SC-E5EW-S M (c) For details of the cables used for conncetions other than the above, refer to the following manual.

  • Page 109: Precautions For Wiring/Connecting The Emc Directive-Compliant Product

    5.4 Precautions for Wiring/Connecting the EMC Directive-Compliant Product Wire and connect GOT1000 series equipments as instructed below. If the GOT1000 series equipments are configured in a way different from the following instructions, the system may not comply with EMC directives. 5.4.1 Power and ground wires wiring method (1) Power and ground wires wiring method...
  • Page 110 • GT1585, GT157 , GT156 , GT1595: Hardware version R (February 2010) or earlier GOT power supply section INPUT 100-240VAC (LG) (FG) Ferrite core (ZCAT3035-1330) • GT1595: Hardware version S (February 2010) or later GOT power supply section INPUT 100-240VAC (LG) (FG) Ferrite core...
  • Page 111 (b) 24VDC GOT power section • GT1595, GT1585, GT157 , and GT156 INPUT 24VDC (LG) (FG) Ferrite core (ZCAT3035-1330) • GT155 Protective grounding INPUT 24VDC (FG) * Be sure to ground the protective ground terminal and the FG terminal respectively. •...

  • Page 112: Processing Connection Cables

    Process the cable used with the GOT with the following method. When processing the cable, ferrite core, cable clamp and shielding material are required. The cable clamp used by Mitsubishi Electric for the EMC specification compatibility test is shown below. • TDK corporation brand ZCAT3035-1330 Ferrite Core •...
  • Page 113 (c) For other bus connection cables • Wind cable shield material around the cable, and pull out the grounding braided wire of the cable shield material with the length shown below. • Attach the ferrite core to the cable in the position as illustrated below and insert the braided wire for grounding into the ferrite core.
  • Page 114 (3) MELSECNET/H connection (PLC to PLC network) and MELSECNET/10 connction (PLC to PLC network) (a) For coaxial cable • Strip the outer insulation layer at both ends of the cable by the length shown below to expose the outer braided shield for grounding. (For grounding with cable clamps (refer to Section 5.4.3.)) •...
  • Page 115 (5) CC-Link IE Field Network connection and Ethernet connection • Strip the outer insulation layer at both ends of the cable by the length shown below to expose the braided shield for grounding. (For grounding with cable clamps. (refer to Section 5.4.3.)) •...
  • Page 116 (7) Video/RGB connection (a) Video input • Peel the sheath (with the length shown below) at both ends of the cable, and expose the shield braided wire for grounding. (For grounding with cable clamps. (refer to Section 5.4.3.)) • Attach the ferrite core to the cable in the position as illustrated below. Ferrite Core GOT side Camcorder/vision...
  • Page 117 (a) For RS-422 / 485 cable • Each signal wire (excluding SG and FG) should be made into a two power wires and connected, then twisted. • Make the SG wire more than two wires and connect. • Peel the sheath (with the length shown below) of the created cable to expose the shield braided wire for grounding.

  • Page 118: Grounding The Cable

    5.4.3 Grounding the cable Ground the cable and grounding wire to the control panel where the GOT and base unit are installed. 1) Ground the braided shield portion of the cable to the control panel with the cable clamp (AD75CK). Braided shield Cable clamps For the cable clamp attaching details,...

  • Page 119: Installation

    INSTALLATION CAUTION Use the GOT in the environment that satisfies the general specifications described in this manual. Do not expose the GOT to dust, lamp soot, conductive dust, corrosive gas, or combustible gas; high-temperature, condensing, wind or rain; or to vibrations and impact. Failure to do so can cause an electric shock, fire, malfunction or product damage or deterioration.

  • Page 120: Panel Cutting Dimensions

    6.2 Panel Cutting Dimensions (1) Panel cutting dimensions when installing GOT Make a installation hole on the control panel with the dimensions shown below. Make space of 10mm above and below the hole respectively for the installation fittings. * Panel thickness: 2 to 4 mm or less A [mm] (inch) B [mm] (inch) 383.5(15.1)

  • Page 121: Mounting Position

    6.3 Mounting Position For installing GOT When mounting the GOT, the following clearances must be left from the other device. Depending on the units and cables connected to the GOT, clearances more than the described dimensions can be required. Therefore, consider the connector dimensions and bending radius of the cable as well for installation. For the lead-in allowance for cables at the bottom of the GOT, refer to the following.
  • Page 122 Type GT1595 GT1585 GT157 GT156 GT155 MELSECNET/10 communication 50 (1.97) or more [20 (0.79) or more] — unit (coaxial) is fitted CC-Link communication unit 50 (1.97) or more [20 (0.79) or more] — (GT15-75J61BT13-Z) fitted 50(1.97) CC-Link communication or more 50 (1.97) or more [20 (0.79) or more] unit (GT15-J61BT13) fitted [24(0.94)
  • Page 123 Unit: mm (inch) This value differs depending on the cable used. Please contact your local Mitsubishi Electric System & Service Co., Ltd. The value indicated in the table is a reference value. This value is for use of the coaxial cable 3C-2V (JIS C 3501).
  • Page 124 For installing CF card extension unit (1) Installing location (a) Depth dimensions When the control panel side installation unit is installed on the control panel, 180mm in depth (including the bending radius of the cable) is required inside the control panel. 180 or more (7.09) Unit : mm(inch)
  • Page 125 (2) Prohibited area for installation The control panel side installation unit cannot be installed within 25mm (0.98inch) from the GOT. When the CF card extension unit is used with the other extension units, the control panel side installation unit cannot be installed in some areas because the cables of the other extension units get in the way of the control panel side installation unit.
  • Page 126 (c) For GT157 The control panel side installation unit cannot be installed within 25mm (0.98inch) from the GOT. When the other extension units are used, the control panel side installation unit cannot be installed in the areas shown in the following figure. Extension unit Model (Unit: mm(inch))
  • Page 127 (d) For GT156 The control panel side installation unit cannot be installed within 25mm (0.98inch) from the GOT. When the other extension units are used, the control panel side installation unit cannot be installed in the areas shown in the following figure. Extension unit Model (Unit: mm(inch))
  • Page 128 (e) For GT155 The control panel side installation unit cannot be installed within 25mm (0.98inch) from the GOT. When the CF card interface of the GOT (A drive) is used, the unit cannot be installed in the area of 100mm wide by 68mm long on the right side of the hole for installing the GOT in the rear view.

  • Page 129: Control Panel Inside Temperature And Mounting Angle

    6.4 Control Panel Inside Temperature and Mounting Angle When mounting the main unit to a control panel or similar, set the display section as shown below. When the temperature inside the control panel is 40 to 55°C or less, the mounting angle should be in the range 60 to 105 degrees.
  • Page 130 Place the mounting fixtures (included with GOT) on the mounting fixture attaching part of the GOT, and fix them by tightening the mounting screws in the torque range of 0.36 to 0.48N·m. (Failure to do so may distort the panel and make a surface waviness on the protective sheet.) Magnified figure Magnified figure For GT1595-X: Fix the GOT with 8 mounting fixtures.

  • Page 131: Wiring

    WIRING WARNING • Before starting wiring, always switch off the GOT power externally in all phases. Not doing so may cause an electric shock, product damage or malfunction. CAUTION • Please make sure to ground FG terminal, LG terminal, and protective ground terminal of the GOT power supply section by applying Class D Grounding (Class 3 Grounding Method) or higher which is used exclusively for the GOT.
  • Page 132 Remark General preventive measures against noise There are two kinds of noises: Radiated noise that is transmitted into the air and Conductive noise that is directly transmitted along connected lines. Countermeasures must be taken considering both kinds of noises and referring to the following 3 points.

  • Page 133: Power Supply Wiring

    7.1 Power Supply Wiring • Make wiring connections to the power supply, I/O equipment and power equipment separately by system as shown below. When frequent noise is identified, connect an isolation transformer. Wiring diagram for power supply Isolation transformer power Main power I/O power I/O equipment...

  • Page 134: Wiring To Got Power Section

    7.2 Wiring to GOT Power Section This section provides an example for connecting power cables and ground cables to the power terminals situated on the back of the GOT. 100/110V AC In the case of 100V AC Fuse INPUT 100-240VAC (LG) (FG) 24V DC In the case of 24V DC (GT1595,...
  • Page 135 (1) Precautions for wiring to the power supply section • For 100V AC, 200V AC or 24V DC cable, use the thickest cable as possible (Max. 2mm ) and start twisting them at the position closest to the connected terminals. To prevent a short circuit due to loose screws, use the solderless terminal with insulation sleeve.

  • Page 136: Grouding

    7.3 Grouding 7.3.1 Grounding the GOT About grounding Perform the following three items for grounding. • Independent grounding should be performed as possible for the GOT. Perform grounding works. (grounding resistance 100 or less) • When independent grounding cannot be performed for the GOT, perform "(2) Shared grounding" shown below.
  • Page 137 (2) Shared grounding (Good) Power equipment (servo, etc.) Connection cable CN1A CN1B CN2 CN3 Panel Panel grounding grounding Use a short and thick cable as much as possible. Ground the system at one end. To prevent noise from entering the GOT, use a short and thick wire for grounding between the ground and the panel to ensure lower ground resistance.
  • Page 138 Recommended terminal shape Terminal Solderless Terminal Solderless screw terminal screw terminal 6.2mm or less 6.2mm or less When wiring one cable to When wiring two cables to one terminal one terminal Applicable solderless terminal RAV1.25- 3, V2- S3.3, V2- N3A, FV2- N3A 7.3 Grouding 7.3.1 Grounding the GOT...

  • Page 139: Wiring-Related Malfunction Causes And The Measures Examples

    7.3.2 Wiring-related malfunction causes and the measures examples The malfunction causes in grounding the GOT include potential difference caused by groundings and noise. Potential difference and noise may be reduced by taking the following measures. Wiring of GOT's ground cable and power line When the ground cable and power line of the GOT are installed together, the GOT may malfunction due to noise.
  • Page 140 The malfunction occurred by the potential difference caused by the groundings in such a case, may be prevented by reducing the voltage with the following measure example 1, where the voltage is reduced. Measure example 1 (Refer to the measure examples 1-1 and 1-2 below.) When any potential difference occurs between the ground cable and the panel having the GOT and the GOT is influenced by the potential difference, connect another ground cable to the panel.

  • Page 141: Panel Inside Wiring, Panel Outside Wiring

    7.4 Panel Inside Wiring, Panel Outside Wiring 7.4.1 Panel inside wiring In wiring, the power line connected to the power or servo amplifier and the communication cable such as bus connection cable or network cable must not be mixed. Mixing the power line and communication cable may cause malfunction due to noise. When using an equipment that may occur surge noise, such as molded case circuit breaker (MCCB), electromagnetic contactor (MC), relay (RA), solenoid valve, or induction motor, using a surge suppressor is effective.

  • Page 142: Attaching Surge Suppressor For Control Equipment

    7.5 Attaching Surge Suppressor for Control Equipment If an improper operation such as communication error occurs in the GOT in synchronization with ON/OFF of a particular control equipment (hereinafter abbreviated to load) such as MCCB, electromagnetic contactor, relay, solenoid valve, or induction motor, the GOT may be influenced by surge noise. In such a case, install the ground cable or communication cable apart from the load.

  • Page 143: Grounding Extension Units

    7.6 Grounding Extension Units 7.6.1 Wiring FG cable of bus connection cable This section describes wiring of the FG cable when a PLC CPU is connected to the GOT. Cable connected to the PLC CPU Do not install the connection cable together with the main circuit lines (high voltage, large current) or I/O signal lines.
  • Page 144 (1) When using GT15-C EXSS-1 Not connected (GT15-C (GT15-EXCNB) 2SQ cables to FG terminals, 28cm or less Connect the LG and FG terminals of the terminal block on the GOT unit power and ground them with a cable. Use the GT15-C BS's FG cable of 28cm or less.

  • Page 145: Wiring Fg Cable Of Cf Card Extension Unit Connection Cable

    7.6.2 Wiring FG cable of CF card extension unit connection cable The following explains wiring the FG cable when the CF card extension unit is installed on the GOT. (1) Cables to be connected to CF card extension unit Do not install the connection cable together with the main circuit lines (high voltage, large current) and I/O signal lines.
  • Page 146 Connect the ground cable of the connection cable with the GOT's ground cable to the FG terminal of the GOT's power. For GT155 , connect the ground cable of the connection cable to the FG terminal of the GOT's power, and connect the GOT's ground cable to the protective ground terminal.

  • Page 147: Communication Unit

    OPTION 8.1 Communication Unit The communication unit is used to relate the GOT extension interfaces to the system at the connection destination. To connect the communication unit, make Communication Settings for communications with a PLC. For details of connection, refer to the following manual. •GOT1000 Series Connection Manual for GT Works3 and a controller used •GOT1000 Series Connection Manual for GT Designer2/GT Works2 8.1.1...

  • Page 148: Applicable Communication Unit

    Product name Model Description Optical loop unit For 15", GT15-75J71LP23-Z (A9GT-QJ71LP23 + GT15-75IF900 set) MELSECNET/10 12.1", communication unit 10.4", Coaxial bus unit GT15-75J71BR13-Z 8.4" (A9GT-QJ71BR13 + GT15-75IF900 set) For 15", CC-Link IE Controller 12.1", Network Optical loop unit 10.4", GT15-J71GP23-SX communication unit 8.4", 5.7"...

  • Page 149: Installing Procedure

    8.1.2 Installing procedure This section describes how to install a communication unit on a GOT. A communication unit can also be installed together with another extension unit. When installing a communication unit together with some other extension unit, after executing the procedure in this section, refer to the following.
  • Page 150 When installing an extension unit on the unit that has been installed, refer to the following. 8.1.3 Installing multiple extension units in layers When not installing an extension unit on the unit that has been installed, in order to avoid receiving electrostatic, stick accessory stickers to cover the top of mounting screws (2 places).
  • Page 151 Install the communication unit in the extension interface of the GOT rear face. (When the extension unit is installed in GOT, remove the installed extension unit. And, do not touch the board in the GOT when install the communication unit.) After the installation, tighten the mounting screws (4 places) in the specified torque range (0.36 to 0.48N·m).
  • Page 152 When installing an extension unit on the outer layer, refer to the following. 8.1.3 Installing multiple extension units in layers When not installing an extension unit on the outer layer, cover the top of mounting screws (4 places) with accessory stickers in order to avoid receiving static electricity. Keep the connector cover fixed.
  • Page 153 After the installation, tighten the mounting screws (4 places) in the specified torque range (0.42 to 0.57N·m). Paste the provided stickers after tightening the mounting screws in order to avoid receiving electrostatic. Serial communication unit, Ethernet communication unit (1) Unit installation The following explanation uses the Ethernet communication units as an example.
  • Page 154 Fasten the communication unit by tightening its mounting screws (2 places) with tightening torque of 0.36 to 0.48 N·m. When installing an extension unit on the outer layer, refer to the following. 8.1.3 Installing multiple extension units in layers When not installing an extension unit on the outer layer, cover the top of mounting screws (4 places) with accessory stickers in order to avoid receiving static electricity.
  • Page 155 (2) Terminal block socket installation (For GT15-RS4-TE only) Insert the terminal block socket in the serial communication unit. Fasten the terminal block by tightening the terminal block fixing screws (2 places) with the tightening torque of 0.20 to 0.25 N·m. (Extended figure of part A) A terminal block fixing screw...
  • Page 156 MELSECNET/10 communication unit, CC-Link communication unit Power off the GOT. Remove the two extension unit covers of the GOT. Fit the GT15-75IF900 in the GOT case. Fasten the GT15-75IF900 by tightening its mounting screws (3 places) with tightening torque 0.36 to 0.48 N·m.
  • Page 157 Mount the network unit (A9GT-QJ71LP23 or A9GT-QJ71BR13) or CC-Link communication unit (A8GT- J61BT13) to GT15-75IF900. Fasten the unit fixing brackets (3 places) with tightening torque of 0.36 to 0.48N·m. MELSECNET/H communication unit, CC-Link IE Controller Network communication unit, CC-Link IE Field Network communication unit, CC-Link communication unit (GT15-J61B13) (1) Unit installation Power OFF the GOT.
  • Page 158 Install the extend interface relay board on the Extend I/F-2 side of the GOT. After the installation, detach the connector cover from the extend interface relay board. For GT155 , the extension interface relay board is not needed. Remove the connector cover Install the communication unit on the extension interface of the GOT rear face.
  • Page 159 Tighten the extend interface relay board installed by the step within the specified torque range (0.36 to 0.48N·m). (2 places) Removing the MELSECNET/H communication unit, CC-Link IE Controller Network communication unit, CC-Link IE Field Network communication unit, CC-Link communication unit (GT15-J61BT13) Before removing the unit, unscrew the extend interface relay board fixing screws.
  • Page 160 Fasten the terminal block by tightening the terminal block fixing screws (2 places) with the tightening torque of 0.20 to 0.25 N·m. (Extended figure of part A) A terminal block fixing screw When attaching or removing a communication cable When attaching or removing a communication cable to/from the terminal block socket, detach the terminal block socket from the connector.

  • Page 161: Installing Multiple Extension Units In Layers

    8.1.3 Installing multiple extension units in layers This section describes how to install another extension units on the extension units that has been installed on the GOT. When no extension units is installed on the GOT, apply the steps in this section after installing an extension units.
  • Page 162 When installing another extension unit on the unit that has been installed, implement the above operations of When not installing an extension unit on the unit that has been installed, in order to avoid receiving electrostatic, stick accessory stickers to cover the top of mounting screws. Keep the connector cover fixed.

  • Page 163: Conversion Unit

    8.2 RS-422 Conversion Unit The RS-422 conversion unit is inserted to the GOT RS-232 connector to enable the RS-422 communication by RS-232/RS-422 conversion. Refer to the following for the details of connection statuses. •GOT1000 Series Connection Manual for GT Works3 and a controller used •...

  • Page 164: Printer Unit

    8.3 Printer Unit Printer unit is used for connecting a printer to GOT. To connect the printer unit, make Communication Settings. For details of connection, refer to the following manual. •GOT1000 Series Connection Manual (Microcomputer, MODBUS Products, Peripherals) for GT Works3 •...
  • Page 165 Depending on the use environment such as when fastening cable is difficult, attach a cable clamp to the printer unit. Be sure to attach the cable clamp to section A (see the following figure) with its band positioned outside and press it until it clicks. For the band inserting direction, refer to the arrow.
  • Page 166 Fit the printer unit in the GOT case. In the case a cable clamp is attached Fasten the printer unit by tightening its mounting screws (2 places) with tightening torque of 0.36 to 0.48 N m. In the case a cable clamp is attached When mounting any extension unit in a later stage, refer to the following.
  • Page 167 (2) Precautions for connecting the dedicated printer connection cable (USB cable) • Wait 5s or more between the connection and disconnection of the dedicated printer connection cable. If connecting or disconnecting the dedicated printer connection cable shortly after disconnecting or connecting the cable, the GOT may not operate normally.

  • Page 168: Installing Procedure

    8.4 Video/RGB Unit The video/RGB unit is used to connect a video camera, personal computer, or commercially available display to a GOT. To connect video/RGB unit, make Communication Settings. For details of connection, refer to the following manual. •GOT1000 Series Connection Manual (Microcomputer, MODBUS Products, Peripherals) for GT Works3 •...
  • Page 169 Install the extend interface relay board on the Extend I/F-2 side of the GOT. After the installation, detach the connector cover from the extend interface relay board. Remove the connector cover Install the video/RGB unit on the extension interface of the GOT rear face. (When the extension unit is installed in GOT, remove the installed extension unit.
  • Page 170 Tighten the extend interface relay board installed by the step within the specified torque range (0.36 to 0.48N·m). (2 places) Removing the video/RGB unit Before removing the unit, unscrew the extend interface relay board fixing screws. above When installing an extension unit on the unit, refer to the following. 8.1.3 Installing multiple extension units in layers When not installing an extension unit on the outer layer, cover the top of mounting screws (4 places) with accessory stickers in order to avoid receiving static electricity.

  • Page 171: External I/O Unit

    8.5 External I/O Unit The external I/O unit is used for connecting to an external I/O device or operation panel. For connecting the external I/O unit, set the communication settings. For connection details, refer to the following manual. •GOT1000 Series Connection Manual (Microcomputer, MODBUS Products, Peripherals) for GT Works3 •...
  • Page 172 Tighten two external I/O unit mounting screws with a torque of 0.36 to 0.48N m. For installing an extension unit on the external I/O unit, refer to the following. 8.1.3 Installing multiple extension units in layers When an extension unit is not installed on the unit, stick accessory stickers over two mounting screws so as not to damage the unit by static electricity.

  • Page 173: Sound Output Unit

    8.6 Sound Output Unit The sound output unit is used for connecting to external speakers. For connecting the sound output unit, set the communication settings. For connection details, refer to the following manual. •GOT1000 Series Connection Manual (Microcomputer, MODBUS Products, Peripherals) for GT Works3 •...
  • Page 174 Put the cable of the external speaker through the looped cable clamp band, and pull the band for fixing the cable. Cable clamp Unit installation Turn off the GOT. Remove one extension unit cover of the GOT. Fit the sound output unit in the GOT case. Tighten two sound output unit mounting screws with a torque of 0.36 to 0.48N m.
  • Page 175 When installing an extension unit on the outer layer, refer to the following. 8.1.3 Installing multiple extension units in layers When not installing an extension unit on the outer layer, cover the top of mounting screws (4 places) with accessory stickers in order to avoid receiving static electricity. Keep the connector cover and sticker fixed as shown in the following figure.

  • Page 176: Cf Card Unit And Cf Card Extension Unit

    8.7 CF Card Unit and CF Card Extension Unit When an additional drive is used, the CF card unit or CF card extension unit can be used as the B drive of the GOT. The CF card extension unit is a set of the control panel side installation unit (GT15-CFEX) and the GOT side installation unit (GT15-CFEXIF).
  • Page 177 Installation and removal precautions • Extension units cannot be installed on the CF card unit and the CF card extension unit. For installing extension units, install the CF card unit or the CF card extension unit at the last. • When installing the CF card unit on extension interface 1 (left side), do not install more units on extension interface 2 (right side) than on extension interface 1 (left side).

  • Page 178: Installing On Control Panel

    8.7.3 Installing on control panel The following shows how to install the CF card extension unit on the control panel. Insert the control panel side installation unit into the installation hole of the control panel. For the installation hole, refer to the following. 6.

  • Page 179: Protective Structure For Cf Card Extension Unit

    8.7.4 Protective structure for CF card extension unit The protective structure of the outside the enclosure for the control panel side installation unit is IP65 in shipping. When the dustproof rubber for the CF card cover is changed with the CF card cover fixing screw, the protective structure is IP67.

  • Page 180: Cf Card

    8.8 CF Card The CF card is used to transfer the OS or project data and to save data of the alarm history function or other functions. Refer to the following for details. 13. FILE DISPLAY AND COPY (PROGRAM/DATA CONTROL) 8.8.1 Applicable CF card The following CF cards are applicable for GT15...

  • Page 181: Cf Card Inserting/Removing Method With Cf Card Interface Of Got

    8.8.2 CF card inserting/removing method with CF card interface of GOT Install/remove the CF card with the power supply of GOT is OFF or CF card access switch is OFF. Installing Turn the CF card access switch of the GOT off. When using other than the GT155 When using the GT155 ACCESS...
  • Page 182 Close the cover of the CF card interface. Set the CF card access switch to ON. When using other than the GT155 When using the GT155 ACCESS ACCESS 8.8 CF Card - 36 8.8.2 CF card inserting/removing method with CF card interface of GOT...
  • Page 183 Removing Set the CF card access switch of the GOT to OFF, and make sure that the CF card access LED turns off. (When the CF card access LED turns off, the CF card can be removead even during the GOT power on.) When using other than the GT155 When using the GT155...
  • Page 184 CF card eject button For the following GOTs, after opening the cover of the CF card interface, raise the CF card eject button. • GT1585-S, GT1575-S: Hardware version B (April, 2005) or earlier • GT1575-V, GT1565-V: Hardware version D (April, 2005) or earlier Push the CF card eject button of the GOT to lift the CF card and remove it.

  • Page 185: Cf Card Inserting/Removing Method With Cf Card Unit

    8.8.3 CF card inserting/removing method with CF card unit Install/remove a CF card while the GOT power or the CF card access switch is OFF. Installation Open the CF card cover and turn off the CF card access switch of the unit. Insert the CF card into the CF card connector with the face out.
  • Page 186 Removal Open the CF card cover. Turn off the CF card access switch of the unit and check that the CF card access LED turns off. (When the LED turns off, the CF card can be removed even while the GOT is on.) Press the CF card eject button to pop out the CF card and remove it.

  • Page 187: Cf Card Inserting/Removing Method With Cf Card Extension Unit

    8.8.4 CF card inserting/removing method with CF card extension unit Install/remove the CF card with the power supply of GOT is OFF or CF card access switch is OFF. Installation When the CF card cover is fixed with the CF card cover fixing screw, unscrew the screw. Open the CF card cover, and turn off the CF card access switch of the unit.
  • Page 188 Removal When the CF card cover is fixed with the CF card cover fixing screw, unscrew the screw. Open the CF card cover. Turn off the CF card access switch and check that the CF card access LED turns off. (The CF card can be removed when the CF card access LED turns off even though the GOT's power is on.) Press the CF card eject button, and then the button pops out.

  • Page 189: Memory Card Adaptor

    8.9 Memory Card Adaptor The memory card adaptor is used to convert the CF card into the memory card (Type II). The memory card (Type II) is used to transmit the OS, project data and to save the data of alarm history function or other functions by installing it to the PC which is equipped with the CMCIA interface.

  • Page 190: Option Function Board

    8.10 Option Function Board The optional function board is used to extend the option function and the built-in flash memory. When the function version of the GOT to be used is D or later, the option functions operated with the GT15- FNB can be used without an option function board installed.
  • Page 191 Insert the option function board to the option function board interface to which the positioning crenas are fitted. For installing the option function board, do not touch a board inside the GOT. Push down the option function board until it clicks. After the installation of option function board, attach the extension unit cover.

  • Page 192: Battery

    8.11 Battery Battery is used to backup data when the power supply of GOT is OFF. The data which can be backed-up with the battery is shown below. • Present time (Clock data) ( 12.1 Time Setting and Display) • Maintenance time notification data ( 16.1 Maintenance Timing Setting) 8.11.1 Applicable battery The following battery is applicable for GT15...

  • Page 193: Battery Life

    Remove the old battery from the holder and disconnect the connector. Connect the new battery to the connector. Insert the battery into the holder and set it into the GOT backside. Turn the GOT power supply on. Check if the battery condition is normal within the utility. Refer to the following for the details of battery status display.

  • Page 194: Protective Sheet

    8.12 Protective Sheet The protection sheet is used to protect the operation surface from damage or dirt when the touch key of GOT display section is operated. 8.12.1 Applicable protective sheet The following protective sheets are applicable for GT15 When giving priority to brightness, select the clear protective sheet; when giving priority to preventing glare, select the anti-glare protective sheet.

  • Page 195: Installing Procedure

    8.12.2 Installing procedure Remove the old protective sheet from the GOT, and clean the GOT surface. Peel the release paper from the back of the new protective sheet, and attach its adhesive side to the GOT display section. When attaching the protective sheet, make sure to fit it on the display section closely without leaving any clearance between them.

  • Page 196: Protective Cover For Oil

    8.13 Protective cover for oil Use of the protective cover for oil improves oil resistance, and chemical resistance of the GOT. 8.13.1 Applicable protective cover for oil The following protective covers for oil are applicable to the GT15 Product name Model Description GT05-90PCO...
  • Page 197 Position the POWER LED frame of the cover to the POWER LED on the GOT front face, and the directiveof the cover is decided. POWER LED POWER LED window Protective Cover For oil One corner of the cover is pulled outside, and it hangs it on the corner of the front panel of GOT. Please do not pull the oil cover more than the necessity, and do not bend it extremely.
  • Page 198 Before mounting the GOT onto the control panel Please confirm all surroundings. Whether the rubber packing part is surely covered to prevent going into such as the requids in the board. Make sure that corners of protective cover for oil match those of GOT front. Mount the GOT onto the control panel.
  • Page 199 Precautions for protective cover for oil • The protective cover for oil is a consumable product. Check the cover for scratch, damage or dirt at regular intervals, and replace with new one if necessary. • Do not push the protective cover for oil with pointed tools, including mechanical pencils and screwdrivers.

  • Page 200: Usb Environmental Protection Cover

    8.14 USB Environmental Protection Cover The USB environment cover protects the USB connector on the front face of GOT from dust, water, and oil. The GOT is installed with the USB environment cover at factory shipment. Replace when damage and deterioration are caused. 8.14.1 Applicable USB environmental protection cover The following USB environmental protection cover is applicable for GT15 Model...

  • Page 201: Installing Procedure

    When the USB interface is used, remove the lower fixing screw of the USB environmental protection cover, and connect the USB cable. (IP67 incompliant) For other than GT155 For GT155 Precautions when the USB environment cover is opened Environmental protective structure of USB interface is "IP2X" when the USB environmental cover is opened.

  • Page 202: Stand

    8.15 Stand Stand is used to fix the GOT to standing status in order to debug the monitor screen data easily. 8.15.1 Applicable stand The following stand is applicable for GT15 Product name Model Description GT15-90STAND Stand for 15" GT15-80STAND Stand for 12.1"...
  • Page 203 (2) GT05-50STAND Determine the angle for installing the GOT. Slide the angle adjustment fitting as shown below to determine the angle. The angle can be adjusted to 75°, 65°, 55° or 45°. When installing multiple units to the GOT, use the stand with 75 or 65 degrees for securing lead- in allowances for cables at the bottom of the GOT.

  • Page 204: Attachment

    8.16 Attachment The attachment is used to replace A960GOT, AC97 GOT to GT156 (8.4"). If use attachment when replace A960GOT or AC97 GOT to GT156 , there is no need of additional processing as mounting hole of the inside control panel etc. which is used for A960GOT, A97 GOT. 8.16.1 Applicable attachment The following attachments are applicable for GT156 .

  • Page 205: Installing Procedure

    8.16.2 Installing procedure (1) For GT15-70ATT-98, GT15-60ATT-97, GT15-60ATT-96, GT15-60ATT-87 and GT15-60ATT-77 The following figures show an example of the GT15-60ATT-97 installarion. Follow the same procedure for installing the other models. Model The model name is indicated on the attachment. The upper part of the attachment has the model indication. (Example of model indication) Upper Upper...
  • Page 206 (2) For GT15-70ATT-87, GT15-50ATT-95W and GT15-50ATT-85 The following figures show an example of the GT15-70ATT-87 installarion. Follow the same procedure for installing the other models. Model The model is indicated on the attachment. The position of the model indication does not affect the performance of the attachment.

  • Page 207: Multi-Color Display Board

    8.17 Multi-Color Display Board The multi-color display board is used when supporting 65536 display colors. Depending on the function version of the GOT to be used, 65536 colors are available without the multi-color display board. For GOTs requiring installation of the multi-color display board, refer to the following. 3.2 Performance Specifications 8.17.1 Applicable multi-color display board The following multi-color display board is applicable for GT15...

  • Page 208: Installing Procedure

    8.17.2 Installing procedure Power OFF the GOT. Remove the extension unit cover (I/F-2 side) of GOT rear face. Install the multi-color display board in the multi-color display board interface. (When the extension unit is installed in GOT, remove the installed extension unit. And, do not touch the board in the GOT when install the multi-color display board.) After the installation, tighten a fixing screw within the specified torque range (0.25 to 0.35N·m).

  • Page 209: Utility Function

    UTILITY FUNCTION Utility is a function, which carries out connection of GOT and controller, screen display and operation method settings, program/data control and self-check etc. Refer to the following for the utility function list. 9.3 Utility Display 9.1 Utility Execution For utility execution, utility has to be displayed by installing BootOS and standard monitor OS in the C drive (built in flash memory).

  • Page 210: Utility Function List

    9.2 Utility Function List The items in the following list can be set/operated on the utility screens. Item Functions overview Reference Assigning channel numbers and communication drivers to communication interfaces. Setting communication parameters Commun ication Communication Setting or deleting sequence program protection key words, canceling setting setting sequence program protection status (When connecting to FX series...
  • Page 211 Item Functions overview Reference OS information Installing or uploading OS, displaying OS property, checking OS data 13.2 Project Downloading/uploading/deleting/copying project files, displaying project 13.3 Information file property, checking project file data Deleting or copying alarm log files Alarm Converting alarm log files in G1A format CSV/TXT format 13.4 information...
  • Page 212 Item Functions overview Reference Ladder monitor.(Inapplicable to GT1555-Q and GT1550-Q) System monitor A List editor FX list editor Intelligent module monitor (Inapplicable to GT1555-Q and GT1550-Q) Network monitor Motion monitor for Q series motion controller CPU Servo amplifier monitor Debug 14.1 CNC monitor (Applicable to only GT1595-X, GT1585V-S, GT1585-S, GT1575V-S, and GT1575-S)

  • Page 213: Utility Display

    9.3 Utility Display To display setting screens fot each utility, the main menu has to be displayed first. (1) Main menu The menu items that can be set at the GOT utility are displayed. Touching a menu item in the main menu will display the setting screen or following selection screen for the item.
  • Page 214 Touching the button restarts the GOT and the language on the utility is switched to the selected one. Only selectable languages are displayed. The selectable languages differ depending on the fonts installed in the GOT. For details of the fonts, refer to the following manual. GT Designer3 Version1 Screen Design Manual (Fundamentals) (2.5 Specifications of Applicable Characters) GT Designer2 Version Screen Design Manual (2.3 Specifications of Applicable Characters)

  • Page 215: Display Operation Of Main Menu

    9.3.1 Display operation of main menu The following three types of operation can display the main menu. (Display the main menu after installing the basic OS from GT Designer3 or GT Designer2 to the GOT built in flash memory.) (1) When project data is undownloaded If the power supply of GOT turns ON, the main menu is displayed automatically after title display.
  • Page 216 (1) Prohibited simultaneous 2-point presses on the GT1595-X In the case of using a GT1595-X, do not touch 2 points or more on the GOT screen simultaneously. Touching 2 points or more simultaneously may activate a part other than the touched point.
  • Page 217 Remark Locking the utility display by password When you try to display the utility main menu while the password is set to the GOT by GT Designer3 or GT Designer2, the display for password input will be appeared. (The password setting of GT Designer3 is in the common menu. The password setting of GT Designer2 is in the common menu.) When the password is not matched, displays the error message.

  • Page 218: Utility Basic Configuration

    9.3.2 Utility basic configuration The basic configuration of utility is as follows. Title display Close/Return button Scroll key Screen (1) Title display The screen title name is displayed in title display part. As the screen is composed of multiple layers, the title including these layers is displayed. Title display Title display (2) Close/Return button...

  • Page 219: Basic Operation Of Settings Change

    9.3.3 Basic operation of settings change Change of setting value Setting item Select button Setting item Select button Touch the select button (setting point) on the screen. According to the setting item, the button requires selecting setting value, inputting value or displaying other setting screen.
  • Page 220 touch button without touching button, the dialogue mentioned below is displayed. Keyboard operation Touch the numerical value to be changed. Keyboard for numerical input is displayed and cursor is displayed simultaneously. The key board display position chanegs by the position of numerical value touched. (At the time of numerical input, displayed in the position which will not interrupt the inputting.) Cursor Keyboard...

  • Page 221: (Communication Interface Setting) ((Communication Setting))

    10. COMMUNICATION INTERFACE SETTING (COMMUNICATION SETTING) In the communication setting, the communication interface names and the related communication channel, communication driver names display and channel numbers are set. Moreover, in the communication detail settings, the communication interface details are set. (Communication parameters setting) Item Description...

  • Page 222: Communication Setting Display Operation

    10.1.2 Communication setting display operation Main menu Communication 9.3 Utility Display) setting Touch Touch [Communication [Communication setting] setting] Communication setting 10.1 Communication Setting 10.1.2 Communication setting display operation...

  • Page 223: Communication Setting Contents

    10.1.3 Communication setting contents This section describes setting items and display contents for Communication Setting. (1) Channel-Driver assign (a) Assignment of communication drivers to channels Communication drivers installed in the GOT can be assigned to channels. Even without setting [Controller Setting] on GT Designer3 or [Communication Setting] on GT Designer2, communication with controller is available by assigning channel No.
  • Page 224 (4) Channel number specification menu BOX Set channel No. to use with standard interface or extend interface. Refer to this section (5) for driver that can be assigned to each channel. : Set when the communication interface is not used. 1 to 4 : Set when connecting to a controller.
  • Page 225 Precautions for communications between GOT and controller (1) Installing communication driver and downloading Communication Setting The followings below are required for the communication interface to communicate with the controller. 1) Installing communication drivers (Up to 4 communication drivers) 2) Assigning the channel number and communication driver for the communication interface 3) Downloading the contents (project data) assigned in 2).
  • Page 226 (b) Priority against [Controller Setting] of GT Designer3 or [Communication Settings] of GT Designer2 If download the communication settings to the GOT with GT Designer3 or GT Designer2 after the automatic assignment, the GOT will operate with the communication settings of the GT Designer3 or GT Designer2. (The GOT operates with the latest communication settings.) (3) When the communication driver does not match with the unit that is installed in the An error is displayed on the GOT when displaying [Communication setting].

  • Page 227: Communication Setting Display Operation

    10.1.4 Communication setting display operation Channel-Driver assign operation The following describes how to operate the Channel-Driver assign. The example of changing to direct CPU connection (Communication driver: "A/QnA/L/QCPU, L/ QJ71C24") for the GOT of computer link connection (Communication driver: [AJ71QC24, MELDAS C6*]) is used.
  • Page 228 As the communication driver ([A/QnA/L/ QCPU, L/QJ71C24]) installed in the GOT is displayed, touch it. The screen returns to the Channel-Driver assign screen. Touch the button. Touch the button and return to the Communication Setting screen. Confirm that the selected communication driver ([A/QnA/L/QCPU, L/QJ71C24]) is assigned.
  • Page 229 Channel number setting operation Touch channel number specification menu BOX to be set. keyboard The cursor for the channel number specification menu BOX is displayed. Simultaneously the keyboard for a numerical input is displayed. Input the channel number from the keyboard and touch key, and the value is defined.
  • Page 230 Communication detail settings switching operation If you touch the driver display BOX, the screen switches to the detailed setting screen of the related controller device. 10.2 Communication Detail Settings) 5V power supply setting operation When connecting a controller to the RS-232 interface, whether to supply 5VDC power or not to the controller through 9 pins can be selected.
  • Page 231 After setting completion, [ ] is displayed indicating that 5V power supplying setting is on. 10.1 Communication Setting - 11 10.1.4 Communication setting display operation...
  • Page 232 Setting of Host (PC)/Host (Modem) The following describes how to set the [Host (PC)] and [Host (Modem)]. When setting [Host (PC)] for [PC connection type], the following settings are not required. Set as follows only when selecting [Host (Modem)]. Item Description Setting range Host (PC)/Host (Modem)

  • Page 233: Communication Detail Settings

    10.2 Communication Detail Settings 10.2.1 Communication detail settings functions Function Description Communication Set various communication parameters of communication devices. parameters setting The settable parameters differ according to the communication device. Keyword setting For the FX series PLCs, key word for protecting program in the PLC can be set. Key word deleting For the FX series PLCs, key word for protecting program in the PLC can be deleted.
  • Page 234 The screen switches to the communication detail setting screen. Set communication parameters from this screen. Refer to the following for the setting change operation. 9.3.3 Basic operation of settings change Communication parameter Communication parameter setting by GT Designer3 or GT Designer2 Set the communication parameters for each communication driver at [Communication Settings] in [Controller Setting] of GT Designer3 or in [System Environment] of GT Designer2.

  • Page 235: Display Contents Of Communication Detail Settings

    10.2.3 Display contents of communication detail settings The contents of Communication Detail Settings varies according to driver type. This section explains setting items different from the communication detail settings of the GT Designer3 or GT Designer2. For setting items other than described in this section, refer to the following manual. •...
  • Page 236 Key word registration, deletion and protection delete MELSEC-FX (1) Registration Register key words. Touching the key pop-up displays the keyboard for inputting a keyword. Regist Input a keyword and touch the key, and the registration completes. Enter Up to 8 characters can be set for keyword with using A to F and 0 to 9. Setting PLC connected When registering keyword and 2nd keyword...
  • Page 237 (1) How to select a keyword protection level For equipments that are allowed to operate the FX PLC on line, 3 levels of protection level can be set. When performing monitoring or changing settings with any on-line equipment is required, set password with referring to the following. (a) When setting keyword only Select a protection level by the initial letter of keyword.
  • Page 238 (2) Deletion Delete a registered keyword. Touching the key pop-up displays the keyboard for inputting a keyword. Regist Input a key word and touch the key, and the keyword is deleted. Enter PLC connected Setting FX CPU compatible Input a keyword to delete. with 2nd keyword FX CPU not compatible Input the keyword to delete only into the keyword.

  • Page 239: Ethernet Setting

    10.3 Ethernet Setting 10.3.1 Ethernet setting function The contents of the Ethernet set in GT Designer3 can be checked. The setting of the host station can be changed. For the Ethernet setting, refer to the following. GOT1000 Series Connection Manual for GT Works3 and a controller used 10.3.2 Display operation of Ethernet setting Main menu Communication...

  • Page 240: Display Contents Of Ethernet Setting

    10.3.3 Display contents of Ethernet setting The following describes the setting items and the display contents of the Ethernet setting. (1) Ethernet setting tab [*] is displayed when the setting is changed. (2) Ethernet setting items The contents of the Ethernet setting configured in GT Designer3 are displayed. Only [Host], [NW No.] and [PC No.] are displayed for GT1555-Q and GT1550-Q.
  • Page 241 (2) Range where the settings changed in the [Ethernet setting] screen are reflected The settings changed in the [Ethernet setting] screen are valid in the GOT. On the other hand, they are not overwritten to the project data written to the GOT. The changed settings are not reflected to the project data which is read from the GOT after changing the settings.

  • Page 242: Display And Operation Settings (Got Set Up)

    11. DISPLAY AND OPERATION SETTINGS (GOT SET UP) Setting screen for display and setting screen for operation can be displayed from GOT setup. In the setting screen for display and the setting screen for operation, the following settings can be set. Item Description Reference page...

  • Page 243: Display Settings

    11.1 Display Settings 11.1.1 Display setting functions Setting regarding display is possible. The items which can be set are shown below. When each item part is touched, the respective setting becomes possible. Items Description Setting range 0 to 60 seconds The title display period at the main unit boot can Opening screen time <At factory shipment: 5...
  • Page 244 Items Description Setting range The time corresponding to the [Sensor detect Sensor detect time level] is displayed. (setting is disabled) 0 to 4 When the [Sensor detect level] is changed, the <At factory shipment: 4sec> corresponding time is reflected by touching button.
  • Page 245 (3) Screen save backlight When [Screen save backlight] is set to [ON], using the system information function (Backlight OFF output signal) can switch the backlight OFF from the controller. When [Screen save backlight] is set to [OFF], the above signal has no effect on the screen save backlight.

  • Page 246: Display Operation Of Display Setting

    11.1.2 Display operation of display setting Main menu GOT setup 9.3 Utility Display) Touch Touch [Display] [GOT setup] Display Touch an item to change settings Restart after setting change If return the display to the GOT setup screen by touching the button after the setting of each item is changed and touch the button on the GOT setup screen,...

  • Page 247: Display Setting Operations

    11.1.3 Display setting operations Opening screen, screen save time If touching the setting (numerical), keyboard is displayed. Input numeric with the keyboard. Setting contents are defined if button is touched. If touch button without touching button, the dialog mentioned left is displayed.
  • Page 248 Screen save backlight, battery alarm display Setting item is changed if setting item is touched. (ON OFF) Setting contents are defined if button is touched. If touch button without touching button, the dialog mentioned left is displayed. If close the display setting and GOT setup screens after completing the setting of all items to change with button, GOT...
  • Page 249 Language Touch the setting item to display the Select Language screen. When touching the button of a desired language, the language is selected and the screen returns to the Display screen. Touching the button determines the set contents. The displayed language will not be changed until is performed.
  • Page 250 If touch button without touching button, the dialog mentioned left is displayed. If close the display setting and GOT setup screens after completing the setting of all items to change with button, GOT restarts and reflects the setting contents. Only selectable languages are displayed. The selectable languages differ depending on the fonts installed in the GOT.
  • Page 251 Touching the button but not the button displays the left dialog box. If closing the [GOT setup: Display] and [GOT setup] screens after setting all items to be changed with the button, the GOT restarts and reflects the setting. Human sensor Setting item is changed if setting item is touched.
  • Page 252 Sensor detect level, sensor off delay If touching the setting (numerical), keyboard is displayed. Input numeric with the keyboard. To move the cursor, touch the button. Setting contents are defined if button is touched. If touch button without touching button, the dialog mentioned left is displayed.

  • Page 253: Brightness, Contrast Adjustment

    11.2 Brightness, Contrast Adjustment 11.2.1 Functions of the brightness, contrast The brightness and contrast can be adjusted. Function Description Brightness of display part can be adjusted by 8 levels. (4 levels for the GT1575- Brightness setting VN, GT1572-VN or GT1562-VN) The display section contrast can be adjusted by 16 levels.

  • Page 254: Operating The Brightness, Contrast

    11.2.3 Operating the brightness, contrast Brightness can be adjusted by touching key of brightness adjustment. Setting contents are defined if button is touched. If touch button without touching button, the dialog mentioned left is displayed. If close the display setting and GOT setup screens after completing the setting of all items to change with button, GOT...

  • Page 255: Operation Settings

    11.3 Operation settings 11.3.1 Operation setting functions Setting regarding GOT operation can be set. The items which can be set are described below. If touch the each item part, the respective setting becomes possible. Function Description Setting range OFF/SHORT/LONG Buzzer volume setting Buzzer volume setting can be changed.

  • Page 256: Display Operation Of Display Setting

    Operation settings by GT Designer3 or GT Designer2 Set buzzer volume and window move buzzer volume by [GOT setup] in [Environmental Setting] of GT Designer3 or in [System Environment] of GT Designer2. When change a part of the setting, change the setting by the GOT display setting after downloading the project data.

  • Page 257: Setting Operation Of Operation

    Restart after setting change If return the display to the GOT setup screen by touching the button after the setting of each item (excluding the security setting) is changed and touch the button on the GOT setup screen, the GOT will restart. After GOT restarts, it is displayed with the changed settings.
  • Page 258 If touch button without touching button, the dialog mentioned left is displayed. If close the display setting and GOT setup screens with button after completing the setting of all items to change, GOT restarts and reflects the setting contents. Security setting Refer to the following for the security setting operation 11.4 Security Level Change Utility call key...

  • Page 259: Security Level Change

    11.4 Security Level Change 11.4.1 Security level change functions Changes the security level to the same security level set by each object or screen switch. To change the security level, input the password of the security level which is set in GT Designer3 or GT Designer2.l •...

  • Page 260: Security Level Change Operation

    11.4.3 Security level change operation Password input operation By touching key, the password of the changed security level is input. When correcting the input character, touch key to delete the correcting character and input the password again. After inputting password, touch the Enter key.

  • Page 261: Utility Call Key Setting

    11.5 Utility Call Key Setting 11.5.1 Utility call key setting function The key position for calling the main menu of the utility can be specified. For the key position, 1 point/2 points/no specification can be set for 4 corners on the screen. (No specification can be set when GT Designer3 is used.) When specifying 1 point, a setting to switch the screen to the utility by keeping pressing the key position is available.

  • Page 262: Utility Call Key Setting Operation

    11.5.3 Utility call key setting operation Touch displayed at the 4 corners of the setting screen. The button repeats with every touch. Set the corner to be specified as a key position to For the key position, up to 2 points can be specified.
  • Page 263 (1) When using GT1595-X For the key position, 1 point only can be specified. (2) Specifying another key position when two have been already set Change either key position from before specifying. You cannot select three at the same time. Example: Changing the 2 points of the upper left and right corners to those of the upper left and lower left corners.

  • Page 264: Adjusting The Touch Panel Position(Touch Panel Calibration Setting)

    11.6 Adjusting the Touch Panel Position (Touch panel calibration Setting) 11.6.1 Touch panel calibration setting function Touch panel reading error can be corrected. Normally the adjustment is not required, however, the difference between a touched position and the object position may occur as the period of use elapses. When any difference between a touched position and the object position occurs, correct the position with this function.

  • Page 265: Touch Panel Calibration Operation

    11.6.3 Touch panel calibration operation Touch the point displayed on the screen with the finger one by one to make the setting. Touch the point displayed on the upper left. Be sure to touch the center of the precisely. Touch the point displayed on the upper right.
  • Page 266 Touch the point displayed on the lower right. When the setting is completed, the message shown left is displayed. Touching the button returns to the previous screen. 11.6 Adjusting the Touch Panel Position (Touch panel calibration Setting) - 25 11.6.3 Touch panel calibration operation...

  • Page 267: Softgot-Got Link Function Setting

    11.7 SoftGOT-GOT Link Function Setting 11.7.1 SoftGOT-GOT link function The authorization of the SoftGOT-GOT link function can be set, and the exclusive authorization can be obtained or released. Only the GOT can obtain the exclusive authorization. While the GOT has the exclusive authorization, GT SoftGOT1000 cannot obtain the authorization.

  • Page 268: Displaying The Softgot-Got Link Function Setting

    11.7.2 Displaying the SoftGOT-GOT link function setting Main menu GOT setup Operation settings 9.3 Utility Display) Touch Touch [Operation] Touch [GOT setup] [SoftGOT-GOT link] SoftGOT-GOT link 11.7 SoftGOT-GOT Link Function Setting - 27 11.7.2 Displaying the SoftGOT-GOT link function setting...

  • Page 269: Softgot-Got Link Function Setting Operation

    11.7.3 SoftGOT-GOT link function setting operation Exclusive authorization obtained state (1) Obtaining the exclusive authorization Touch the button to display the Obtain dialog box. Touch the button to obtain the exclusive authorization. Touch the button to stop obtaining Cancel the exclusive authorization. (2) Releasing the exclusive authorization Touch the button to display the...
  • Page 270 If the button is touched before the button, the left dialog box appears. Touch the button to return to the [Operation] screen Operating priority guaranteed time If touch the display area of the operating priority guaranteed time, a keyboard is displayed.
  • Page 271 Operation status popup notification Setting items are changed if setting item is touched. (YES/NO) Setting contents are defined if button is touched. If touch button without touching button, the dialog mentioned left is displayed. If touch the button, the screen returns to the [Operation] screen.

  • Page 272: Q/L/Qna Ladder Monitor

    11.8 Q/L/QnA Ladder Monitor 11.8.1 Q/L/QnA ladder monitor setting function Storage locations and others for data to be used for the ladder monitor function can be set. Saving the ladder data cuts out the need for reading the ladder data from PLC CPU at the next GOT start-up, enabling to start the ladder monitoring earlier.

  • Page 273: Display Operation Of Q/L/Qna Ladder Monitor

    11.8.2 Display operation of Q/L/QnA ladder monitor Main menu GOT setup 9.3 Utility Display) Touch Touch [Q/L/QnA ladder [GOT setup] monitor] [Q/L/QnA ladder monitor] Select the ladder data storage location of the Q/L/QnA ladder monitor. Restart after setting change If return the display to the GOT setup screen by touching the button after the setting of each item is changed and touch the button on the GOT setup screen,...

  • Page 274: Q/L/Qna Ladder Monitor Setting Operation

    11.8.3 Q/L/QnA ladder monitor setting operation Setting items are changed if setting item is touched. By touching the button, the setting is reflected. If touch button without touching button, the dialog mentioned left is displayed. Touching the button closes the [Q/L/ QnA ladder monitor] screen and the [GOT setup] screen.

  • Page 275: Transparent Settings (Transparent Mode Setting)

    When using the multi-channel function, the channel No. of a controller to which the FA transparent function is executed can be specified. For the multi-channel function, refer to the following manual. • GOT1000 Series Connection Manual (Mitsubishi Products) for GT Works3 (20 MULTI-CHANNEL FUNCTION) • GT Designer2 Version Screen Design Manual (2.8 Multi-channel Function)

  • Page 276: Operation The Transparent Mode

    11.9.3 Operation the transparent mode Touching the transparent ChNo. (numerical part) on the left, the keyboard is displayed. Input numerical value by the keyboard. Touching the button reflects the selected setting. Touching the button without touching button displays the dialog mentioned left is displayed.

  • Page 277: Video Unit Settings

    11.10 Video Unit Settings 11.10.1 Functions of the video unit settings The video input signal and resolution can be selected. Item Description Setting range Input signal: NTSC, PAL <At factory shipment: NTSC> The input signal and resolution can be Resolution: 640 480, Video Unit Settings selected.

  • Page 278: Displaying The Video Unit Settings

    11.10.2 Displaying the video unit settings Main Menu 9.3 Utility Display) GOT setup Video/RGB setting Touch [GOT setup] Touch [Video Unit Settings] Touch Communication setting [Video/RGB Setting] 10.1 Communication Setting) Touch Video Unit Settings [Video/RGB] Touch an item to be set 11.10 Video Unit Settings - 37 11.10.2 Displaying the video unit settings...

  • Page 279: Operating The Video Unit Settings

    11.10.3 Operating the video unit settings When you touch the setting item, the setting contents change. Input signal :PAL NTSC Resolution :720 When you touch the button, the Confirm setting contents are determined. If you touch the button without touching the button, the dialog box Confirm on the left is displayed.

  • Page 280: Video Display Settings

    11.11 Video Display Settings 11.11.1 Functions of the video display settings The target for the video settings and the preview channel can be selected and the captive area and image quality can be set. Item Description Setting range Channel 1/2/3/4 <At factory shipment : 1>...

  • Page 281: Operating The Video Display Settings

    11.11.3 Operating the video display settings Select a video channel No. to be displayed. The video image for the selected channel No. is previewed. To change the captive area or image quality, touch the display section of each item. Captive Area : Refer to Image Quality : Refer to The captive area (horizontal direction/ vertical direction) for the selected channel...
  • Page 282 The image quality (color tone, contrast, brightness, color intensity) for the selected channel No. can be changed. Changes the Changes the Changes the number a number to number a certain the touched certain amount in the position. amount in the direction.

  • Page 283: Rgb Display Settings

    11.12 RGB Display Settings 11.12.1 Functions of the RGB display settings The RGB clock phase and screen position can be set. Item Description Setting range ClockPhase: -100 to 100 <At factory shipment: 0> The RGB clock phase and screen Display position Horizontal: -100 to 100 RGB Display Settings position (horizontal direction and <At factory shipment: 0>...

  • Page 284: Operating The Rgb Display Settings

    11.12.3 Operating the RGB display settings The clock phase and screen display position (horizontal direction/vertical direction) can be changed. Changes the Changes the Changes the number a number to the number a certain amount touched certain in the position. amount in the direction.

  • Page 285: Backup/Restore Settings

    11.13 Backup/Restore Settings 11.13.1 Backup/restore function The storage location for backup data can be set. For how to use the backup/restore function, refer to the following manual. • GOT1000 Series User's Manual (Extended Functions, Option Functions) for GT Works3 (11 BACKUP/RESTORE) •...

  • Page 286: Display Operation Of Backup/Restoration Setting

    11.13.2 Display operation of backup/restoration setting Main menu GOT setup 9.3 Utility Display Touch [GOT setup] Touch [Backup/restoration setting]. Backup/restoration setting Touch an item to change settings 11.13 Backup/Restore Settings - 45 11.13.2 Display operation of backup/restoration setting...

  • Page 287: Backup/Restoration Setting Operation

    11.13.3 Backup/restoration setting operation Drive for backup setting, drive for backup data Touch a setting item, and then the setting is changed. Touch the button, and then the setting is reflected. Touch the button without touching the button, and then the dialog box shown left is displayed.
  • Page 288 Max. number of backup data Touch the setting item, and then a keyboard appears. Input values with the keyboard. Setting range: 0 to 50, Default: 10 (When 0 is specified, the GOT does not check the number of backup data to be stored.) Touch the button, and then the...

  • Page 289: Trigger Backup Settings

    11.14 Trigger Backup Settings 11.14.1 Trigger backup settings When the conditions of the trigger specified for each backup setting (Rise, Time) are met, the GOT automatically backs up data. How to use the trigger backup, refer to the following manual. •...

  • Page 290: Trigger Backup Setting Operation

    11.14.3 Trigger backup setting operation Touch a setting item for the trigger type, and then the setting is changed. (None Rise Time) None : The GOT does not execute the trigger backup. Rise : The GOT backs up data when the trigger device turns on.
  • Page 291 When the trigger type is set to [Time], touch a setting item for [Detail] and the screen is switched to the trigger time setting screen. In the screen, specify the days and time that the GOT executes the backup. : Select days that the GOT executes the backup by touching displayed items.

  • Page 292: Behavior Of Duplicate Ips

    11.15 Behavior of duplicate IPs 11.15.1 Setting function for Behavior of duplicate IPs The GOT operation can be set when a device with the same IP address as that of the GOT is added to the network afterwards. Items Description Setting range Maintain a network Behavoir when a device of...

  • Page 293: Display Operation Of Behavior Of Duplicate Ips

    11.15.2 Display operation of Behavior of duplicate IPs Main menu GOT setup 9.3 Utility Display Touch [GOT setup] Touch [Behavior of duplicate IPs]. Behavior of duplicate IPs Touch an item to change settings 11.15.3 Setting operation for Behavior of duplicate IPs If touch the setup item, the setup contents is changed.
  • Page 294 If touch button without touching button, the dialog box mentioned left is displayed. If touch button, GOT restarts. After restart, GOT operates with the changed settings. (1) Precautions for selecting [Do not maintain a network connection] When selecting [Do not maintain a network connection], the GOT is disconnected from the network at the addition of a device with the same IP address as the GOT.

  • Page 295: Clock Settings And Battery Status Display) (Time Setting And Display))

    12. CLOCK SETTINGS AND BATTERY STATUS DISPLAY (TIME SETTING AND DISPLAY) The clock display setting items and the time when displayed the setting screen are displayed. (While displaying clock and the seting screen, the display time does not change.) The voltage status of the built-in battery is also displayed. 12.1 Time Setting and Display 12.1.1 Time setting and display functions Time settings and displaying of the status of GOT built-in battery are possible.

  • Page 296: Display Operation Of Clock Display And Setting

    12.1.2 Display operation of clock display and setting Main menu Time setting & display 9.3 Utility Display) Touch [Time setting & Set the Clock settings display] and Time settings 12.1 Time Setting and Display 12.1.2 Display operation of clock display and setting...

  • Page 297: Operating The Time Setting & Display

    12.1.3 Operating the time setting & display Clock setting Setup the method to adjust the time between GOT data and the clock data of controller connected to the GOT. Setting Description Adjust the time of GOT clock data to the clock data of controller. Adjust It is same as set in the GOT setup in Environmental Setting of GT Designer3 or in System Environment of GT Designer2.
  • Page 298 If touch button without touching button, the dialog mentioned left is displayed. If touch button, GOT restarts. After restart, GOT operates with the changed settings. (1) When connecting to an external device which does not have clock function If set to [Adjust] or [Broadcast] for clock setting while the GOT is connected to external devices (PLC or microcomputers) which do not have clock function, the clock data will not be adjusted.
  • Page 299 Clock display Carry out the display and seting of GOT clock data. The setup methods of clock data are shown below. If touch the clock display section, the keyboard for input is displayed and the clock update stops. Input time with the keyboard by referring to the table below.
  • Page 300 GOT internal battery voltage status Displays battery voltage status. Display Status Normal Normal Low/None Low voltage When the battery voltage is low, replace the battery immediately. Refer to the following for battery replacement procedure. 8.11 Battery 12.1 Time Setting and Display 12.1.3 Operating the time setting &...

  • Page 301: File Display And Copy(Program/Data Control)

    13. FILE DISPLAY AND COPY (PROGRAM/DATA CONTROL) OS, project data (screen data) or alarm data which is written in the GOT or memory card can be displayed and data can be transferred between GOT and memory card. The format of the memory card is also possible. 13.1 Data Storage Location 13.1.1 Drive name allocation For the GOT built in flash memory or standard CF card, the following drive names (A drive, B drive, C drive)

  • Page 302: Data Type And The Storage Location

    13.1.2 Data type and the storage location System The data storage location and transferring (write/read) route for each data type are shown below. GOT main unit BootOS Project data Install Download (C drive) Built-in flash memory Upload Project BootOS data BootOS Install Upload...
  • Page 303 At maintenance GOT main unit Resource data upload (C drive) Built-in flash memory Alarm Recipe Copy Copy Alarm Alarm Logging Hard copy Hard copy Hard copy GT Designer3 GT Designer2 (A drive, B drive) Alarm Recipe Standard CF card (when installed in GOT, CF card unit, Copy files on Windows Logging CF card extension unit)

  • Page 304: Os Version Confirmation

    13.1.3 OS version confirmation Confirm the OS version carefully when install BootOS and standard monitor OS. When OS is installed, GOT checks and compares the OS version automatically. (1) When install BootOS When the BootOS to be installed has the older major version, GOT displays the installation disapproving message to cancel the installtion so that the older version may not be written.

  • Page 305: Capacity Confirmation Of The Project Data Downloading Location

    MODEL GT1575-VTBA IN 100V to 240V AC 50/60 Hz POWER MAX 90VA SERIAL 00004701 AA00001-A MITSUBISHI ELECTRIC BootOS version MADE IN JAPAN BACKLIGHT GT15-70VLTT (In case that the BootOS is two digits, only the first digit is written.) 13.1.4 Capacity confirmation of the project data downloading location...

  • Page 306: Display File

    13.1.5 Display file The display screen and storage destination for each type of data are shown below. The file name and contents of each data can be displayed with property display of the utility. Storage destination Item Display screen (Drive name/folder name) BootOS A drive/B drive/C drive:\G1BOOT\ Standard monitor OS system screen data...

  • Page 307: Os Information

    13.2 OS Information 13.2.1 Function of OS information Each file name/folder name of BootOS and OS (Standard monitor OS, communication driver and optional function OS) by which each drive (A: Standard CF card, B: Extended memory card, C: Built-in flash memory) holds can be displayed in lists.

  • Page 308: Display Operation Of Os Information

    13.2.2 Display operation of OS information Main menu Program/Data control 9.3 Utility Display Touch [OS Touch information] [Program/Data control] OS information Operate BootOS and OS file. 13.2 OS Information 13.2.2 Display operation of OS information...

  • Page 309: Display Example Of Os Information

    13.2.3 Display example of OS information Number Item Description The target drive which displays file or folder can be selected. Select drive When the CF card is not installed, [A: Built-in CF Card] / [B: Memory card] are not displayed. Indicates whether the displayed name is for file or folder.

  • Page 310: Operation Of Os Information

    13.2.4 Operation of OS information Display operation of OS information If touch a drive in [Select drive], the information of the first folder of the touched drive is displayed. If touch a folder name, the information of the touched folder is displayed. If touch a folder name of ".
  • Page 311 Installation operation BootOS and OS which are written in the A drive (Standard CF card) or B drive (Extended memory card) can be installed in GOT. (This item explains using the A drive.) Install the CF card to which the BootOS or OS to install is written to the GOT.

  • Page 312: Upload Operation

    Upload operation BootOS and OS in the C drive (Built in flash memory) can be uploaded to the A drive (Standard CF card). The CF card after uploading can be used for installing the OS on another GOT. 18. INSTALLATION OF COREOS, BOOTOS AND STANDARD MONITOR OS. (This item explains using the A drive.) Install the CF card used as the uploading destination to GOT.Refer to the following...
  • Page 313 Property display operation Displays the property of the file stored in the selected folder. If touch button after selecting Property the property displaying target folder, the Property display shown left is displayed. In Property display, the following information is displayed for each file selected by Item Description...
  • Page 314 Data check operation Carries out data check of the selected system file. Dialog at data check normal Touch button after selecting a Data check data check target file. The dialog mentioned left will be displayed after executing data check. Touching button closes the dialog.

  • Page 315: Project Information

    13.3 Project Information 13.3.1 Functions of the project information The project data files stored in each drive (A: standard CF card, B: Extended memory card, C: built in flash memory) can be displayed by lists. In addition, the files can be downloaded, uploaded, deleted or copied, etc. Function Description Reference page...

  • Page 316: Display Operation Of Project Information

    13.3.2 Display operation of project information Main menu Program/Data control 9.3 Utility Display Touch Touch [Project information] [Program/Data control] Project Information Operate Project data file. 13.3 Project Information - 16 13.3.2 Display operation of project information...

  • Page 317: Display Example Of Project Information

    13.3.3 Display example of project information Number Item Description The drive by which a file or folder is displayed can be selected. Select drive When the CF card is not connected, [A: Built-in CF card] and [B: Memory card] are not displayed. The project data (Project Folder) in the selected drive is displayed.

  • Page 318: Operation Of Project Information

    13.3.4 Operation of project information Display operation of project information Touch the drive in Select drive. The project data in that drive will be displayed. Touch the project data. It is then selected and highlighted. Refer to the following for operation of delete, copy, property, data check, download, upload.
  • Page 319 Copy operation Using the A drive and B drive, the following operations are possible. Copying to another directory in the same drive Copying between A drive and B drive Copy to/from C drive is disabled. (This item explains using the A drive.) Install CF card in the PC, in which create a folder for the copy destination.
  • Page 320 If touch button, the dialog Next mentioned left is displayed. Touch button. If there is no file of the same name in the copy destination folder, starts to copy. When there is a file of the same name in the copy destination folder, the dialog mentioned left is displayed without starting the copy.
  • Page 321 Property display operation Displays the property of the project data in the selected folder. If touch button after selecting Property the project data to display the property, the property is displayed as shown left. In property display, the following information is displayed. Item Description Date...
  • Page 322 Data check operation Carrys out data check of the selected project file. Dialog at data check normal Touch the button after Data check selecting the file for data check. The data check is executed and the result is displayed by the dialog shown left. If touch button, the dialog is closed.
  • Page 323 Download operation/setup operation (1) Download operation Transfers the project data stored in the A drive (Standard CF Card) or B drive (Extended memory card) to the C drive (Built in flash memory). (The GOT monitors using the data in the C drive.) (This item explains using the A drive.) Before download operation (1) Setup cancel...
  • Page 324 If touch the button, the dialog Download mentioned left is displayed. Touching the button executes downloading. If any project data with the same name exists in the C drive, the screen shown left is displayed without starting downloading. In this case, the project data of the C drive is overwritten with the project data of the A drive when downloaded.
  • Page 325 (2) Setup operation Sets the project data stored in the A drive (Standard CF Card) or B drive (Extended memory card) to be used in the GOT. The GOT monitors using the data in the A drive or B drive. (This item explains using the A drive.) Before setup operation When storing project data from GT Designer3 or GT Designer2 to CF card, select...
  • Page 326 Upload/setup cancel operation (1) Upload operation By upload operation, the project data is transferred from the C drive (Built in flash memory) to the A drive (Standard CF Card) or B drive (Extended memory card). The CF card after uploading can be used for downloading project data to another GOT. (This item explains using the A drive.) Before setup operation The project data cannot be uploaded to the A drive or B drive when the project data...
  • Page 327 (2) Setup cancel operation By setup cancel, setup is canceled. (This item explains using the A drive.) Touch [A: Standard CF Card] in Select drive. If touch the button, the screen Upload mentioned left is displayed. If touch the button, setup cancel is executed.

  • Page 328: Alarm Information

    13.4 Alarm Information 13.4.1 Function of alarm information The extended alarm log file or alarm log file held by each drive (A: Built-in CF card, B: Extended memory card, C: Flash Memory) is displayed. The functions below can be carried out for files. For details of Advanced Alarm, refer to the following manual.

  • Page 329: The Display Example Of Alarm Information

    13.4.3 The display example of alarm information Number Item Description The drive which displays file or folder can be selected. Select drive When CF card is not installed, [A: Built-in CF card] and [B: Memory card] are not displayed. Indicates whether the displayed name is file or folder. Kind In case of file, displays the extension;...

  • Page 330: Alarm Information Operation

    13.4.4 Alarm information operation The display operation of alarm information If touch a drive of select drive, the information of the touched drive is displayed. If touch a folder name, the information of the touched folder is displayed. If touch a folder of ". .", the information of the folder of the one upper hierarchy is displayed.
  • Page 331 CSV conversion operation, G1A TXT conversion operation The selected G1A file is converted to CSV file or TXT file. Touch and select the G1A file which is to be converted to CSV file or TXT file. The following dialogue is displayed when touching the following button according to the file type to convert to.
  • Page 332 Deletion operation Deletes selected files. Touch and select the file to delete. If touch button, the dialog mentioned left is displayed. If touch button, the file is deleted. If touch button, the deletion is Cancel canceled. When the deletion is completed, the completion dialog is displayed.
  • Page 333 Copy operation Copies the selected file. Touch and select the file to copy. If touch button, the message Copy [Please select a destination.] is displayed in the left bottom of the screen. If the copy destination folder is touched, the screen display is changed to the folder of copy destination.
  • Page 334 Graph operation Displays the selected extended alarm log file in a graph. When the extended alarm watch (advanced user alarm, advanced system alarm) is set in history mode, the selected extended alarm log file is displayed in historical graph ( (1) Historical graph display).
  • Page 335 (1) Historical graph display • Displays the generated time ( ), confirmed time ( ) and restored ( ) time of each alarm. • Displays the time scales by 30 minutes interval in the bottom of the graph. • The alarms generated in the order of registering alarm are displayed. •...

  • Page 336: Hard Copy Information

    13.5 Hard Copy Information 13.5.1 The function of hardcopy information Carries out delete, copy and move to the file created by the hardcopy function. Refer to the following manual for details of hard copy function. • GT Designer3 Version1 Screen Design Manual (Functions) (37 HARD COPY FUNCTION) •...

  • Page 337: Display Exmaple Of Hardcopy Information

    13.5.3 Display exmaple of hardcopy information Number Item Description The drive which displays file or folder can be selected. Select drive When CF card is not installed, [A: standard CF Card] and [B: Memory card] are not displayed. Indicates whether the displayed name is file or folder. Kind In case of file, displays the extension;...

  • Page 338: The Operation Of Hardcopy Information

    13.5.4 The operation of hardcopy information Display operation of hardcopy information If touch a drive of select drive, the information of the touched drive is displayed. If touch a folder name, the information in the touched folder is displayed. If touch a name of the folder of ". .", the information in the folder of one higher hierarchy is displayed.
  • Page 339 Delete operation Deletes the selected file. Touch and select the file to delete. If touch button, the screen mentioned left is displayed. If touch button, deletes the file. If touch button, cancel the Cancel deletion. When the deletion is completed, the completion dialog is displayed.
  • Page 340 Copy operation Copies the selected file. Touch and select the file to copy. If touch button, the dialog [Please Copy select a destination.] is displayed in the left bottom of the screen. If touch the folder of the copy destination, the screen display is changed to the folder of copy destination.
  • Page 341 Rename operation Rename the selected file. Select a file to be renamed with touching the file. Touch the button, and then the Rename screen shown left is displayed. Input the file name to be changed. Character types to be input can be changed with touching the following buttons.

  • Page 342: Memory Card Format

    13.6 Memory Card Format 13.6.1 Function of the memory card format Formats the memory card. 13.6.2 Display operation of memory card format Main menu Program/Data control 9.3 Utility Display) Touch [Program/Data control] Touch [Memory card format] Memory card format Select the drive and format.

  • Page 343: Operating The Memory Card Format

    13.6.3 Operating the memory card format Install the memory card to GOT. Refer to the following for inserting/ removing method of memory card. 8.8 CF Card Touch and select the drive to format by drive selection. If touch button, the password Format input screen is displayed.
  • Page 344 When the formatting is completed, the completion dialog mentioned left is displayed. If touch button, closes the dialog. Remark Restrictions on formatting • When use an unformatted memory card in GOT, format the memory card by PC. GOT cannot format the unformatted memory card. •...

  • Page 345: Advanced Recipe Information

    13.7 Advanced Recipe Information Before using advanced recipe information For writing/reading into/from a controller with this function or editing of advanced recipe file on the personal computer, refer to the following manual. Specifications and operating procedure are described. • GT Designer3 Version1 Screen Design Manual (Functions) (24.3 Advanced Recipe Function) •...

  • Page 346: Operation Of Advanced Recipe Information Display

    13.7.2 Operation of advanced recipe information display Main menu Program/Data control 9.3 Utility Display) Touch [Program/Data Touch [ Advanced control] Recipe Information] [Advanced Recipe Information] Operate advanced recipe file. 13.7 Advanced Recipe Information - 46 13.7.2 Operation of advanced recipe information display...

  • Page 347: Example Of Advanced Recipe Information Display

    13.7.3 Example of advanced recipe information display Advanced recipe information screen Number Item Description Drive The target drive can be selected. (Even if CF card is not installed, this message appears.) Indicates whether the displayed name is file or folder. Kind In case of file, displays the extension;...
  • Page 348 Advanced recipe record list screen Touching the button on the advanced recipe information screen after selecting the Excute advanced recipe file, this screen appears. Records selected in each advanced recipe file can be displayed or saved/loaded. Number Item Description Record No. of advanced recipe file is displayed. Attribution of record is displayed.

  • Page 349: Advanced Recipe Information Operation

    13.7.4 Advanced recipe information operation Display operation of advanced recipe information If touch a drive of select drive, the information of the touched drive is displayed. If touch a folder name, the information of the touched folder is displayed. If touch a folder of ". .", the information of the folder of the one upper hierarchy is displayed.
  • Page 350 CSV conversion operation, G1P TXT conversion operation Advanced recipe file (G1P file) is converted to CSV file or Unicode text file that can be displayed/edited on personal computer. Touch and select the G1P file which is to be converted to CSV file or Unidcode text file.
  • Page 351 When the file, whose name is the same, exists in the destination folder, the dialog shown left appears without starting the conversion. If touch the button, overwrites the file. If touch button, cancels the Cancel conversion. The message of completion is displayed in dialogue when conversion is completed.
  • Page 352 Delete operation Folder and file to be used on advanced recipe are deleted. Touch and select the file/folder to delete. If touch button, the dialog mentioned left is displayed. If touch button, the file/folder is deleted. (While executing, "Processing..." message appears on the screen.) If touch button, the deletion is Cancel...
  • Page 353 Copy operation Folder to be used in advanced recipe is copied. Touch and select the file to copy. Touch the button. Copy Select the target folder. (Selecting a folder is not needed for outputting directly below the drive.) At this time, it cannot be copied into the same folder where the file exists.
  • Page 354 When the copy is completed, the dialog of completion is displayed. If touch button, closes the dialog. Move operation Files to be used in advanced recipe are moved. Select the file to be moved by touching Touch the button. Move Select the target folder.
  • Page 355 If touch the button, the dialog Execute shown left is displayed. Touch the button. (While executing, "Processing..." message appears on the screen.) When any file with the same name exists in the destination folder, the dialog shown left appears without starting the movement.
  • Page 356 Rename operation File name to be used in advanced recipe is changed. Select the file to be renamed by touching. If touch the button, displays the Rename screen shown left, then input the file name to be renamed. By touching the following button, input text type is changed.
  • Page 357 Folder create operation Folder to be used in advanced recipe is created. Touch the button. Create Folder The input key window shown left appears, then input the file name to be created. By touching the following button, input text type is changed. :English capital :Numeric/Symbol If touch the...
  • Page 358 G1P file create operation Advanced recipe file (G1P file) is created. When advanced recipe is only executed on Utility, advanced recipe file should be created with this function in advance. Touch the button. Create G1P The screen to select the advanced recipe setting is displayed.
  • Page 359 If touch the button, the dialog Enter shown left is displayed. Touch the button. When the file, whose name is the same, exists in the destination folder, the dialog shown left appears without starting the creation. Touching the button overwrites the file.
  • Page 360 Record load operation Selected record value is loaded in the device of controller. Select the recipe file and touch the button. Excute As the Advanced Recipe Record List screen is displayed, select the record comment to which you want to load the device value.
  • Page 361 Record save operation Device value of a controller is saved in the selected record. Select the recipe file and touch the button. Excute As the Advanced Recipe Record List screen is displayed, select the record comment for saving the device value. If touch the button, the screen Save record...
  • Page 362 If touch the button, the dialog Enter shown left is displayed. If touch the button, starts saving record. When saving is completed, completion dialog is displayed. If touch the button, closes the dialog. Record match operation Verifies weather selected record matches to the device value of the controller. After executing loading/saving with advanced recipe, verifies weather its contents are reflected.
  • Page 363 As the Advanced Recipe Record List screen is displayed, select the record comment for matching the device value. If touch the button, dialog Match records shown left is displayed. If touch the button, starts matching record. When matching is completed, completion dialog is displayed.
  • Page 364 Device value delete operation The device value of selected record is deleted (without value) and changed to record only for reading. (The record name is not deleted.) Select the recipe file and touch the button. Excute As the Advanced Recipe Record List screen is displayed, select the record comment to be deleted.

  • Page 365: Precautions

    13.7.5 Precautions Precautions for create/delete (1) When creating folder/file (a) Number of characters set for folder or file name. GOT recognizes file location according to path explained below. Specify folder or file name, and total characters of path cannot exceed 78 characters. Users only can rename folder or file name.
  • Page 366 Precautions for operation (1) Precautions during folder/file operation (Create/Delete/Copy/File output, etc) Even if CF card access switch has been turned OFF while GOT is processing folders and files, the processing continues to be executed. (Example: Even if CF card access switch has been turned OFF while GOT is creating a folder, the folder is created.) Therefore, do not pull out the CF card while the "Processing..."...

  • Page 367: Logging Information

    13.8 Logging Information 13.8.1 Function of logging information Logging files created with the logging function can be copied, deleted or renamed, etc. Without using a personal computer, you can manage logging files on the GOT. For details of the logging function, refer to the following manual. •...

  • Page 368: Example Of Logging Information Display

    13.8.3 Example of logging information display Number Item Description Drive The target drive can be selected. (Even if CF card is not installed, this message appears.) Indicates whether the displayed name is file or folder. Kind In case of file, displays the extension; in case of folder, displays "DIR". Displays the file name or folder name.

  • Page 369: Logging Information Operation

    13.8.4 Logging information operation Display operation of logging information If touch a drive of select drive, the information of the touched drive is displayed. If touch a folder name, the information of the touched folder is displayed. If touch a folder of ". .", the information of the folder of the one upper hierarchy is displayed.
  • Page 370 Operation of G1L CSV conversion G1L TXT conversion Logging file (G1L file) is converted to CSV file or Unicode text file that can be displayed/edited on personal computer. Touch and select the G1L file which is to be converted to CSV file or Unidcode text file.
  • Page 371 When the file, whose name is the same, exists in the destination folder, the dialog shown left appears without starting the conversion. If touch the button, overwrites the file. If touch button, cancels the Cancel conversion. The message of completion is displayed in dialogue when conversion is completed.
  • Page 372 Delete operation Folder and file to be used on logging are deleted. Touch and select the file/folder to delete. If touch button, the dialog mentioned left is displayed. If touch button, the file/folder is deleted. (While executing, "Processing..." message appears on the screen.) If touch button, the deletion is Cancel...
  • Page 373 Copy operation Folder to be used in logging is copied. Touch and select the file to copy. Touch the button. Copy Select the target folder. (Selecting a folder is not needed for outputting directly below the drive.) At this time, it cannot be copied into the same folder where the file exists.
  • Page 374 When the copy is completed, the dialog of completion is displayed. If touch button, closes the dialog. Move operation An operation log file is moved. Select the file to be moved by touching Touch the button. Move Select the target folder. (Selecting a folder is not needed for moving directly below the drive.) (Continued to next page)
  • Page 375 If touch the button, the dialog Execute shown left is displayed. Touch the button. (While executing, "Processing..." message appears on the screen.) When only file with the same name exists in the destination folder, the dialog shown left appears without starting the movement.
  • Page 376 Rename operation An operation log file is changed. Select the file to be renamed by touching. If touch the button, displays the Rename screen shown left, then input the file name to be renamed. By touching the following button, input text type is changed.
  • Page 377 Folder create operation An operation log folder is created. Touch the button. Create Folder The input key window shown left appears, then input the file name to be created. By touching the following button, input text type is changed. :English capital :Numeric/Symbol If touch the button, displays the...

  • Page 378: Precautions

    13.8.5 Precautions Precautions for create/delete (1) When creating folder/file (a) Number of characters set for folder or file name. GOT recognizes file location according to path explained below. Specify folder or file name, and total characters of path cannot exceed 78 characters. Users only can rename folder or file name.
  • Page 379 Precautions for operation (1) Precautions during folder/file operation (Create/Delete/Copy/File output, etc) Even if CF card access switch has been turned OFF while GOT is processing folders and files, the processing continues to be executed. (Example: Even if CF card access switch has been turned OFF while GOT is creating a folder, the folder is created.) Therefore, do not pull out the CF card while the "Processing..."...

  • Page 380: Memory Information

    13.9 Memory Information 13.9.1 Memory information functions Displays the flash memory empty area size available for the user of each drive and Boot drive empty area size. Confirming memory empty space is enabled without connecting a personal computer. 13.9.2 Memory information display operation Main menu Program/Data control 9.3 Utility Display)

  • Page 381: Memory Information Display Example

    13.9.3 Memory information display example Item Description Indicates the memory space of each drive available for the user to store files or folders. Flash memory empty area size The [A: Standard CF Card] and [B: Memory card] are not displayed when CF card is not installed.

  • Page 382: Special Data Information

    13.10 Special Data Information 13.10.1 Special data information function Special data used in the intelligent unit monitor function or others can be copied, deleted, downloaded, or uploaded. For details of special data, refer to the following manual. • GT Designer3 Version1 Screen Design Manual (Fundamentals) (7.5 Data Types and Sizes Transferred to the GOT) •...

  • Page 383: Special Data Information Display Operation

    13.10.2 Special data information display operation Main menu Program/Data control 9.3 Utility Display) Touch [Program/Data control] Touch [Special data information] [Special data information] Operate Project data file. 13.10 Special Data Information - 83 13.10.2 Special data information display operation...

  • Page 384: Special Data Information Display Example

    13.10.3 Special data information display example Number Item Description The drive by which a file or folder is displayed can be selected. Select drive When the CF card is not installed, [A: Built-in CF card] and [B: Memory card] are not displayed. Indicates whether the displayed name is file or folder.

  • Page 385: Special Data Information Operation

    13.10.4 Special data information operation Special data information display operation If touch a drive in [Select drive], the special data in the drive is displayed. Refer to the following for operation of delete, property, data check and download. • Delete ....in this section •...
  • Page 386 Delete operation Deletes the selected file. Touch and select the file to delete. If touch the button, the screen Delete mentioned left is displayed. Check if the deletion target file is specified correctly. Touching the button deletes the file. Touching the button cancels the Cancel deletion.
  • Page 387 Property display operation Displays the property of selected special data. Touch the button after selecting a Property special data to display Property as shown left. In Property display, the following information is displayed. Item Description Date Displays date and time of file creation. Author Displays the author of the project data.
  • Page 388 Data check operation Checks the selected special data. Dialog when data is normal Select a data check target file and touch button. Data check The data check is executed and the result is displayed by the dialog shown left. If touch the button the dialog is closed.

  • Page 389: Download Operation

    Download operation Transfers the special data written in the A drive (Standard CF Card) or B drive (Extended memory card) to the C drive (Built-in flash memory). The GOT monitors C drive data. (This item explains using the A drive.) Special data to be stored in a CF card When storing the project data from GT Designer3 or GT Designer2 to CF card, select [C: Built-in flash memory] for [Project Data] in [Boot Drive].
  • Page 390 If touch the button, the screen Download mentioned left is displayed. Downloading is executed when the button is touched. If there is a project data of the same name in the C drive, the screen shown left is displayed. If touch the button, the project data is downloaded and the project data in the C drive is overwritten.

  • Page 391: Operation Log Information

    13.11 Operation Log Information 13.11.1 Function of operation log information Operation log files created with the operation log function can be copied, deleted or renamed, etc. Without using a personal computer, you can manage operation log files on the GOT. For details of the operation log function, refer to the following manual.

  • Page 392: Display Operation Of Operation Log Information

    13.11.2 Display operation of operation log information Main menu Program/Data control 9.3 Utility Display) Touch [Program/Data control] Touch [Operation log Information] [Operation log Information] Operate Operation log file. Remark Default display drive when displaying the operation log information screen. When [Save to] of the [Environmental Setting] dialog box is set in GT Designer3, the default display drive for displaying the operation log information screen is the drive set in GT Designer3.

  • Page 393: Example Of Operation Log Information Display

    13.11.3 Example of operation log information display Number Item Description Drive The target drive can be selected. (Even if CF card is not installed, this message appears.) Indicates whether the displayed name is file or folder. Kind In case of file, displays the extension; in case of folder, displays "DIR". Displays the file name or folder name.

  • Page 394: Operation Log Information Operation

    13.11.4 Operation log information operation Display operation of operation log information If touch a drive of select drive, the information of the touched drive is displayed. If touch a folder name, the information of the touched folder is displayed. If touch a folder of ". .", the information of the folder of the one upper hierarchy is displayed.
  • Page 395 Operation of G1O CSV conversion G1O TXT conversion Operation log file (G1O file) is converted to CSV file or Unicode text file that can be displayed/edited on personal computer. Touch and select the G1O file which is to be converted to CSV file or Unidcode text file.
  • Page 396 When the file, whose name is the same, exists in the destination folder, the dialog shown left appears without starting the conversion. If touch the button, overwrites the file. If touch button, cancels the Cancel conversion. The message of completion is displayed in dialogue when conversion is completed.
  • Page 397 Delete operation Folder and file to be used on operation log are deleted. Touch and select the file/folder to delete. If touch button, the dialog mentioned left is displayed. If touch button, the file/folder is deleted. (While executing, "Processing..." message appears on the screen.) If touch button, the deletion is Cancel...
  • Page 398 Copy operation An operation log file is copied. Touch and select the file to copy. Touch the button. Copy Select the target folder. (Selecting a folder is not needed for outputting directly below the drive.) At this time, it cannot be copied into the same folder where the file exists.
  • Page 399 When the copy is completed, the dialog of completion is displayed. If touch button, closes the dialog. Move operation An operation log file is moved. Select the file to be moved by touching Touch the button. Move Select the target folder. (Selecting a folder is not needed for moving directly below the drive.) (Continued to next page)
  • Page 400 If touch the button, the dialog Execute shown left is displayed. Touch the button. (While executing, "Processing..." message appears on the screen.) When only file with the same name exists in the destination folder, the dialog shown left appears without starting the movement.
  • Page 401 Rename operation An operation log file is changed. Select the file to be renamed by touching. If touch the button, displays the Rename screen shown left, then input the file name to be renamed. By touching the following button, input text type is changed.
  • Page 402 Folder create operation An operation log folder is created. Touch the button. Create Folder The input key window shown left appears, then input the file name to be created. By touching the following button, input text type is changed. :English capital :Numeric/Symbol If touch the button, displays the...
  • Page 403 List display Displays operation logs in an operation log file in a list. Touch and select a file for displaying the list. Touching the button displays the list. List In the list, the following contents can be checked. Display items: Date Time Screen No.
  • Page 404 Touching the selected row again displays the detailed information for the operation log. Touch the button to close the dialog. (1) Display order switching operation Touch Date (ascending) in the list to switch the Date (descending) display order of operation logs. Date (ascending) Date (descending) are switched every time the button is...
  • Page 405 (1) When the row in the operation log is not selected, or when the row in the operation log , which indicates an error such as data damaged, is selected The window color of the screen image is a gray. (2) Whether to display the screen image or not Whether the screen image is displayed or not depends on the object type or the operation type.
  • Page 406 Touching the button displays the Enter dialog on the left. Touch the OK button. (When processing is being executed, the "Processing" message is displayed on the screen.) The results found are displayed and the dialog on the left is displayed. To continue a search, touch the button.
  • Page 407 Latest display The latest operation log files are selected and displayed in a list. If touch the button, the latest Latest one in the operation log files is displayed in a list. In the list, the following contents can be checked.

  • Page 408: Precautions

    13.11.5 Precautions Precautions for create/delete (1) When creating folder/file (a) Number of characters set for folder or file name. GOT recognizes file location according to path explained below. Specify folder or file name, and total characters of path cannot exceed 78 characters. Users only can rename folder or file name.
  • Page 409 Precautions for operation (1) Precautions during folder/file operation (Create/Delete/Copy/File output, etc) Even if CF card access switch has been turned OFF while GOT is processing folders and files, the processing continues to be executed. (Example: Even if CF card access switch has been turned OFF while GOT is creating a folder, the folder is created.) Therefore, do not pull out the CF card while the "Processing..."...

  • Page 410: Got Data Package Acquisition

    13.12 GOT Data Package Acquisition 13.12.1 GOT data package acquisition function The GOT data package acquisition copies the installed OS or data in the GOT main unit to the memory card • OS (Boot OS, standard monitor OS, communication driver, extended function OS, option OS) •...

  • Page 411: Display Example Of Got Data Package Acquisition

    13.12.3 Display example of GOT data package acquisition Item Description Displays the drive where OS and data can be copied. Select Drive When the memory card is not installed, [A: Built-in CF card] and [B: Memory card] are not displayed. Copy Touching the button starts copying.
  • Page 412 (Example: Dialog box after touching the button) Copy The display depends on the status of copy destination and setup. Operate with following the displayed dialog box. After copying OS and data, the dialog box for notifying the completion appears. Touching the button closes the dialog box.

  • Page 413: Got Self Check (Debug & Self Check)

    14. GOT SELF CHECK (DEBUG & SELF CHECK) The GOT can display the screen for debugging or self-checking. The following describes the functions available as the debugging and self checking function. Item Description Reference page System monitor, Ladder monitor, A list editor, List editor for MELSEC-A, intelligent module monitor, Network monitor, Q motion monitor, servo Debug 14-1...
  • Page 414 Compatible Compatible Item Description GT Works3 Designer2 The network status of the MELSECNET/H, MELSECNET/10, Network monitor MELSECNET(II), CC-Link IE Controller Network, and CC-Link IE Field Network can be monitored. The servo monitoring and parameter settings of the motion Motion monitor controller CPU (Q series) are available.

  • Page 415: Display Operation Of Debug

    14.1.2 Display operation of Debug Main menu Debug & self check Debug 9.3 Utility Display) Touch Touch the debug to [Debug]. be operated. Touch [Debug & self check]. Debug is displayed. (For System monitor) 14.1 Debug 14.1.2 Display operation of Debug...

  • Page 416: Self Check

    14.2 Self check 14.2.1 Self check function Carries out self-check of screen data or memory etc. The items which can be self-checked are as follows. Items Description Reference page Carries out write/read check of the memory card and built-in flash memory Memory check 14-5 5 9 2 0...

  • Page 417: Memory Check

    14.3 Memory Check 14.3.1 Memory check function Memory check function carries out the write/read check of A drive (Standard CF Card), B drive (Extended memory card), and C drive (Built-in flash memory). Function Description A drive memory check Checks whether the memory (CF card) of the A drive can be read/written normally. Checks whether the memory (Extended memory card) of the B drive can be read/written B drive memory check normally.
  • Page 418 When no faults are found in mounting, etc, a memory failure may be arosen. Replace the memory card or built-in flash memory (C drive). For details of built-in flash memory, contact your local Mitsubishi (Electric System) Service. The following example explains about Memory Check using built-in flash memory (C drive).
  • Page 419 When error is found by memory check, the dialog indicating the area in which the error occurred is displayed. In case of error, contact your local Mitsubishi (Electric System) Service. If touch , returns to the Memory check screen. 14.3 Memory Check...

  • Page 420: Drawing Check

    2. There are parts of basic figure and drawing patterns which are not drawn according to the layout and procedures described in "Section 13.3.3 Display and Operation of Drawing Check". When missing bits occurs, contact your local Mitsubishi (Electric System) Service. 14.4 Drawing Check 14.4.1 Drawing check function...

  • Page 421: Drawing Check Operation

    14.4.3 Drawing check operation The screen for drawing check can be displayed by touching [Drawing check] on the Display check menu. Before execute drawing check Touching the upper right part of the screen proceeds to the next check in each step during drawing check. Touching the upper left part of the screen returns to the [Display check] screen.
  • Page 422 Basic figure check Check whether there is no shape transformation of basic figure or display losses. The basic figure drawn has 4 types: 1. Filled circle, 2. Line, 3. Rectangle, 4. Ellipse. To (a) Pattern 1of (3) Move check among screens 14.4 Drawing Check - 10 14.4.3 Drawing check operation...
  • Page 423 Move check among screens (a) Pattern 1: Shape transformation, color check The drawn figures are displayed in order and at regular intervals. If the shape and color are displayed visually in order, it is normal. To Pattern 2 Pattern 1 (b) Pattern 2: Shape transformation, color check The drawn figures are displayed in order and at regular intervals.
  • Page 424 (c) Pattern 3: Shape transformation, color check The overlaped shapes of pattern 1 and pattern 2 are displayed. If the shape and color are displayed visually in order, it is normal. To Pattern 4 (d) Pattern 4: Shape Check The drawn figures are displayed in order and at regular intervals. If the shape and color are displayed visually in order, it is normal.

  • Page 425: Font Check

    14.5 Font Check 14.5.1 Font check function The font check is a function which confirms fonts installed in GOT. The character data of the font is displayed on the upper left part of the screen one by one. 14.5.2 Display operation of Font check Main menu Debug &...

  • Page 426: Font Check Operation

    14.5.3 Font check operation Font check starts by touching [Font Check] in the [Display check] screen. The character data of the built-in font (in the built-in flash memory) can be checked visually to confirm the font drawings by displaying the character data serially on the screen. Before execute font check Touching the upper right part of the screen proceeds to the next check in each step during Font check.

  • Page 427: Touch Panel Check

    If the touched part is not filled with yellow color, there are the following two possible causes. 1. Display part failure 2. Touch panel failure In that case, contact your local Mitsubishi (Electric System) Service. 14.6 Touch Panel Check - 15 14.6.1 Touch panel check function...

  • Page 428: Touch Panel Check Operations

    14.6.3 Touch panel check operations If touch [Touch panel check] of self-check, a black-filled screen is displayed over the entire screen area. Touch a part of the screen. The touched part becomes a yellow-filled display. Black-filled screen Yellow color If touch the upper left part, returns to the self-check. Upper-left touch position Remark Checking the upper left part of the screen...

  • Page 429: I/O Check

    MELSECNET/H connection MELSECNET/10 MELSECNET/H, MELSECNET/10 connection CC-Link IE Controller Connection CC-Link IE Controller Network Network connection MITSUBISHI CC-Link IE Field CC-Link IE Field Network Network connection CC-Link connection (Intelligent device CC-Linlk (ID), CC-Link Ver.2(ID) station) Ethernet connection Ethernet(MELSEC), Q17nNC, CRnD-700...

  • Page 430: Display Operation Of I/O Check

    14.7.2 Display operation of I/O Check Main menu Debug & self check Self check 9.3 Utility Display) Touch [Self check] Touch Touch [I/O check] [Debug & self check] I/O check 14.7 I/O Check - 18 14.7.2 Display operation of I/O Check...

  • Page 431: I/O Check Operation

    14.7.3 I/O Check Operation Connecting target confirmation If touch [CPU] button, the connecting target confirmation communication check is carried out. After the CPU communication starts normally, the dialog mentioned right notifying that it is on checking, untill the connecting target confirmation communication ends normally.
  • Page 432 Self-loopback If touch [Self], the hardware check of RS-232 interface is carried out. For preparation for the self-loopback communication check, insert the connector for self-loopback check (Customer purchased) shown in the diagram right in the RS-232 interface. For this connector, short 2 and 3 pins, 7 and 8 pins and 4 and 6 pins, respectively.
  • Page 433 When the all checks ended normally, the dialog shown right is displayed. And the GOT restarts in five seconds. When an error occurs, the dialog that shows the GOT abnormal termination and the byte with the error appears, and then the GOT restarts in five seconds. When the dialog shown right appears, check the following.

  • Page 434: Netwk Unit Status Display

    14.8 NETWK Unit Status Display 14.8.1 Functions of the NETWK unit status display The network unit status display is a function that uses the communication units below to monitor the network status. • MELSECNET/H communication unit (GT15-J71LP23-25, GT15-J71BR13) • CC-Link IE Controller Network communication unit (GT15-J71GP23-SX) •...

  • Page 435: Display Example Of The Netwk Unit Status Display

    14.8.3 Display example of the NETWK unit status display MELSENCNET/H communication unit GT15-J71LP23-25 GT15-J71BR13 14.8 NETWK Unit Status Display - 23 14.8.3 Display example of the NETWK unit status display...
  • Page 436 (1) LED status Displays the MELSECNET/H communication unit operation status. Item Not lit color Green Data link normal Data link error Operating other than as control Green Operating as control station station Operating other than as sub S.MNG Green Operating as sub control station control station D.LINK Green...
  • Page 437 (3) Data link information Displays the MELSECNET/H communication unit data link information (communication status, cause of communication suspension, cause of communication stop). Item Description Displays the communication status of the host. D-Link in prog. : FData link being executed D-Link Stop(A)ss : Cyclic transmission stopped from other station D-Link Stop (H) : Cyclic transmission stopped by host...
  • Page 438 CC-Link IE Controller Network communication unit (10) (1) LED status Displays the operation status of the CC-Link IE Controller Network communication unit. Item Not lit Blink color* Hardware failure or WDT Green Operating normally error With communication error Green Data link being executed Data link not executed stations or duplicated station numbers...
  • Page 439 Item Not lit Blink color* PARAM.ERR Parameter error No parameter error F LOOP ERR IN-side error No IN-side error Green Sending data Not sending data Green Receiving data Not receiving data TOKEN PASS Green Baton pass being executed Baton pass not executed Data link being executed Data link being executed DATA LINK...
  • Page 440 (3) Data link information Displays the data link information (Com Status, Cause of Ssp, Cause of Stop) of the CC-Link IE Controller Network communication unit. Item Description Displays the communication status of the host station. D-Link in prog. D-Link stopped Com Status B-Pass exec B-Pass stopped...
  • Page 441 (5) Link scan time information Displays the link scan time. Item Description Current LS time Displays the current link scan time. Max. LS time Displays the maximum link scan time. Min. LS time Displays the minimum link scan time. Constant LS time Displays the link scan time set in the parameter.
  • Page 442 CC-Link IE Field Network communication unit (1) LED status Displays the CC-Link IE Field Network communication unit operation status. Item Not lit Blink color* Hardware failure or WDT error occurred, Green Operating normally communication unit being reset Operating as master Operating other than as Green station...
  • Page 443 (2) Link information Displays the CC-Link IE Field Network communication unit link status. Item Description Host PORT1 Link up Displays the link up status (Linking up/Linking down) of the host station link info status PORT1 side. Host PORT2 Link up Displays the link up status (Linking up/Linking down) of the host station link info status...
  • Page 444 (4) Unit error information Displays the number of unit errors and the error codes. Item Description Unit error Displays the number of module errors. ErrCode Error histories of 16 errors are displayed in 16 lows from the latest. (5) Link scan time information Displays the link scan time.
  • Page 445 CC-Link communication unit (1) LED status Displays the CC-Link communication unit (GT15-J61BT13) operation status. Item Not lit Blink color WDT error occurred or unit Green Running normally being reset There is a communication All station communication No communication error ERR. error station or duplicated error occurred or unit being reset...
  • Page 446 (2) Data link information Displays the CC-Link communication unit (GT15-J61BT13) data link startup status and error status. Item Description Displays the data link startup status. D-Link in prog. Data link being executed D-Link Offline Data link being stopped Initialize Set to the initial status Parameter wait Parameter not received Disconnect (No Polling)

  • Page 447: System Alarm Display

    14.9 System Alarm Display 14.9.1 System alarm display function System alarm display is the function to display error code and error message when an error occurs in GOT, controller or network. System alarms can be reset on the System alarm display screen. For details of system alarm, refer to the following manual.

  • Page 448: Operating The System Alarm Display

    14.9.3 Operating the system alarm display System Alarm display resetting Eliminate each cause of the system alarm being occurred. Error causes can be identified by the error code, error message and channel No. displayed on the System alarm display screen. 20.

  • Page 449: Got Start Time

    14.10 GOT Start Time 14.10.1 GOT start time function GOT start time is the function to display the following date and time. • Start time of GOT • Current time of GOT • Operating hours of GOT 14.10.2 Display operation of GOT start time Main menu [Debug &...

  • Page 450: Display Of Got Start Time

    14.10.3 Display of GOT start time Item Description Displays the time when the GOT was powered on or reset-restarted (OS installation, Start Time communication setting change). Current Time Displays the current time. Displays operating hours of the GOT. The displayed operating hours is the accumulated time while GOT is powered on or reset- Operating hours restarted (OS installation, communication setting change).

  • Page 451: Operator Information Management

    14.11 Operator Information Management The operator information management is a function to display a list of the operator information and add, change, or delete the operator information to be used for the operator authentication. For details of the operator authentication, refer to the following manual. •...
  • Page 452 Display operation of operator management Main menu Debug & self check Operator setting menu 9.3 Utility Display) Touch [Operator management]. Touch [Debug & self Touch [Operator info. check]. Management]. Operator management Display example of operator management (1) Operator information management screen (b) (c) Item Description...
  • Page 453 Item Description Displays operator IDs. Level Displays security levels for operators. Update Displays the last updated dates of the operator information. Operation keys Execution keys for each function Displays and sets the storage location for imported and exported operator information. To switch the drive, touch the key.
  • Page 454 Operator management operation Touch [Operator management] in the operator setting menu. The Admin password authentication screen is displayed, and then input the administrator password. Character types to be input can be changed with touching the following buttons. Alphabet capital Alphabet small letter Numeric When the input is completed, touch the key.
  • Page 455 Touch the button without touching the button, and then the dialog box Save shown left is displayed. 14.11 Operator Information Management - 43 14.11.1 Operator management...
  • Page 456 (1) Add operation Add operator information to the GOT. Touch the button. The Operator information edit screen is displayed, and then touch an item to be edited. (a) OperatorName (b) OperatorID (c) Level (d) Password (e) Make a permanent password (f) Use ext.
  • Page 457 (c) Touch the level, and then the Operator level input dialog box is displayed. Input an operator level. When the input is completed, touch the key. Enter When the level of the operator being login is changed during editing the operator information, a new level is not reflected until you log out of the GOT once and log in the GOT again.
  • Page 458 (e) For enabling the setting of [Make a permanent password], touch the check box for [Make a permanent password], and then the setting is switched. : Disabled : Enabled (f) For using the external authentication ID, touch the check box "Use ext. auth. ID" and switch the setting.
  • Page 459 (2) Edit operation Edit the operator information stored in the GOT. Select the operator information to be edited with touching the operator information. Touch the button. Edit The Operator information edit screen is displayed, and then touch an item to be edited.
  • Page 460 (3) Delete operation Delete the operator information stored in the GOT. Select the operator information to be deleted with touching the operator information. Touch the button, and then the Delete dialog box shown left is displayed. Touch the button, and then the selected operator information is deleted.
  • Page 461 (4) Undo operation Restore the current operator information to the previous saved one. Touch the button. Undo The dialog box shown left is displayed, and then touch the button. The Admin password authentication screen is displayed, and then input the administrator password.
  • Page 462 (5) Import operation Import the operator information that is already exported to a memory card to the GOT. Touch the button. Import The dialog box shown left is displayed. Touch button, and then the Admin password authentication screen is displayed. Input the administrator password.
  • Page 463 (6) Export operation Export the operator information stored in the GOT to a memory card. Touch the button. Export The dialog box on the left is displayed. Touch the following buttons according to the output format for the file. • Binary file : button Binary •...

  • Page 464: Password Change

    14.11.2 Password change Password change function The passwords to be used for the operator authentication can be changed. For the password change, log into the GOT in advance with the operator name corresponding to the password to be changed. Display operation of password change Main menu Debug &...
  • Page 465 Password change operation Log into the GOT with the operator name corresponding to the password to be changed on the Main Menu screen for the utility. Touch [Password change] in the operator setting menu, and then the Password change dialog box is displayed. Input the current password on the Password change dialog box.

  • Page 466: Function Setting

    When the new password is correctly input, the dialog box shown left is displayed and the password is changed. 14.11.3 Function setting Function setting function The functions for the operator information can be set. The following items can be set. Items Description Reference page...
  • Page 467 Display operation of function setting Main menu Debug & self check Operator setting menu 9.3 Utility Display) Touch [Debug & self Touch [Operator info. Touch [Function check]. Management]. setting]. Function setting 14.11 Operator Information Management - 55 14.11.3 Function setting...
  • Page 468 Function setting operation Touch [Function setting] in the operator setting menu, and then the Admin password authentication dialog box is displayed. Input the administrator password. Character types to be input can be changed with touching the following buttons. Alphabet capital Alphabet small letter Numeric When the input is completed, touch the...
  • Page 469 When [External auth (general)] or [Fingerprint authentication] is selected, the check box for [Operator name + password] is displayed. If the check box is selected, the login is also enabled with [Operator name + password]. (c) Touch [Password expiration date], and then the Password expiration date edit dialog box is displayed.

  • Page 470: Fingerprint Authentication

    14.12 Fingerprint authentication 14.12.1 The fingerprint authentication function For executing the operator management using the fingerprint unit, fingerprint information must be registered to the fingerprint unit. This section describes how to get a fingerprint ID from the fingerprint information of the utility function. Refer to the following manual for details of drawing settings.
  • Page 471 (3) Administrator password setting operation Set the administrator password for fingerprint ID. Touch [Administrator password setting] in the Fingerprint information management screen. The dialog box shown left is displayed. Input the pre-registered administrator password and touch the key. Enter (Up to 16 alphanumeric characters) Touch the key to return to the [Fingerprint information management]...
  • Page 472 When the password is input correctly, the data is updated with the new administrator password, and the dialog box shown left is displayed. Touch the button to return to the [Fingerprint information management] screen. Contents registered list (1) Functions of Contents registered list The operator fingerprint ID used in the fingerprint authentication can be added or deleted.
  • Page 473 (3) Display example of Contents registered list (a) Contents registered list screen Touch [Contents registered list] in the Fingerprint information management screen to display the administrator password authentication screen. After the password, which is set in [Administrator password setting], is correctly input, the following screen is displayed.
  • Page 474 (b) Operator registration screen In the Contents registered list screen, touch the button to display the following screen. Number Item Description The fingerprint ID is displayed or input a fingerprint ID. Fingerprint ID (Numbers: 1 to 7 digits) Select total count Select "Finger 1"...
  • Page 475 (4) Operation of Contents registered list For logging into the GOT using the fingerprint unit, the fingerprint information of the operator must be registered in the operator information. Refer to the following for details of operator information. 14.11 Operator Information Management Refer to the following for precautions when registering fingerprints.
  • Page 476 Input the fingerprint ID of the operator to be registered. (Input the same ID as the external authentication ID registered in the operator information edit screen.) Touch the setting item of [Select total count] to switch in order of [Finger 1] [Finger 2] [Finger 1].
  • Page 477 After registering to the fingerprint unit is completed, the registration completion notice dialog box is displayed. Touch the button to return to the [Contents registered list] screen. Authentication operation This section describes how to log into the GOT using the fingerprint authentication. For details of the procedures for creating an extended function switch that displays a login button on the user-created screen, refer to the following manual.
  • Page 478 Put the registered finger on the fingerprint unit. When the fingerprint is correctly recognized, the dialog box shown left is displayed. Touch the button to return to the user-created screen. Login 14.12 Fingerprint authentication - 66 14.12.2 Operating the fingerprint authentication...
  • Page 479 Precautions (1) For installing fingerprint unit • The fingerprint unit complies with the protective structure IP4X. The unit cannot be used with wet fingers or oil fingers. The protective structure of the fingerprint unit differs from that of the GOT (IP67). When using the GOT, do not use with wet fingers or oil fingers.

  • Page 480: Cleaning Of Display Section (Clean)

    15. CLEANING OF DISPLAY SECTION (CLEAN) In utility, the screen can be set as not to be effected by touching the screen when clean with clothes. Refer to the below for the cleaning procedure. 19.3 Cleaning Method 15.1 Clean 15.1.1 Display operation of Clean Main menu Clean 9.3 Utility Display)

  • Page 481: Operation Of Clean

    15.1.2 Operation of Clean After cleaning the screen, touch the screen following the instruction displayed. After touching the screen, the screen returns to the Main Menu. Depending on the GOT to use, either of the following screens is displayed. • Display pattern 1 •...

  • Page 482: Maintenance Timing Setting

    16. MAINTENANCE TIME NOTIFICATION SETTING (MAINTENANCE TIMING SETTING) Energization time, touch count and writing times used as standard for the maintenance time are set. When use the maintenance timing function, battery and option function board are required. Refer to the following below for details of battery and option function board. 8.

  • Page 483: Function Of The Maintenance Timing Setting

    16.1 Maintenance Timing Setting 16.1.1 Function of the maintenance timing setting When use maintenance time notification function, battery and option function button are required. When setting the maintenance notifying time, refer to the life descrived in Section 3.2 Performance Specifications as a guide to set time or count. The maintenance time notification is output by the following two methods.

  • Page 484: Display Operation Of Maintenance Timimg Setting

    By using system alarm, the message that notifies that the maintenance time is near or it is already maintenance time is displayed. For the display of the system alarm, refer to the following. 20. TROUBLESHOOTING For the display of the system alarm, refer to the following. •...

  • Page 485: Operating The Maintenance Timing Setting

    16.1.3 Operating the maintenance timing setting Touch a select button (item to be set) on the screen. • Key: If touched, displays the keyboard in the bottom part of the screen. Numerical (For keyboard operation, refer Section 9.3.3 Basic operation of settings change page.) Define the numerical input by Enter...

  • Page 486: Addition Times Reset

    17. ADDITION TIMES RESET FOR MAINTENANCE TIME NOTIFICATION (ADDITION TIMES RESET) Displays the present value of Backlight maintenance time notification period, Display section maintenance time notification period, Touch key maintenance time notification count and Built-in flash memory maintenance time notification count which are additioned for the maintenance time notification, respectively and resets these values.

  • Page 487: Operation Of Addition Times Reset

    17.1.3 Operation of Addition times reset If touch button of each item, the addition time or the addition count becomes "0". Reset If touch button, the reset value is reflected. If touch button instead of touching button, the changed contents are canceled after the dialog below is displayed, and the screen closes.
  • Page 488 18. INSTALLATION OF COREOS, BOOTOS AND STANDARD MONITOR OS For executing the GOT utility, install the BootOS and standard monitor OS on the C drive (built-in flash memory) of the GOT, or set the OS boot drive to [A: Standard CF Card] and insert the CF card with OS files into the GOT.
  • Page 489 18.1 BootOS and Standard Monitor OS Required for installation Under-mentioned BootOS and Standard monitor OS are necessary to execute utility. OS name Function overview Storage location Built-in flash memory Requied for the control of GOT and the communication between PC and GOT. C: \G1BOOT\ Installed at factory shipment.
  • Page 490 18.2 Prior Preparations for Installing BootOS and Standard Monitor OS For the installation using GOT, the memory card storing BootOS or standard monitor OS is required. For the method of writing BootOS and standard monitor OS in the memory card, the following three methods are available.
  • Page 491 18.3 BootOS and Standard Monitor OS Installation Using Memory Card There are the following two types for the BootOS,standard monitor OS installation. (1) Installing when starting the GOT 18.3.1) All the OS and project data stored in the memory card are transferred to the GOT when powering on the GOT.

  • Page 492: Installing When Starting The Got

    If the installation failure and the GOT malfunction occur, take the following action. • If BootOS installation failed Install CoreOS. 18.5.1Installing the CoreOS) • If standard monitor OS installation failed: Install BootOS. 18.3.1Installing when starting the GOT) 18.3.1 Installing when starting the GOT The displayed message is different depending on the installation condition of standard monitor OS.

  • Page 493: Installation Method Using The Program/Data Control Function (Utility)

    BootOS, standard monitor OS is installed in the built-in flash memory. The CF card access LED is lit during install execution. Do not pull out the CF card or power OFF the GOT while the CF card access LED is lit. Now installing BootOS.
  • Page 494 Display the program/data control function screen (Utility) on the GOT, and install BootOS, standard monitor OS from the CF card to GOT. Touch [Install] CF card access LED is lit during install execution. Do not pull out the CF card or power OFF the GOT while the CF card access card is lit. GOT restarts automatically after the installation is completed.

  • Page 495: When Installing The Different Version Of Bootos

    18.4 When installing the different version of BootOS, standard monitor OS (1) BootOS installation When installing BootOS, GOT compares the version of the BootOS to be installed with the version of BootOS which is already installed. If the major version of BootOS to be installed is old, execute the following operations to prevent it from being rewritten.
  • Page 496 (c) When the version is the same or newer regardless of the data stored in the CF card (conditions (a) and (b) above) The version information and a dialog for selecting whether or not to continue installation are displayed. <GOT screen when BootOS is installed from memory card.> If touch button, installation is executed.
  • Page 497 GT1575-VTBA IN 100 240VAC 50/60Hz POWER MAX 90VA 00004701 AA00001-A SERIAL MITSUBISHI ELECTRIC BootOS version MADE IN JAPAN BACKLIGHT GT15-70VLTT (In case that the BootOS is two digits, only the first digit is written.) 18.4 When installing the different version of BootOS, standard monitor OS...

  • Page 498: Installing The Coreos

    • Powering the GOT off. • Pressing the GOT reset button. If the GOT does not operate, please consult your local Mitsubishi (Electric System) Service center or representative. If the GOT does not recover even when installing the CoreOS, the error may be caused by a hardware failure.
  • Page 499 Installing the CoreOS Write the CoreOS from GT Designer3 or GT Designer2 to the CF card. For details of GT Designer3 or GT Designer2 operation, refer to the following manual. • GT Designer3 Version1 Screen Design Manual (Fundamentals) (7 COMMUNICATION WITH GOT) •...
  • Page 500 Turning the CF card access switch off executes Core OS installation. When the installation is completed, the dialog as shown below is displayed. (The POWER LED of the GOT blinks (green/orange) at the installation completion.) Confirm that the message is displayed and power the GOT off. Remove the CF card after powering the GOT off.

  • Page 501: When The Coreos Cannot Be Installed

    When the CoreOS cannot be installed, confirm the following item. If the CoreOS cannot be installed even after checking the following item, the error may be caused by a hardware failure.ss Please consult your local Mitsubishi (Electric System) Service center or representative. Error Action (1) Check whether the CF card access switch of the GOT is on.

  • Page 502: Maintenance And Inspection

    However, the battery, liquid crystal screen and backlight have each life length. It is recommended to replace the battery, backlight periodically. (For the replacement of the liquid crystal screen, please consult Mitsubishi (Electric System) Service.) Refer to the following section for the lives of the battery, liquid crystal screen and backlight.

  • Page 503: Daily Inspection

    19.1 Daily Inspection Daily inspection items Inspection Inspection Item Criterion Action Method Check for loose Retighten screws within the GOT mounting status Securely mounted mounting screws. specified torque range. Retighten screws Loose terminal screws Not loose Retighten terminal screws with screwdriver Connection Proximate solderless Visual check...

  • Page 504: Cleaning Method

    Inspection Item Inspection Method Criterion Action Loose Retighten screws with terminal Not loose Retighten terminal screws screwdriver screws Connection Proximate status solderless Visual check Proper intervals Correct terminals Loose Retighten connector fixing Visual check Not loose connectors screws Replace with new battery Check [GOT internal when the current battery battery voltage status]...

  • Page 505: Battery Voltage Low Detection And Battery

    19.4 Battery Voltage Low Detection and Battery Replacement Low battery voltage detection and replacement The battery is used for backing up the present time or the maintenance time notification data. It is recommended that you replace battery periodically. Refer to the following for the replacement procedure. 8.11 Battery The battery voltage low detection can be confirmed by the utility and system alarm.
  • Page 506 September 26, 2008 or later, provide the latest manuals that include the explanation of the symbol. If no Mitsubishi manuals or any old manuals without the explanation of the symbol are provided, separately attach an explanatory note regarding the symbol to each manual of the devices.

  • Page 507: Backlight Shutoff Detection And Replacement

    19.5 Backlight Shutoff Detection and Replacement The backlight is built into GOT for the liquid crystal display. When GOT detects backlight shutoff, the POWER LED blinks green/orange alternately. The brightness of the backlight decreases with the lapse of usage period. When backlight shutoff is detected or the display becomes unclear, replace the backlight.

  • Page 508: Backlight Replacement

    19.6 Backlight Replacement This section explains the backlight replacing methods. 19.6.1 Applicable backlight The following backlights are applicable for GT15 Model name Description Target GOT For 15" high intensity, wide angle view TFT GT15-90XLTT GT1595-X (XGA) For 12.1" high intensity, wide angle view GT15-80SLTT GT1585V-S, GT1585-S TFT (SVGA)
  • Page 509 Remove the case after passing the battery holder through the mounting hole. When removing, take care of not cutting the cable of the battery holder. (Expanded figure of part A in Disconnect the cable connector of the upper (H01) backlight and the cable connector of the lower (H02) backlight from the GOT side connectors.
  • Page 510 Pull the upper backlight out through the hole for backlight replacement on the upper part of the GOT. In the same way, pull the lower backlight out through the hole for backlight replacement on the lower part of the GOT. Hole for backlight replacement Mount a new backlight in the reverse procedure of removal.
  • Page 511 (1) Replacement 1 Power off the GOT. Disconnect the power supply cable and communication cable. Remove the GOT from the control panel. Remove the extension unit cover from the right side of the GOT. Remove the extension unit, e.g. bus connection unit, if it is mounted. Remove the GOT rear fixing screws (8 pcs.) with a screwdriver.
  • Page 512 Press the backlight fixing latch (black) with your finger, and pull out the backlight to the left. When pulling the backlight, press the packing with your finger so that the backlight will not be hit with the packing. (When replacing GT15-80SLTT) (When replacing GT15-70SLTT, GT15-70VLTT or GT15-70VLTN) Latch Latch Packing...
  • Page 513 Pull up the backlight drive board, and disconnect the cable connector of the backlight from the connector of the backlight drive board. Press the backlight fixing latch (black) with your finger, and pull out the backlight to the left. When pulling the backlight, press the packing with your finger so that the backlight will not be hit with the packing.
  • Page 514 For GT15-60VLTT or GT15-60VLTN Backlight replacement varies with the hardware version of the applicable GOT. Before replacement, please confirm the hardware version. Appendix 2 Confirming of Versions and Conformed Standards) Type Hardware version Reference D (April, 2005) or earlier (2) Replacement procedure 2 GT1565-VTBA E (March, 2005) or later (1) Replacement procedure 1...
  • Page 515 Disconnect the cable connector of the upper (H01) backlight and the cable connector of the lower (H02) backlight from the GOT side connectors. (Expanded figure of part A in When the GOTs with the following hardware versions are used, remove the cables from the insulation sheets for protecting cables.
  • Page 516 Mount a new backlight in the reverse procedure of removal. When the GOT with the insulation sheets for protecting cables is used, place the cables between the insulation sheet and the insulation sheets for protecting cables. When connecting the cable connectors of the backlight and the GOT unit, connect by crossing the cable connectors each other as the below.
  • Page 517 (2) Replacement 2 Power off the GOT. Disconnect the power supply cable and communication cable. Remove the GOT from the control panel. Remove the extension unit cover on the right side of the GOT. Remove the extension unit, e.g. bus connection unit, if it is mounted. Remove the GOT rear fixing screws (8 pcs.) with a screwdriver, and remove the case.
  • Page 518 (3) Replacement 3 Power off the GOT Disconnect the power supply cable and communication cable. Remove the GOT from the control panel. Remove the extension unit cover on the right side of the GOT. Remove the extension unit, e.g. bus connection unit, if it is mounted. Remove the GOT rear fixing screws (8 pcs.) with a screwdriver.
  • Page 519 Disconnect the cable connector of the backlight from the GOT side connector. (Expanded figure of part A in When the GOTs with the following hardware versions are used, remove the cable from an insulation sheet for protecting cables. • GT1562-VNBA (Hardware version S to AT) •...
  • Page 520 Mount a new backlight in the reverse procedure of removal. When the GOT with the insulation sheets for protecting cables is used, place the cable between the insulation sheet and an insulation sheet for protecting cables. When connecting the cable connector of the backlight to the GOT side connector, connect it as shown below.

  • Page 521: Troubleshooting

    (3) When corrective action other than (1) and (2) above is required (System configuration check sheet) If malfunction etc. occurs even after checking with (1) and (2) above, please contact your local Mitsubishi (Electric System) Service after filling out System configuration check sheet with details about your system.
  • Page 522 GOT status check sheet Check the GOT starting from (1) GOT status. Proceed as instructed by "Action". (1) Status of the GOT Phenomenon Cause/status Action (a) Frequency when the GOT does not operate, an error occurs on the screen, etc. Occurrence frequency: Occurs always.
  • Page 523 Phenomenon Cause/status Action (d) Screen display Perform the following in order. 1) Reinstalling BootOS 2) Reinstalling standard monitor OS If the GOT is not restored by 1) and 2), perform the following. The screen is completely The LCD or BootOS may be failty. 3) Reinstalling CoreOS and then black.
  • Page 524 (2) Status of the GOT when it freezes (screen operation stopped) Phenomenon Cause/status Action (a) Switching to the utility When the system alarm display function can be used, take the action Error code (system alarm): for the error code (system alarm) Enabled displayed.
  • Page 525 (4) GOT restoration procedure Follow the procedures below starting from (a) and in order to check if the GOT is restored. If the GOT is not restored, proceed to the next item. Check item Cause Action *1, 3 (a) Press the GOT reset switch. Restored Not restored (Proceed to (b).)
  • Page 526 (5) Troubled product investigation When malfunction of the GOT is not improved, please contact your local Mitsubishi (Electric System) Service. Depending on the problem details, we may ask you to return the troubled product to us. In that case, please attach the GOT status check sheet, GOT installation status check sheet, and the system configuration check sheet filled out with details of your system.
  • Page 527 GOT installation status check sheet Check the current installation status of the GOT you are using against the GOT installation status described in the upper column of items (1) to (7). When the measure described in the lower column is needed, take the measure for the current status. When the measure is taken, check the result, "Effective"...
  • Page 528 (3) Wiring of GOT's FG cable and power line Installed The FG cable and power line of together Current status LG FG the GOT are installed together. Not installed together Power for the power equipment Measure for Separating the FG cable and the cables Effective power line of the GOT in wiring...
  • Page 529 (5) Grounding status Servo The FG cables of the control Connection cable equipment (such as PLC) and Connected CN1A CN1B Current the power equipment (such as status servo amplifier) are connected connected as shown by "a". Panel grounding Panel grounding Servo Connection cable CN1A...
  • Page 530 (6) Grounding status of the panel on which the GOT is installed Connection cable A single ground cable is led from Ground cable led from the Current the panel having the control panel having the control equipment status equipment such as PLC to the Not led panel having the GOT.
  • Page 531 (7) Power supply system The power from the same Main power PLC power system is used for the GOT, I/O AC200V Used Current status equipment (such as relay), and I/O power Not used power equipment (such as servo equipment Main circuit power amplifier).
  • Page 532 System configuration check sheet Fill in the brackets with the unit/module name. (1) System configuration of the GOT (a) GOT main unit (b) Option function board Used Not used Communication (c) Communication interface unit GOT built-in interface (d) Option unit Used Not used (e) Cable between the PLC and GOT...
  • Page 533 Entry area for recurrence (when the malfunction occurred after the action is taken) (3) Describe the operation situation when freezing of the screen or faulty display of the GOT has reocurred. 20.1 GOT Restoration Sheet - 13...

  • Page 534: Troubleshooting In Bus Connection

    When connect GOT and PLC CPU with bus connection, and the cause is not clear in "20.3.2 List of Error Message/System Alarm", execute the following troubleshooting. Refer to the following for details concerning the bus connection. •GOT1000 Series Connection Manual (Mitsubishi Products) for GT Works3 •GOT1000 Series Connection Manual for GT Designer2/GT Works2 20.2.1 Locating error positions Explanation regarding the method of specifying the error part.

  • Page 535: Further Locating Error Positions

    20.2.2 Further locating error positions If the function of the PLC cannot be recovered even when the module on which an error occurs is replaced with a new one, the error may be caused by the effect from another module. Disconnect the extension cables and bus connection cables in order from the modules starting from the module located furthest from the operating position in the system, and check for the status of occurrence of the error each time the cables are disconnected until the error does not occur.

  • Page 536: Specific Example Of Troubleshooting

    20.2.3 Specific example of troubleshooting Taking the following system as an example, troubleshooting is shown when PLC CPU error occurred. (When QnASCPU and the extension base unit are used) (main base unit) GOT 1) GOT 2) Extension cable (extension base unit) Bus connection Bus connection cable...

  • Page 537: Error Message And System Alarm

    20.3 ERROR MESSAGE AND SYSTEM ALARM This chapter describes the error message and system alarm displayed in the GOT. As the error code and error message displaying functions when an error occurs at the GOT, controller or network, there are two kinds: system alarm and advanced system alarm. For details of the system alarm and advanced system alarm, refer to the following.
  • Page 538 Checking error messages with the utility (Utility) The error code and error message can be checked with the system alarm display of the utility when the object is not set. 14.9 System Alarm Display Error code and reference manual Channel No.
  • Page 539 Channel No. will not be stored depending on the error code. For channel No. storage availability for each error code, refer to the following. 20.3.2 List of Error Message/System Alarm An alarmed drive cannot be confirmed in the system alarm regarding file access; however, it can be specified by confirming the file access error signal (b7 to 10) of system signal 2-2.
  • Page 540 20.3.2 List of Error Message/System Alarm The system alarm detected with GOT is shown below. Channel Error Error message Action code storage Decrease the number of objects from the displayed screen. For the number of maximum objects for 1 screen, refer to the Set monitor points too following.
  • Page 541 Channel Error Error message Action code storage Data of an object, to which [Collect data only when trigger conditions are satisfied] is set, are collected too frequently, or the number of objects has exceeded the number of objects Too high frequency of collectable simultaneously.
  • Page 542 Channel Error Error message Action code storage Printer is faulty or the printer power supply has not been turned on. 341 Printer error 1. Confirm the printer. 2. Turn on the power supply of the printer. Error occurred at the external I/O interface module. External power is not 1.
  • Page 543 Channel Error Error message Action code storage When executing the recipe function specifying the file register name, error occurred in PLC CPU drive. 1. Execute the recipe function again after confirming the Error in specified PLC specified PLC CPU drive. drive Confirm PLC drive 2.
  • Page 544 Channel Error Error message Action code storage The time-out error occurred during communicating. 1. Confirm the cable omission, the communication unit mounting status and status of the PLC. Channel No. is not displayed in error code or error message in the case an error occurs when using the multi- channel function.
  • Page 545 Channel Error Error message Action code storage 1. Station numbers other than master/local station are Specified station access is specified at the CC-Link connection (via G4). out of range. Confirm 2. A PLC CPU other than QCPU is accessed. station no. Confirm the station number of the project data.
  • Page 546 Channel Error Error message Action code storage The station number set in the project data and the station number set in the switching station No. device do not exist in the Ethernet setting of GT Designer3 or GT Designer2. 1. Add the station number set in the project data to the Ethernet setting of GT Designer3 or GT Designer2.
  • Page 547 Channel Error Error message Action code storage The path has been switched or timeout occurred in the redundant system. 1. Check the PLC CPU to know if the path has been switched. 2. Check the cable connection status, the communication unit installation status, and the PLC CPU status.
  • Page 548 Channel Error Error message Action code storage The communication driver set in the Communication Setting and the communication unit installed on the GOT do not Communication unit not match. corresponded to set 1. Check whether the communication driver set in the communication driver.
  • Page 549 The backlight is shut off or the lighting status of the backlight A blown backlight is is unstable. detected. If the error is detected repeatedly, contact your local Mitsubishi representative. 20.3 ERROR MESSAGE AND SYSTEM ALARM - 29 20.3.2 List of Error Message/System Alarm...
  • Page 550 Channel Error Error message Action code storage The capacity for the buffering area is insufficient in the build in flash memory Insufficient Flash ROM 1. Confirm whether there are no mistakes in specified capacity buffering area size. 2. Install the option function board with add-on memory. The capacity for the buffering area is insufficient in the user memory (RAM) Insufficient user memory...
  • Page 551 Channel Error Error message Action code storage The number of the set points of the recipe device exceeds the Recipe device points too specified range. large. Put the number of the set points of the recipe device within the specified range. Capacity shortage of user There is no empty area/space in D drive.
  • Page 552 Channel Error Error message Action code storage Logging file error. 595 Logging file error. When collecting data again, delete logging files and management files. The logging setting specified in the historical trend graph Logging setting does not setting does not exist. exist or setting value Review the historical trend graph setting and specify a logging error.
  • Page 553 Channel Error Error message Action code storage 1. Insert a memory card. 613 Error in writing logfile 2. Turn on the memory card access switch. 3. Check if the memory card is writable. 1. Insert a memory card. 614 Error in reading logfile 2.
  • Page 554 Channel Error Error message Action code storage 1. Check if terminating resistors are connected. 2. Check error codes for the PLC CPU. 3. Check the parameter for the PLC CPU on the master Abnormal cyclic station. transmission status 4. Check the error status of the master station. 5.
  • Page 555 APPENDICES Appendix 1 External Dimensions (1) GT1595 397(15.6) 320(12.6) 320(12.6) 382(15.0) Unit:mm(inch) Appendix 1 External Dimensions...
  • Page 556 (2) GT1585 316(12.44) 263(10.35) 250(9.84) 301(11.85) Unit: mm (inch) Appendix 1 External Dimensions...
  • Page 557 (3) GT157 303(11.93) 252(9.92) 222(8.74) 288(11.34) Unit: mm (inch) Appendix 1 External Dimensions...
  • Page 558 (4) GT156 241(9.49) 175.5(6.91) 175.5(6.91) 226(8.90) Unit: mm (inch) Appendix 1 External Dimensions...
  • Page 559 (5) GT155 167(6.57) 110(4.33) 110(4.33) 152(5.98) Unit: mm (inch) Appendix 1 External Dimensions...
  • Page 560 (6) Depth dimension and cable bending dimensions of the GOT with extension unit GOT rear face GOT side face 100 (3.94) or more GOT type Dimension of * GT1595 55 (2.17) GT1585 46 (1.81) 43 (1.69) GT157 46 (1.81) GT156 Extension unit 54 (2.13) GT155...
  • Page 561 (b) GT1585 Model name (bending radius of the cable) GT15-QBUS, 95(3.74) 31(1.22) 55(2.17) GT15-QBUS2 18(0.71) GT15-ABUS, 73.5(2.89) 9.5(0.37) 36(1.42) GT15-ABUS2 GT15-75QBUSL, 95(3.74) 31(1.22) 55(2.17) GT15-75QBUS2L 5(0.2) GT15-75ABUSL, 73.5(2.89) 9.5(0.37) 36(1.42) GT15-75ABUS2L GT15-RS2-9P*2, 72.5(2.85) 8.5(0.33) GT15-RS4-9S*2 30(1.18) GT15-RS4-TE*2 33.5(1.32) 0(0) 18(0.71) GT15-J71E71-100 24(0.95) 38(1.5)
  • Page 562 (c) GT157 Model name (bending radius of the cable) GT15-QBUS, 95(3.74) 45(1.77) 55(2.17) GT15-QBUS2 21(0.83) GT15-ABUS, 73.5(2.89) 23.5(0.93) 36(1.42) GT15-ABUS2 GT15-75QBUSL, 95(3.74) 45(1.77) 55(2.17) GT15-75QBUS2L 8(0.32) GT15-75ABUSL, 73.5(2.89) 23.5(0.93) 36(1.42) GT15-75ABUS2L GT15-RS2-9P*2, 72.5(2.85) 22.5(2.60) GT15-RS4-9S*2 30(1.18) GT15-RS4-TE*2 33.5(1.32) 0(0) 21(0.83) GT15-J71E71-100 24(0.95) 38(1.5)
  • Page 563 (d) GT156 Model name (bending radius of the cable) GT15-QBUS, 95(3.74) 50(1.97) 55(2.17) GT15-QBUS2 23(0.91) GT15-ABUS, 73.5(2.89) 28.5(1.12) 36(1.42) GT15-ABUS2 GT15-75QBUSL, 95(3.74) 50(1.97) 55(2.17) GT15-75QBUS2L 10(0.39) GT15-75ABUSL, 73.5(2.89) 28.5(1.12) 36(1.42) GT15-75ABUS2L GT15-RS2-9P*2, 72.5(2.85) 27.5(1.08) GT15-RS4-9S*2 30(1.18) GT15-RS4-TE*2 33.5(1.32) 0(0) 45(1.77) 23(0.91) GT15-J71E71-100 24(0.95)
  • Page 564 This dimension is applied when the external dimension of cable connector is 21.5mm. (Refer to the following fig- ure.) The dimension varies depending on the connector used. GT15-J71E71-100 Cable connector For cable details of GT15-75J71LP23-Z (Optical loop unit), consult the local office of Mitsubishi Electric System & Service, Co., Ltd. GT1585V-S GT1575V-S If cable bending radius is smaller than the lowest part of the case on the back of the GOT, the dimension of *7 is equal to or less than 0;...
  • Page 565 (7) Depth dimensions for installing multiple stages The following shows how to calculate the depth dimensions for installing multiple stages to the GOT. When installing only the first stage , refer to the dimensions in App.1 (6). Select the GOT main unit coefficient from the following list. GOT side face 100(3.94) or more G (main unit...
  • Page 566 (8) External dimensions of the communication cable (a) External dimensions of the bus connection cable connector Cable model Cable length (m(ft.)) External dimensions 0.6(2.0),1.2(3.9),3(10),5(16),10(33) Fig. 1 GT15-QC B 15(49),20(66),25(82),30(98),35(115) Fig. 1 GT15-QC BS 1.2(3.9),3(10),5(16) Fig. 2 GT15-C NB 0.6(2.0),1.2(3.9),3(10),5(16) Fig. 3 GT15-AC B 1.2(3.9),2.5(8.2) Fig.
  • Page 567 Fig.7 Fig.8 FG cable 11.5 20.5 (2.36) 1000 (1.26) (0.45) (1.26) (39.37) (2.95) (0.81) 11.5 (4.33) Cable approx. (1.97) (0.79) (0.45) Φ8.0(0.31) PLC side GOT side (19.69) PLC side Ferrite core, approx. Φ35(1.38) A7GT-CNB side 40(1.57),green holder tube 11.5 Fig.9 Fig.10 1000 11.5...
  • Page 568 (c) External dimensions of RS-232 conversion cable connector Cable model Cable length (m(ft.)) External dimensions GT01-C30R2-6P 3(10) Fig. 17 GT01-C30R2-9S 3(10) Fig. 18 GT01-C30R2-25P 3(10) Fig. 19 GT10-C30R2-6P 3(10) Fig. 20 Unit:mm(inch) Fig.17 Fig.18 3000 3000 (0.63) (1.97) (118.11) (1.97) (0.63) (0.63) (1.97)
  • Page 569 Appendix 2 Confirming of Versions and Conformed Standards Rating plate The GOT hardware version, function version, and the standards conformed by a GOT can be confirmed at the rating plate on the GOT rear face. BootOS version (In case that the BootOS is two digits, only the first digit is written.) Hardware version Function version...
  • Page 570 Appendix 3 Usage Condition of Utility Function The function which can be used differs according to the GOT type. Moreover, there are the function which can be set with drawing software and the function which cannot be set. : Applicable : Not applicable : Not required Refe-...
  • Page 571 : Applicable : Not applicable : Not required Refe- Item Functions overview GT15 SoftGOT GT11 rence 1000 Behavior of Setting the GOT operation when a device with the same IP setup duplicate IPs address as that of the GOT is added to the network afterwards. Selecting a base clock Time setting &...
  • Page 572 : Applicable : Not applicable : Not required Refe- Item Functions overview GT15 SoftGOT GT11 rence 1000 Deleting or checking special data files Deleting special data folders Special data Downloading special data stored in the A drive (Standard CF information Program card) or B drive (Extended memory card) to the C drive (Built-in /data...
  • Page 573 : Applicable : Not applicable : Not required Refe- Item Functions overview GT15 SoftGOT GT11 rence 1000 Adding/editing/deleting operator information, changing Operator info. passwords Debug & management Setting the automatic logout time and password expiration date self check Finferprint Adding/deleting fingerprint information Authentication Clean Displaying the screen for cleaning the display...
  • Page 574 Appendix 4 Transportation Precautions When transporting lithium batteries, make sure to treat them based on the transport regulations. Appendix 4.1 Relevant models The battery for the GOT1000 Series is classified as shown in the table below. Product name Model Description Handled as Battery for GOT1000 Series GT15-BAT...
  • Page 575 Appendix 5 How to Choose Drive For using a CF card, select the A or B drive according to the following. (1) A drive The CF card interface built in the GOT is used as the A drive. (2) B drive The following two units can be used as the B drive.
  • Page 576 Appendix 6 List of Functions Added by GT Designer2 Version Upgrade (For GOT1000 Series) The following describes the functions added by version upgrade of the GT Designer2 Version2.96A (partially including 2.98C). For function comparisons among GOTs, refer to the following. GT Designer2 Version Basic Operation/Data Transfer Manual (App3-2 List of Differences between the GOT1000 series and GOT-900 series...
  • Page 577 Version of GT Target Models Version of OS Designer2 GT1562-VNBA, GT1562-VNBD 2.18U Standard monitor OS [02.02.**] GT1555-VTBD 2.58L Standard monitor OS [03.03.**] GT1555-QTBD, GT1555-QSBD, GT1550-QLBD 2.32J Standard monitor OS [03.00.**] GT1155-QTBDQ, GT1155-QSBDQ, GT1155-QTBDA, GT1155-QSBDA 2.58L Standard monitor OS [03.03.**] GT1150-QLBDQ, GT1150-QLBDA GT1155-QTBD 2.73B Standard monitor OS [03.09.**]...
  • Page 578 Version of GT Item Description Version of OS Designer2 Communication driver Bus connection Supporting connection to Q170MCPU 2.96A Bus(Q)[04.04.**] Communication driver Supporting the direct CPU connection 2.90U A/QnA/Q CPU, QJ71C24 [04.02.**] MELSEC-FX [04.02.**] Direct connection to Supporting connection to Q00UJCPU, Q00UCPU, Communication driver Q01UCPU, Q10UDHCPU, Q20UDHCPU, Q10UDEHCPU, 2.91V...
  • Page 579 Version of GT Item Description Version of OS Designer2 Communication driver Supporting connection to CC-Link (Via G4) 2.90U CC-Link(G4) [04.02.**] Supporting connection to Q00UJCPU, Q00UCPU, CC-Link connection (Via Communication driver Q01UCPU, Q10UDHCPU, Q20UDHCPU, Q10UDEHCPU, 2.91V CC-Link(G4) [04.03.**] and Q20UDEHCPU Communication driver Supporting connection to Q170MCPU 2.96A CC-Link(G4) [04.04.**]...
  • Page 580 Version of GT Item Description Version of OS Designer2 Communication driver YOKOGAWA FA500/FA-M3/ YOKOGAWA PLC Supporting connection to YOKOGAWA PLC 2.90U STARDOM [04.02.**] connection Ethernet(YOKOGAWA) [04.02.**] MODBUS/TCP [04.02.**] Communication driver AB SLC500, AB 1:N [04.02.**] ALLEN-BRADLEY PLC Supporting connection to ALLEN-BRADLEY PLC 2.90U AB MicroLogix [04.02.**] connection...
  • Page 581 Version of GT Item Description Version of OS Designer2 Communication driver Supporting connection to servo amplifier 2.90U MELSERVO-J3, J2S/M [04.02.**] Servo amplifier connection Communication driver Supporting connection to MR-J2S-*CL 2.96A MELSERVO-J3, J2S/M [04.04.**] Communication driver AJ71QC24, MELDAS C6* [04.02.**] CNC connection MELSECNET/H [04.02.**] Supporting connection to CNC (MELDAS C6/C64 series) 2.90U...
  • Page 582 Version of GT11 GT Soft Item Description Version of OS GOT1000 Serial Designer2 Communication driver Supporting connection to CRnQ-700 2.73B Bus connection Q [03.09.**] Supporting connection to Q13UDHCPU Communication driver 2.77F and Q26UDHCPU Bus connection Q [03.12.**] Supporting connection to Q02PHCPU and Q06PHCPU Communication driver 2.82L...
  • Page 583 Version of GT11 GT Soft Item Description Version of OS GOT1000 Serial Designer2 Supporting connection to Q00UJCPU, Communication driver Q00UCPU, Q01UCPU, Q10UDHCPU, 2.91V A/QnA/QCPU, QJ71C24 Q20UDHCPU, Q10UDEHCPU, and [04.03.**] Direct connection Q20UDEHCPU to CPU Communication driver Supporting connection to Q170MCPU 2.96A A/QnA/QCPU, QJ71C24 [04.04.**]...
  • Page 584 Version of GT11 GT Soft Item Description Version of OS GOT1000 Serial Designer2 Supporting connection to Universal model QCPU Communication driver 2.63R Supporting connection to Q17nDCPU MELSECNET/H[03.07.**] Supporting connection to CNC C70 Communication driver Supporting connection to CRnQ-700 2.73B MELSECNET/H[03.09.**] Supporting connection to Q13UDHCPU Communication driver 2.77F...
  • Page 585 Version of GT11 GT Soft Item Description Version of OS GOT1000 Serial Designer2 Communication driver Supporting connection to CC-Link IE 2.77F CC-Link IE Controller Controller Network Network[03.12.**] Supporting connection to Q02PHCPU and Q06PHCPU Communication driver Supporting connection to Q03UDECPU, 2.82L CC-Link IE Controller Q04UDEHCPU, Q06UDEHCPU, CC-Link IE...
  • Page 586 Version of GT11 GT Soft Item Description Version of OS GOT1000 Serial Designer2 Supporting connection to Universal model QCPU Supporting connection to Q17nDCPU Communication driver 2.63R CC-Link(G4)[03.07.**] Supporting connection to CNC C70 Supporting the redundant system with the redundant type extension base unit Supporting connection to AJ65BT-R2N Supporting connection to CRnQ-700 Communication driver...
  • Page 587 Version of GT11 GT Soft Item Description Version of OS GOT1000 Serial Designer2 The communication driver name is changed. Supporting connection to Q02PHCPU and Communication driver Q06PHCPU 2.82L Ethernet(MELSEC),Q17nNC, Supporting connection to Q03UDECPU, CRnD-700 [03.13.**] Q04UDEHCPU, Q06UDEHCPU, Q13UDEHCPU, and Q26UDEHCPU Ethernet Supporting connection to QS001CPU connection...
  • Page 588 Version of GT11 GT Soft Item Description Version of OS GOT1000 Serial Designer2 JTEKT PLC Communication driver Supporting connection to JTEKT PLC 2.32J connection JTEKT TOYOPUC-PC [03.00.**] Communication driver Supporting connection to HITACHI IES HITACHI HIDIC H [01.02.**] 2.09K HITACHI HIDIC H (Protocol 2) [01.02.**] HITACHI IES PLC connection...
  • Page 589 Version of GT11 GT Soft Item Description Version of OS GOT1000 Serial Designer2 Can use L device by MicroLogix 1000/ Communication driver 2.18U 1200/1500 series AB MicroLogix [02.02.**] ALLEN- Communication driver Supporting connection to Control/ BRADLEY PLC 2.58L AB Control/CompactLogix CompactLogix connection [03.03.**]...
  • Page 590 Version of GT11 GT Soft Item Description Version of OS GOT1000 Serial Designer2 Supporting connection to FUJI Communication driver 2.32J temperature controller FUJI PXR/PXG/PXH [03.00.**] FUJI temperature The functions to automatically stop controller monitoring faulty stations and to Communication driver connection 2.58L disconnect communications with...
  • Page 591 Version of GT11 GT Soft Item Description Version of OS GOT1000 Serial Designer2 Supporting the point table setting for MR- Communication driver 2.32J J2S-*CP MELSERVO-J3, J2S/M [03.00.**] Communication driver Supporting the test run mode 2.32J MELSERVO-J3, J2S/M [03.00.**] Servo amplifier Supporting settings for the number of Communication driver 2.73B...
  • Page 592 Version of GT11 GT Soft Item Description Version of OS GOT1000 Serial Designer2 Supporting the computer link connection between the GOT and PLC on GX 2.77F Standard monitor OS [03.12.**] Developer Supporting the computer link connection between the GOT and PLC on PX Developer FA transparent 2.82L...
  • Page 593 Version of GT GT Soft Item Description Version of OS Designer2 GOT1000 Improved library structure and added 2.09K import function Improved user library structure, expanded the user library registration capacity, 2.18U copying the figure data to the user library, etc. Addition of fixed frame figure 2.18U Library workspace...
  • Page 594 Version of GT GT Soft Item Description Version of OS Designer2 GOT1000 Enables checking for security level Screen Preview switching and language switching in 2.18U image after switching Enables switching screens in the Screen Screen preview 2.96A Preview window. Wizard for setting the GOT type, controller Wizard type and communication settings when 2.18U...
  • Page 595 Version of GT GT Soft Item Description Version of OS Designer2 GOT1000 Functions of the collection target Device list selection, jump, file output, and others are 2.73B added. Enables displaying the direct input texts in Text list 2.90U a list. Enables displaying BMP or JPEG image Reading BMP or 2.77F...
  • Page 596 Version of GT Item Description Version of OS Designer2 Standard monitor OS [04.02.**] Enables using up to two channels when the GT16M-R2 is RGB display 2.90U Extended function OS used for the RGB input unit. Video/RGB [04.02.**] Function to display or record video images taken by a video Standard monitor OS [04.02.**] camera connected to the multimedia unit and to play video 2.90U...
  • Page 597 Version of GT GT Soft Item Description Version of OS Designer2 GOT1000 Figure Supporting logo text 2.96A Standard monitor OS [04.04.**] Enables setting the coordinates and the Object 2.90U size using values. 2.09K Standard monitor OS [01.02.**] Windows fonts applicable Text Stroke font applicable 2.43V...
  • Page 598 Version of GT GT Soft Item Description Version of OS Designer2 GOT1000 The settable range of GS is extended to 2.96A the range from GS0 to GS2047. For the GOT multidrop connection, the GOT internal device to store the GOT station number is 2.96A device added.
  • Page 599 Version of GT GT Soft Item Description Version of OS Designer2 GOT1000 Data save device of MELSEC-Q / QnA ladder monitor data can be set at GT 2.18U Designer2. Automatic program read at the start of ladder monitor for MELSEC-Q/QnA/ 2.43V Priority Level Comment can be set.
  • Page 600 Version of GT GT Soft Item Description Version of OS Designer2 GOT1000 User defined key window display can be switched in synchronization with the 2.18U Standard monitor OS [02.02.**] language switching device. In the user defined key window, input Key Window range (maximum value) and input range 2.18U Standard monitor OS [02.02.**]...
  • Page 601 Version of GT GT Soft Item Description Version of OS Designer2 GOT1000 [FX List Monitor], [Operator Information Management], [Log-in/Log-out (Operator Authentication)], [Password Change (Operator Authentication)], and [Backup/ Restore] are added to [Switch Action] of 2.58L Standard monitor OS[03.03.**] the special function switch. The name [Password] is changed to [Password (Security Level)] in [Switch Action] of the special function switch.
  • Page 602 Version of GT GT Soft Item Description Version of OS Designer2 GOT1000 Advanced alarm Enables setting whether to enable or 2.90U Standard monitor OS [04.02.**] popup display disable the display position switching. Number of alarms settable for GT11 is extended to the same as GT15 (Up to 2.27D Standard monitor OS [02.04.**] 8192 alarms).
  • Page 603 Version of GT GT Soft Item Description Version of OS Designer2 GOT1000 Up to 101 points can be set for scale, 2.27D Standard monitor OS [02.04.**] value number. Trend graph Function to collect data only when display 2.32J Standard monitor OS [03.00.**] trigger is met is added.
  • Page 604 Version of GT GT Soft Item Description Version of OS Designer2 GOT1000 Standard monitor OS [02.04.**] Function to save recipe data to the A drive Recipe function 2.27D Option OS (standard CF card) for GT11 Recipe [02.04.**] Standard monitor OS [01.02.**] The extended function of the existing 2.09K Option OS...
  • Page 605 Version of GT GT Soft Item Description Version of OS Designer2 GOT1000 Screen calling setting with dragging is 2.43V possible. Specifying of placement position (Front/ Back) for the basic and called screens is 2.43V Standard monitor OS [03.01.**] Set overlay screen possible.
  • Page 606 Other functions added (1) For GT16 Version of GT Item Description Version of OS Designer2 All GT15 functions added by GT Designer2 Version2.90U or Other function 2.90U Standard monitor OS [04.02.**] earlier are available. Q motion monitor Option OS Supporting Q170MCPU 2.96A function Q motion monitor [04.04.**]...
  • Page 607 Version of GT GT Soft Item Description Version of OS Designer2 GOT1000 Extended function OS and option OS can be installed unlimitedly. Extended function OS and option OS can Unlimited be operated up to 21. installation of (Conventionally, both of above OSs can extended function 2.18U BootOS [02.02.**.E]...
  • Page 608 Version of GT GT Soft Item Description Version of OS Designer2 GOT1000 Supporting reading comments from CF Option OS 2.58L cards Ladder monitor for MELSEC- Q/QnA [03.03.**] Ladder monitoring Supporting monitoring local devices 2.58L function Option OS Supporting connection to Universal model 2.63R Ladder monitor for MELSEC- QCPU...
  • Page 609 Version of GT GT Soft Item Description Version of OS Designer2 GOT1000 Function to execute servo monitor and Option OS parameter setting for motion controller 2.18U Q motion monitor [02.02.**] CPU (Q series) Parameter setting is enabled for 2.32J Standard monitor OS [03.00.**] Q172HCPU/Q173HCPU.
  • Page 610 Version of GT GT Soft Item Description Version of OS Designer2 GOT1000 Option OS Gateway function (Mail) Function for monitoring each controller from one GOT/PC or sending a mail from 2.09K [01.02.**] Gateway function (Server, Client) [01.02.**] Gateway function Option OS Supporting the FTP server function 2.18U Gateway functionFTP [02.02.**]...
  • Page 611 Appendix 6.2 For GT10 GT Designer2 Version 2.43V or later is applicable to GT1020. GT Designer2 Version 2.58L or later is applicable to GT1030. GT Designer2 Version 2.90U or later is applicable to GT105 GT Designer2 Version 2.90U or later is applicable to GT104 Added GOT main unit Version of GT Target Models...
  • Page 612 Version of GT Item Description Version of OS 105 / Designer2 1030 1020 TOSHIBA Communication driver Supporting connection to TOSHIBA MACHINE MACHINE PLC 2.77F TOSHIBA MACHINE TCmini connection [01.03.**] Standard monitor OS [01.07.**] Supporting connection to PANASONIC Communication driver 2.73B INDUSTRIAL DEVICES SUNX PLC MATSUSHITA MEWNET-FP PANASONIC...
  • Page 613 Added GT Designer2 functions Version of GT Item Description Version of OS 105 / Designer2 1030 1020 Library Enables setting the background color of the 2.47Z workspace figures in the Library Editor screen. Project data matching is available between data Project data stored in the personal computer and data 2.96A...
  • Page 614 Version of GT Item Description Version of OS 105 / Designer2 1030 1020 The clock data storage to the GD device is Clock function 2.73B Standard monitor OS [01.07.**] possible. Numerical Format String setting is possible. 2.77F Standard monitor OS [01.08.**] Display/ Enables setting the asterisk display.
  • Page 615 MEMO Appendix 6 List of Functions Added by GT Designer2 Version Upgrade - 61 (For GOT1000 Series)
  • Page 616 Installing procedure ..........8-3 Backup/Restore Settings ........11-44 Component list............2-2 Drive for backup data ........11-44 Connection cables for MITSUBISHI PLCs..... 2-9 Drive for backup setting ......... 11-44 Max. of backup data........11-44 Trigger backup setting........11-48 Daily inspection............ 19-2 Bar code reader ...........

  • Page 617: Option ...................................................................

    Drive name allocation ........13-1 Display operation of maintenance timimg OS version confirmation........13-4 setting............... 16-3 Fingerprint ............14-58 Maintenance time notification function ..... 16-2 Fingerprint ID ..........14-58 Operation of maintenance time notification..16-4 Fingerprint information ........14-58 MELSECNET/10 communication unit....2-7,8-2 Fingerprint unit ..........

  • Page 618: Installation Procedure 6

    Printer unit type ..........8-18 Touch panel check..........14-15 Program/data control ........... 13-1 Display operation of touch panel check ..14-15 Project data transfer cable........2-20 Touch panel check function ......14-15 Project information..........13-15 Touch panel check operations ....... 14-16 Display operation of project information..

  • Page 619: Battery 8

    1. Gratis Warranty Term and Gratis Warranty Range If any faults or defects (hereinafter "Failure") found to be the responsibility of Mitsubishi occurs during use of the product within the gratis warranty term, the product shall be repaired at no cost via the sales representative or Mitsubishi Service Company.
  • Page 620 GOT is a registered trademark of Mitsubishi Electric Corporation. Microsoft, Windows, Windows NT, Windows Server, Windows Vista, and Windows 7 are registered trademarks or trademarks of Microsoft Corporation in the United States and other countries. Adobe and Adobe Reader are registered trademarks of Adobe Systems Incorporated.
  • Page 622 GT15 User's Manual GT15-U(SHO)-E MODEL MODEL 1D7M23 CODE SH(NA)-080528ENG-AG(1404)MEE HEAD OFFICE : TOKYO BUILDING, 2-7-3 MARUNOUCHI, CHIYODA-KU, TOKYO 100-8310, JAPAN NAGOYA WORKS : 1-14 , YADA-MINAMI 5-CHOME , HIGASHI-KU, NAGOYA , JAPAN When exported from Japan, this manual does not require application to the Ministry of Economy, Trade and Industry for service transaction permission.
