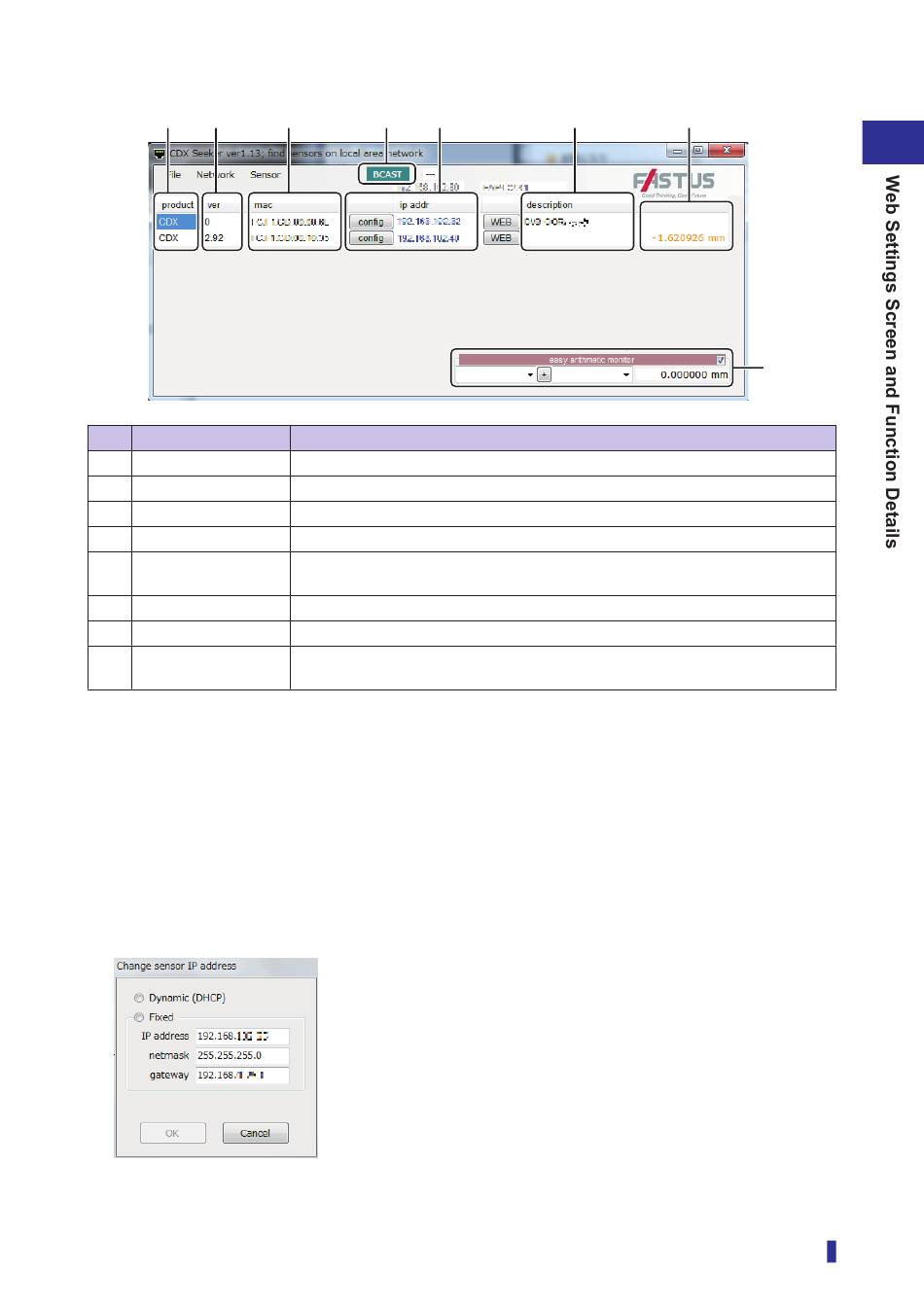

Once the software is launched, a search for all CDX Series products on the network will begin automatically.
1 2
Number Item
1 Broadcast display
2 Product
3 Version
4 Mac address
5 IP address
6 Description
7 Measured value
8 Easy arithmetic
monitor
Opening the CDX Settings screen
„
To view the settings and actions of a CDX Series product, click the "WEB" button for the in the list to display
the measurement screen for that CDX Series product.
Changing the IP address
„
Press the "Setting" button from the menu to bring up the IP address update menu for the sensor.
Change the address and press "OK" to change the communication settings immediately.
There is no need to restart the CDX Series product.
3 4 5
When operation is being carried out correctly, "BCAST" will flash.
Displays the CDX Series product model.
Displays the CDX Series firmware version
Displays the Mac address of the CDX Series product.
Displays the IP address of the CDX Series product. Press "Setting" to display the
menu for changing network settings.
Use this function to provide any additional notes. Double-click to edit.
The current measurement results will be displayed.
You can add/subtract the measured values of multiple sensors. Select the sensors
from the lists, and then click the "+" or "-" mark to switch the type of calculation.
Checking the IP Address on CDX Series Products
6 7
Description
1
2
8
2-3
