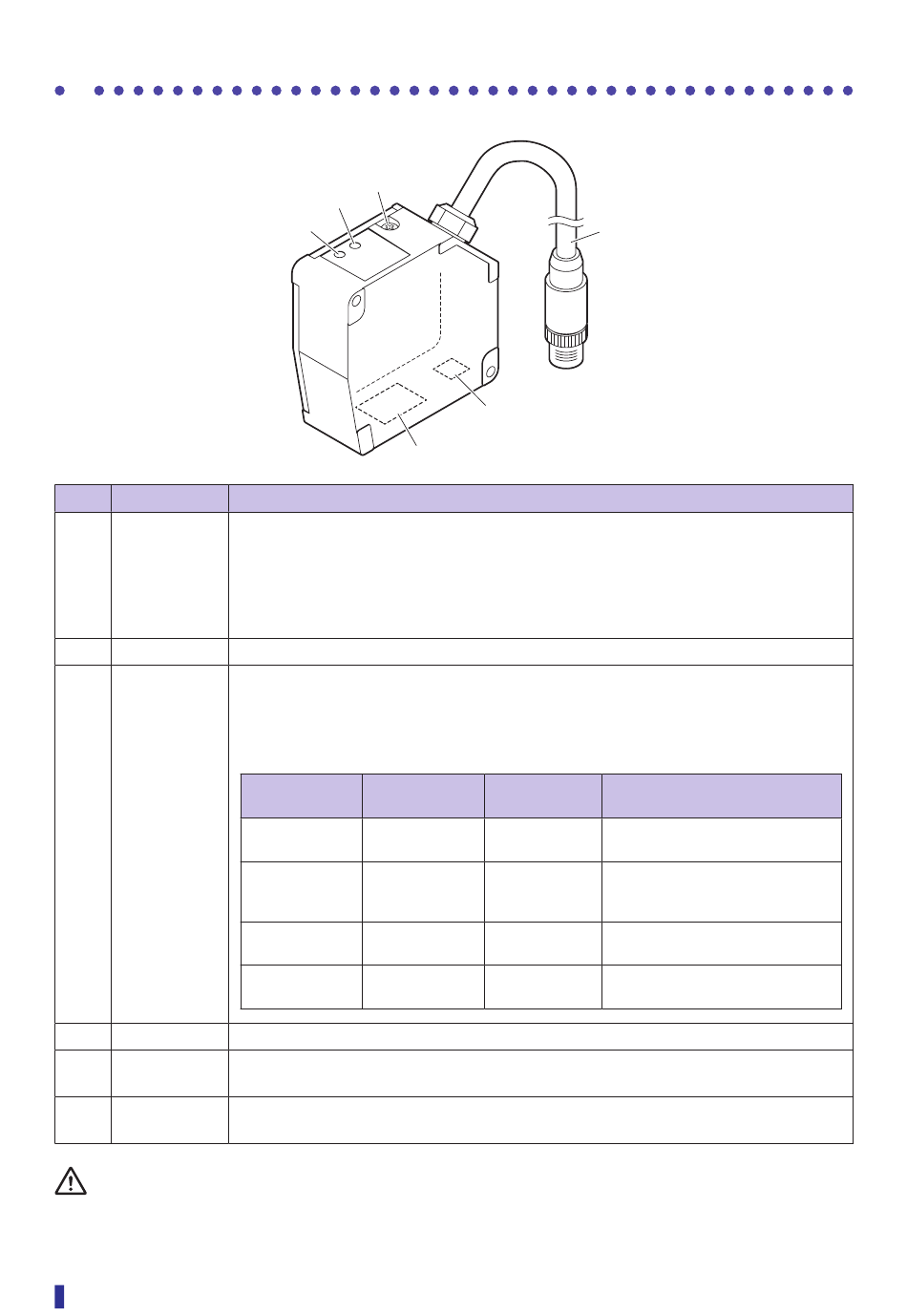

1-4 Names and Functions of Parts

Number
Name
1
Status LED
2
Communication LED Lights up green when Ethernet communication is established.
3
Initialization
button
4
Cable
5
Laser exposure
window
6
Laser light
reception window
Caution
When using the sensor, never look into the laser exposure window (5). Doing so may have adverse affects
on the eyes, including temporary blindness.
Names and Functions of Parts
1-6
3
1
2
Lights up or flashes according to the operation status of the sensor.
Laser OFF: Flashes blue
Alarm status: Flashes red (when reception of light cannot be confirmed)
*When measuring a transparent target, the LED will flash twice if there is no specified surface.
Control output: Lights up orange (when any output is ON)
Lights up green (when any output is OFF)
Remove the screws to access the initialization button. Hold down the button with an Allen wrench
(approximately 2 mm), a screw (approximately M2), or a similar flat-tipped object to reset all the settings.
When initialization is finished, be sure to return the screws to their previous locations and tighten them in
order to waterproof the product.
(Tightening torque: 0.08 N·m or less)
Length of time the
Action
button is pushed
Less than 1 sec
(None)
1 to less than
IP address
5 seconds
initialization
(static IP)
5 to less than
IP address
10 seconds
change (DHCP)
10 seconds or
Initialize all
more
settings
Connects to the head extension cable or the branch connector.
The light from the laser is emitted here. Absolutely do not look into this window.
The reflected laser light enters this window. During measurement, ensure that this window is
not blocked.
5
6
Function
Status LED
operation
(No change)
Flashes orange
(slow)
Flashes green
(slow)
Flashes green
(fast)
4
Description
The change may not be applied if the
button is not pressed long enough.
The IP address will be changed to
"192.168.0.10."
Set the IP address to DHCP and
acquire the IP address.
All settings are returned to their
factory default settings.
