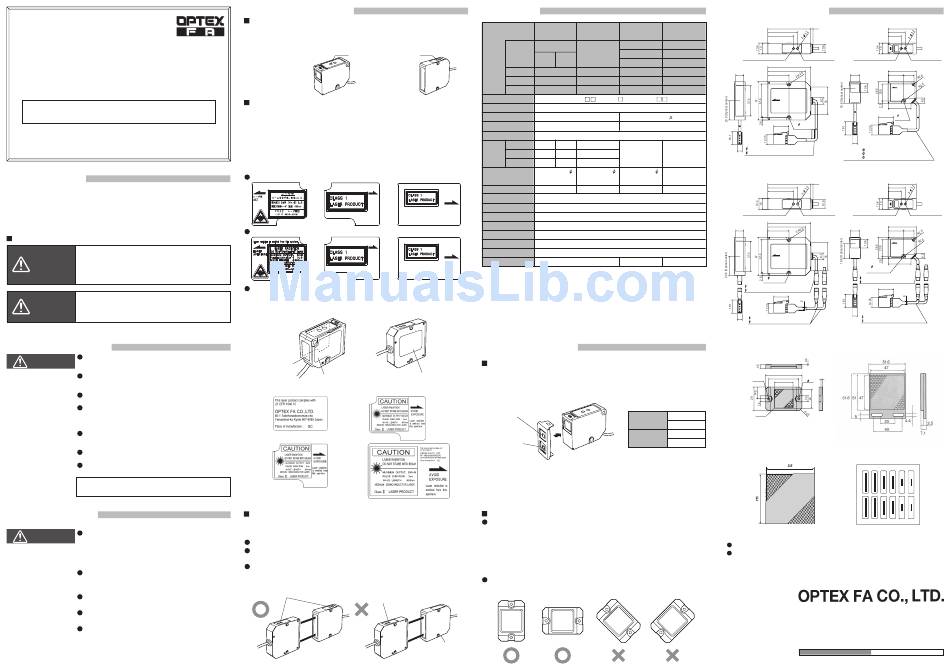

Digital Amplifier Detachable Photoelectronic Sensor
DS Series
Laser Type Sensor Head
DSR -800
DSTC-200-M8
DSR -5000
DSTA-200-M8
DSD -100
DSTC-200
DSTA-200
Instruction Manual
* Thank you for purchasing the DS Series. We hope you are fully satisfied with this product and enjoy
its performance.
* Carefully read this instruction manual and keep it for future reference.
Safety Precautions
Carefully read and understand the safety precautions before operation.
The important information is provided to protect your health and property.
Do not apply any other installing or operating procedure other than that described in
this manual.
Meanings of Safety Symbols
Indicates a possible hazard that may result in
death, serious injury, or serious property damage
WARNING
if the product is used without observing the stated
instructions.
Indicates a possible hazard that may result in
CAUTION
personal injury or property damage if the product is
used without observing the stated instructions.
Mandatory Requirements
This product is not an explosion-proof construction. Do
WARNING
not use the product under flammable, explosive gas or
liquid environment.
Use of controls or adjustments or performance of procedures
other than those specified herein may result in hazardous
radiation exposure.
The light source of this product applies the visible light
semiconductor laser.
Do not disassemble or modify the product since it is not
designed to automatically stop the laser emission when
open. Disassembling or modifying at customer's end may
cause personal injury, fire or electric shock.
Do not stare into the laser beam directly, install at eye-
level of the people around, nor expose the beam to the
human body intentionally.
Use the exclusive amplifier unit to connect the product.
Not doing so may result in an accident or product damage.
Wiring or disconnecting with the power ON is danger.
Never fail to turn OFF the power supply.
This product cannot be used as a safety device to
protect human body.
Operating Precautions
Installing in the following places may result in malfunction:
CAUTION
1. A dusty or steamy place
2. A place generating corrosive gas
3. A place directly receiving scattering water or oil
4. A place suffered from heavy vibration or impact
Do not use the sensor outside nor expose the detection
surfacedirectly to ambient light (laser light, incandescent
light and sunlight).
Do not use the sensor in transient state after power on
approx. 100 ms).
The sensor performance may depend on the individual
units.
Wipe off dirt on the emitting/receiving parts to maintain
correct detection. Also, avoid direct impact on the
product.
Precautions for using laser
Laser emission warning light
Confirmation of laser emission is available with the laser emission warning light.
It starts lighting after turning the power on and keeps lighting while the laser is being
radiated. It is also possible to confirm with the exclusive amplifier unit.
Laser radiation warning light
(Green)
(DSR-800/DSR-5000
DSD-100/DSTC-D
(DSTA-D/DSTA-S)
DSTC-S)

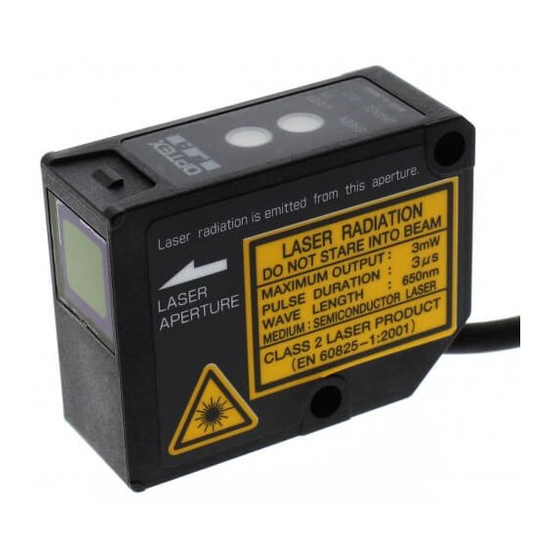

Laser label
This product is classified as a Class 2 (II) Laser Product by JIS C6802 / IEC / FDA Laser
Safety Standard as this radiates the visible laser beam. The warning label and the
description label in English are attached on the side face of the sensor head indicating the
CLASS 2/Class II.
* The emitters DSTC-D/DSTA-D and DSTC-S/DSTA-S of DST-200/M8 and DSTA-200/-M8 are rated
as Class II by the FDA standard (when exporting to the US). However, the class 1 is applied for the
JIS/IEC standard.
Exchange the label enclosed with the product.
Japan
Other countries (except US)
US
When exporting this machine to the US, the US laser control, FDA (Food and Drug
Administration) is applied. This product has been already reported to CDRH (Center
for Devices and Radiological Health). For details, contact our Customer Service.
(DSR-800/DSR-5000
DSD-100/DSTC-D
(DSTA-D/DSTA-S)
DSTC-S)
Certification label (1)
FDA warning / Laser open
FDA warning /
/ Certification label (4)
Laser open label (2)(3)
( 1 )
( 3 )
( 2 )
( 4 )
Precautions in using DSTA-200 / DSTA-200-M8
When using DSTA-200 or DSTA-200-M8 for length measurement, follow the
instructions below.
Emitter is applied to gray cable and Receiver is applied to black one.
Install the sensor so that the sensor of flood beam is positioned in the center of the
light receiving part. (Install so that the indication value of amplifier unit is
maximum.)
Install the flooding/receiving device in the same direction.
Refer to each label or indicator light as a standard.
Indicator light
Indicator light
Specifications
Diffuse
Retro
Model
reflection type
reflection type
DSD-100
Cable
DSR-
800
5000
-
-
M8 Relay-type
Emitter M8
-
-
Detector M8
-
-
Adaptable amplifier unit
DSA-M
/DSA-M
Light source
Visible light semiconductor laser 650nm
Output
max. 3mW
IEC/JIS CLASS
CLASS 2
FDA CLASS
Detection
Long
8 m
0.5...50 m
1 m
distance
Standard
5 m
0.3...35 m
0.7 m
*1
Fast
2 m
0.1...20 m
0.25 m
Approx. 2 mm
Approx. 1 mm
Beam size *2
(Distance: 2 m)
(Distance: 1 m)
Repeat accuracy
*3
0.2 mm
0.2 mm
Indicator light
Laser radiation indictor light: Green Output indicator light: Orange
Operating temperature/humidity
-10 to +55°C/35 to 85 %RH (No condensation or freezing)
Store temperature/humidity
-25 to +70°C/35 to 85 %RH (No condensation or freezing)
Ambient light
3,000 lx (Incandescent light)
Shock resistance
10 to 55 Hz Double-amplitude 1.5 mm 2 hours at each direction of X, Y and Z
Protection category
Material
PC (Case, Cover) PMMA / Glass (Front glass)
Weight (including the codes)*4
45g
* 1 DSD-100 : With white paper (90 %) of 200 x 200 mm
DSR-800 : With the reflector MP-45 (accessory)
DSR-5000 : With the reflector P250F (accessory)
* 2 Defined with center strength 1/e
2
(13.5%). There may be leak light other than the specified spot size. The sensor
may be damaged when there is a highly reflective object around the targets
* 3 Right angle to sensing axis.(to 2m)
* 4 The weights of DSTC-200 and DSTA-200 include the emitter and the ditector.
Accessories and others
Lens attachment (Model BL-W130L-1:Optional)
Installing the attachment to DSR-800・DSR-5000 allows two types of beam shape: Line
beam and area beam. Attach the beam-shape lens and the optical axis to use together.
Line beam lens
Area beam lens
* The beam form may depend on the individual products.
* Do not use for DSD-100. Uninstallable to DSTA-200, DSTA-200-M8, nor DSTA-S.
MP-45 Reflector (attached to DSR-800
Instruction for use
1. When cleaning, blow off or lightly wipe with a soft cloth.
Do not use thinner, benzene or kerosene.
2. Avoid strong push of the reflecting surface or direct impact.
Doing so may result in damaging the prism and deteriorating the performance.
3. Avoid using outside or under the environment where oil or water scatters.
Installation procedure
Refer to the figure below and use in the correct direction.
Improper installation may cause malfunction.
Indicator light
DIMENSIONAL DRAWING
• DSTA-200
Through beam
Through beam/
52.9
36.6
type
Length measurement type
31.65
DSTC-200
DSTA-200
Emitter: DSTC-D
Emitter: DSTA-D
Laser emission indicator light
Detector: DSTC-200 Detector: DSTA-200
52.9
46.4
DSTC-200-M8 DSTA-200-M8
9.9
25.9
DSTC-S
DSTA-S
DSTC-R
DSTA-R
-M8 / DSA-S
max. 390 W
18.5
CLASS 1
Class II
1
2
3
2 m
4
6
3 2 core cable Standard length 2m (Ash)
2 m
Length measurement mode: 0.5 m
3 4 core cable Standard length 2m (Black)
(Only Long and Standard)
Approx. 2 mm
Approx. 30 x 2.5 mm
• DSTA-200-M8
(Distance: 2 m)
(Distance: 2 m)
52.9
36.6
0.2 mm
0.3 mm
31.65
Laser emission indicator light
52.9
10,000 lx (Sunlight)
46.4
9.9
25.9
IP67
90g
115g
2- 3.2
Mounting hole
3 2 core cable Standard length 0.15m (Ash) Tip: M8 Plug
3 4 core cable Standard length 0.15m (Black) Tip: M8 Plug
18.5
1
2
3
4
6
3 2core cable Standard length 2m (Ash) Tip: M8 Jack
3 4core cable Standard length 2m (Black) Tip: M8 Jack
• MP-45
44.8
37
2-R3.7
23
Beam shape
Approx. 40 x 1 mm
4-R1.2
Line beam
(Distance: 300 mm)
Approx. 35 x 35 mm
Area beam
(Distance: 300 mm)
・MP-225 (Cutting type)
・
DSR-5000)
The product specification may change without notice for improvement.
For any inquiry, please contact the manufacture/vendor below.
(unit : mm)
• DSR-800
2.7
34.6
• DSR-5000
21.
16.1
• DSD-100
• DSTC-200
Output indicator light
Laser emission indicator light
Output indicator light
34.6
11.2
19.1
12.7
28.1
18.5
2- 3.2
Mounting hole
2- 3.2
1
Mounting hole
2
3
4
6
DSR/DSD :
3 4 core cable Standard length 2m
DSTC
:
3 2 core cable Standard length 2m (Ash)
3 4 core cable Standard length 2m (Black)
• DSTC-200-M8
2.7
34.6
21.
16.1
Output indicator light
Laser emission indicator light
Output indicator light
34.6
11.2
19.1
12.7
28.1
2- 3.2
Mounting hole
3 2 core cable Standard length 0.15m (Ash) Tip: M8 Plug
3 4 core cable Standard length 0.15m (Black) Tip: M8 Plug
18.5
1
2
3
4
6
3 2core cable Standard length 2m (Ash) Tip: M8 Jack
3 4core cable Standard length 2m (Black) Tip: M8 Jack
• P250F
2
2- 3.2
・BL-W130L-2 [Slit for DSTA-200]
Head office: Mitsui Seimei Kyoto Yamashina BLDG 6F, 46-1
Takehanadounomae-cho, Yamashina-ku, Kyoto
607-8085 Japan
TEL: +81-(0)75-594-8123
FAX: +81-(0)75-594-8124
http://www.optex-fa.com
Website
0536692
