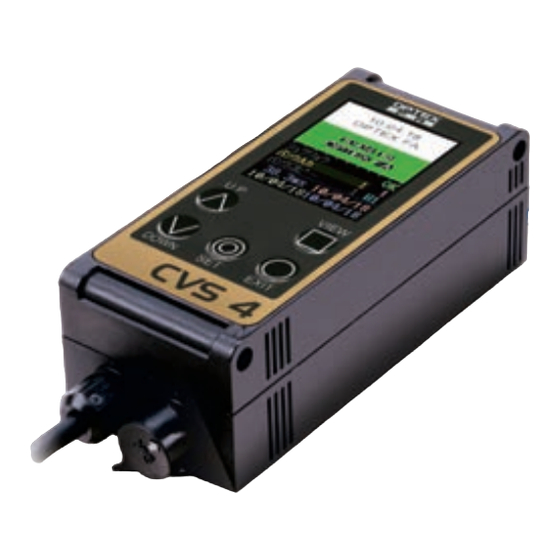

CVS4-□R
OCR Sensor
(Optical Character Recognition)
(Japanese/English)
Instruction Manual
zThank you for purchasing the CVS4 series OCR Sensor.
zBefore using this product, read this instruction manual thoroughly to ensure correct use.
zAfter reading this instruction manual, store it safely for future reference.
zThis device cannot be used as protective equipment for the purpose of protecting the human body.
zWhen exporting a device in which applicable Optex FA products are embedded to an EU nation*, the EU
Battery Directive applies even to embedded devices, so we ask that you provide the following support.
1) When exporting a product to an EU nation*, include the latest instruction manual of the Optex FA product.
If it is not possible to include the instruction manual of the Optex FA product, write the section <Symbol
mark explanation>, which is the final section in this manual, in the device's manual.
2) Even for devices (including those that have been discontinued) manufactured prior to the adoption
of the EU's new Battery Directive, 1) listed above must be complied with when exporting such
devices to an EU nation* as of September 26, 2008.
* The term EU nation includes Switzerland, Ireland, Norway, Liechtenstein, and Turkey in addition to the
member nations of the EU.
Contents
1.
What Is the OCR Sensor CVS4 Series? ............................................................................................P. 1
2.
Parameter Tree and Basic Operation ....................................................................................................1
3.
Specifications ......................................................................................................................................2
4.
I/O Circuit Diagram and Wiring ............................................................................................................2
5.
Dimensions ..........................................................................................................................................2
6.
Part Names and Functions ...................................................................................................................2
7.
Options and External Lighting Devices .................................................................................................2
8.
Bank Selection .....................................................................................................................................3
What is bank selection? .................................................................................................................3
Bank numbers and input signals ....................................................................................................3
Selecting the bank input line function with the parameter settings ................................................3
9.
Installation and Related Precautions ....................................................................................................3
Installation angle when using the built-in lighting ..........................................................................3
Character size and the distance to the characters ..........................................................................4
10. Details of the LCD and Operation .........................................................................................................4
11. Top Menu .............................................................................................................................................5
12. Using Setup to Configure Settings and Perform Teaching ...................................................................5
Setup flowchart ..............................................................................................................................5
Step 1: Settings before automatic teaching ....................................................................................6
Step 2: Automatic teaching ............................................................................................................6
Step 3: Format checking, correcting, and adding ...........................................................................7
Step 4: If OK: ..................................................................................................................................8
Step 5: Adjustment before semiautomatic teaching .......................................................................8
Step 6: Semiautomatic teaching .....................................................................................................8
Step 7: String editing .....................................................................................................................8
Step 8: If OK: ..................................................................................................................................9
Step 9: Adjustment after semiautomatic teaching ..........................................................................9
Date Tch (Date and character string teaching procedure) ..............................................................9
13. Parameter ............................................................................................................................................9
14. Date/Time ..........................................................................................................................................10
15. Expert Parameter ...............................................................................................................................11
16. Preventing Teaching and Setting Changes .........................................................................................12
17. Functions for Performing Operations by Combining Multiple Parameter Settings .............................12
One-shot timer .............................................................................................................................12
Speed change correction function ................................................................................................12
Character count judgment function ..............................................................................................12
Space recognition function ..........................................................................................................13
Continuous image capture function .............................................................................................13
Output shift function ....................................................................................................................13
Continuous trigger image capture function ..................................................................................13
Trigger delay function...................................................................................................................13
18. Connecting to a PC and Using the Communication Function .............................................................14
19. Troubleshooting .................................................................................................................................15
①Characters are incorrectly compared with dictionary or wrongly read .....................................15
②Wrong recognition in high speed of object ..............................................................................16
③Character is linked with the next character ...............................................................................16
④Judged as NG at the point at the date change ..........................................................................16
⑤Misrecognizes date when date is 1-digit ..................................................................................16
⑥NG judgment when verifying multiple lines string ....................................................................16
⑦String is not recognized as the specified date or time ..............................................................16
20. Version Information ...........................................................................................................................16
FAX Inquiry Sheet
Appendix
1. What Is the OCR Sensor CVS4 Series?
zThis is a sensor that can use its built-in OCR (Optical Character Reader) to read alphabet characters,
numeric values, and symbols. (Other characters cannot be read.)
Date marking (the time is also
Date + character string marking
possible)
(For example, best before dates and
(For example, best before dates)
manufacturing plant identification marks)
2006.03
06.03.14 / AB1
Readable characters/symbols
Characters/symbols that become readable after
registration in the expansion dictionary
* You can use [View NG Log] (see P.5) on the top menu to register NG characters in the expansion dictionary.
* To edit the expansion dictionary, you require the PC communication cable CVS-C2C (standard price: 10,000 yen). You have to
use the setup software (which can be downloaded free of charge from the Optex FA website: www.optex-fa.com).
zThe read characters are compared against the sensor's built-in dictionary data, and the closest characters
are selected. You can configure the sensor so that the judgment is OK if all the selected characters are
correct and NG if even one character does not match.
Correct marking:
OK
Marking mistake:
2006.03
2006.04
zThe judgment is OK if a small part of the character is missing such that the character can still be read by
the human eye.
Correct marking:
OK
Small part of the character missing:
2006.03
2006.03
zUpdating of date marking is also supported automatically.
The
built-in calendar function
automatically handles updates to the dates and times that are marked by a
printer. There is no need to reconfigure the settings each time that the printed details change.
Also, you can set the date tolerance, which makes it possible to prevent erroneous judgments from
occurring when the date changes.
Character string marking
(For example, lot numbers and part
numbers)
AA0054321
0 to 9, A to Z, ., /, :
!, #, $, %, &, (, ), *, +, ;, <, =, >, ?, @, [, \, ], ^, `, a to z, ˜
NG
Missing character:
NG
200 .03
OK
Large part of the character missing:
2006.03
2. Parameter Tree and Basic Operation
Top menu (For details, see P.5.)
Setup Flow
Parameter
Date/Time
ExpertParamtr
View NG Log
Calendar
Auto Teach
SemiautoTeach
Date Teach
String Editor
Dictnr Editor
Keypad of CVS4
How to select
parameters
Move from the top
menu to Setup
Flow.
(Enter/execute)
Move from Setup
Flow to the top
menu.
(Back)
↑↓
Move up and
down.
(Loops through the
selections)
If you forget which parameter you
are setting, press
to return to
the top menu.
Common setting to all
Yellow
banks
Purple
Individual setting on
each bank
Execute parameter
Green
NG
1
Setup Flow
Overview
Switch the language of the LCD between
Language
English and Japanese.
Select the character orientation between
Orienttn
normal, vertically inverted, and mirrored.
Wide
Change the field-of-view and mode.
Light
Switch the built-in lighting on/off.
Correct for uneven brightness on the left
Shading
and right of the screen.
Surface
Select whether the surface is white or black.
Enter the installation angle of the CVS4 in
Trapezid
relation to the object.
ShtrLimt
Enter the upper limit for the shutter speed.
Synchron
Select the trigger mode.
DateFrmt
Select the format from YMD, MDY, and DMY.
Auto Tch
Execute automatic teaching.
Format 1
Check, correct, and add formats (you can specify up to
Format 2
four) of the characters to capture. The format can be a
Format 3
date, time, or a character string such as a serial number.
Format 4
The settings are complete if an OK product results in an OK
If OK:
judgment and an NG product results in an NG judgment.
LightPwr
Adjust the brightness of the built-in lighting.
Shutter
Enter the shutter speed.
Luster
Adjust for the influence of the object luster.
Threshld
Adjust the contrast between the surface and the characters.
Make the judgment NG if there are no
DotCheck
dots within the characters.
Make the device recognize line feed
Check
characters (they are handled as dots).
Semiauto
Execute semiautomatic teaching.
String
Check and correct character strings such as serial numbers.
The settings are complete if an OK product results in an OK
If OK:
judgment and an NG product results in an NG judgment.
Bold
Adjust the characters to their optimum width.
Rotate
Adjust the rotation angle of the characters.
SlantOfs
Adjust the [Slant] central angle.
Slant
Adjust the slant of the characters.
Adjust the width of the characters that
CharWdth
you want to detect.
Make adjustments so that narrow "1" and "."
CharNarw
characters are detected.
CharHght
Adjust the character height.
Only teach the sensor the contents of
Date Tch
characters that should be recognized as OK.
The settings are complete if an OK product results in an OK
EXIT
judgment and an NG product results in an NG judgment.
Parameter
Overview
Bank
Set the bank selection method.
BankCopy
Copy the setting details to a different bank number.
Communic
Select the communication function and baud rate.
Initialz
Set all the settings to their factory default values.
LightOut
Controlling the external lighting.
Output if many times consecutive NG
NG Delay
judgments must occur.
OffDelay
Set the off-delay time in units of 1 ms.
On Delay
Set the on-delay time in units of 1 ms.
Set this to "ON" to turn the sensor on for the
One-shot
length of time specified by the off-delay time.
Set this parameter when the detection point is
OutSynDl
far from the rejection point.
Save NG
Set the storage method for NG images.
String +
Set the input for string addition.
Delay the time from the trigger timing to
SyncDely
the capturing of the image.
SyncFilt
Eliminate short noise from the trigger signal.
SyncPuls
Set the synchronous pulse.
Synchron
Select the trigger mode.
NG-I/O
Select the function of the NG line (red/black).
Out Sel
Select the line to use in output (OK line/NG line).
EXIT
Return to the top menu.
Date/Time
Overview
This is the difference in the number of days between
1-Date +
today's date and the date of the OK product.
Set the number of days before and after
1-Date ±
an OK date for judgment to still be OK.
This is the difference in the number of days between
2-Date +
today's date and the date of the OK product.
Set the number of days before and after
2-Date ±
an OK date for judgment to still be OK.
This is the difference in the number of minutes between
1-Time +
the current time and the time of the OK product.
Set the number of minutes before and after
1-Time ±
an OK time for judgment to still be OK.
This is the difference in the number of minutes between
2-Time +
the current time and the time of the OK product.
Set the number of minutes before and after
2-Time ±
an OK time for judgment to still be OK.
Format 1
Check and correct formats (you can specify up to four)
Format 2
of the characters to capture. The format can be a date,
Format 3
time, or a character string such as a serial number.
Format 4
Set this parameter when you want to perform
No.ofCHR
judgments according to the number of characters.
Set how many characters more or less
No.ofTOL
than the target amount will be OK.
Set this parameter when you select the
Max Strg
"STRG" format.
When capturing images of written-out month names, enter
MonthChr
the number of characters to use for these month names.
StrgLine
Set this parameter when you select the "STRG" format.
When years are expressed as Japanese eras,
YearOfst
enter the difference between these years and
years according to the western calendar.
EXIT
Return to the top menu.
ExpertParamtr
Overview
CharMrgn
Set how strictly to judge characters.
ChrSpace
Set the interval between characters.
This is the number of characters that have
ExpDctnr
been additionally registered to the dictionary.
Set the brightness of the CVS-LW1
ExtLgtPw
external lighting device.
ExtTeach
Select the teaching input mode.
Set the parameters that will not be
FixRtSlt
rewritten by teaching.
Limit the dates that are automatically
TchRange
added during teaching.
Set this to "OFF" when not using the
IntDctnr
built-in dictionary.
LCD View
Vertically invert the LCD or rotate it to the right.
Msk Left
Mask the left side of the screen.
MskRight
Mask the right side of the screen.
Msk Up
Mask the upper part of the screen.
Msk Down
Mask the lower part of the screen.
Set this parameter according to the
PrintSts
printing status.
Re-Scan
Skip over unrelated characters during reading.
When an NG judgment occurs, change the slant
Re-Slant
of the characters and perform reading again.
Enable/disable the splitting of characters
Sprt 123
from rows 1 to 3.
Enable/disable the splitting of characters
Sprt 456
from rows 4 to 6.
Judge dates and times that are a single
ZeroChck
digit as NG.
EXIT
Return to the top menu.
0801961 (1/9)
Details
P.6
P.6
P.6
P.6
P.6
P.6
P.6
P.6
P.6
P.6
P.6
P.7
P.8
P.8
P.8
P.8
P.8
P.8
P.8
P.8
P.9
P.9
P.9
P.9
P.9
P.9
P.9
P.9
Details
P.9
P.9
P.9
P.9
P.9
P.9
P.9
P.9
P.9
P.10
P.10
P.10
P.10
P.10
P.10
P.10
P.10
P.10
Details
P.10
P.10
P.10
P.10
P.10
P.10
P.11
P.11
P.11
P.11
P.11
P.11
P.11
P.11
P.11
Details
P.11
P.11
P.11
P.11
P.11
P.11
P.11
P.11
P.11
P.11
P.11
P.11
P.11
P.11
P.11
P.11
P.11
P.11
P.12

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CVS4-*R Series and is the answer not in the manual?

Questions and answers

Summary of Contents for OPTEX FA CVS4-*R Series

  • Page 1 Battery Directive applies even to embedded devices, so we ask that you provide the following support. Enter the installation angle of the CVS4 in String Editor 1) When exporting a product to an EU nation*, include the latest instruction manual of the Optex FA product. Trapezid relation to the object.
  • Page 2: Specifications

    1) For the PNP output type, the "N" after the hyphen is changed to a "P." ex.) CVS4-N23W-R → CVS4-P23W-R There are other special models in addition to the one shown above. For details, contact Optex FA. 2) The minimum detectable character height depends on the distance.
  • Page 3: What Is Bank Selection

    You can support 17 or more types of printed details by communicating with the PC to read/write settings. In this Contact Optex FA, and we will provide you with a proposal for the optimum lighting device to match your application.
  • Page 4: Details Of The Lcd And Operation

    [Character size and the distance to the characters] [Procedure for displaying and selecting the captured screen] 1 Ensure that the characters are displayed in their entirety in the field of view within the range of the sensor's Each time you press , the (top half of the) captured screen is switched.
  • Page 5: Using Setup To Configure Settings And Perform Teaching

    11. Top Menu 12. Using Setup to Configure Settings and Perform Teaching The settings and teaching of the CVS4 are organized in order from the top down with the items in the [Setup Top menu Flow] menu. Performing the operations in order prevents any settings from being forgotten or overlooked. [Setup Flow] For details, see the next section, "12.
  • Page 6: Step 2: Automatic Teaching

    [Things to check once more before starting setup] Surface Options: WHIT, BLAK 1. Have the I/O lines such as the power supply, trigger input, and OK/NG output been wired (see P.2)? Default setting: Select the color of the surface on which the characters are printed. Select "WHIT" if the WHIT surface color is white or a color that is lighter than the characters.
  • Page 7 The encrypted character settings are edited from a PC, so purchase the PC I/F cable CVS-C2C (sold separately). You can also format could not be found. download the setup software (P.13) free of charge from the Optex FA website. (http://www.optex-fa.com) [Countermeasures] *7 Use [String] (P.8) to specify a command and read the interpreted result as the date.
  • Page 8: Step 5: Adjustment Before Semiautomatic Teaching

    Important [Step 4: If OK:] [Step 6: Semiautomatic teaching] If the read characters are a date such as "2006.11" or "06.11.01," capturing images of correct printed characters results If you have followed the instructions under [Step 3: Format checking, correcting, and adding] on P.7 to enter in an OK judgment, and capturing images of NG printed characters results in an NG judgment, the setup is complete.
  • Page 9: Step 9: Adjustment After Semiautomatic Teaching

    13. Parameter [Step 8: If OK:] If capturing images of correct printed characters results in an OK judgment and capturing images of NG Configure the I/O settings, such as setting the one-shot timer and setting whether to save NG screens. printed characters results in an NG judgment, the settings and teaching are complete.
  • Page 10 OutSynDl Synchron Setting range: 0 to 15 (Unit: Number of times) The [Synchron] parameter on the [Setup Flow] menu can also be set here. For details, see Default setting: 0 This parameter delays the timing with which the OK/NG output is turned on by the P.6.
  • Page 11 2-Time + ExtTeach Setting range: -999 to 1439 (unit: minutes) Options: Default setting: 0 This is the setting of the second time. Default setting: SEMI, AUTO, DATE, NSTR, SA M, AT M, DT M, NS M Can be configured Set the difference in the number of minutes. That is, set how many minutes after the SEMI Set the teaching mode when the bank selection 2 input line (pink) is used as the teaching for each bank...
  • Page 12: One-Shot Timer

    [Character count judgment function] ZeroChck Setting range: --- to 123, ×0 zIf there are many NG judgments due to the image capture conditions being poor and characters being read Default setting: --- This function judges month, day, hour, and minute numeric values as NG if they are a Can be configured single digit.
  • Page 13: Output Shift Function

    [Space recognition function] [Trigger delay function] zWhen months and days are printed with one digit, a character existing to the right of the month or day zThe CVS4 is installed so that it captures images at the instant that the synchronous sensor detects the (even if there is a space separating the characters) may lead to the month or day being read and object.
  • Page 14 If you use the optional PC I/F cable "CVS-C2C" to connect to a PC, you can output the read characters in ASCII code. Also, if you download the setup software (free of charge) from the Optex FA website, "www.optex-fa.com," you can use a variety of functions that are only available with communication.
  • Page 15: Troubleshooting

    Images are blurred. You can download the expansion dictionary registration software (P.13) free of charge from the Optex FA website. http://www.optex-fa.com Solution You can keep the current reading result display and return to the top menu. For example, on the [1T] display, (1-8) When not focused correctly, the feature of character becomes blurred.
  • Page 16: Version Information

    ②Wrong recognition in high speed of object ③Character is linked with the next character The slant correction is insufficient as the object moves in higher speed than in The situation that the character is linked with the next character occurs in teaching.
  • Page 17 If OK objects and NG objects are not judged correctly even after you perform teaching and configure the settings as explained in this instruction manual, fill out the required sections shown below, and then contact us by FAX. Date: OPTEX FA CO., LTD.  Headquarters: +81-75-325-2921 Headquarters...
  • Page 18 To protect the environment, we ask for your cooperation in this matter. For China RoHS, please refer to “http://www.optex-fa.com/rohs_cn/”. OPTEX FA CO., LTD. Headquarters 91 Chudoji-Awata-cho Shimogyo-ku Kyoto 600-8815 JAPAN TEL +81-75-325-1314...

Table of Contents
