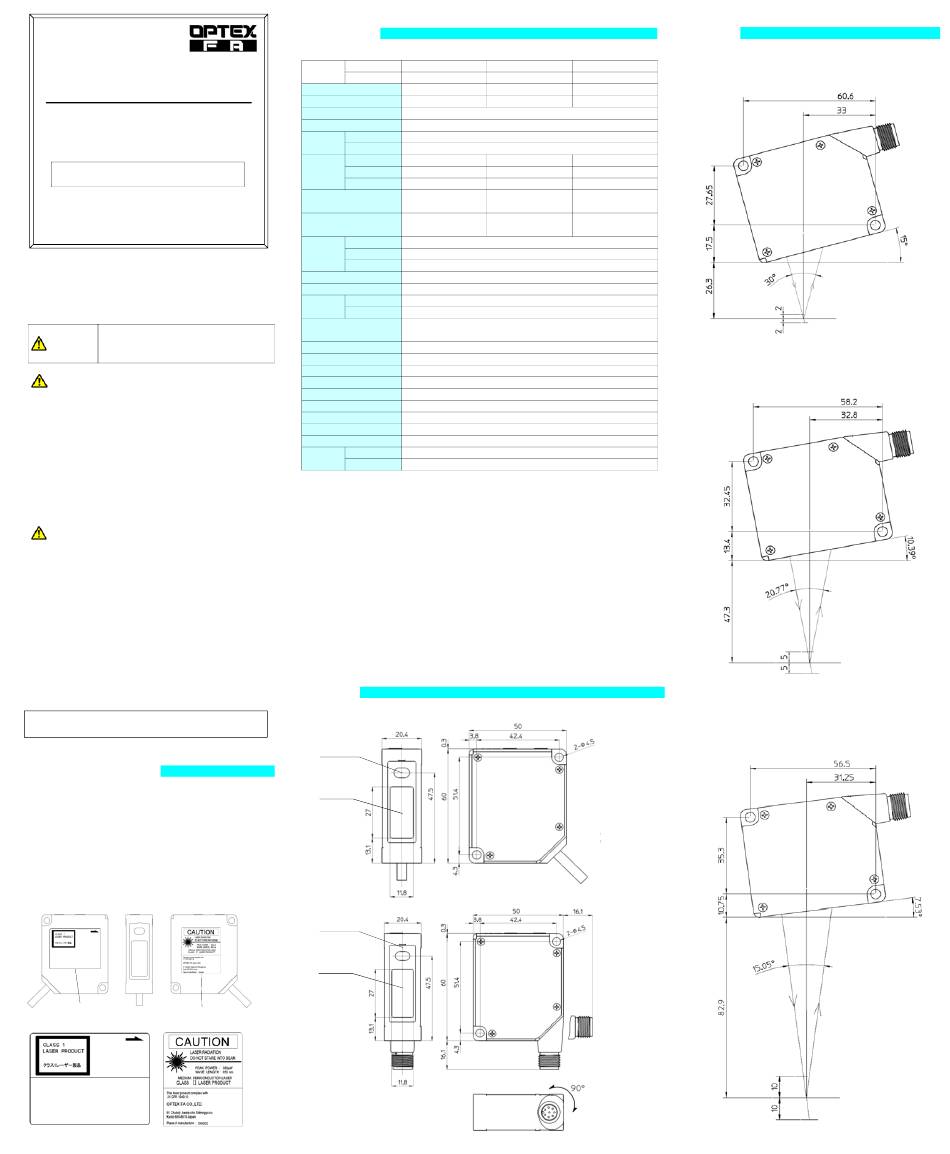

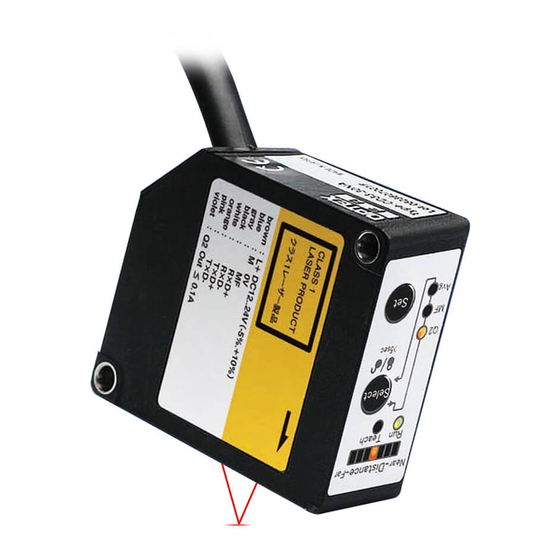

OPTEX FA CD33-L Series Instruction Manual

Displacement Sensor
Specular
CD33-L SERIES
Laser type
CD33-L30□□
CD33-L50□□
INSTRUCTION MANUAL
● Confirm if the item meets your needs.
● Before the use, you should first thoroughly read this
manual and operate correctly as mentioned.
● You should keep this manual at hand for proper use.
Carefully read and understand the safety precautions before operation. The
important information is provided to protect your health and property. Do
not apply any other installing or operating procedure other than that
Meanings of Safety Symbol
Indicates a possible hazard that may result in death,
serious injury, WARNINGS or serious property damage
WARNING if the product is used without observing the stated
instructions.
WARNING Mandatory Requirements
● The light source of this product applies the visible light semiconductor
laser. Do not allow the laser beam to enter an eye, either directly or
reflected from reflective object. If the laser beam enters an eye, it may
cause blindness.
● Do not disassemble or modify the product since it is not designed to
automatically stop the laser emission when open. Disassembling or
modifying at customer's end it may cause personal injury, fire or electric
shock.
● This product is not an explosion proof construction. Do not use the
product under flammable , explosive gas or liquid environment.
● Use of controls or adjustments or performance of procedures other
than those specified herein may result in hazardous radiation exposure.
WARNING Safety Precautions
● It is dangerous to wire or attach/remove the connector with the power
on. Make sure to turn off the power before operation.
●Installing in the following places may result in malfunction:
1. A dusty or steamy place
2. A place generating corrosive gas
3. A place directly receiving scattering water or oil.
4. A place suffered from heavy vibration or impact.
●The product is not designed for outdoor use.
●Do not use the sensor in a transient state at power on（Approx. 15min.
Warm up period）
●Do not wire with the high voltage cable or the power lines.
Failure to do this will cause malfunction by induction or damage.
●Do not use the product in water.
●Operate within the rated range.
● Wipe off dirt on the emitting/receiving parts to maintain correct
detection. Also, avoid direct impact on the product.
●This product cannot be used as a safety device to
protect human body.
Precautions for using laser
■Laser label
This product is classified as Class 1 by JIS C6802/IEC and ClassⅡ
by FDA Laser Product Laser Safety Standard.
●Regulations in the USA
When exporting laser devices to the USA, the USA laser control, FDA
(Food and Drug Administration) is applied. This product has been already
reported to CDRH (Center for Devices and Radiological Health). For
details, contact our customer service.
Label-A Label-B
Ramco Innovations
Label-A
Specifications
●Specifications of Measuring Range
Cable type
Type
Connector type
Center
Measuring ｒange
Light source
Peak power
IEC/JIS
Laser Class
FDA
Spot size Near
(approx.
Middle
volume)
Far
*1
Linearity *2
Resolution *3
Fast
Response
Standard
time
High resolution
Sampling period
Temperature Drift
Distance Indicator
Indicators
Output Indicator
MF (multi functional) input
Circuit protection
Protection Category
Operating temp./humidity
Storage temp./humidity
Ambient Light
Vibration resistance
Shock resistance
Warm up period
Material
Cable type
Weight
Connector type
*1 Defined with center strength 1/e2(13.5％ ). There may be leak light other than the specified spot size.
The sensor may be damaged when there is a highly reflective object around the targets.
*2 Averaging: 64(High resolution), Sampling period:500μs, Object: white ceramic.
*3 Middle of measuring range, Object: white ceramic.
*4 Diameter of min bend cable is 40mm.
Dimension
Beam emitting
axis
Beam receiving
area
Beam emitting
axis
Beam receiving
area
Label-B
CD33-L30N(P) CD33-L50N(P) CD33-L85N(P)
CD33-L30CN(P) CD33-L50CN(P) CD33-L85CN(P)
26.3mm 47.3mm
±2mm ±5mm
Red laser Diode (wave length 655nm)
Max. output 390μW
CLASS1
CLASSⅡ
0.15×0.15mm 0.15×0.15mm 0.15×0.15mm
0.1×0.1mm 0.1×0.1mm
0.15×0.15mm 0.15×0.15mm 0.15×0.15mm
±0.2% F.S. ±0.2% F.S.
(F.S.=4mm) (F.S.=10mm)
1μm 2.5μm
averaging: 1 time 5ms max.
averaging: 16 times 12.5ms max.
averaging: 64 times 36.5ms max.
500 /1000 /1500 /2000μs
±0.08% F.S./℃
Bar graph LED
ON status : Orange
Laser off、Remote teaching､Sample Hold (choose one function)
Response time ：3ms max.
Reverse polarity､Over current
IP67
-10～+45℃/35～85%RH (No condensation or freezing)
-20～+60℃/35～95%RH (No condensation or freezing)
Sun light: 10,000 lx max. / Incandescent lamp: 3,000 lx max.
10 to 55 Hz, Double amplitude 1.5 mm, 2 h for XYZ axes
50G (500m/s2)
15min max.
PBT (Case) PMMA (Front window)
Approx. 65g (without cable)
Approx. 70g
φ5-2mCable
RS422
M12 8pin connector
Phone 800-280-6933
Installation
Install the sensor and adjust the light spot onto the measuring point so that the
distance indicator turns ON ( orange ) at the middle of measuring range.
Use M4 screw (tightening torque need to be under 0.8N･m).
82.9mm
±10mm
CD33-L30
0.1×0.1mm
±0.2% F.S.
(F.S.=20mm)
5μm
CD33-L50
CD33-L85
：8core
www.optex-ramco.com
Middle of measuring range
Middle of measuring range
Middle of measuring range
（unit：mm）
