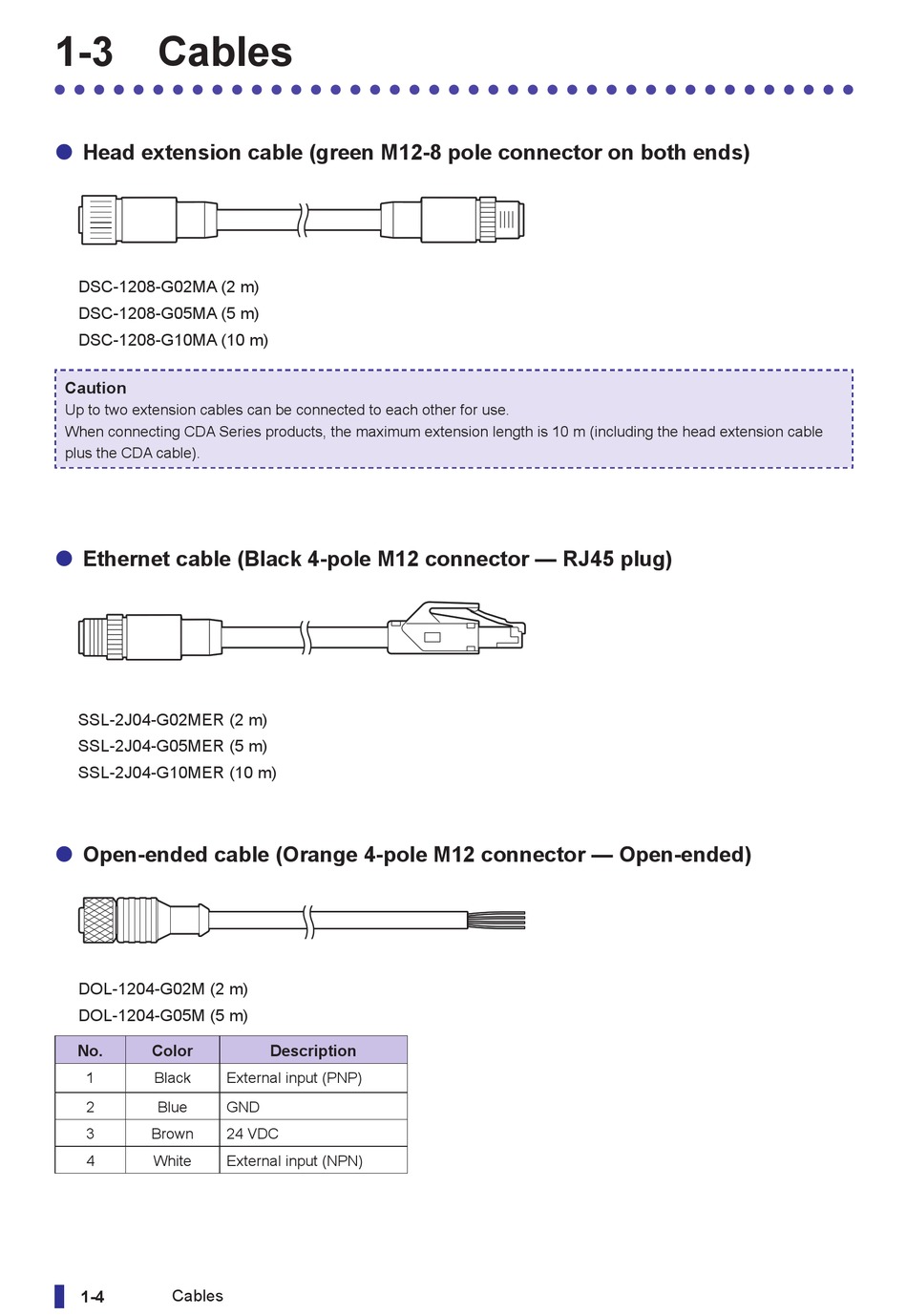

1-3 Cables

Head extension cable (green M12-8 pole connector on both ends)
z
DSC-1208-G02MA (2 m)
DSC-1208-G05MA (5 m)
DSC-1208-G10MA (10 m)
Caution
Up to two extension cables can be connected to each other for use.
When connecting CDA Series products, the maximum extension length is 10 m (including the head extension cable
plus the CDA cable).
Ethernet cable (Black 4-pole M12 connector — RJ45 plug)
z
SSL-2J04-G02MER (2 m)
SSL-2J04-G05MER (5 m)
SSL-2J04-G10MER (10 m)
Open-ended cable (Orange 4-pole M12 connector — Open-ended)
z
DOL-1204-G02M (2 m)
DOL-1204-G05M (5 m)
No. Color
1 Black
2 Blue
3 Brown
4 White
Cables
1-4
Description
External input (PNP)
GND
24 VDC
External input (NPN)
