2-6-15 Alarm delay

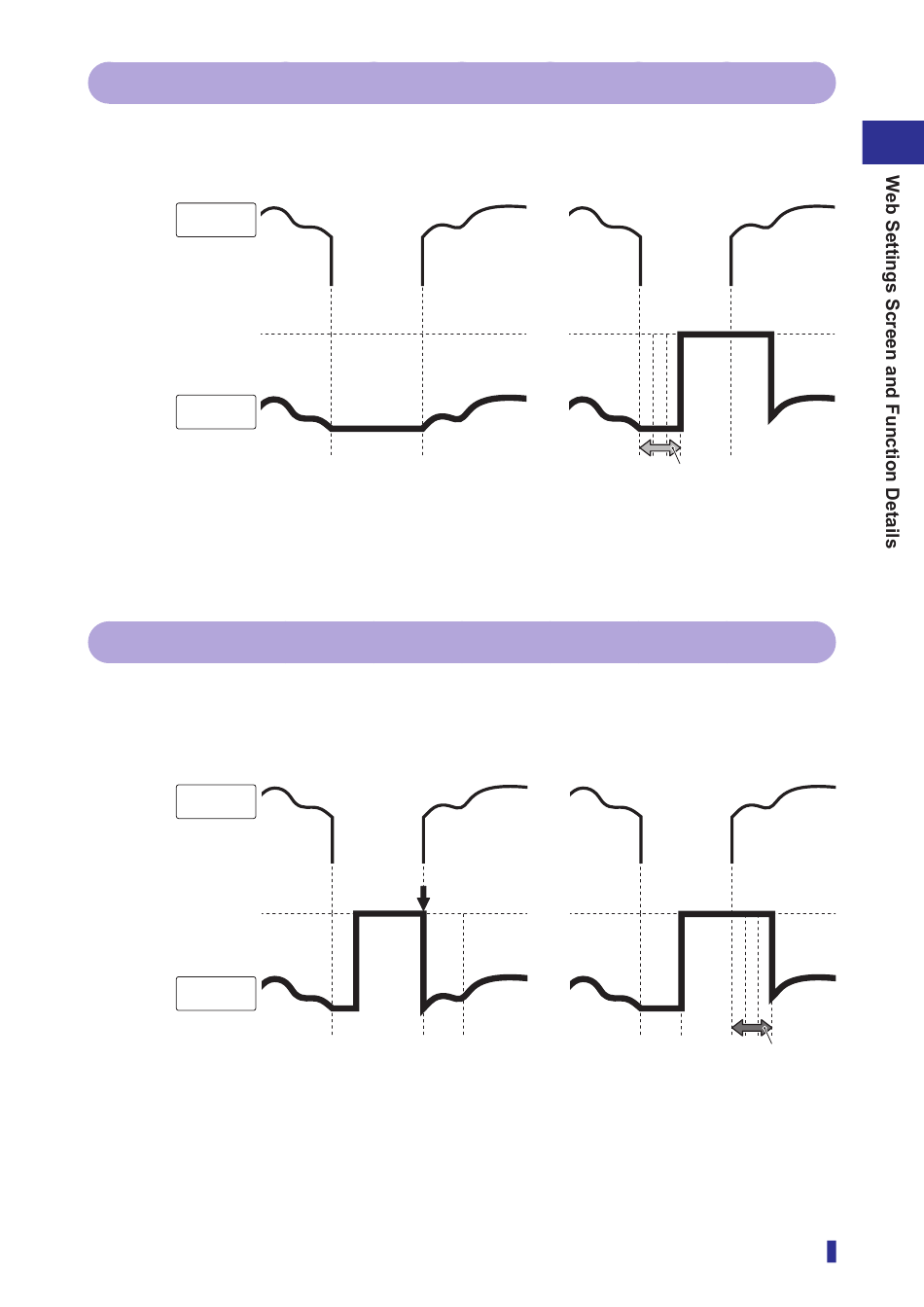

When "Delay Clamp" is set under "Alarm," the "Hold" period is set by the number of samplings.
Actual
displacement
Clamp value
Measurement
results
• Input range: 0 to 4095 (Number of samplings)
• Default value: 0 (Number of samplings)
2-6-16 Alarm recovery
When "Delay Clamp" is set under "Alarm," the period from the "Alarm" state until the status returns to a
measurable state is set by the number of samplings.
Actual
displacement
Clamp value
Measurement
results
• Input range: 0 to 4095 (Number of samplings)
• Default value: 0 (Number of samplings)
Alarm hold count: 0
Number of alarm recovery: 0
Alarm hold count: 3
Clamp value
3
Number of alarm recovery: 3
Clamp value
I/O Setting Screen
1
2
3
