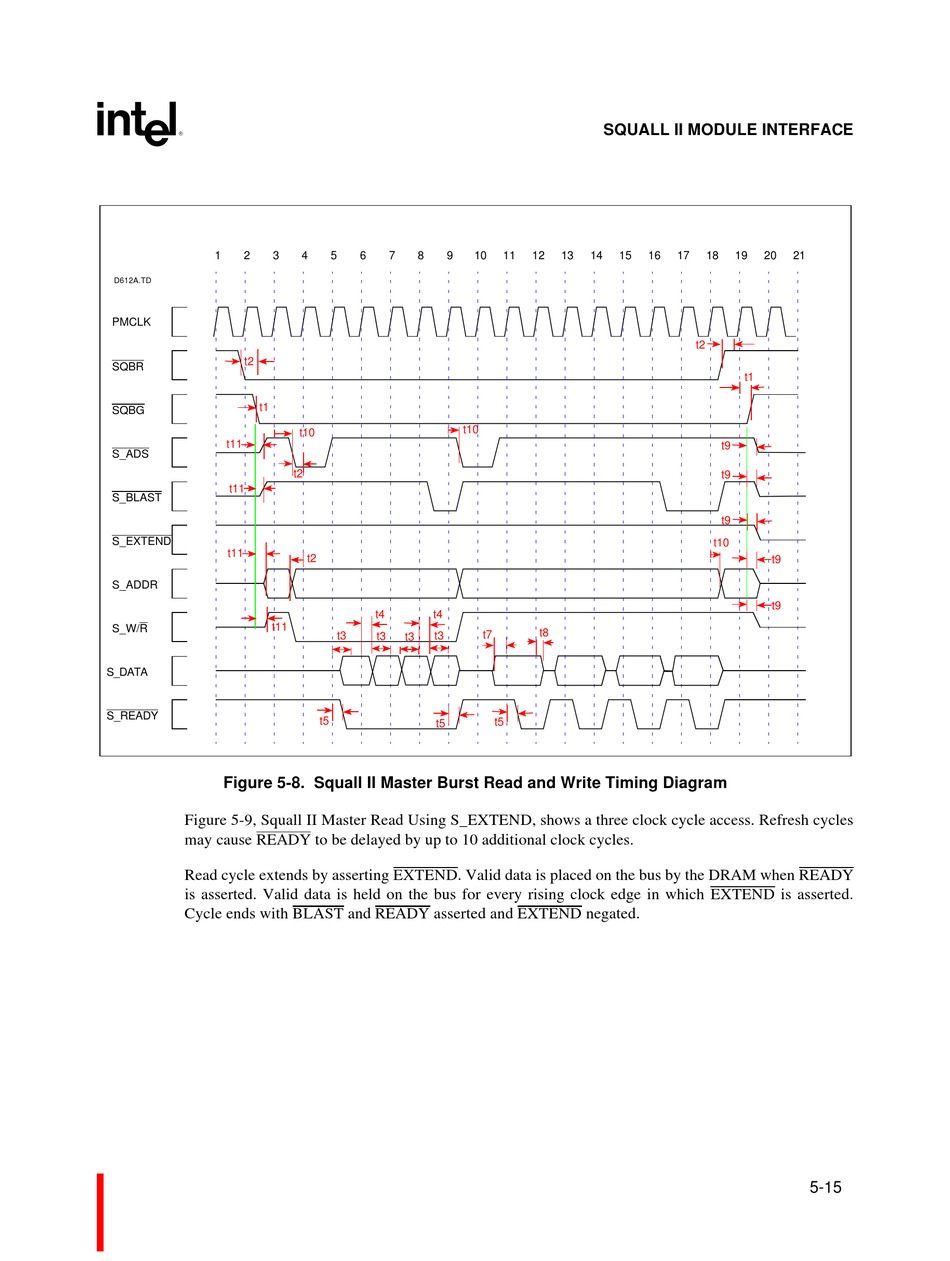

Figure 5-8. Squall II Master Burst Read and Write Timing Diagram
Figure 5-9, Squall II Master Read Using S_EXTEND, shows a three clock cycle access. Refresh cycles
may cause READY to be delayed by up to 10 additional clock cycles.
Read cycle extends by asserting EXTEND. Valid data is placed on the bus by the DRAM when READY
is asserted. Valid data is held on the bus for every rising clock edge in which EXTEND is asserted.
Cycle ends with BLAST and READY asserted and EXTEND negated.
