PARTS LIST

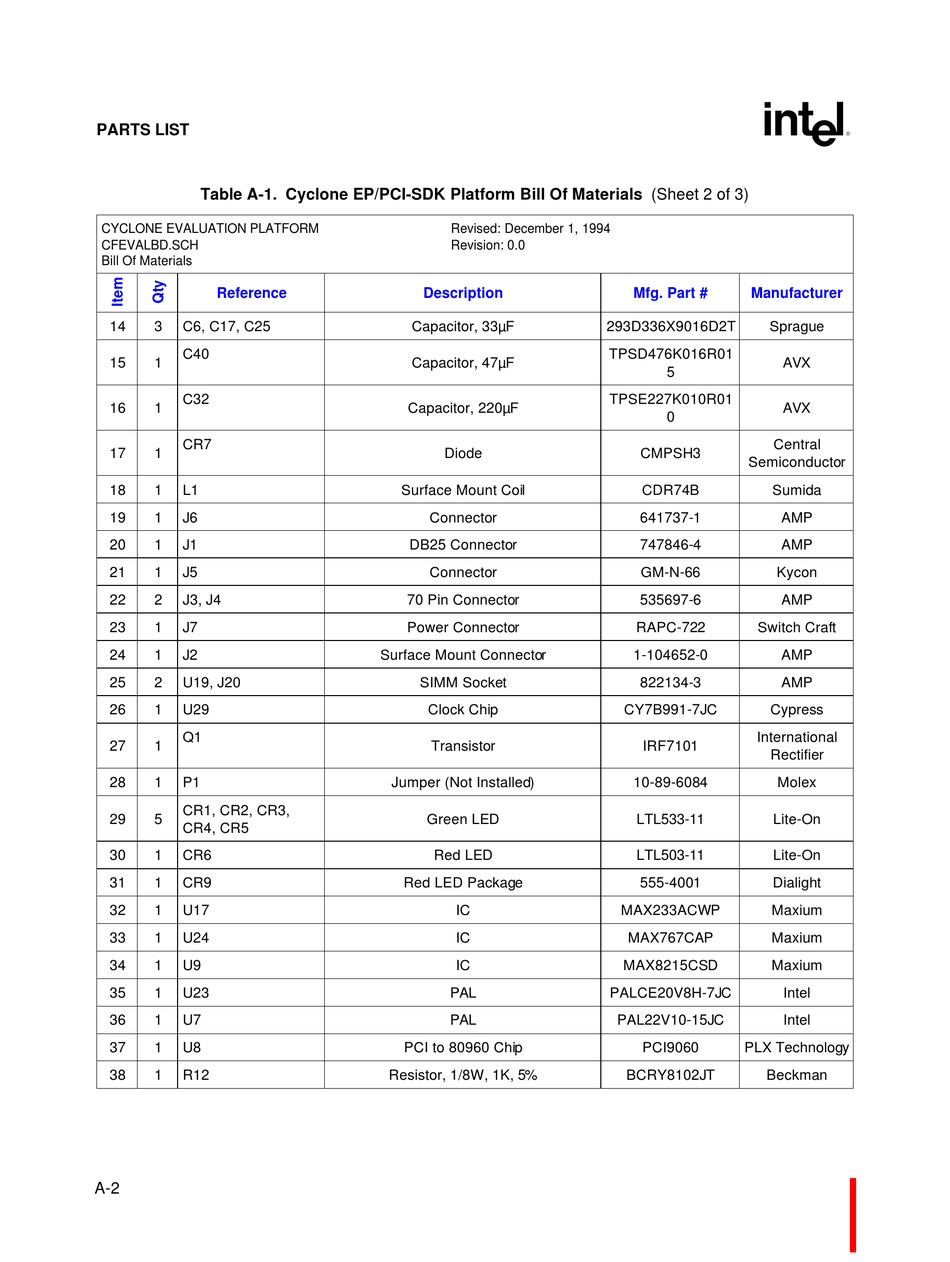

Table A-1. Cyclone EP/PCI-SDK Platform Bill Of Materials (Sheet 2 of 3)
CYCLONE EVALUATION PLATFORM
CFEVALBD.SCH
Bill Of Materials
Reference
14
3
C6, C17, C25
C40
15
1
C32
16
1
CR7
17
1
18
1
L1
19
1
J6
20
1
J1
21
1
J5
22
2
J3, J4
23
1
J7
24
1
J2
25
2
U19, J20
26
1
U29
Q1
27
1
28
1
P1
CR1, CR2, CR3,
29
5
CR4, CR5
30
1
CR6
31
1
CR9
32
1
U17
33
1
U24
34
1
U9
35
1
U23
36
1
U7
37
1
U8
38
1
R12
A-2
Revised: December 1, 1994
Revision: 0.0
Description
Capacitor, 33µF
Capacitor, 47µF
Capacitor, 220µF
Diode
Surface Mount Coil
Connector
DB25 Connector
Connector
70 Pin Connector
Power Connector
Surface Mount Connector
SIMM Socket
Clock Chip
Transistor
Jumper (Not Installed)
Green LED
Red LED
Red LED Package
IC
IC
IC
PAL
PAL
PCI to 80960 Chip
Resistor, 1/8W, 1K, 5%
Mfg. Part #
Manufacturer
293D336X9016D2T
Sprague
TPSD476K016R01
AVX
5
TPSE227K010R01
AVX
0
Central
CMPSH3
Semiconductor
CDR74B
Sumida
641737-1
AMP
747846-4
AMP
GM-N-66
Kycon
535697-6
AMP
RAPC-722
Switch Craft
1-104652-0
AMP
822134-3
AMP
CY7B991-7JC
Cypress
International
IRF7101
Rectifier
10-89-6084
Molex
LTL533-11
Lite-On
LTL503-11
Lite-On
555-4001
Dialight
MAX233ACWP
Maxium
MAX767CAP
Maxium
MAX8215CSD
Maxium
PALCE20V8H-7JC
Intel
PAL22V10-15JC
Intel
PCI9060
PLX Technology
BCRY8102JT
Beckman
