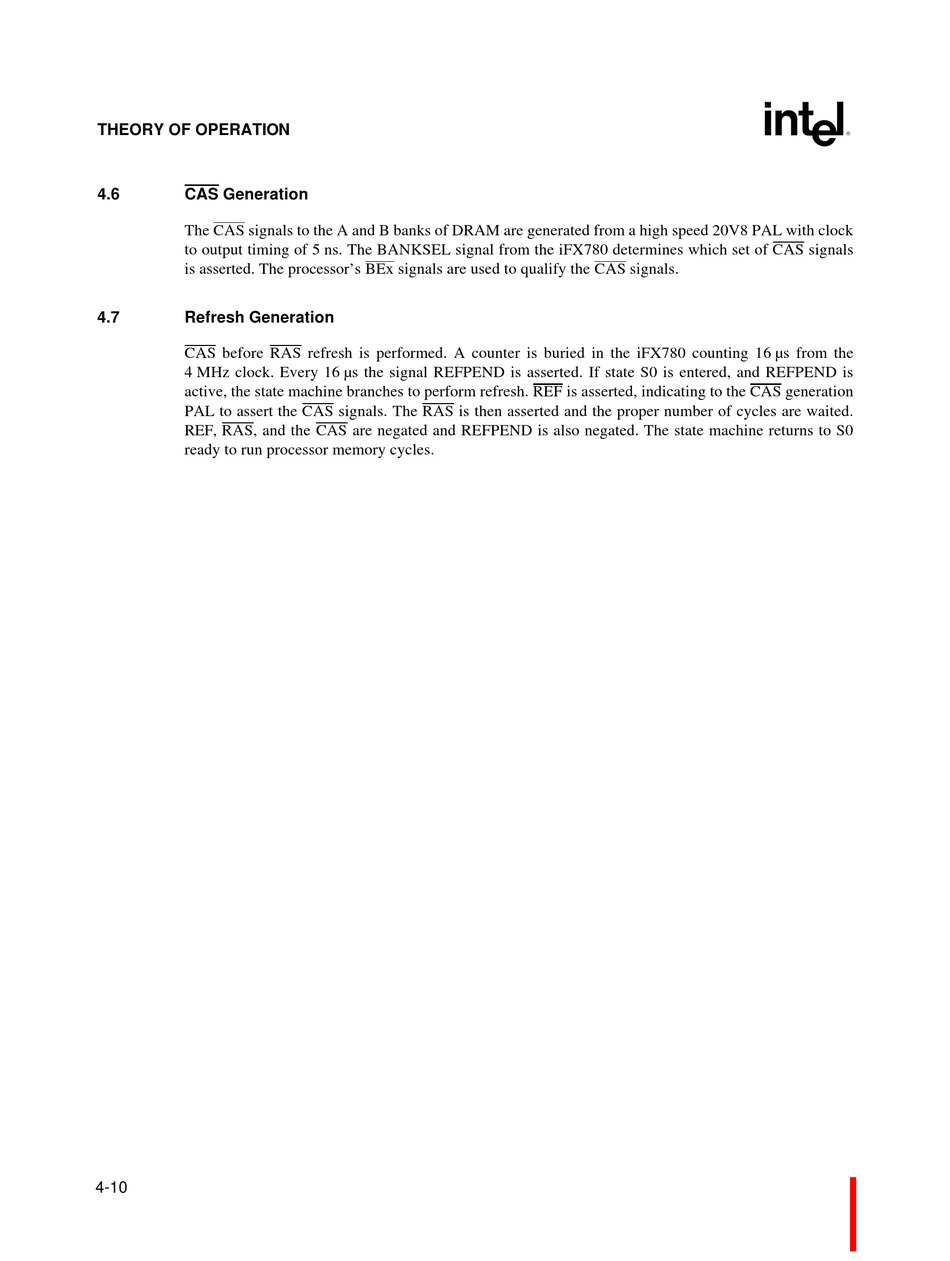

THEORY OF OPERATION

4.6

CAS Generation

The CAS signals to the A and B banks of DRAM are generated from a high speed 20V8 PAL with clock

to output timing of 5 ns. The BANKSEL signal from the iFX780 determines which set of CAS signals

is asserted. The processor's BEx signals are used to qualify the CAS signals.

4.7

CAS before RAS refresh is performed. A counter is buried in the iFX780 counting 16 µs from the

4 MHz clock. Every 16 µs the signal REFPEND is asserted. If state S0 is entered, and REFPEND is

active, the state machine branches to perform refresh. REF is asserted, indicating to the CAS generation

PAL to assert the CAS signals. The RAS is then asserted and the proper number of cycles are waited.

REF, RAS, and the CAS are negated and REFPEND is also negated. The state machine returns to S0

ready to run processor memory cycles.

4-10
