Frame Offset Setting - SWF Dual Function E Series User Manual

5.9.5 Frame offset setting

It enables you to set the design start/end positions and offset points for convenient embroidery. Press Frame Offset

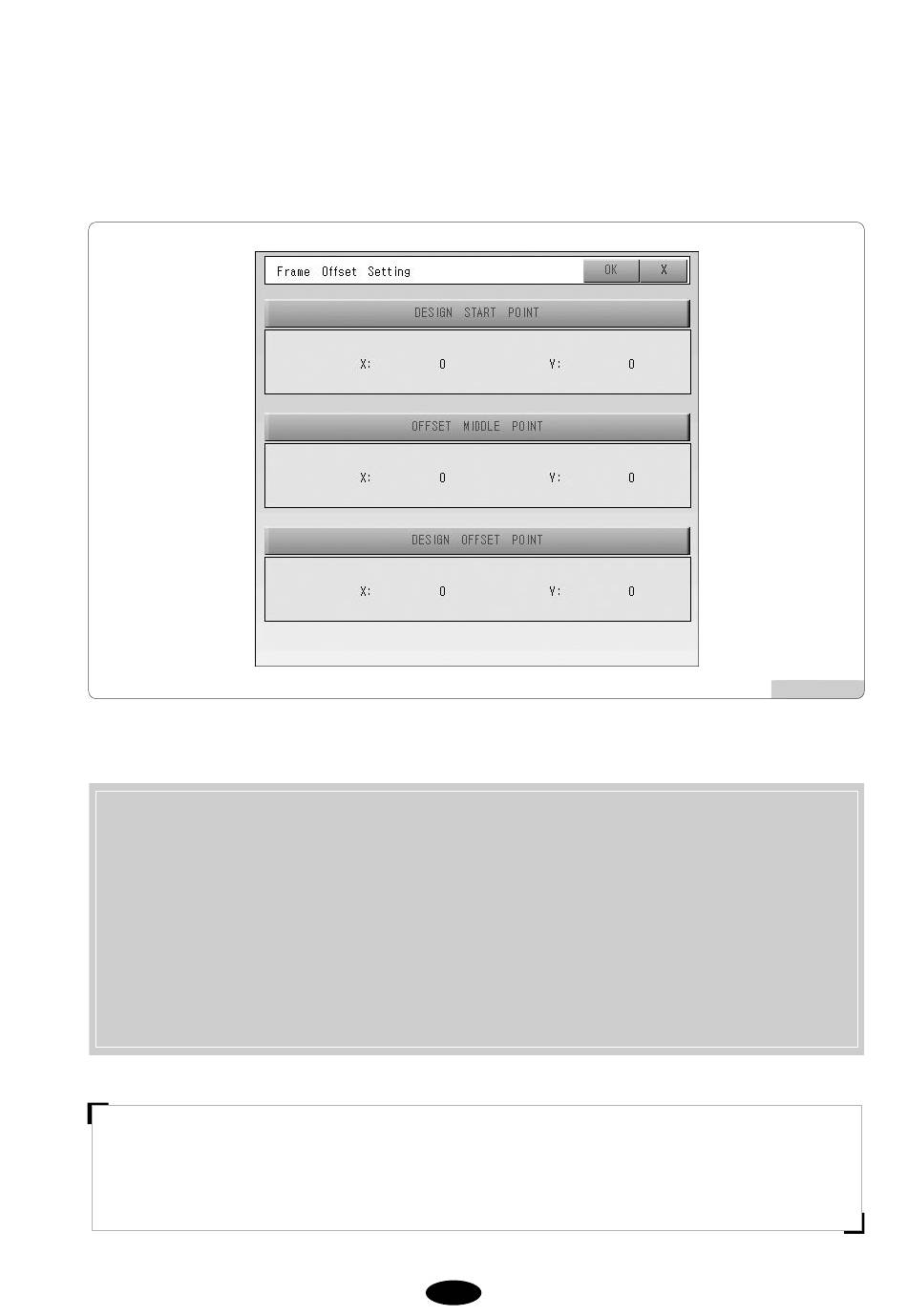

Setting in the setting menu and you will see [Fig.5.9.5-1].
Sub menus of the frame offset are as follows:
① DESIGN START POINT : you can set the start position of the design. The frame will automatically move to
② OFFSET MIDDLE POINT : you can set a middle position between the start and the end position of the design
③ DESIGN OFFSET POINT : you can set the frame end position or offset frame position of the design. This
[CAUTION]
1. Make sure to select YES of the Offset Function in the basic setting menu. Otherwise the offset positions
you set will not apply to your embroidery.
2. The frame will not be able to find the offset points if the frame origin point is incorrect.
the start position from wherever it is before the embroidery to start the work.
so as to prevent the problems such as the needle bar touching the embroidery
material. If you don't need this function, enter the same value as either of the start
or the end position.
function is useful for applique work, frame change, etc.
5 5 - - 5 5 0 0
[Fig.5.9.5-1]
